Toyota Hiace Truck

1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

27 part groups · 5 illustrations

Illustrations

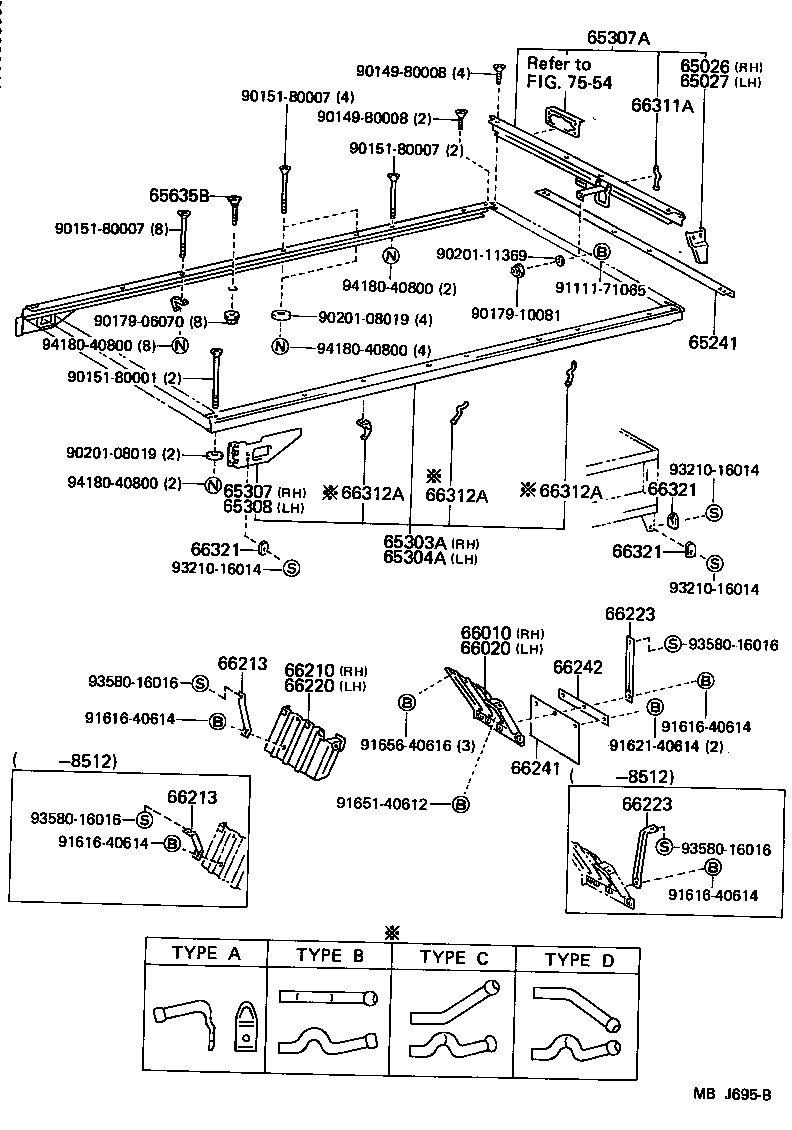

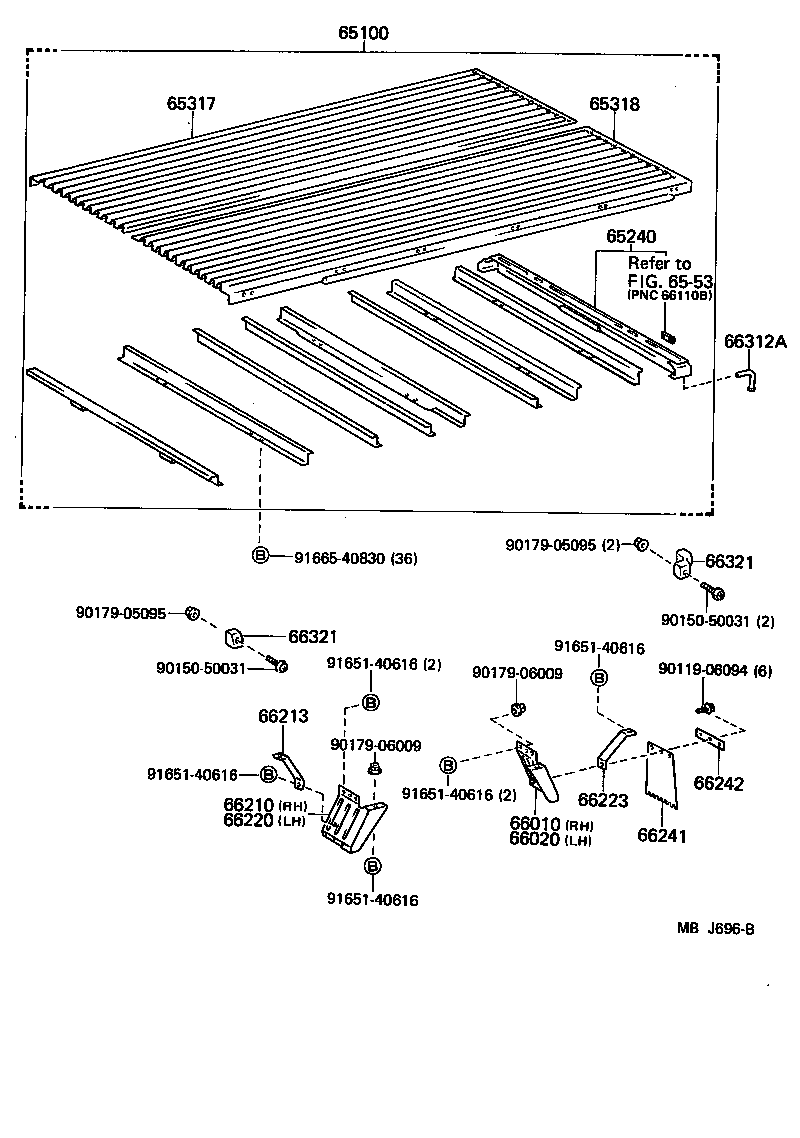

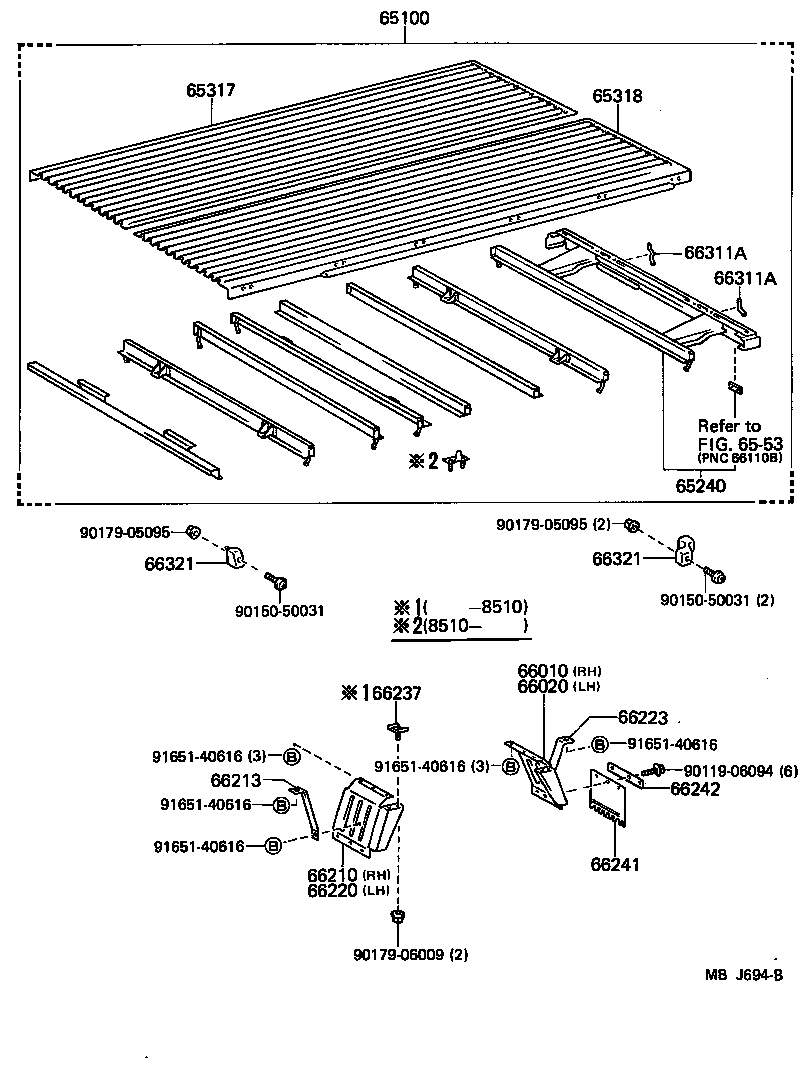

Figure MBJ693A MBJ693A 1985-08 → — Figure MBJ694B MBJ694B 1985-08 → — Figure MBJ695B MBJ695B 1985-08 → — Figure MBJ696B MBJ696B 1985-08 → — Figure MBJ697A MBJ697A 1985-08 → —

Part groups

PNCDescription
64311A Protector, Fuel Inlet
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65240 Crossmember, Rear Body Floor, Tail
65241 Sill, Rear Cross
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307 Bracket Sub-assy, Guad Frame, RH
65307A Frame Sub-assy, Floor, Rear
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65635B Bolt, Counter Sunk Head Square Neck
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66237 Bracket, Rear Fender, NO.1
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66311A Hook, Rope, NO.1
66312A Hook, Rope, NO.2
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
