Toyota Hiace Truck
1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan
Discontinued model
Data version 1988-01
Seat & Seat Track

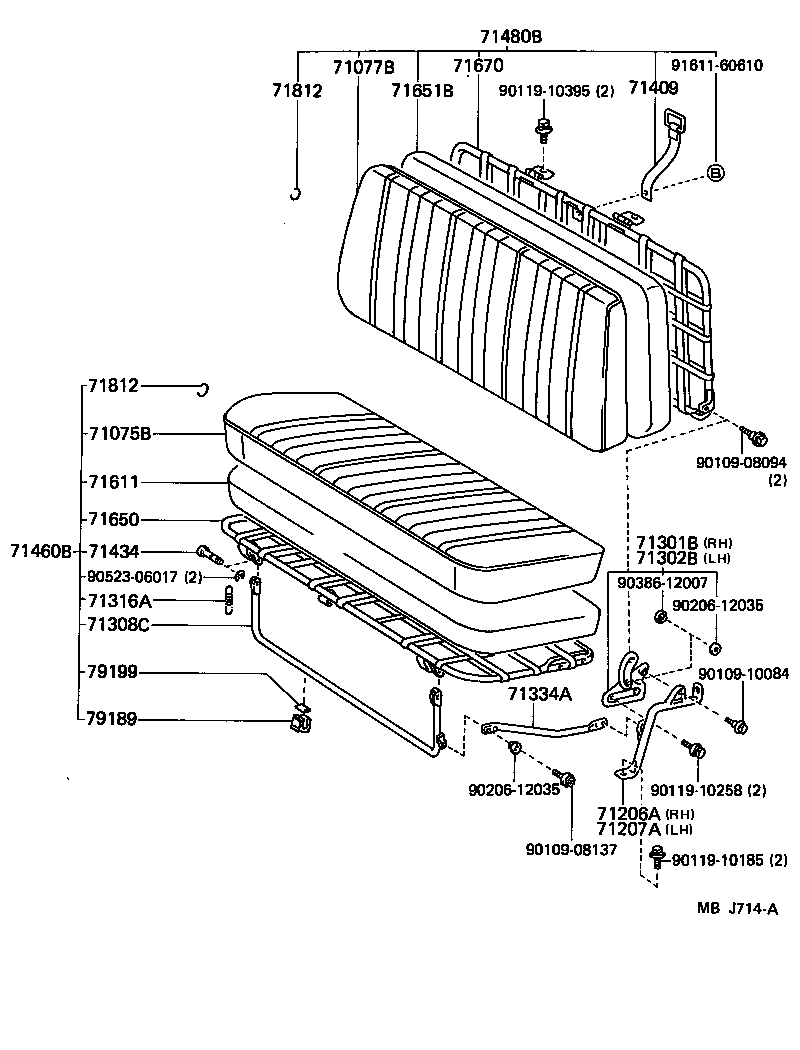

48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 70012B | Band, Engine Service Hole Cover Support |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71206A | Bracket Sub-assy, Rear Seat Stopper, RH |
| 71207A | Bracket Sub-assy, Rear Seat Stopper, LH |
| 71301B | Hinge Sub-assy, Rear NO.1 Seat, RH |
| 71302B | Hinge Sub-assy, Rear NO.1 Seat, LH |
| 71308C | Leg Sub-assy, Rear Seat, Front |
| 71316A | Spring, Torsion, NO.1 |
| 71319A | Striker, Front Seatback |
| 71334A | Stopper, Rear Seat Leg |
| 71373B | Cover, Front Seatback Lock |
| 71409 | Stopper Sub-assy, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71434 | Pin, Rear Seat Cushion Leg, Rear |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71709B | Cushion Sub-assy, Seat Support |
| 71787 | Band, Front Seatback Pocket |
| 71791A | Retainer, Front Seatback Pocket |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71815A | Cover, Front Seat Cushion Hinge, RH |
| 71950 | Headrest Assy, Front Seat |
| 72090 | Lock Assy, Front Seatback |
| 72110S | Track Assy, RH Seat, Outer (FOR SEPARATE SEAT) |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72524 | Handle, Reclining Adjuster Release |
| 79189 | Stopper, NO.1 Seat Leg |
| 79199 | Holder, NO.1 Seat Leg Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
