Toyota Hiace Truck
1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan
Discontinued model
Data version 1988-01

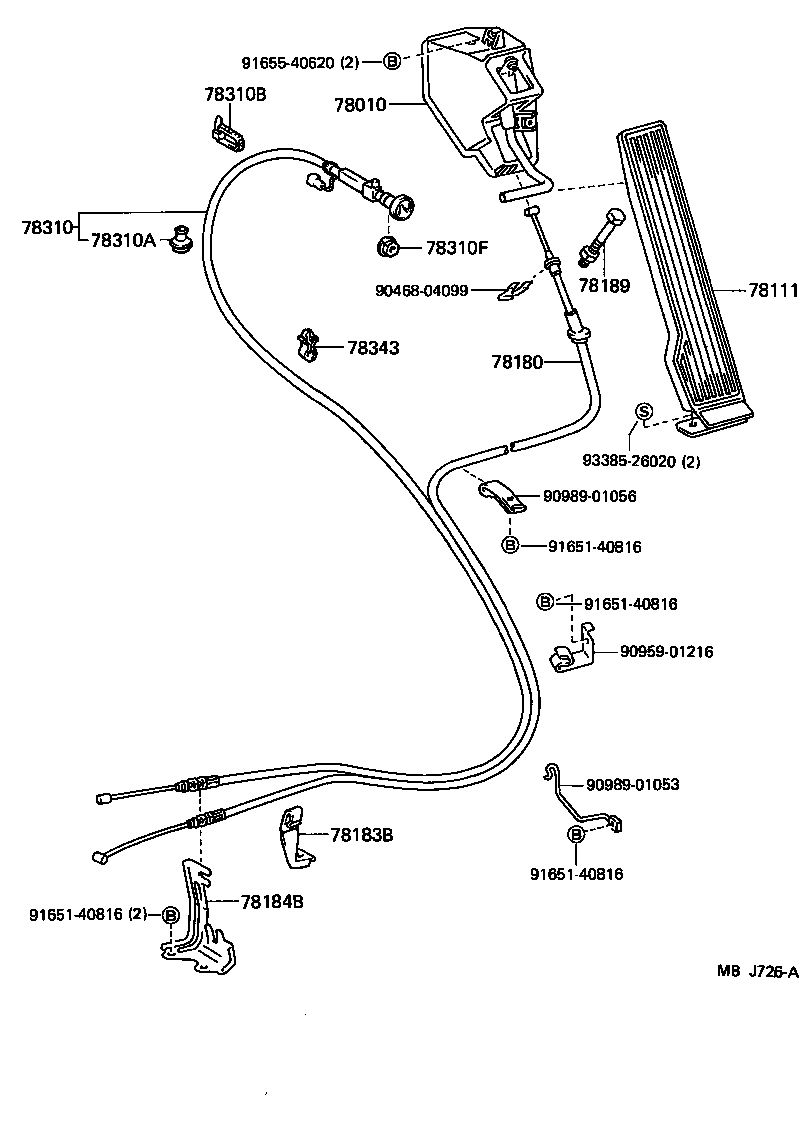

Accelerator Link
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78109A | Bracket Sub-assy, Accelerator Wire Clamp |
| 78111 | Pedal, Accelerator |
| 78180 | Wire Assy, Accelerator |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78310 | Cable Assy, Choke |
| 78310A | Grommet, Choke Cable |
| 78310B | Clamp, Choke Cable |
| 78310F | Nut, Choke |
| 78343 | Bracket, Choke Rod |
| 78403 | Cable Sub-assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
| 78410D | Nut, Throttle |
| 78410E | Clamp, Throttle Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
