Toyota Hiace Truck

1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 4 illustrations

Illustrations

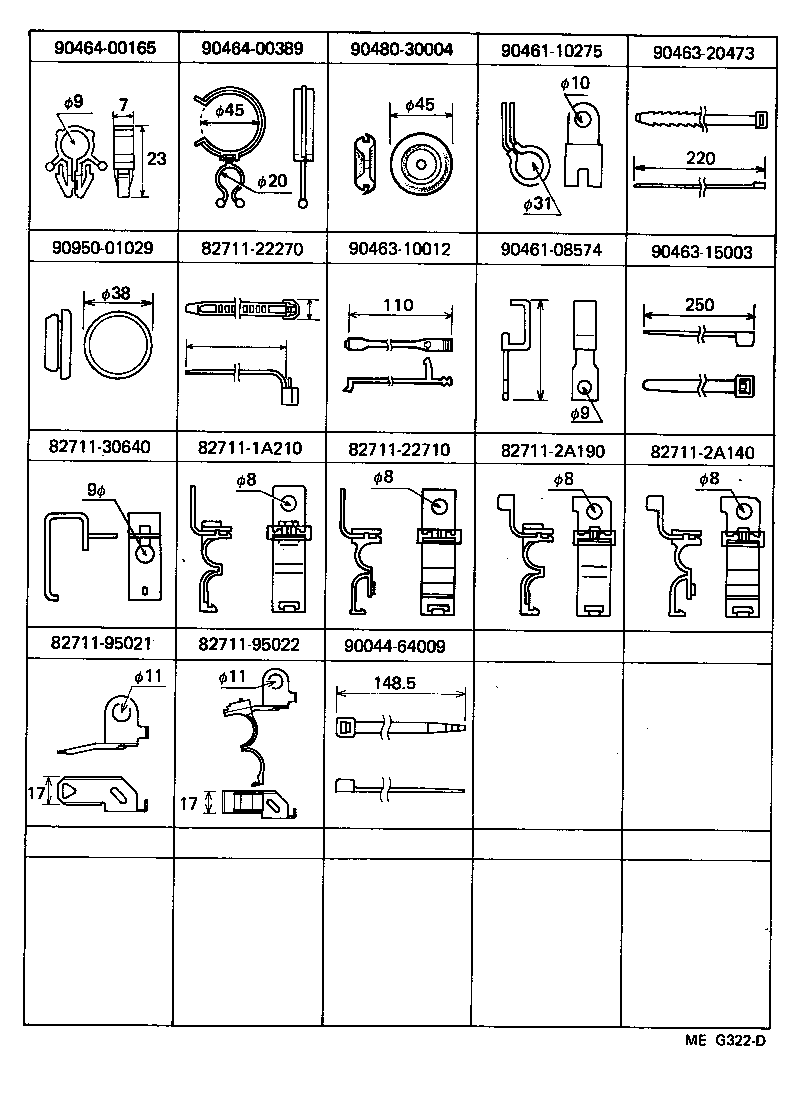

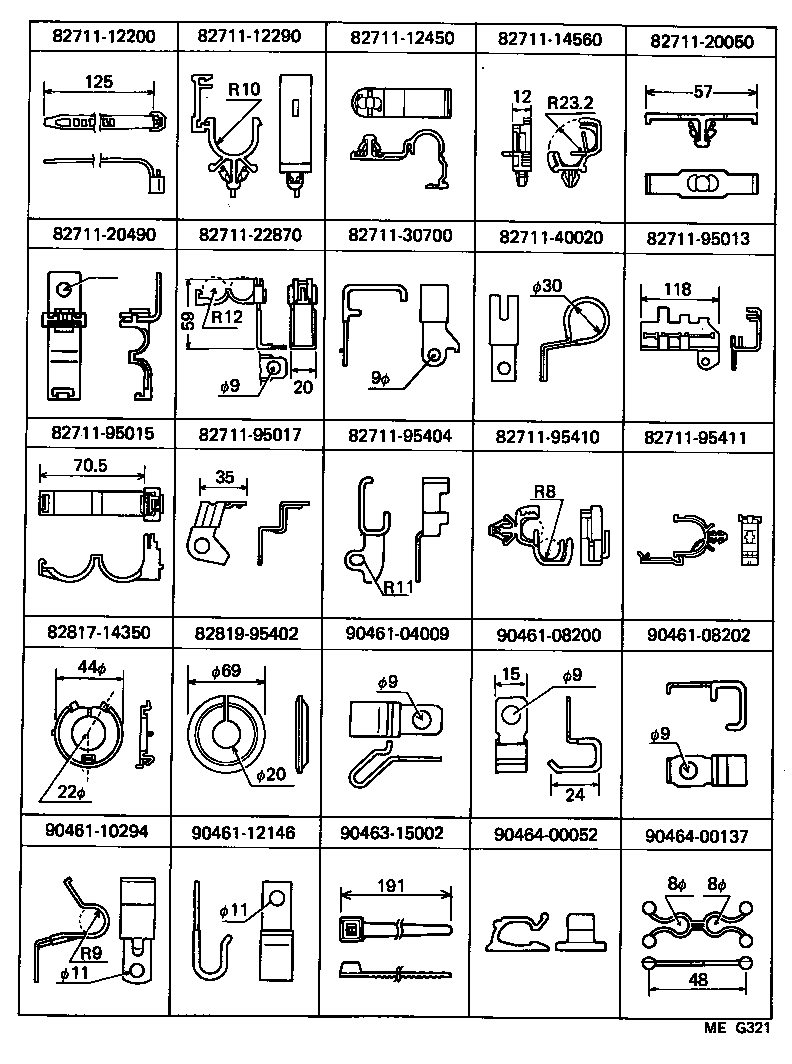

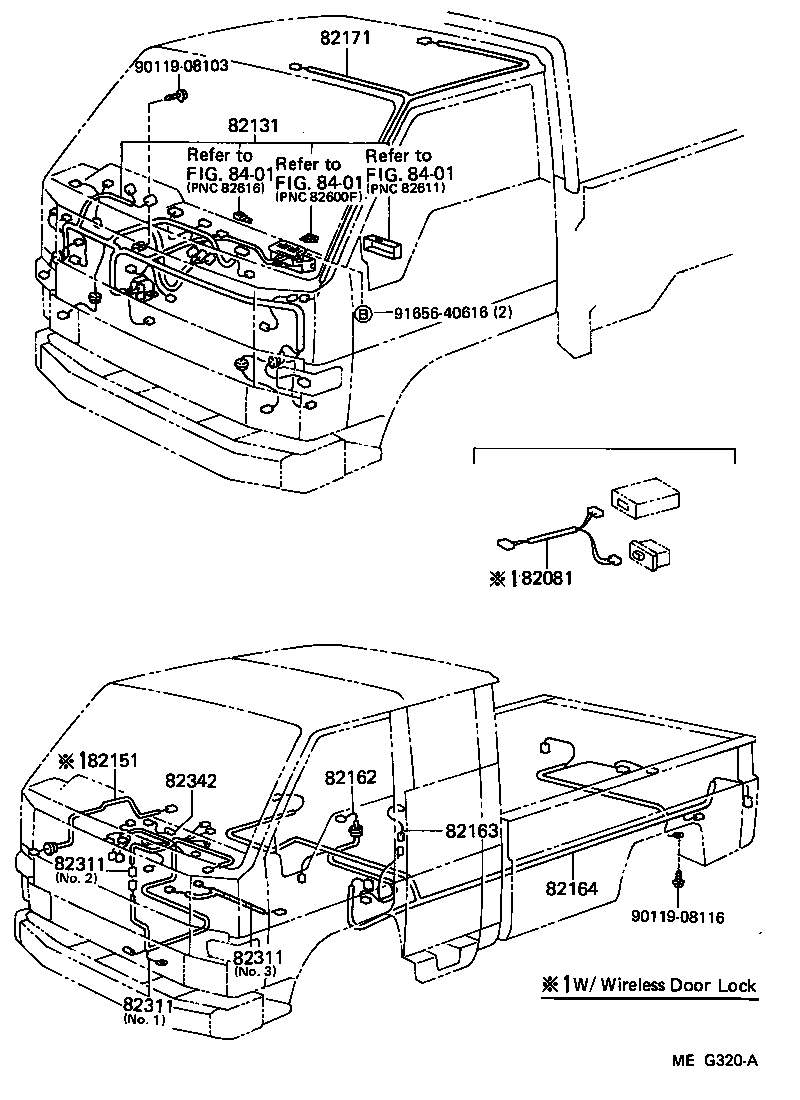

Figure MEG319B MEG319B 1985-08 → — Figure MEG320A MEG320A 1985-08 → — Figure MEG321 MEG321 1985-08 → — Figure MEG322D MEG322D 1985-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82081 Wiring Assy, Door Lock
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82311 Harness Assy, Cooler
82342 Wire, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
