Toyota Hiace Truck
1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan
Discontinued model
Data version 1988-01
Meter
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

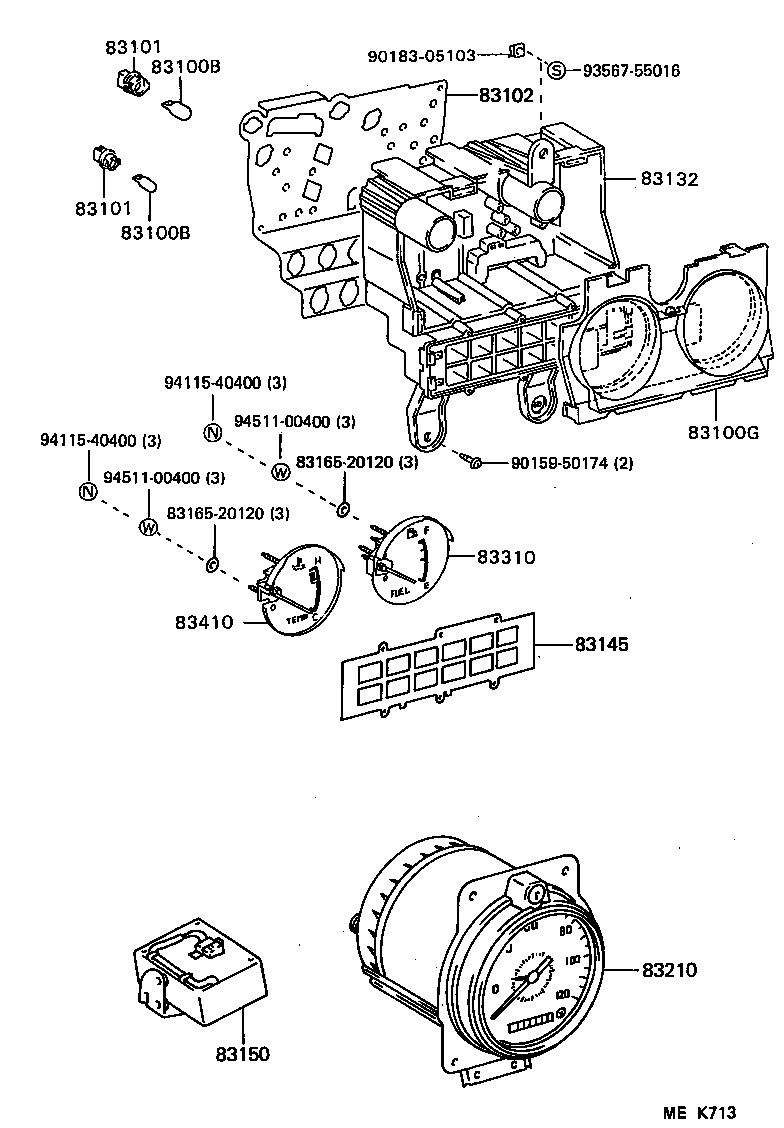

| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128A | Knob, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138E | Glass, Meter Cover |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83146 | Grommet, Meter Glass |
| 83150 | Indicator Assy (FOR SPEED ALARM) |
| 83159 | Switch, Meter, NO.1 |
| 83189 | Bracket, Meter |
| 83210 | Tachograph Assy |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

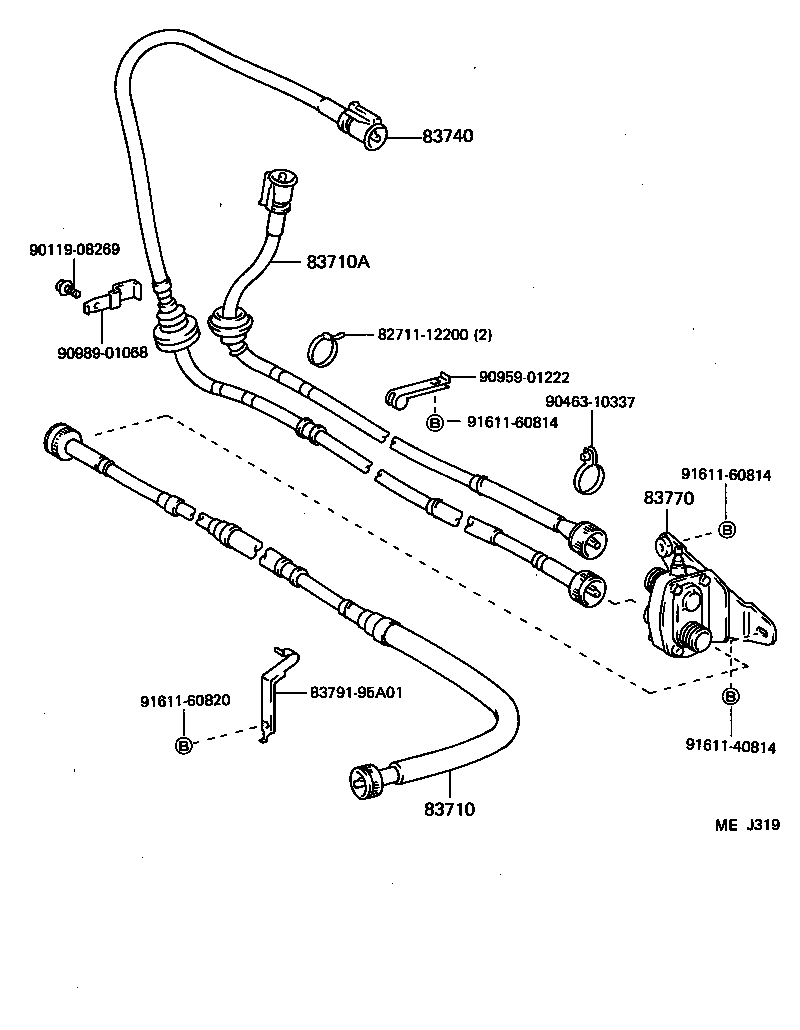

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83740 | Cable Assy, Tachograph Drive |
| 83770 | Adapter Assy, Speedometer Cable |
| 83901 | Clock And Setting Parts Set |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
