Toyota Hiace Truck

1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

10 part groups · 2 illustrations

Illustrations

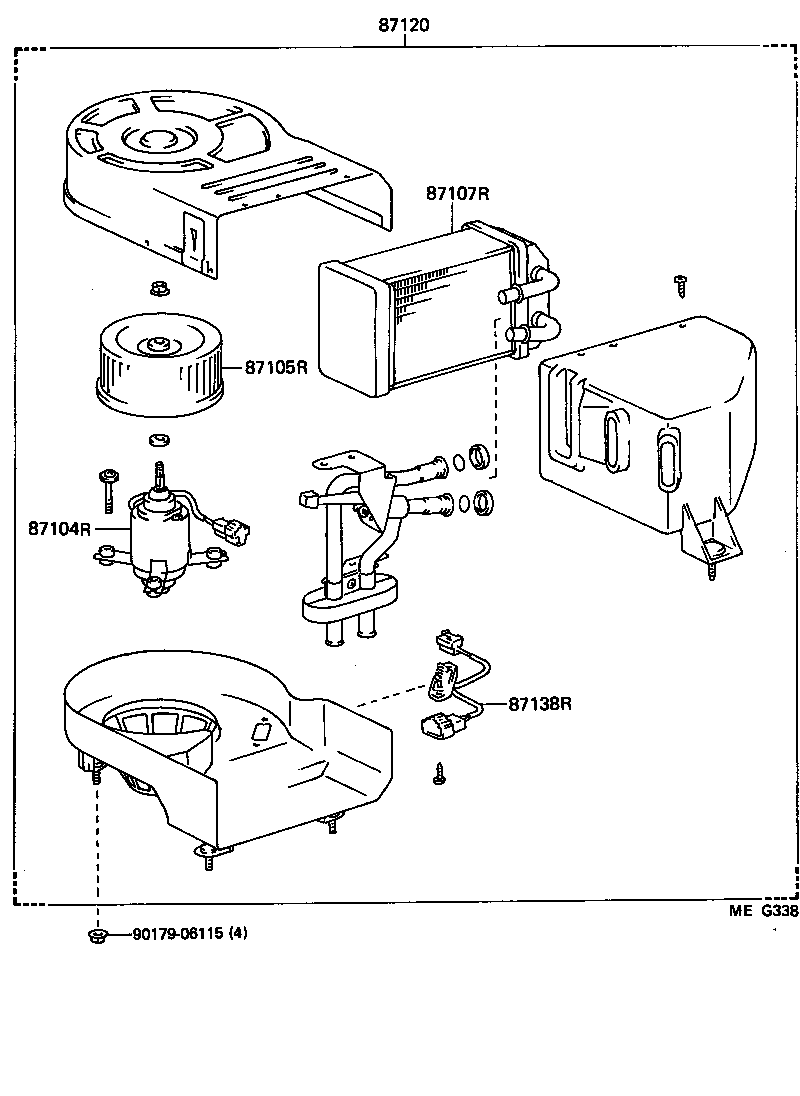

Figure MEG337 MEG337 1985-08 → — Figure MEG338 MEG338 1985-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
