Toyota Hiace Truck

1987-08 → 1995-05 · chassis YH81,LH8#,LH9# · catalogue 691150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

26 part groups · 2 illustrations

Illustrations

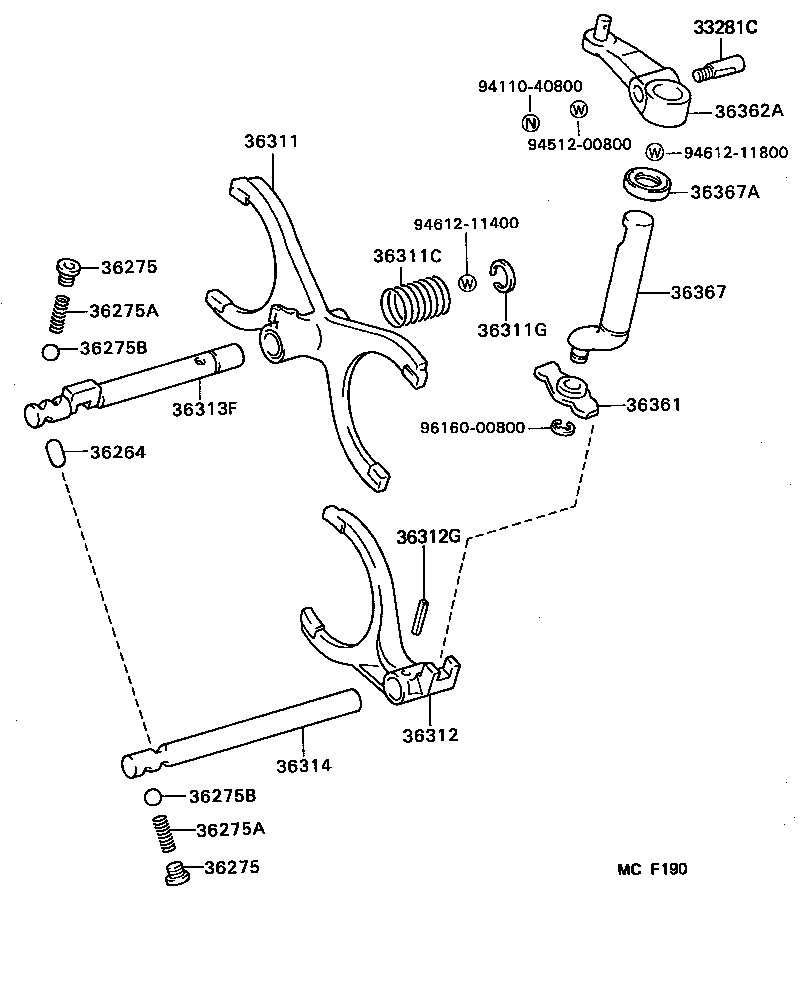

Figure MCF189B MCF189B 1987-10 → — Figure MCF190 MCF190 1987-10 → —

Part groups

PNCDescription
33281C Pin, Lever Lock
33503J Lever Sub-assy, Shift, NO.2
33820D Cable Assy, Transfer Control
33823B Bracket, Transfer Control Cable
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36302A Lever Sub-assy, Transfer Shift, NO.1
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36311 Fork, Transfer Gear Shift, NO.1
36311C Spring, Compresion (FOR SHIFT FORK)
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312G Pin, Slotted Spring
36313F Shaft, Transfer Front Drive Shift Fork
36314 Shaft, Transfer High And Low Shift Fork
36321D Bush (FOR TRANSFER SHIFT LEVER)
36321G Coller (FOR TRANSFER SHIFT LEVER)
36360C Collar (FOR TRANSFER SHIFT LEVER RETAINER)
36360F Spring, Torsion (FOR TRANSFER SHIFT LEVER RETAINER)
36361 Lever, Transfer Shift, Inner
36362A Lever, Transfer Shift, Outer
36367 Shaft, Transfer Shift Inner Lever
36367A Seal, Oil (FOR TRANSFER SHIFT INNER LEVER SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
