Toyota Hiace Truck

1987-08 → 1995-05 · chassis YH81,LH8#,LH9# · catalogue 691150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

29 part groups · 3 illustrations

Illustrations

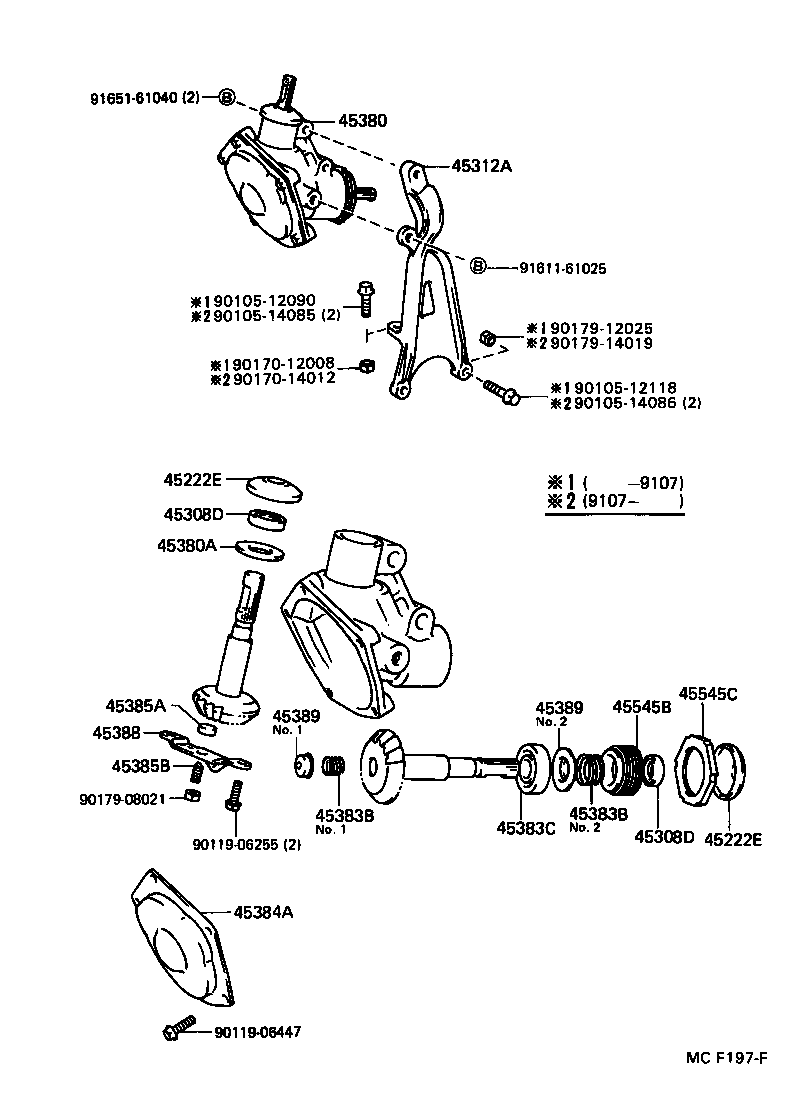

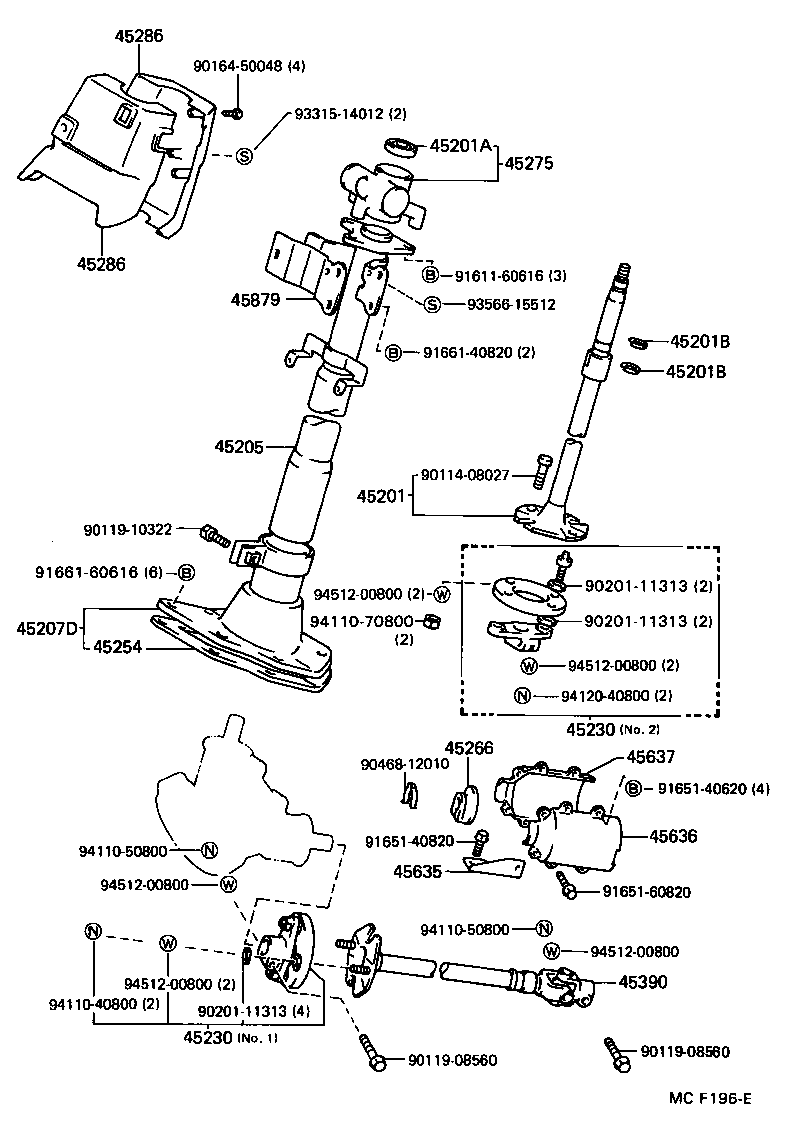

Figure MCF128C MCF128C 1987-08 → — Figure MCF196E MCF196E 1987-10 → — Figure MCF197F MCF197F 1987-10 → —

Part groups

PNCDescription
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45207D Cover Sub-assy, Main Shaft Joint
45222E Cover, Dust(FOR STEERING BEVEL GEAR)
45230 Coupling Assy, Flexible
45254 Shield, Steering Column Hole
45266 Cover, Steering Intermediate Shaft Dust
45275 Bracket, Steering Column, Upper
45286 Cover, Steering Column
45308D Seal, Oil(FOR STEERING BEVEL GEAR HOUSING)
45312A Bracket, Steering Bevel Gear Housing
45380 Gear Assy, Steering Bevel
45380A Washer(FOR STEERING BEVEL GEAR)
45383B Spring, Compression(FOR STEERING BEVEL GEAR)
45383C Bearing, Radial Ball(FOR STEERING BEVEL GEAR)
45384A Cover, Steering Bevel Gear
45385A Seat, Lock Bolt(FOR STEERING BEVEL GEAR)
45385B Bolt, Set(FOR LOCK BOLT SEAT)
45388 Plate, Steering Bevel Gear
45389 Holder, Steering Bevel Gear Spring
45390 Shaft Assy, Steering Torque
45545B Screw, Pinion Bearing Adjusting(FOR STEERING BEVEL GEAR)
45545C Nut(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW)
45635 Support, Intermediate Link Joint Protector
45636 Protector, Intermediate Link Joint, Upper
45637 Protector, Inter Link Joint, Lwr NO.1
45879 Bracket, Steering Column Upper Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
