Toyota Hiace Truck

1987-08 → 1995-05 · chassis YH81,LH8#,LH9# · catalogue 691150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

21 part groups · 4 illustrations

Illustrations

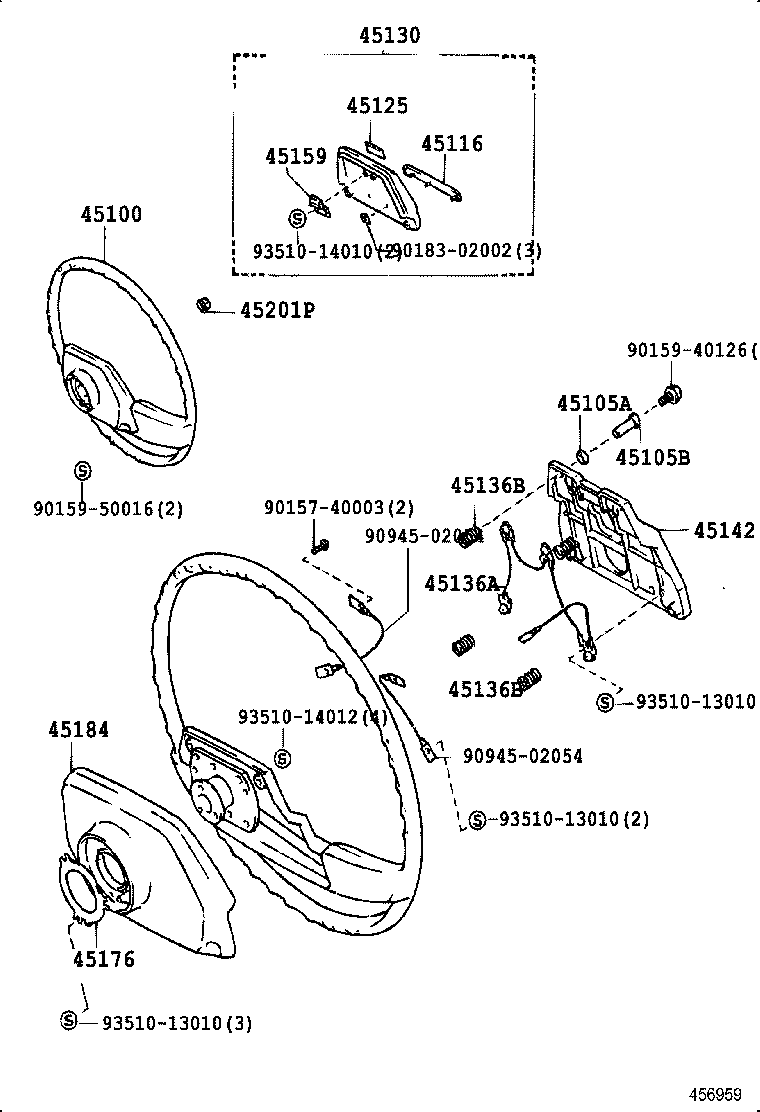

Figure MCF137A MCF137A 1987-08 → 1991-09 Figure 456959 456959 1987-10 → — Figure MCF355A MCF355A 1987-08 → 1991-09 Figure MCM486B MCM486B 1991-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45116 Ornament, Steering Wheel, NO.1
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155A Spacer, Horn Contact
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45159 Retainer, Steering Wheel Pad Set
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
