Toyota Hiace Truck

1987-08 → 1995-05 · chassis YH81,LH8#,LH9# · catalogue 691150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

34 part groups · 10 illustrations

Illustrations

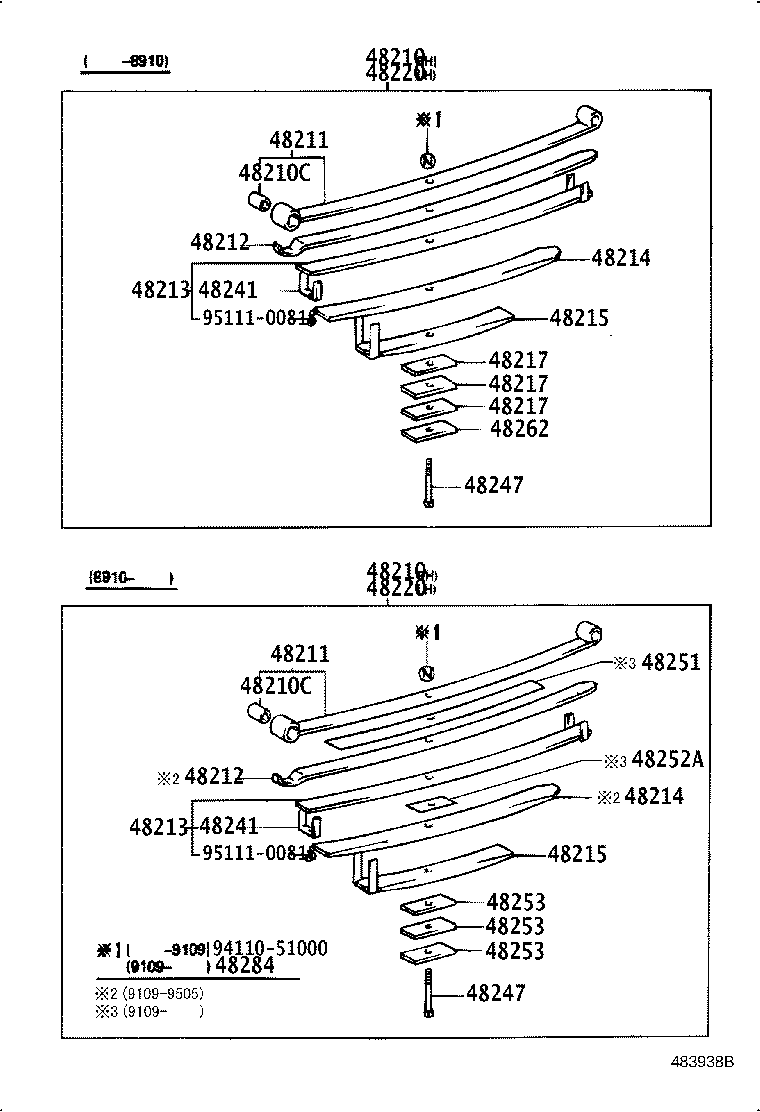

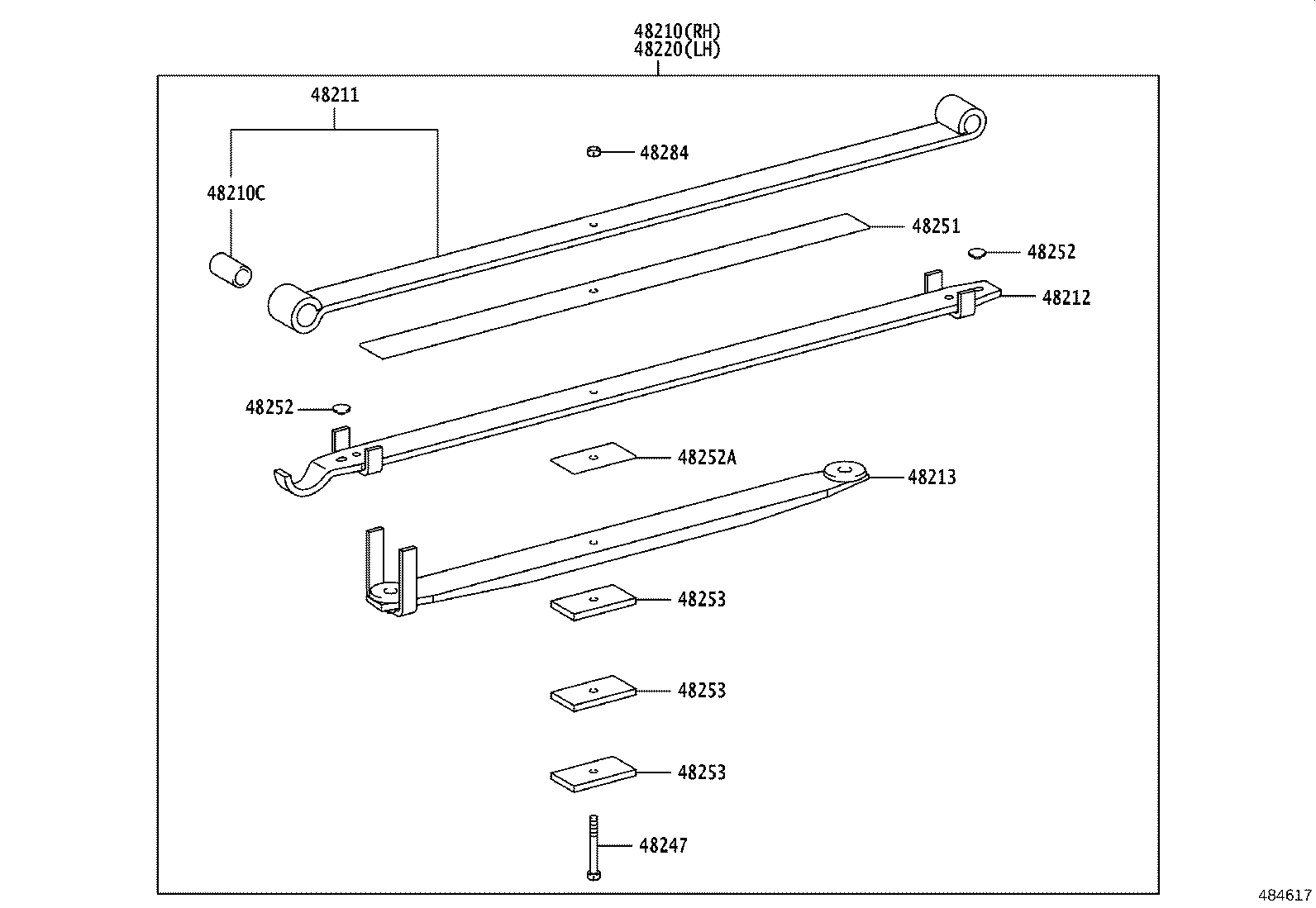

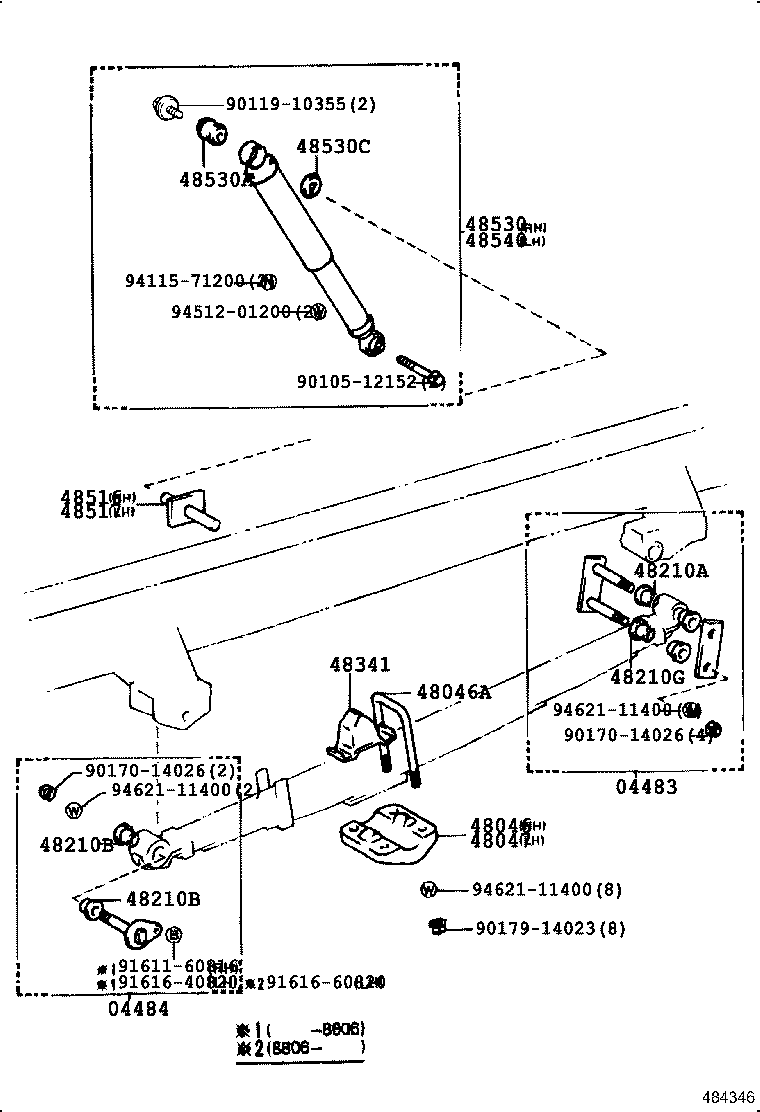

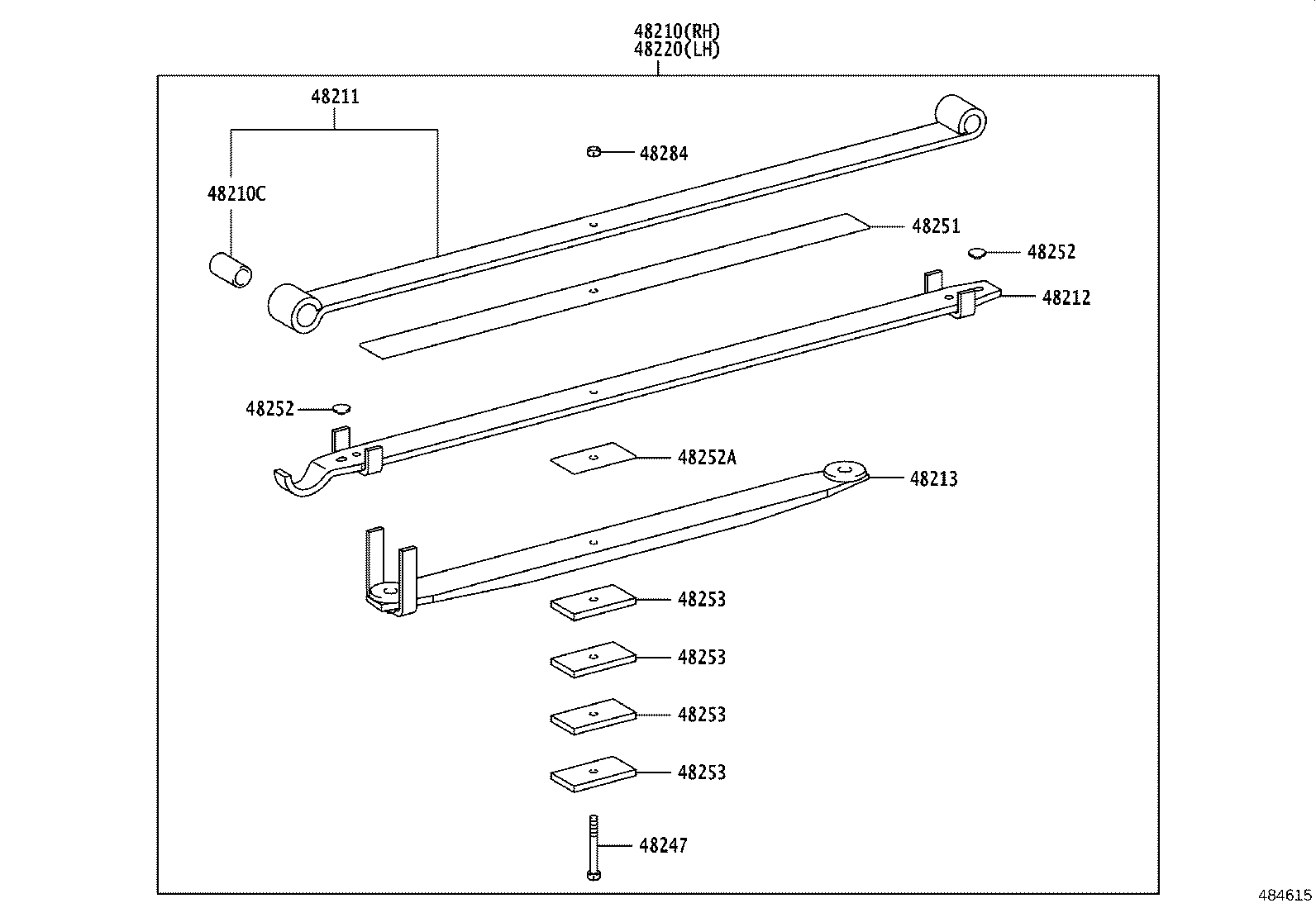

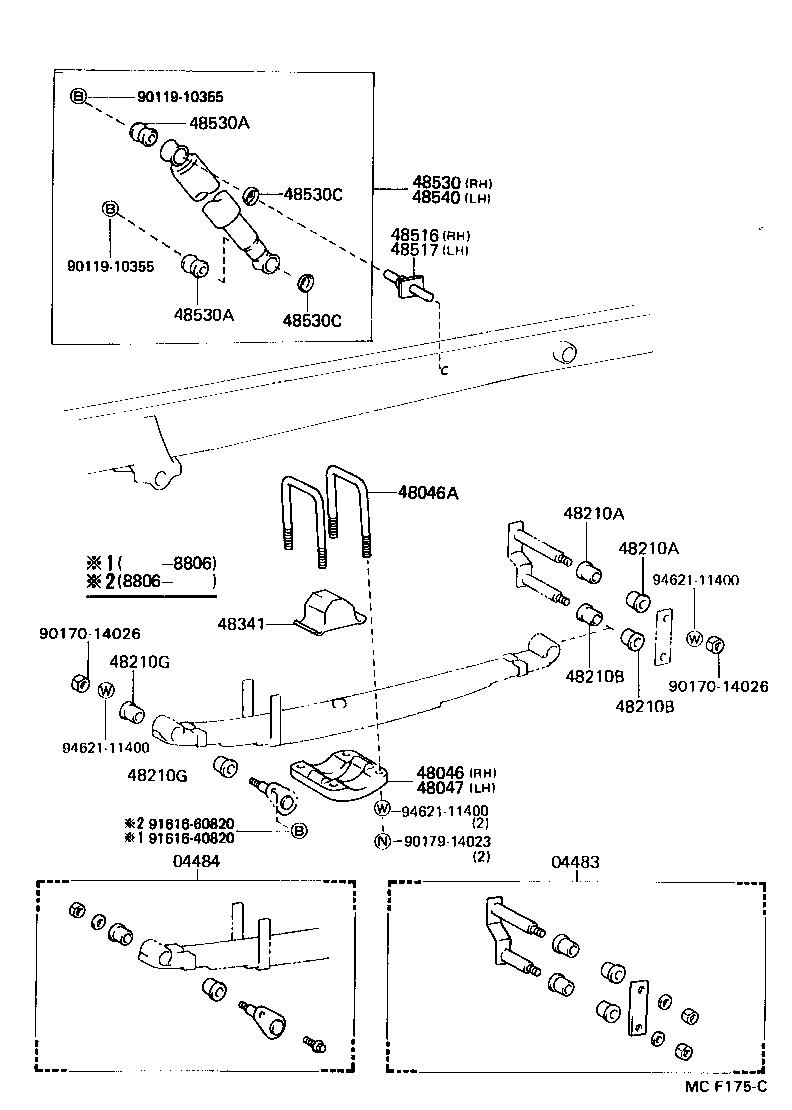

Figure MCF174D MCF174D 1987-08 → — Figure MCF175C MCF175C 1987-08 → — Figure 484346 484346 1987-10 → — Figure MCF178A MCF178A 1987-08 → 1989-10 Figure MCF178A MCF178A 1989-10 → — Figure MCJ552 MCJ552 1989-10 → — Figure 484616 484616 1987-10 → 1991-09 Figure 484617 484617 1991-09 → — Figure 483938B 483938B 1987-10 → 1991-09 Figure 484615 484615 1991-09 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48284 Nut, Rear Spring Center Bolt
48341 Bumper, Rear Spring
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530C Washer, Rear Shock Absorber Cushion, NO.2
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
