Toyota Hiace Truck

1987-08 → 1995-05 · chassis YH81,LH8#,LH9# · catalogue 691150 · Japan

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

8 part groups · 2 illustrations

Illustrations

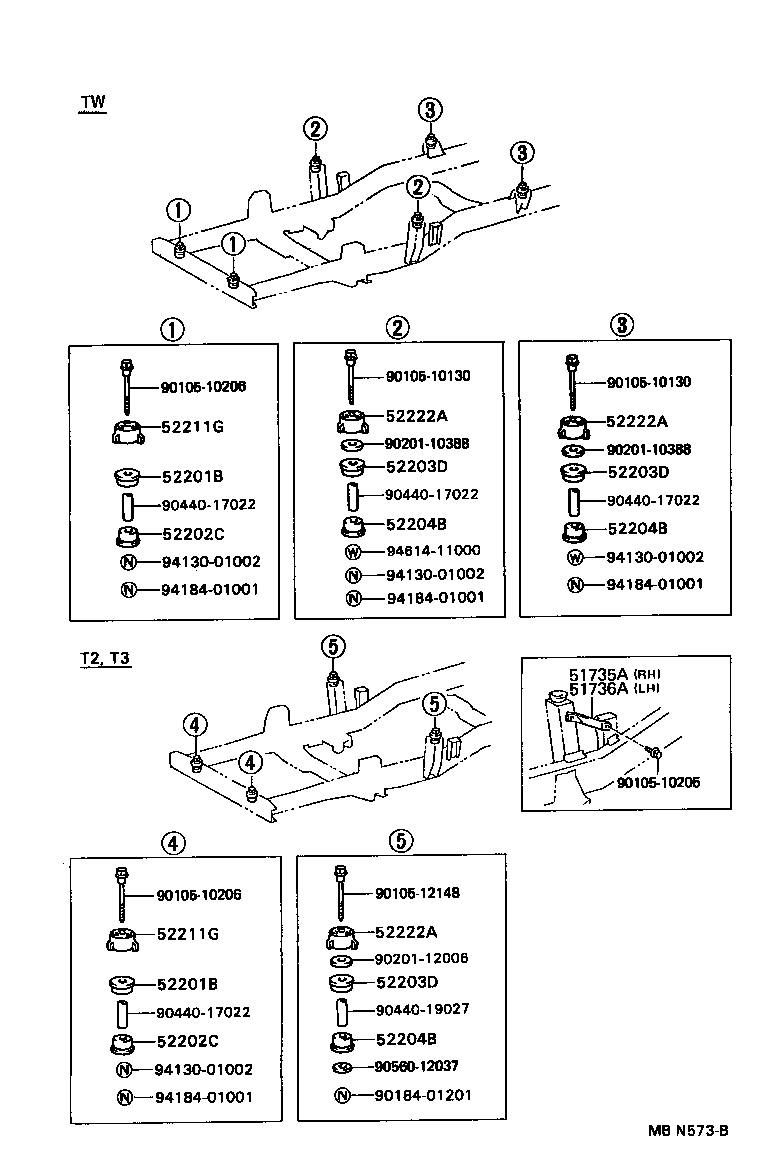

Figure MBP012C MBP012C 1987-08 → — Figure MBN573B MBN573B 1987-10 → —

Part groups

PNCDescription
51735A Reinforcement, Cab Rear Mounting, RH
51736A Reinforcement, Cab Rear Mounting, LH
52201B Cushion Sub-assy, Cab Front Mounting
52202C Cushion Sub-assy, Cab Front Mounting, Lower
52203D Cushion Sub-assy, Cab Mounting, NO.2 Upper
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52211G Spacer, Cab Front Mounting
52222A Spacer, Cab Rear Mounting, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
