Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 3 illustrations

Illustrations

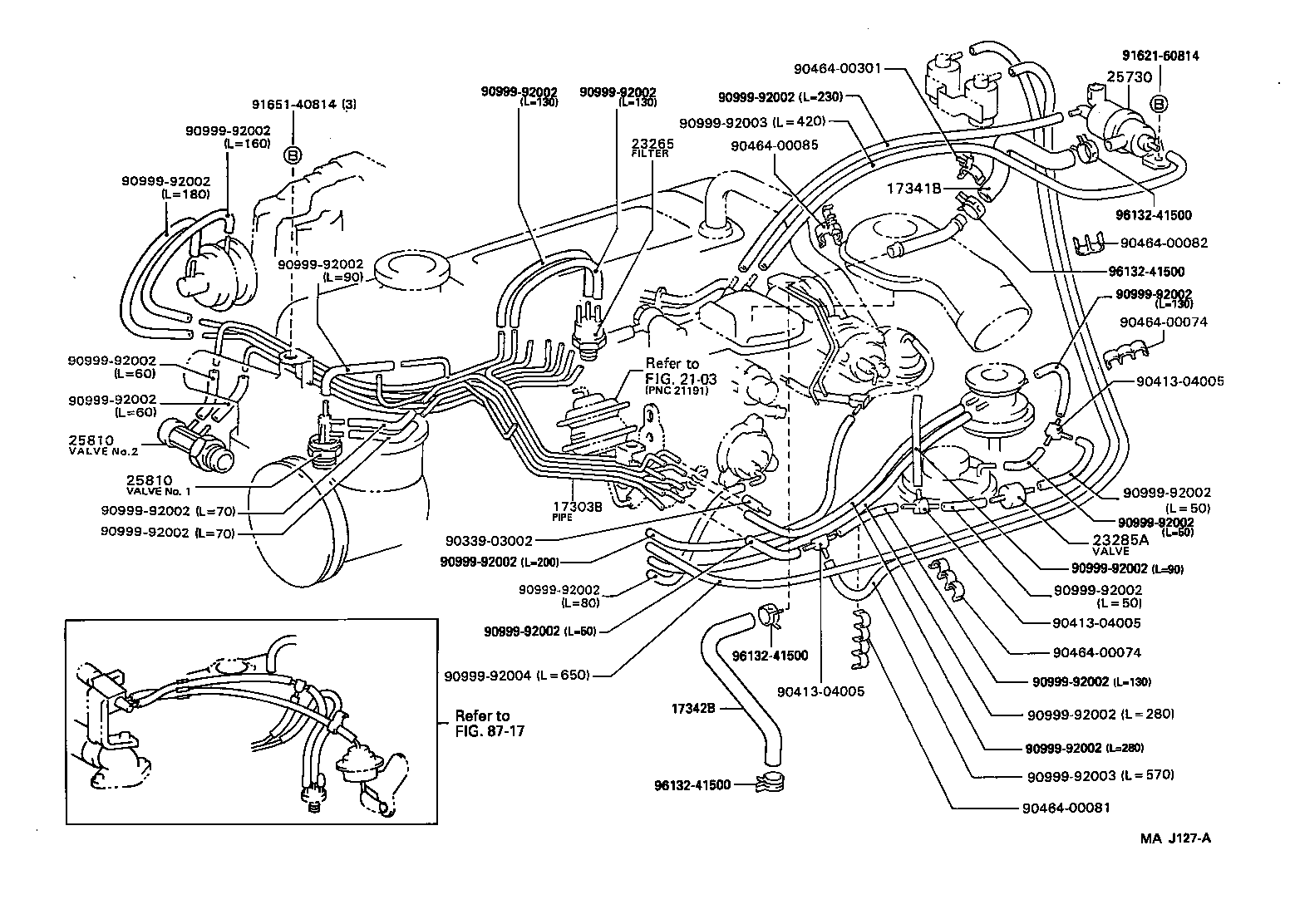

Figure MA9503A MA9503A 1995-05 → — Figure MA9503A MA9503A 1995-05 → — Figure MAJ127A MAJ127A 1995-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342B Hose, NO.2(FOR IDLE-UP)
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
