Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

32 part groups · 3 illustrations

Illustrations

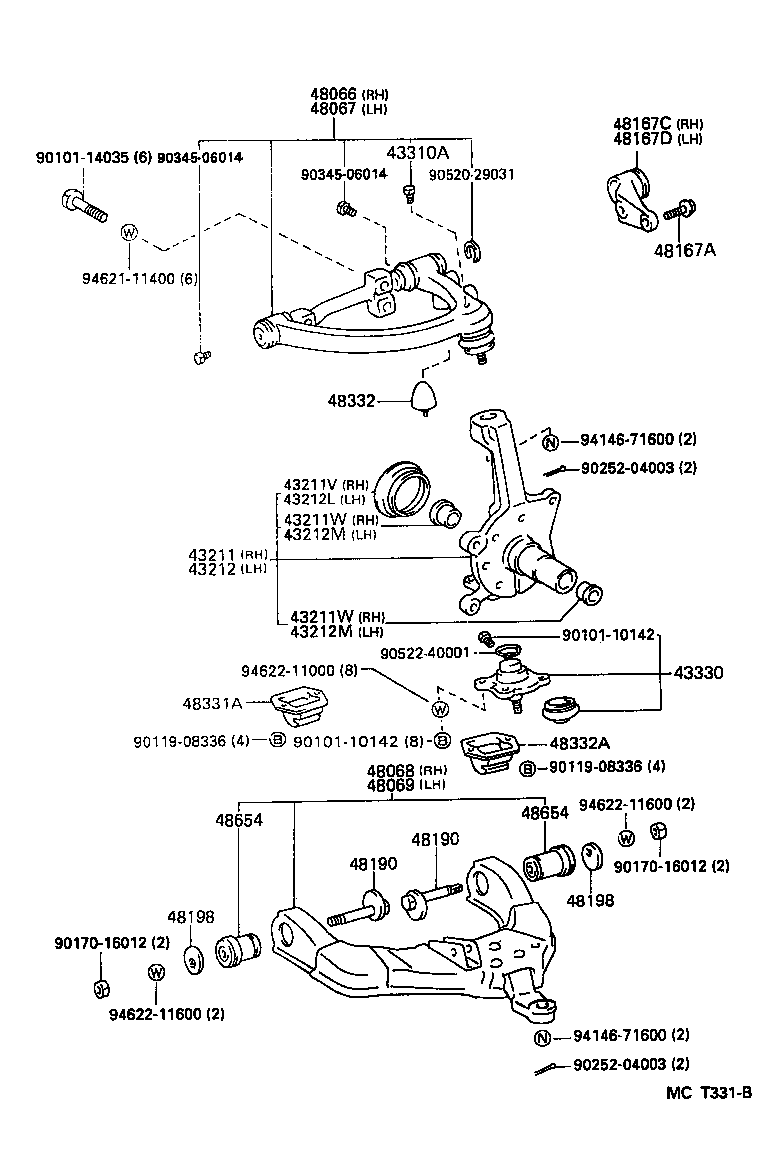

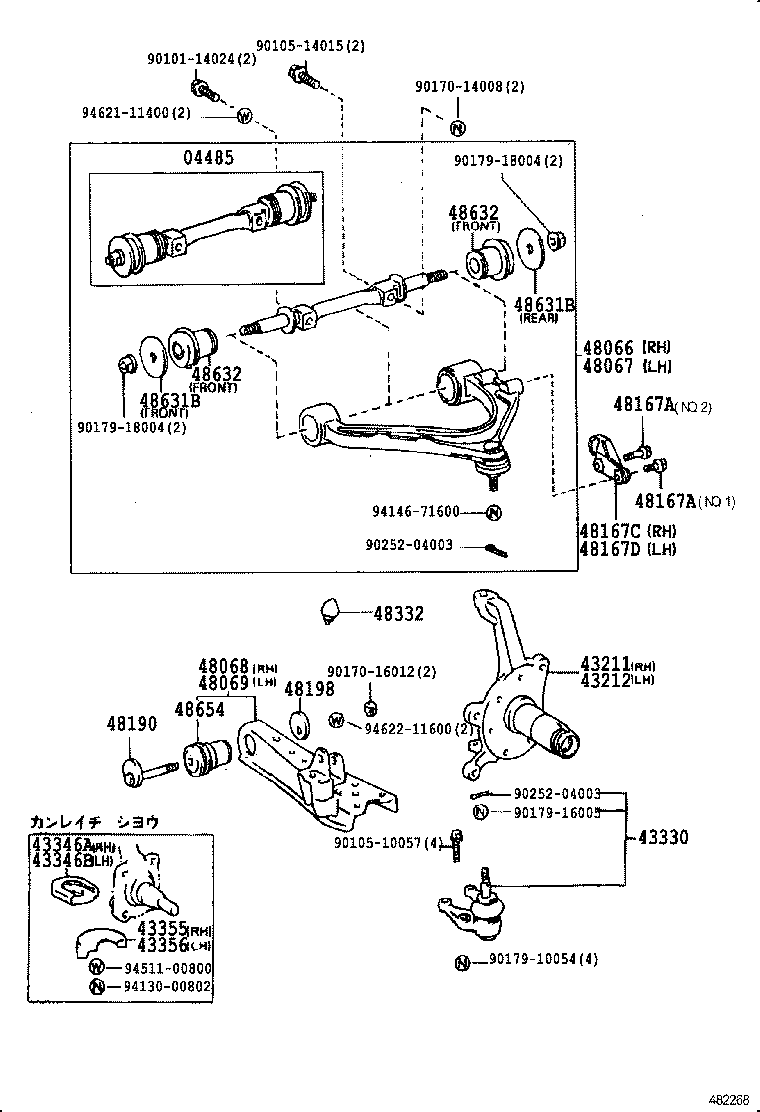

Figure MCT330B MCT330B 1995-05 → 1995-08 Figure 482268 482268 1995-08 → — Figure MCT331B MCT331B 1995-05 → —

Part groups

PNCDescription
04485 Shaft Kit, Upper Suspension Arm
43211 Knuckle, Steering, RH
43211V Seal, Oil (FOR STEERING KNUCKLE RH)
43211W Bush (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212L Seal, Oil (FOR STEERING KNUCKLE LH)
43212M Bush (FOR STEERING KNUCKLE LH)
43310A Plug (FOR BALL JOINT)
43330 Joint Assy, Lower Ball, Front
43346A Protector, Front Lower Ball Joint Dust Cover, RH
43346B Protector, Front Lower Ball Joint Dust Cover, LH
43350 Joint Assy, Front Upper Ball, RH
43355 Deflector, Lower Arm Ice, RH
43356 Deflector, Lower Arm Ice, LH
43360 Joint Assy, Front Upper Ball, LH
48066 Arm Sub-assy, Front Suspension, Upper RH
48067 Arm Sub-assy, Front Suspension, Upper LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48167A Bolt(FOR TORQUE ARM SETTING)
48167C Arm, Front Suspension Torque, RH
48167D Arm, Front Suspension Torque, LH
48190 Cam Assy, Camber Adjust
48198 Cam, Camber Adjust, NO.2
48331A Bumper, Front Spring, NO.1
48332 Bumper, Front Spring, NO.2
48332A Bumper, Front Spring, NO.3
48610 Arm Assy, Front Suspension Upper, RH
48630 Arm Assy, Front Suspension, Upper LH
48631B Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
48632 Bush, Upper Arm
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
