Toyota Hiace Truck
1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan
Discontinued model
Data version 1997-03

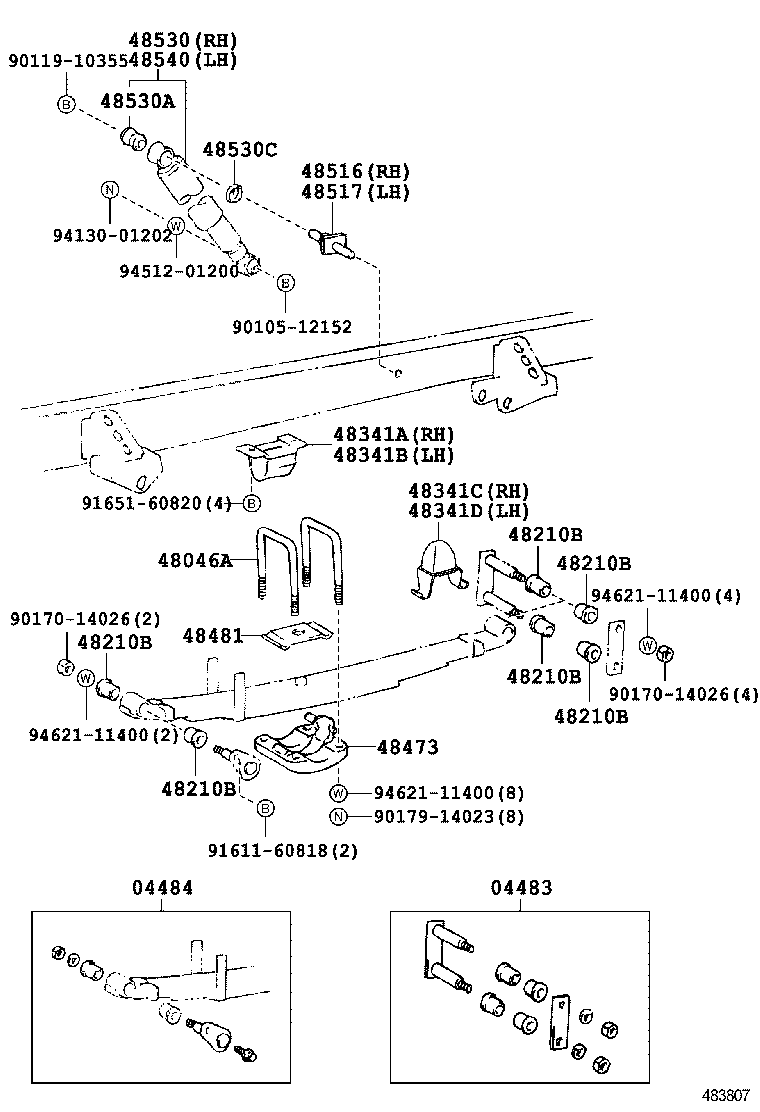

Rear Spring & Shock Absorber
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483 | Shackle Kit, Rear Spring |
| 04484 | Pin Kit, Rear Spring |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48210 | Spring Assy, Rear RH |
| 48210B | Bush(FOR REAR SPRING PIN) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48220 | Spring Assy, Rear LH |
| 48247 | Bolt, Rear Spring, Center |
| 48251 | Spacer, Rear Spring Leaf |
| 48252 | Silencer, Rear Spring |
| 48252A | Spacer, Rear Spring, NO.2 |
| 48252B | Silencer, Rear Spring, NO.1 |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48341C | Bumper, Rear Spring, NO.2 RH |
| 48341D | Bumper, Rear Spring, NO.2 LH |
| 48473 | Seat, Rear Spring U Bolt |
| 48481 | Seat, Rear Spring, Upper |
| 48516 | Bracket, Rear Shock Absorber, Upper RH |
| 48517 | Bracket, Rear Shock Absorber, Upper LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48540 | Absorber Assy, Shock, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
