Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

20 part groups · 2 illustrations

Illustrations

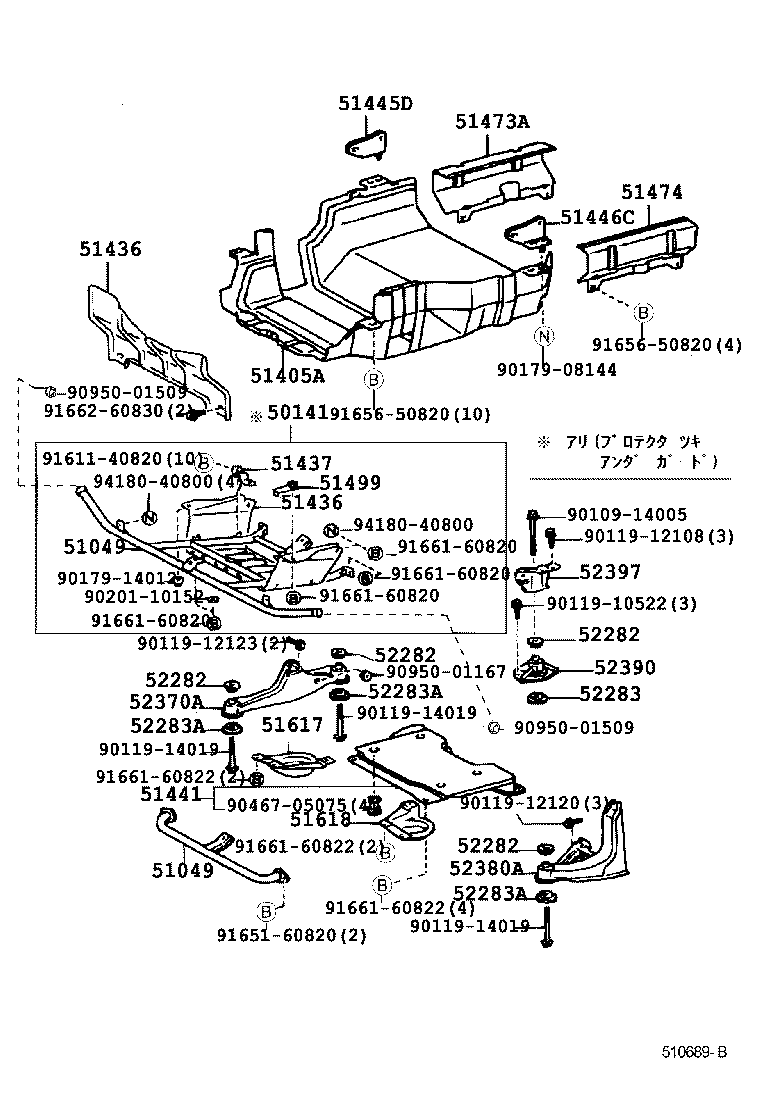

Figure MBZ209 MBZ209 1995-05 → — Figure 510689B 510689B 1995-05 → —

Part groups

PNCDescription
50141 Bar Set, Under Guard, Front
51049 Bar Sub-assy, Under Guard, Front
51405A Cover Sub-assy, Engine Under, NO.1
51436 Protector, Engine Front Support
51437 Bracket, Engine Front Support, Lower RH
51441 Cover, Engine Under, NO.1
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51499 Retainer, Under Guard, LH
51617 Guard, Front Differential Support, RH
51618 Guard, Front Differential Support, LH
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52283A Stopper, Differential Support Member, Lower
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
52397 Bracket, Front Differential Rear Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
