Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

37 part groups · 3 illustrations

Illustrations

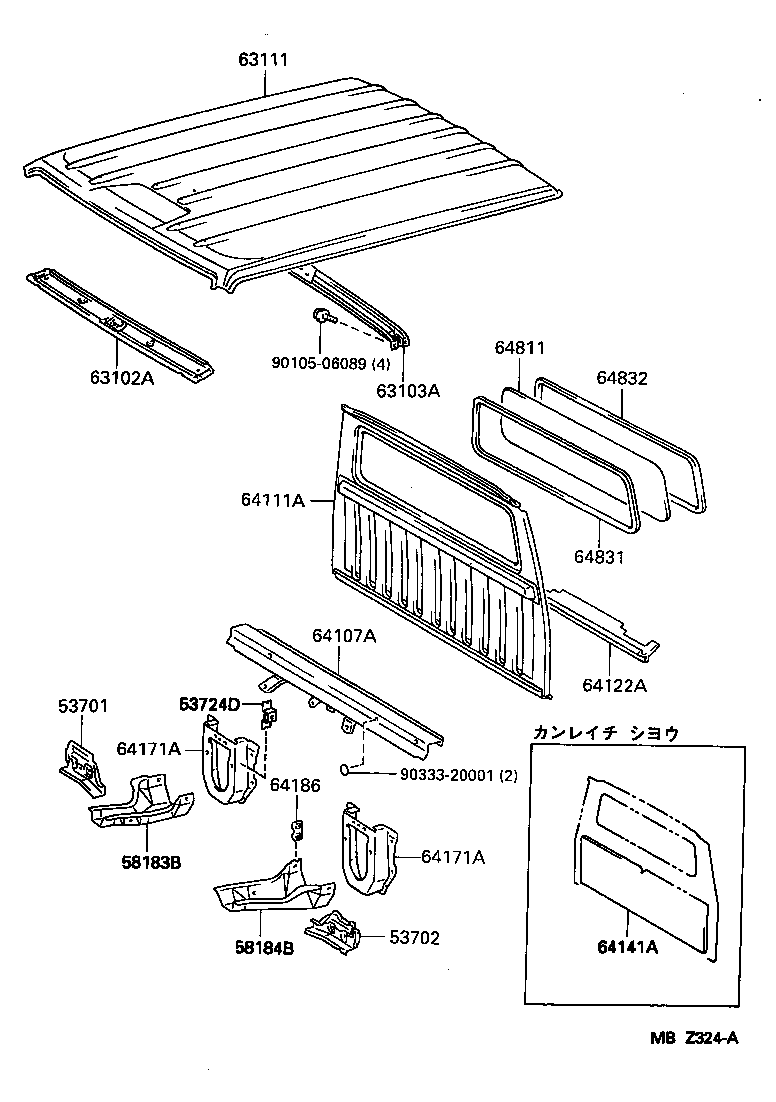

Figure MBZ323A MBZ323A 1995-05 → — Figure MBZ324A MBZ324A 1995-05 → — Figure MBZ325A MBZ325A 1995-05 → —

Part groups

PNCDescription
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53724D Bracket, Clamp
58183B Reinforcement, Rear Mounting, RH
58184B Reinforcement, Rear Mounting, LH
58236C Bracket, Clutch Tube
63072 Deflector Set, Roof Air
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63701A Bracket Sub-assy, Roof Air Deflector, Front
63706 Bracket Sub-assy, Roof Air Deflector, Rear
63707B Holder Sub-assy, Roof Air Deflector, Front RH
63708B Holder Sub-assy, Roof Air Deflector, Front LH
63709A Holder Sub-assy, Roof Deflector, Rear
63760 Panel Assy, Roof Air Deflector
63781 Stay, Roof Air Deflector
63785A Pad, Roof Air Deflector, Front RH
63786A Pad, Roof Air Deflector, Front LH
63787 Pad, Roof Air Deflector, NO.1
63788 Pad, Roof Air Deflector, NO.2
63789 Pad, Roof Air Deflector, NO.3
64107A Frame Sub-assy, Back
64111A Panel, Back
64122A Baffle, Dust Rear Body
64141A Silencer, Back Panel, NO.1
64160 Silencer Assy, Back Panel, Upper
64160A Clip(FOR BACK PANEL UPPER SILENCER)
64171A Bracket Sub-assy, Rear Mounting
64186 Retainer, Rear Mounting Bracket
64190 Silencer Assy, Back Panel
64219C Stay, Back Panel
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
