Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

17 part groups · 3 illustrations

Illustrations

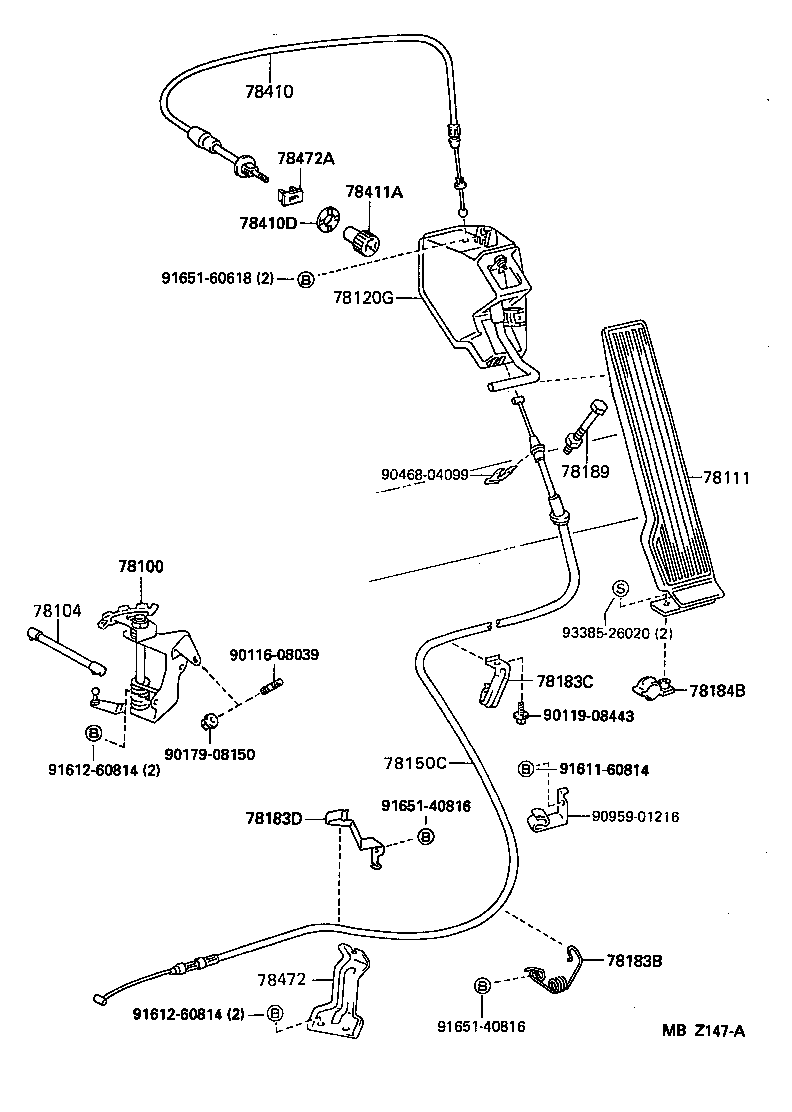

Figure MBZ145 MBZ145 1995-05 → — Figure MBZ147A MBZ147A 1995-05 → — Figure MBZ146 MBZ146 1995-05 → —

Part groups

PNCDescription
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
78472A Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
