Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 7 illustrations

Illustrations

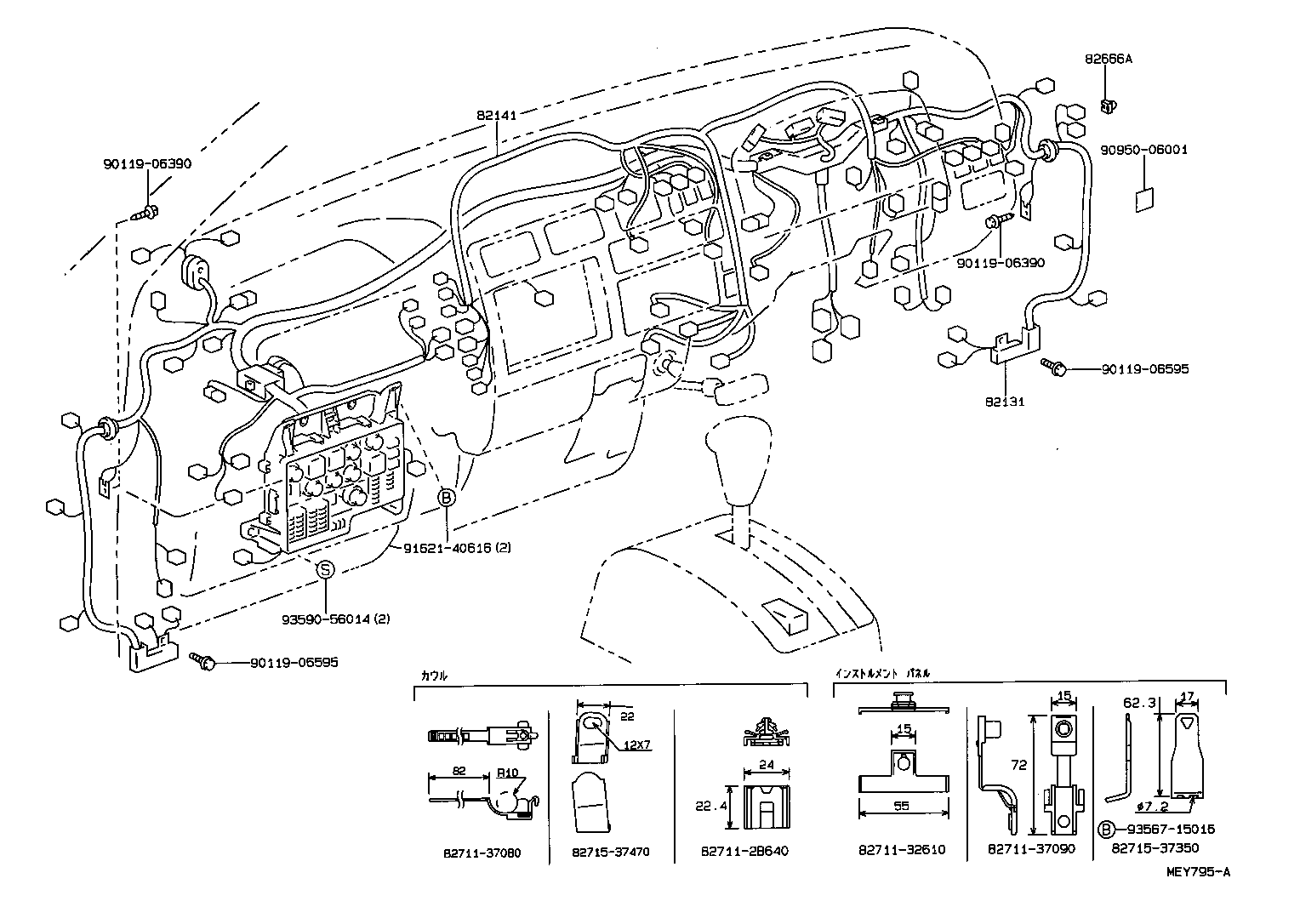

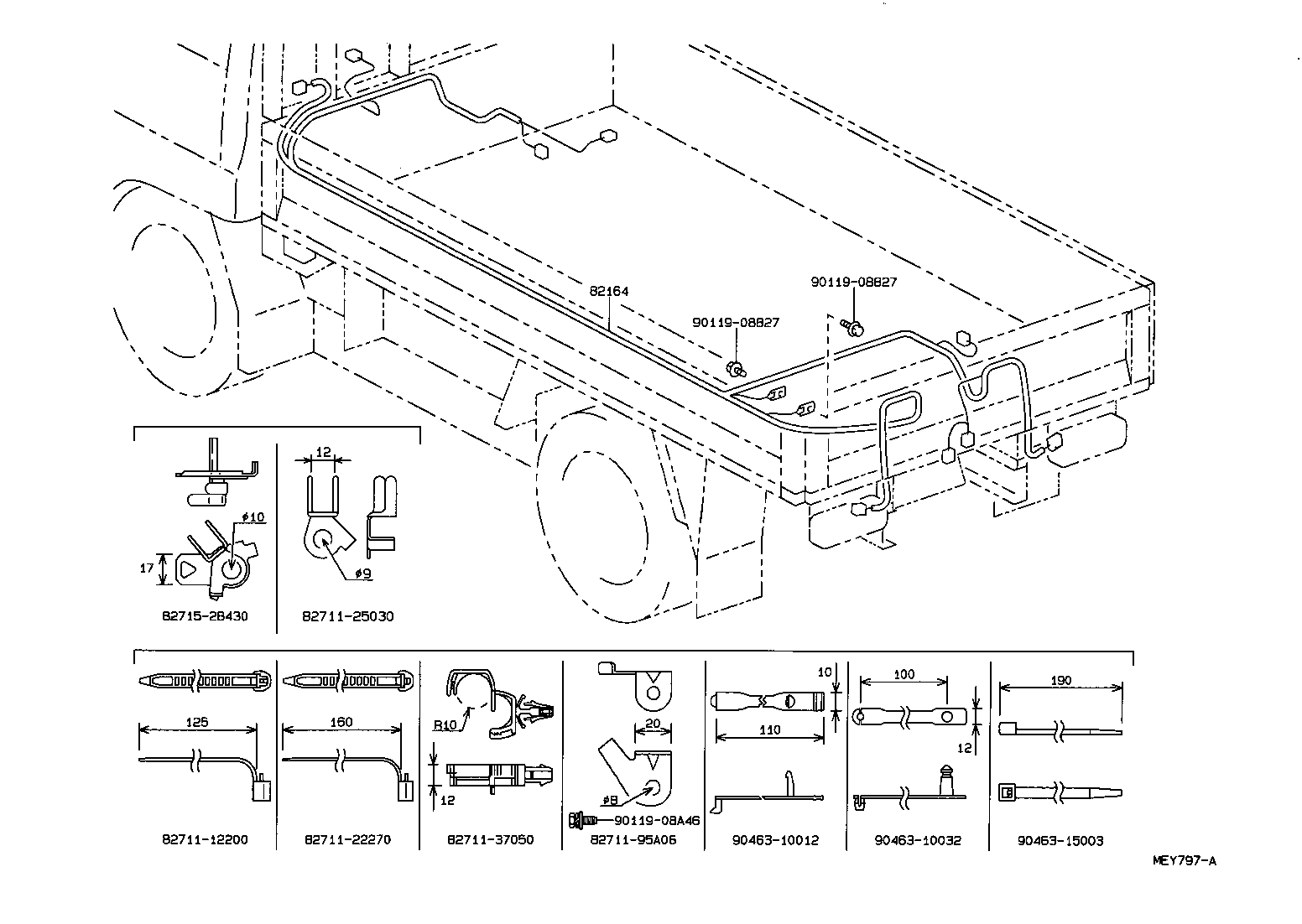

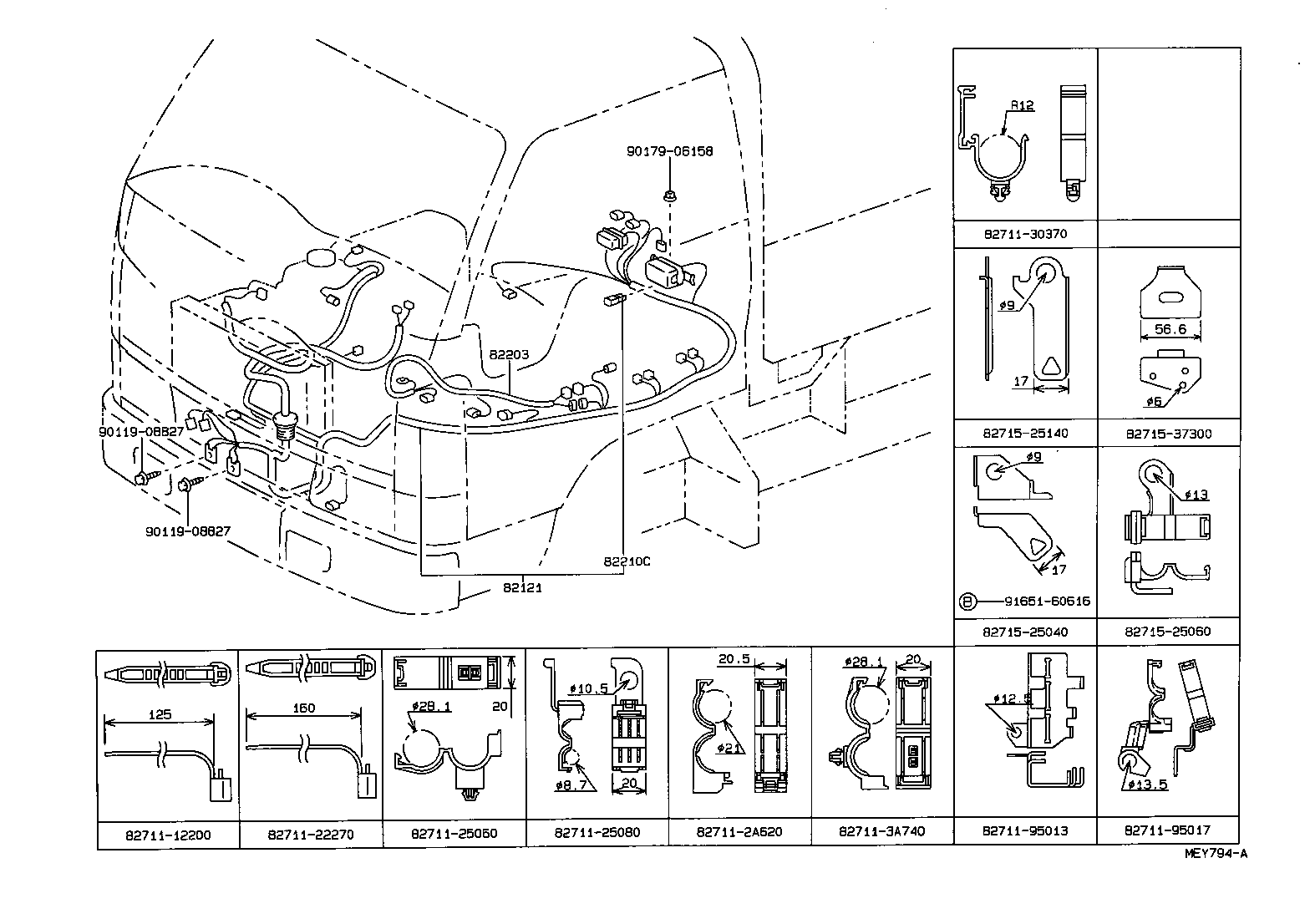

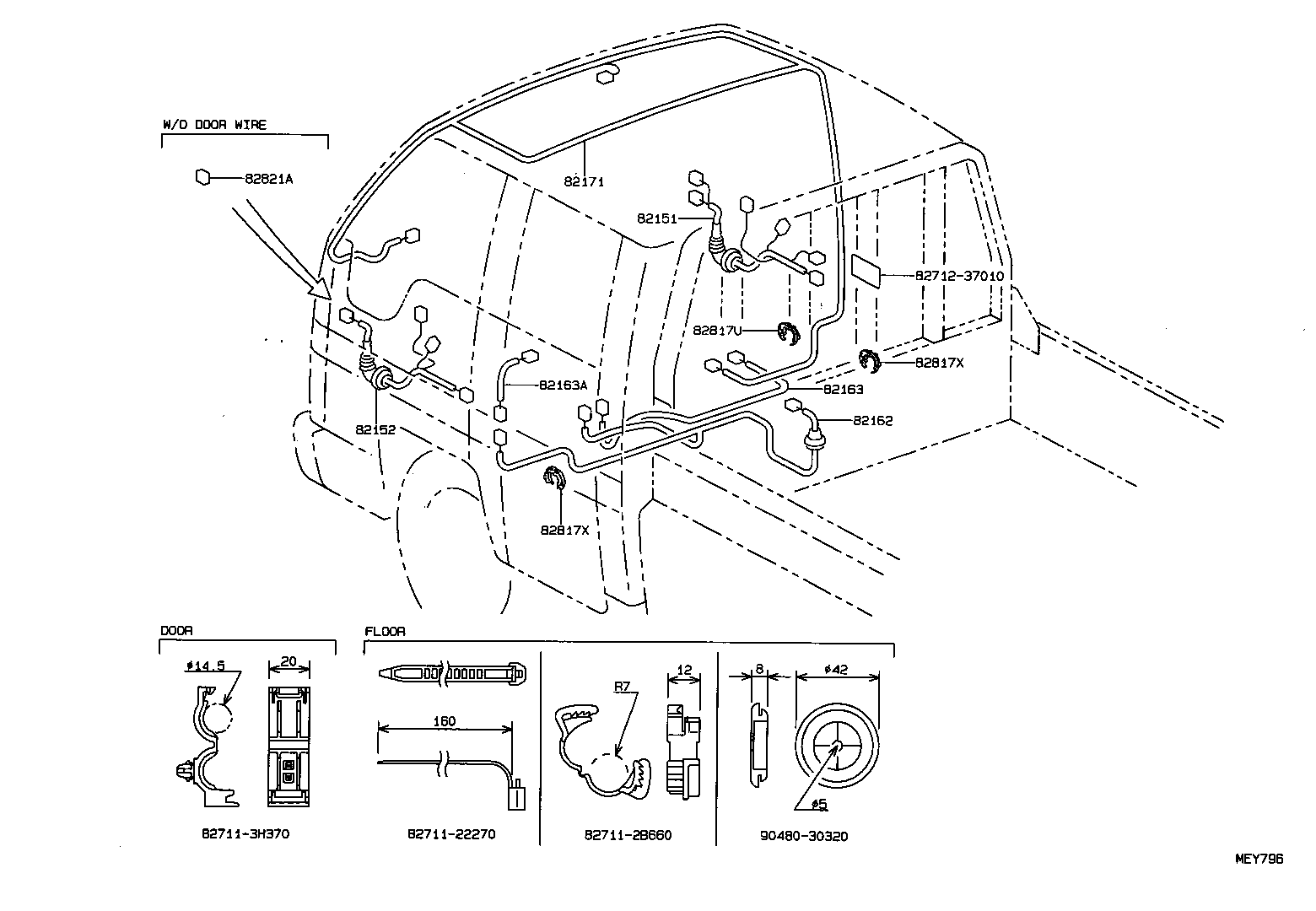

Figure MEY793A MEY793A 1995-05 → 1996-10 Figure MEY794A MEY794A 1995-05 → 1996-10 Figure MEY795A MEY795A 1995-05 → 1996-10 Figure MEY796 MEY796 1995-05 → 1996-10 Figure MEY797A MEY797A 1995-05 → 1996-10 Figure MEY798A MEY798A 1995-05 → 1996-10 Figure MEY799A MEY799A 1995-05 → 1996-10

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82060A Wire Assy, Engine, NO.2
82121 Wire, Engine
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82261A Wire, Alternator
82666A Holder, Connector NO.2
82670 Block Assy, Junction, NO.1
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
