Toyota Hiace Truck

1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 2 illustrations

Illustrations

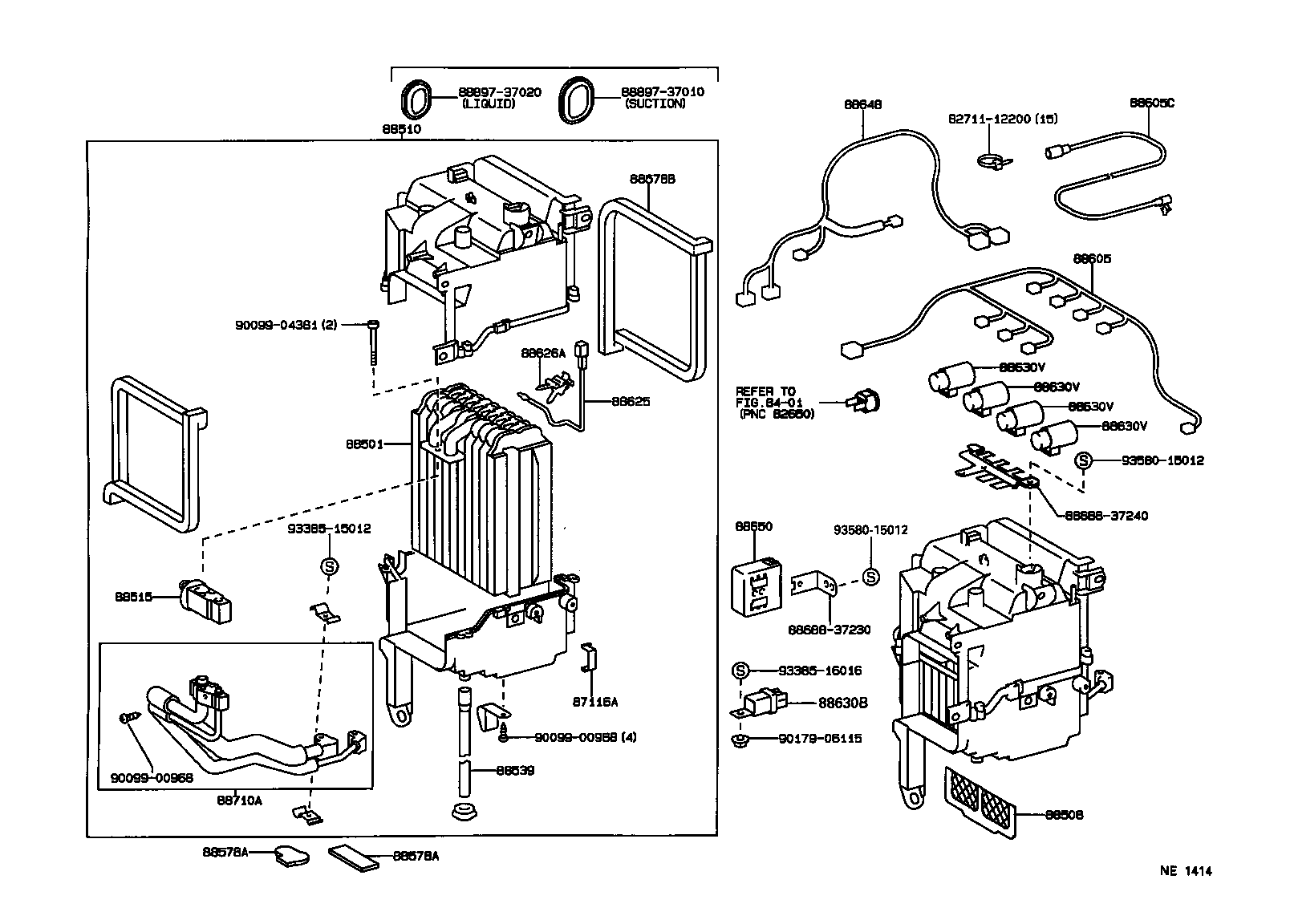

Figure MEY751 MEY751 1995-05 → 1996-10 Figure NE1414 NE1414 1995-05 → 1996-10

Part groups

PNCDescription
82630B Holder Assy, Fuse
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578A Packing, Cooler Stabilizer Amplifier
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630B Relay Assy, Cooler
88630V Relay Assy
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
