Toyota Hiace Truck
1995-05 → 1996-10 · chassis LY101,111,151,161,YY101 · catalogue 691160 · Japan
Discontinued model
Data version 1997-03

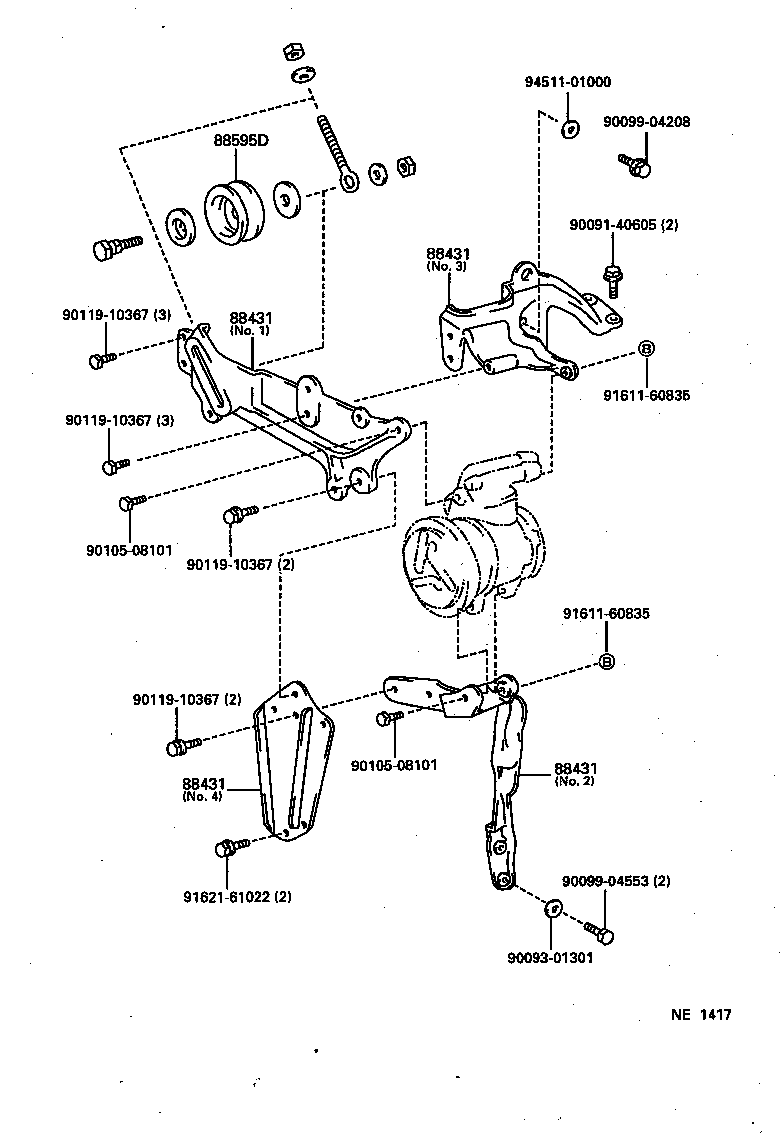

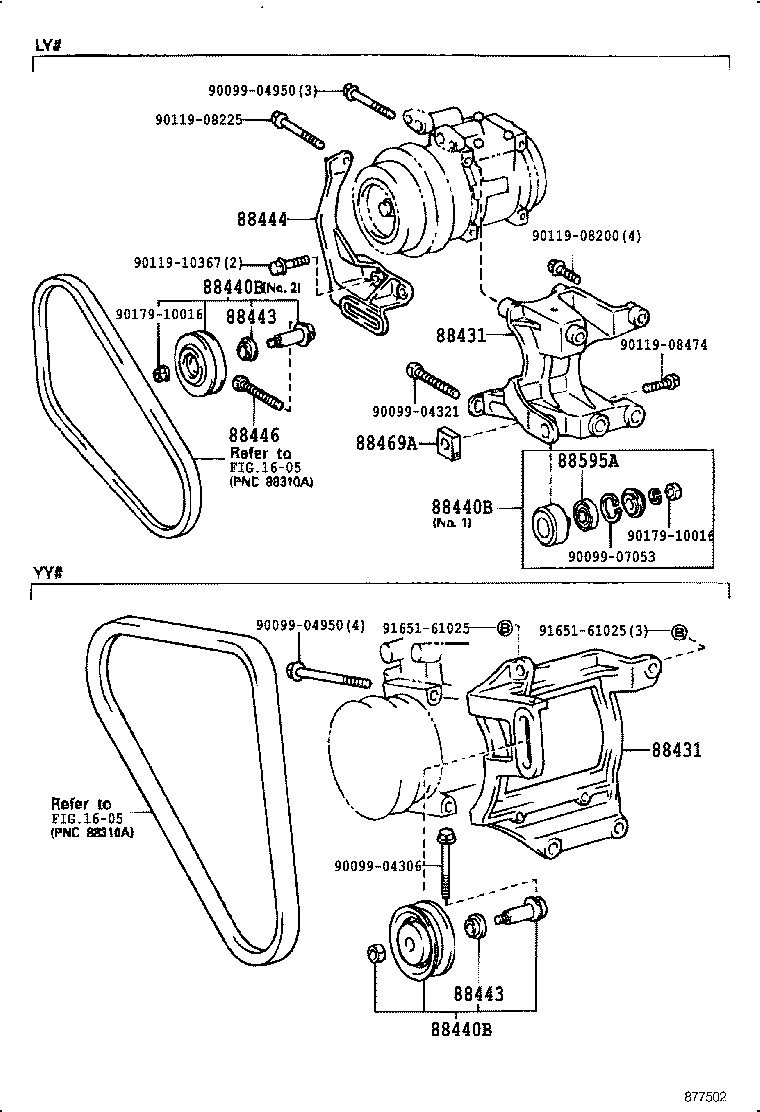

Heating & Air Conditioning - Compressor
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88443 | Collar, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88469A | Collar, Adjusting |
| 88595A | Bearing (FOR COOLER IDLE PULLEY) |
| 88595D | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
