Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

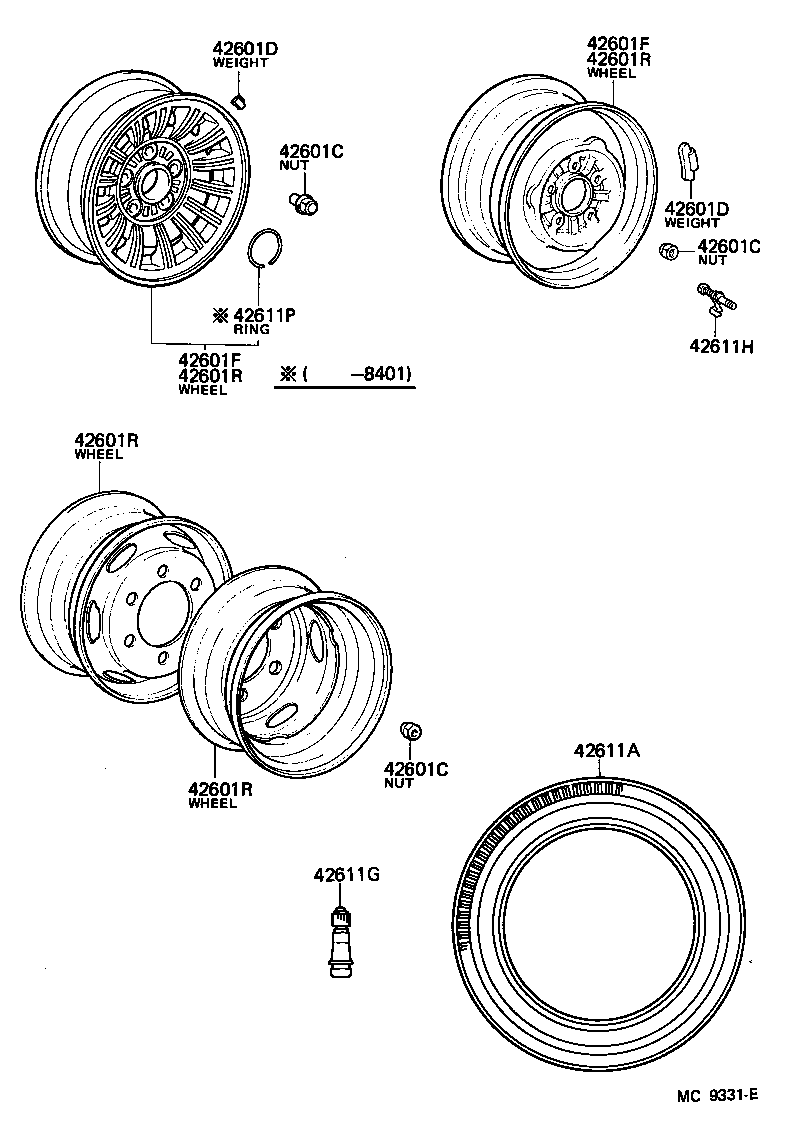

Disc Wheel & Wheel Cap
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |

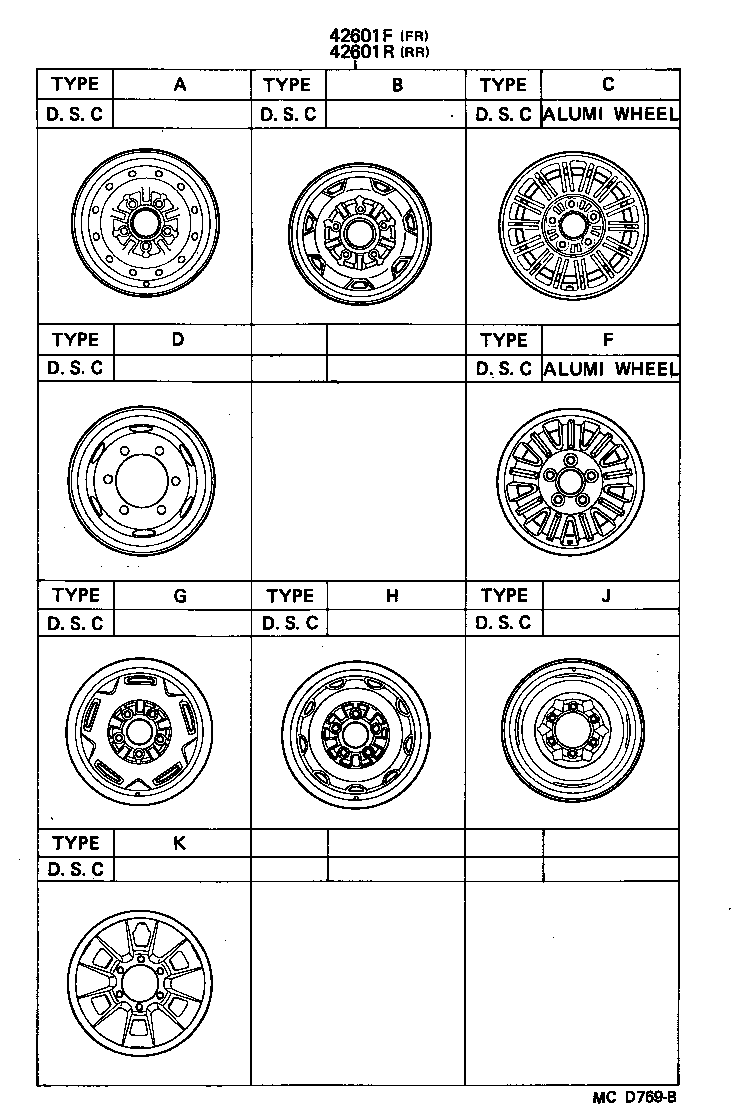

| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611A | Tire Tube Set OR Tubeless Tire |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611H | Extension, Valve |
| 42611P | Ring, Set |
| 42621 | Cap, Wheel |
| 42644 | Holder, Wheel Hub Ornament |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
