Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

34 part groups · 5 illustrations

Illustrations

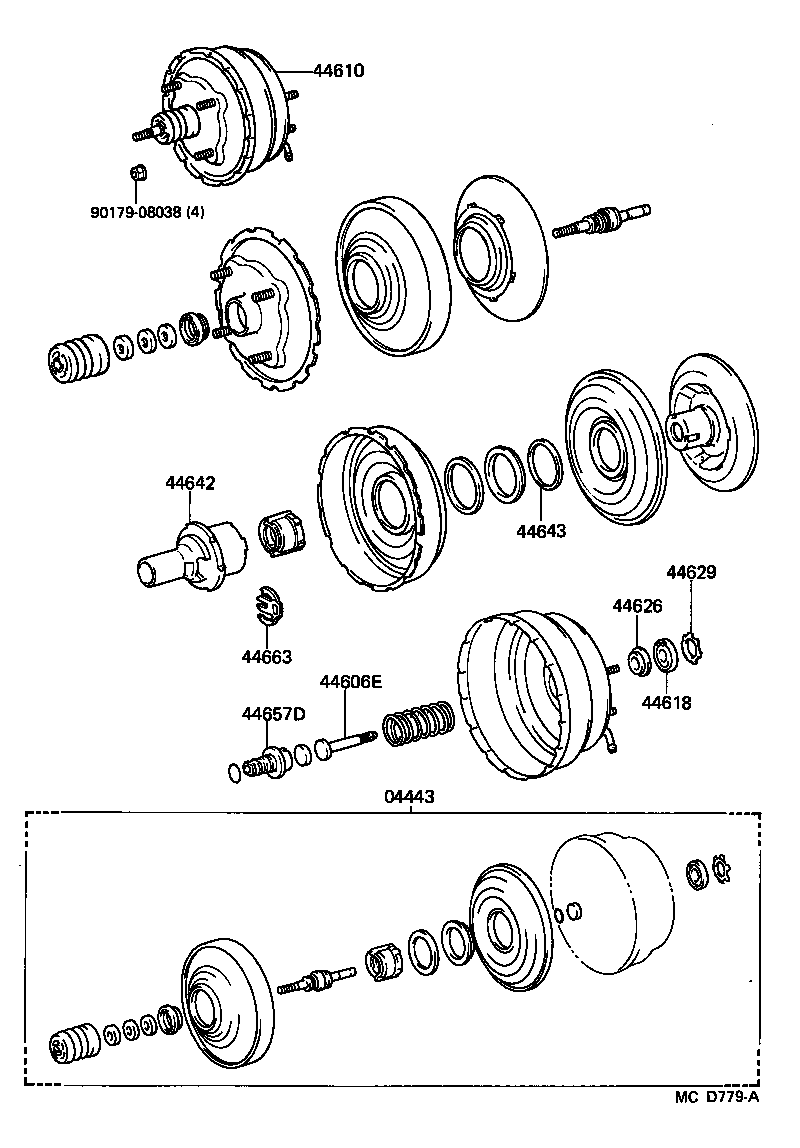

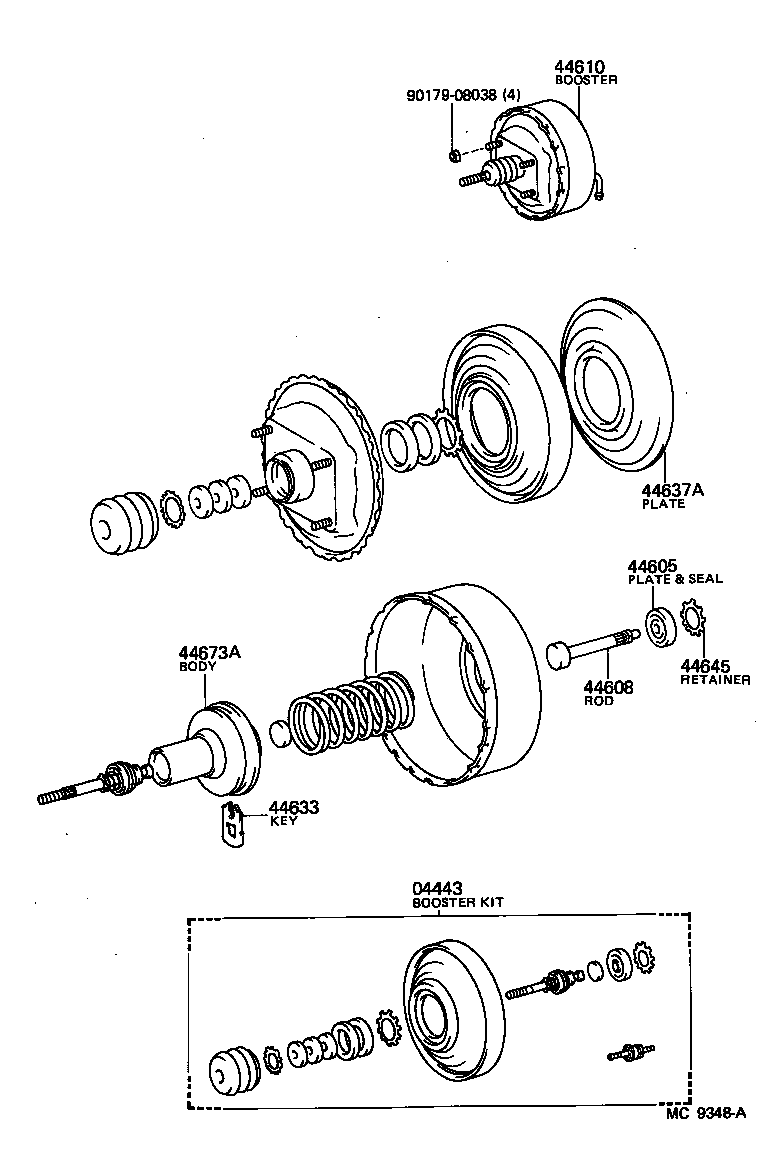

Figure MC9346A MC9346A 1982-12 → — Figure MCD779A MCD779A 1986-08 → — Figure MC9348A MC9348A 1982-12 → — Figure MC9349A MC9349A 1982-12 → — Figure MC9350 MC9350 1982-12 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44606E Rod Sub-assy, Brake Booster Piston
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44657D Case, Reaction Disc
44663 Key, Valve Stopper
44673A Body, Booster Valve
44704 Reservoir Sub-assy, Vacuum
44729 Gasket, Vacuum Tube
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730A Hose, Vacuum, NO.1
44730D Clip(FOR VACUUM HOSE, NO.1)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44761A Hose, Vacuum Pump
44761D Clamp, Vacuum Check Valve TO Connector Tube
44764 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44773 Hose, Vacuum, NO.2
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44773B Clip, NO.2(FOR VACUUM HOSE, NO.2)
44774 Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
