Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

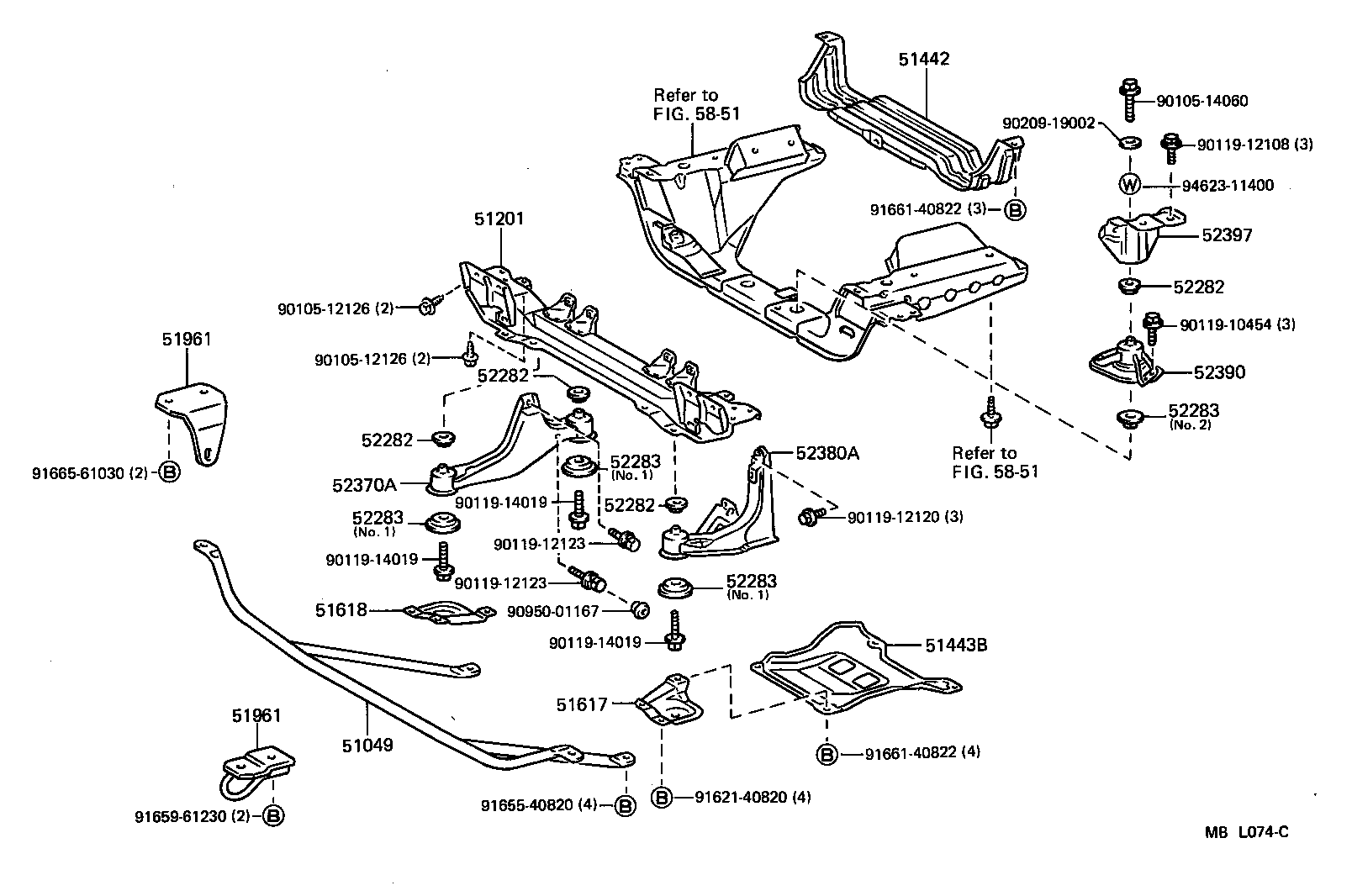

Suspension Crossmember & Under Cover
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51046A | Cover Sub-assy, Engine Under, NO.5 |
| 51049 | Bar Sub-assy, Under Guard, Front |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51215 | Reinforcement, Front Suspension Crossmember |
| 51405A | Cover Sub-assy, Engine Under, NO.1 |
| 51406A | Cover Sub-assy, Engine Under, NO.2 |
| 51407A | Cover Sub-assy, Engine Under, NO.3 |
| 51441 | Cover, Engine Under, NO.1 |
| 51442 | Cover, Engine Under, NO.2 |
| 51443B | Cover, Engine Under, NO.3 |
| 51448B | Shutter, Engine Rear Side |
| 51453B | Silencer, Engine Under Cover, RH |
| 51454B | Silencer, Engine Under Cover, LH |
| 51475 | Silencer, Engine Under Cover, NO.5 |
| 51617 | Guard, Front Differential Support, RH |
| 51618 | Guard, Front Differential Support, LH |
| 51961 | Hook, NO.1 |
| 51962 | Hook, NO.2 |
| 51967 | Hook, Transport, Rear |
| 52282 | Stopper, Differential Support Member, Upper |
| 52283 | Stopper, Differential Support Member, Lower |
| 52370A | Support Assy, Front Differential, Front RH |
| 52380A | Support Assy, Front Differential, Front LH |
| 52390 | Support Assy, Front Differential, Rear |
| 52397 | Bracket, Front Differential Rear Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
