Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 5 illustrations

Illustrations

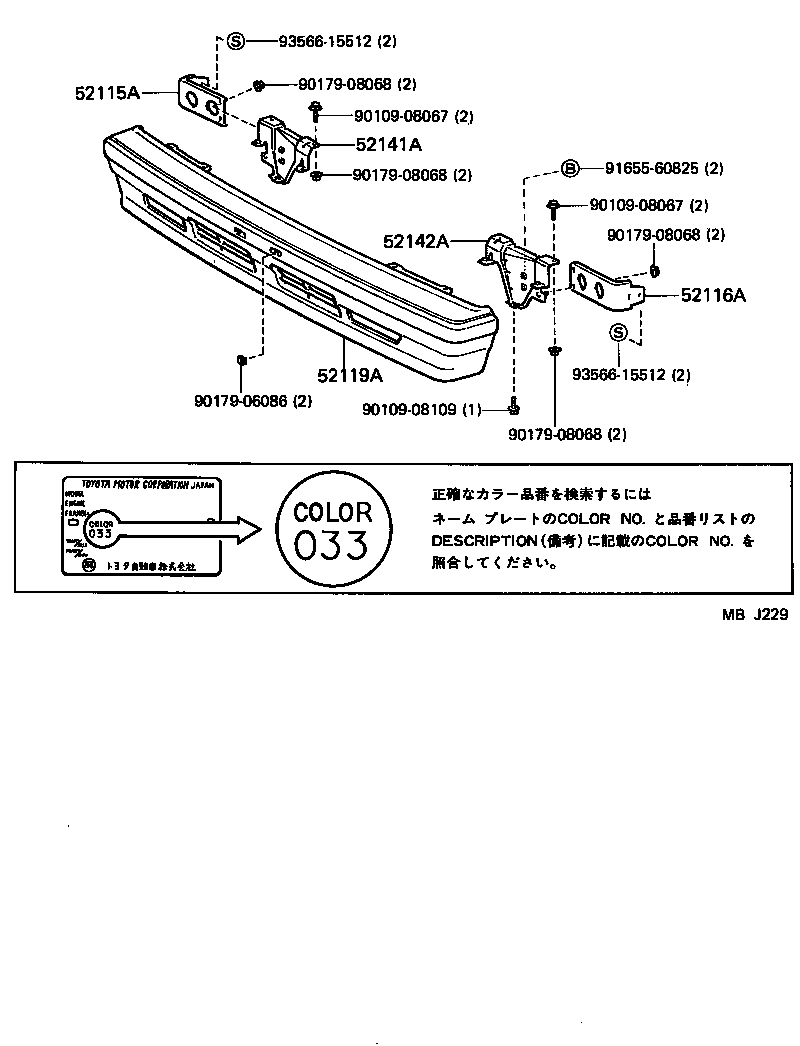

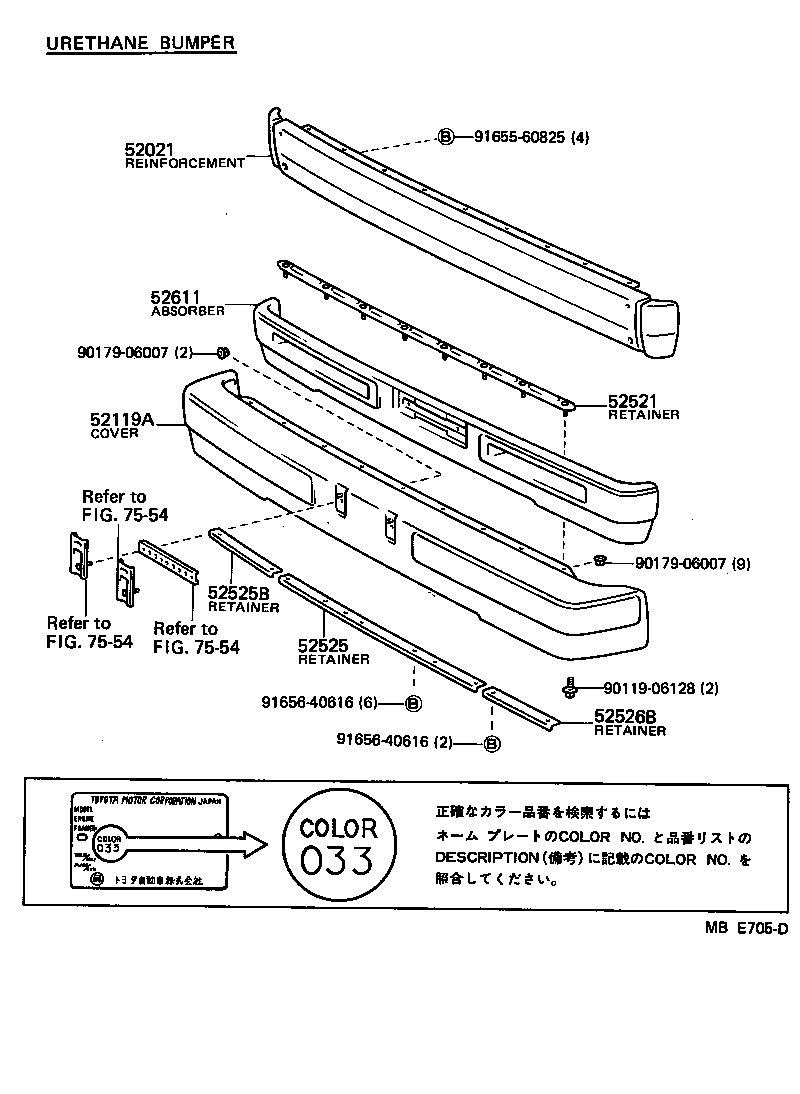

Figure MBE704B MBE704B 1982-12 → 1985-08 Figure MBE704B MBE704B 1985-08 → — Figure MBE705D MBE705D 1982-12 → 1984-01 Figure MBE705D MBE705D 1984-01 → 1985-08 Figure MBJ229 MBJ229 1985-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52141A Arm, Front Bumper, Upper RH
52142A Arm, Front Bumper, Upper LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
