Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

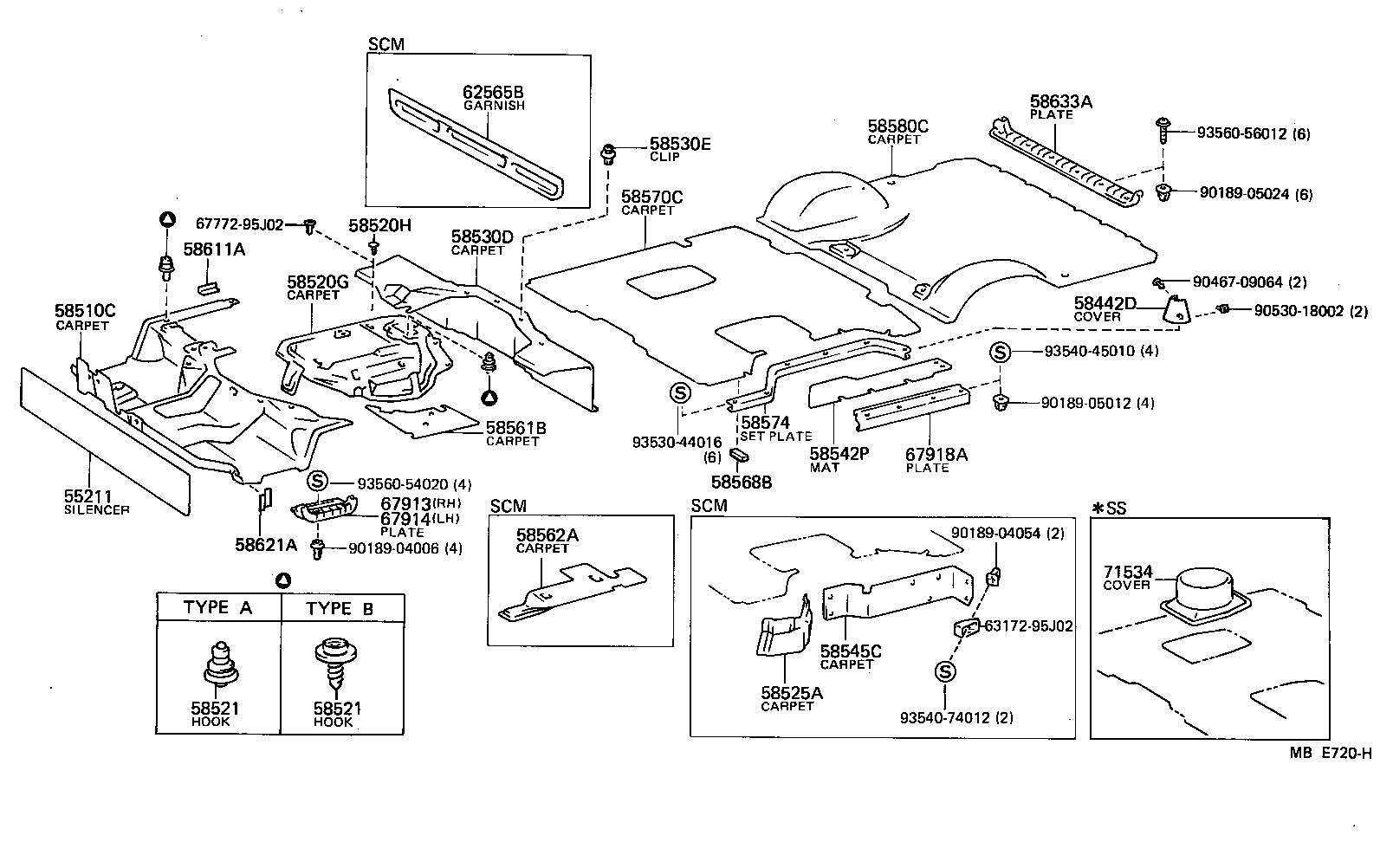

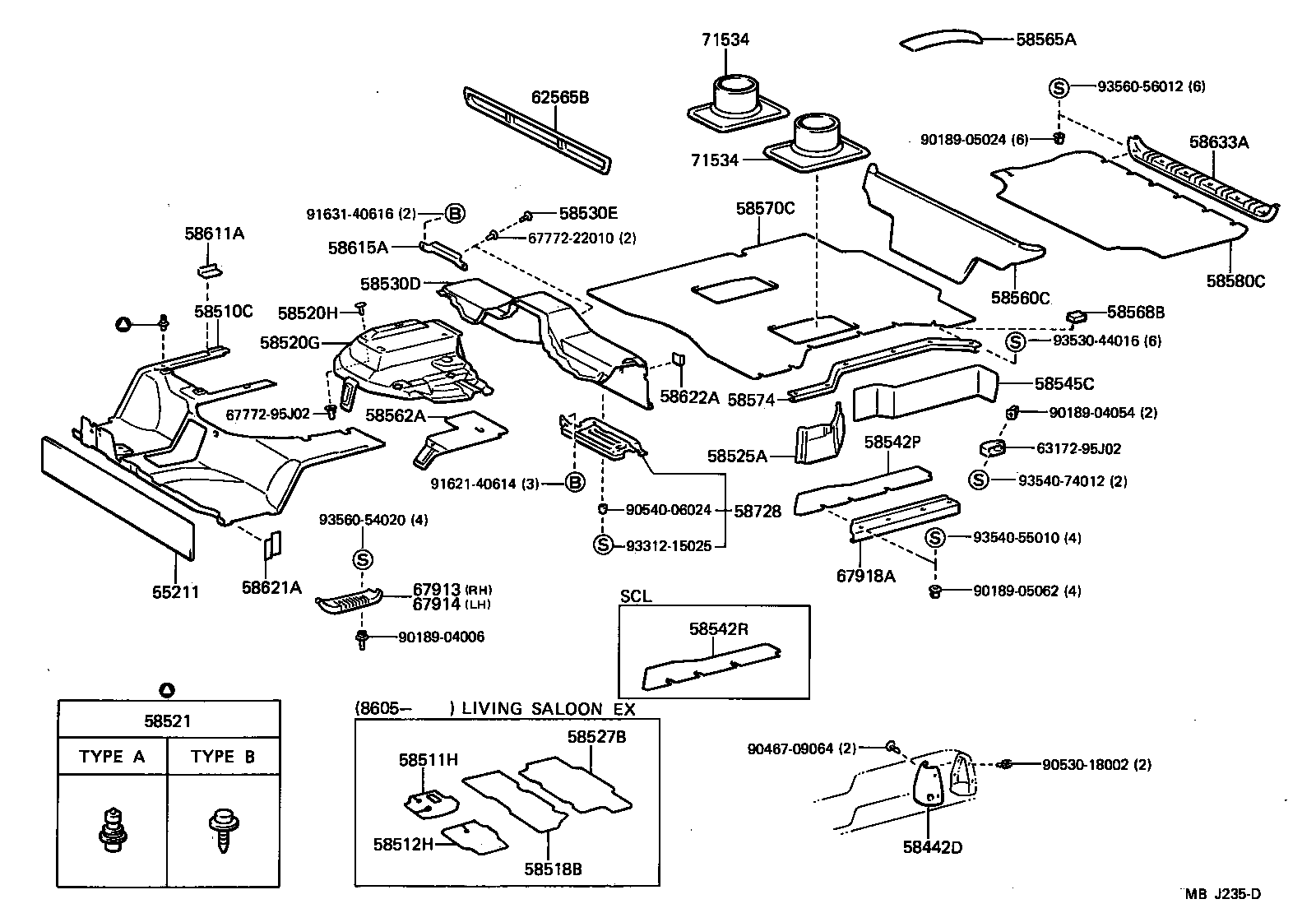

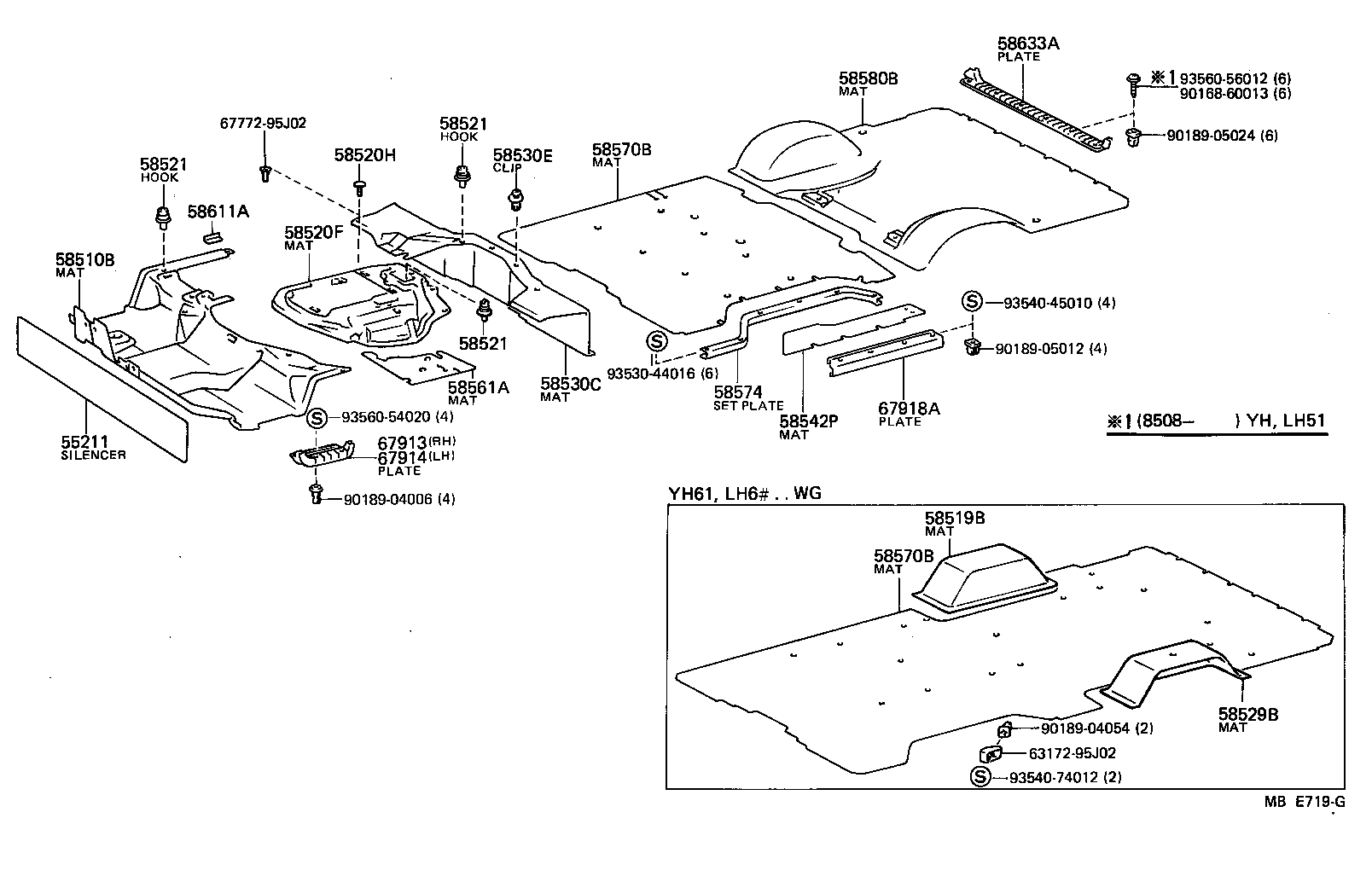

Floor Mat & Silencer Pad
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55211 | Silencer, Front Panel |
| 58442D | Cover, Jack |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511H | Mat, Floor, Front RH |
| 58512H | Mat, Floor, Front LH |
| 58518B | Mat, Rear Floor, NO.2 |
| 58519B | Mat, Rear Wheel House, RH |
| 58519C | Carpet, Rear Wheel House, RH |
| 58520F | Mat Assy, Engine Cover |
| 58520G | Carpet Assy, Engine Cover |
| 58520H | Clip(FOR ENGINE COVER MAT) |
| 58521 | Hook, Male, NO.1 |
| 58525A | Carpet, Air Cleaner Service Hole Cover |
| 58527B | Mat, Rear Floor, NO.3 |
| 58529B | Mat, Rear Wheel House, LH |
| 58529C | Carpet, Rear Wheel House, LH |
| 58530C | Mat, Front Floor, Rear |
| 58530D | Carpet, Front Floor, Rear |
| 58530E | Clip(FOR FRONT FLOOR REAR CARPET) |
| 58541P | Mat, Step, RH |
| 58542P | Mat, Step, LH |
| 58542R | Carpet, Step, LH |
| 58545C | Carpet, Step Side, LH |
| 58560C | Carpet Assy, NO.3 Seat Leg Space |
| 58561A | Mat, Front Floor Side, LH |
| 58561B | Carpet, Front Floor Side, LH |
| 58562A | Carpet, Front Seat Side, LH |
| 58565A | Leather, Rear Floor Carpet, NO.1 |
| 58568B | Spacer, Rear Floor Carpet |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58573 | Set Plate, Rear Floor Mat Side, Front RH |
| 58574 | Set Plate, Rear Floor Mat Side, Front LH |
| 58580B | Mat Assy, Rear Floor, Rear |
| 58580C | Carpet Assy, Rear Floor, Rear |
| 58611A | Plate, Mat Set, NO.1 RH |
| 58615A | Plate, Mat Set, NO.5 |
| 58621A | Plate, Mat Set, NO.1 LH |
| 58622A | Plate, Mat Set, NO.2 LH |
| 58633A | Plate, Back Door Scuff |
| 58728 | Plate, Engine Service Cover, Rear |
| 62565B | Garnish, Floor Crossmember |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 71534 | Cover, Rear Turn Seat, Leg |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
