Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

23 part groups · 3 illustrations

Illustrations

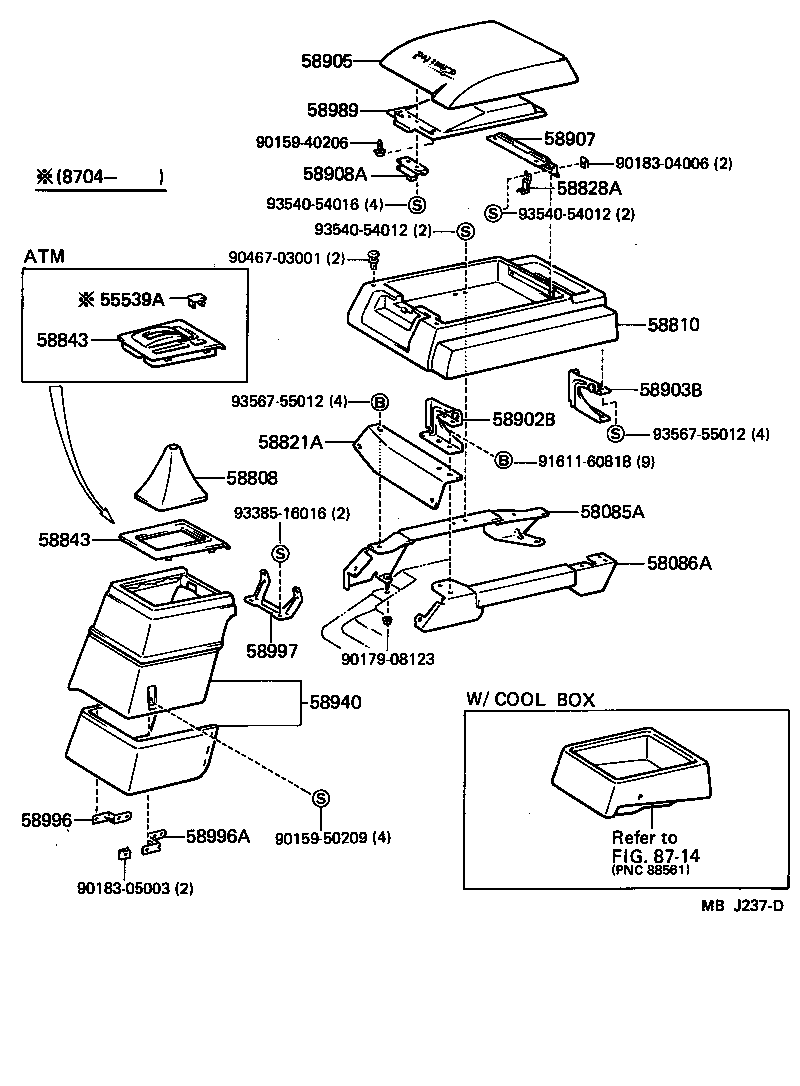

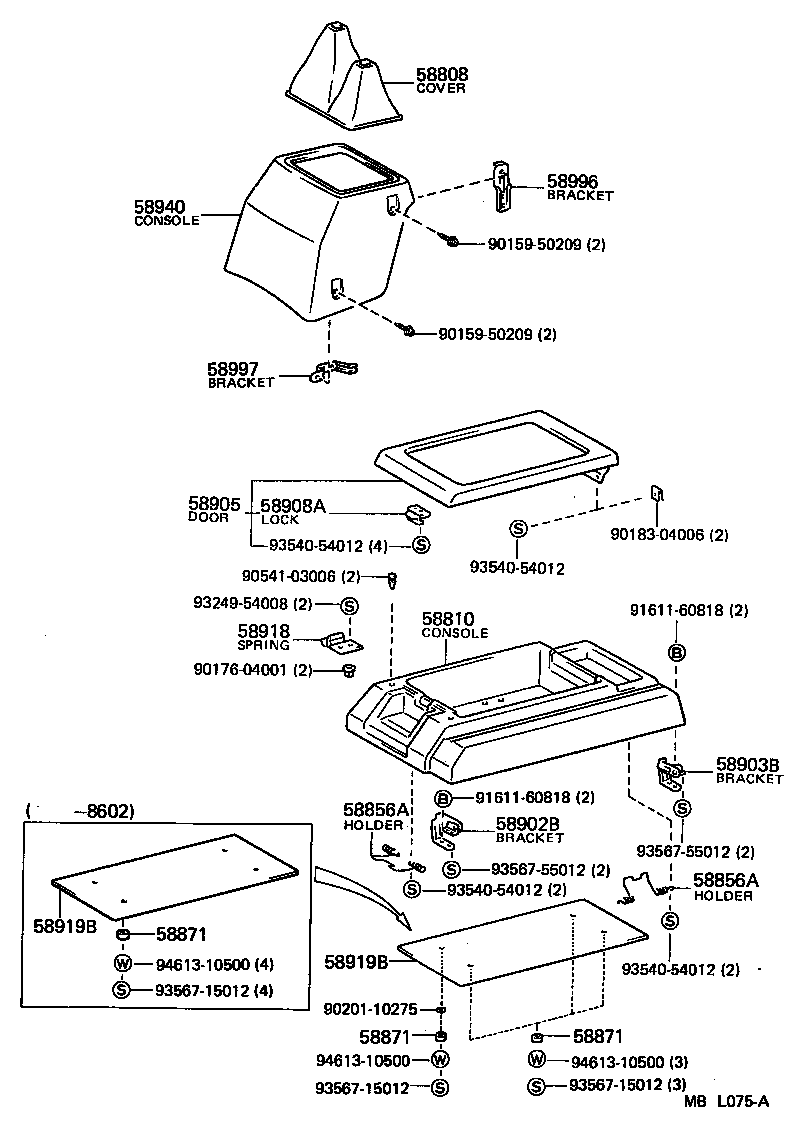

Figure MBE721I MBE721I 1982-12 → — Figure MBL075A MBL075A 1986-08 → — Figure MBJ237D MBJ237D 1985-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58085A Support Sub-assy, Console Box, RH
58086A Support Sub-assy, Console Box, LH
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58821A Panel, Console
58828A Bracket, Console Box, Lower
58832B Plate, Center Seatback Console
58843 Bezel, Shifting Hole
58856A Holder, Console Box
58871 Cushion, Console Box
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58903B Bracket Sub-assy, Console Box Hinge, NO.2
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58918 Spring, Console Box Stopper
58919B Plate, Console Box
58940 Console Assy, Rear
58989 Panel, Console Compartment Door
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
