Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

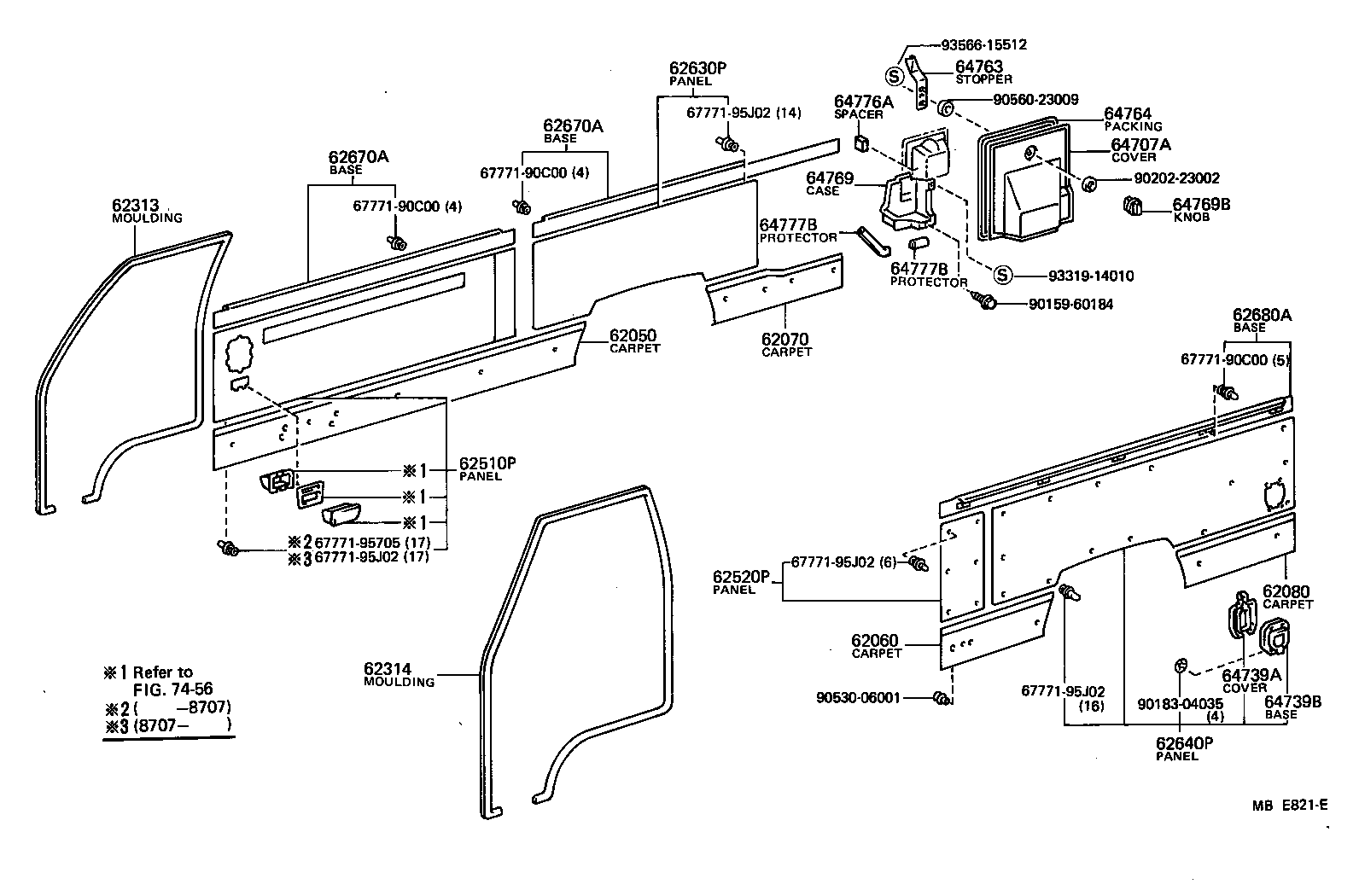

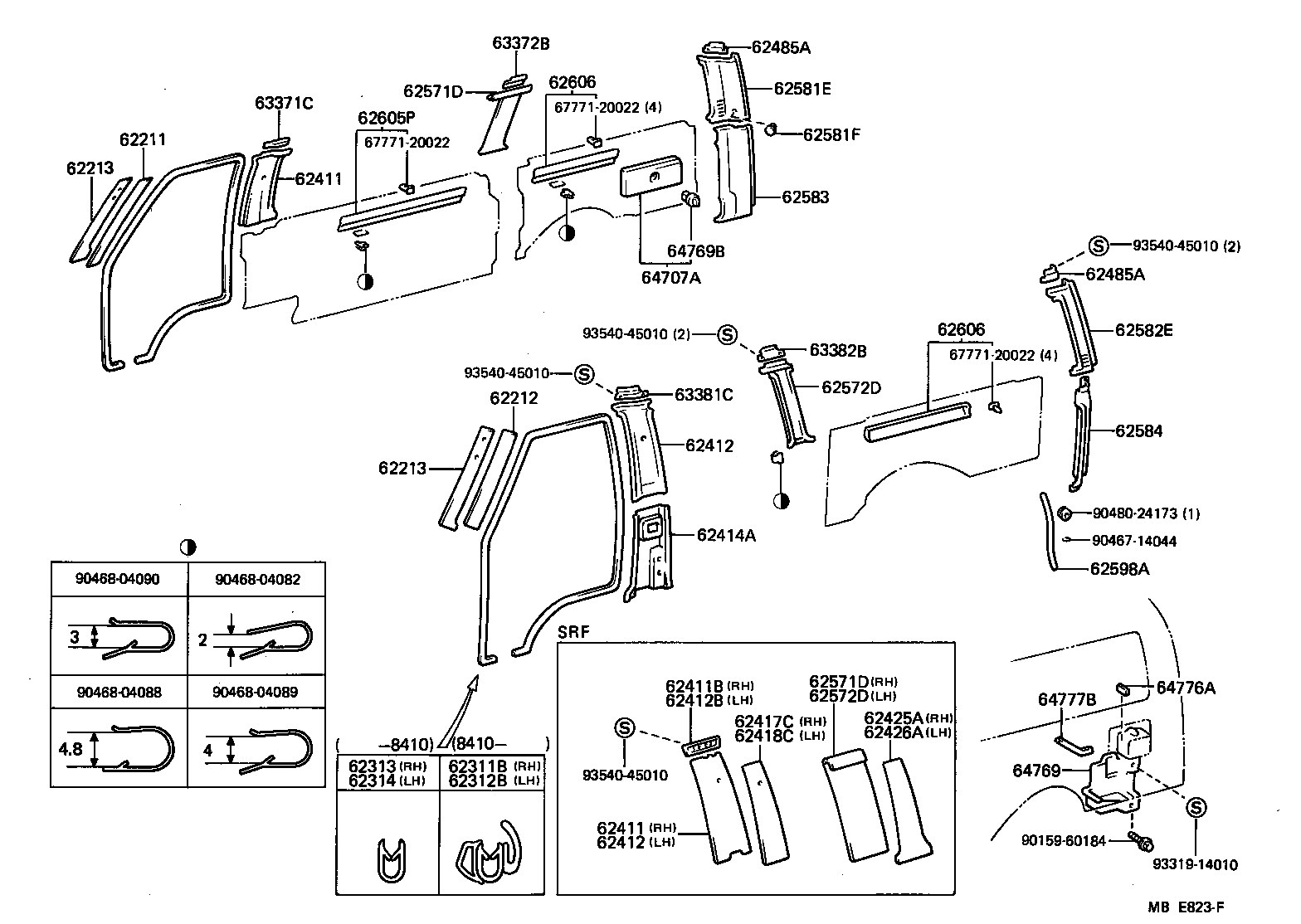

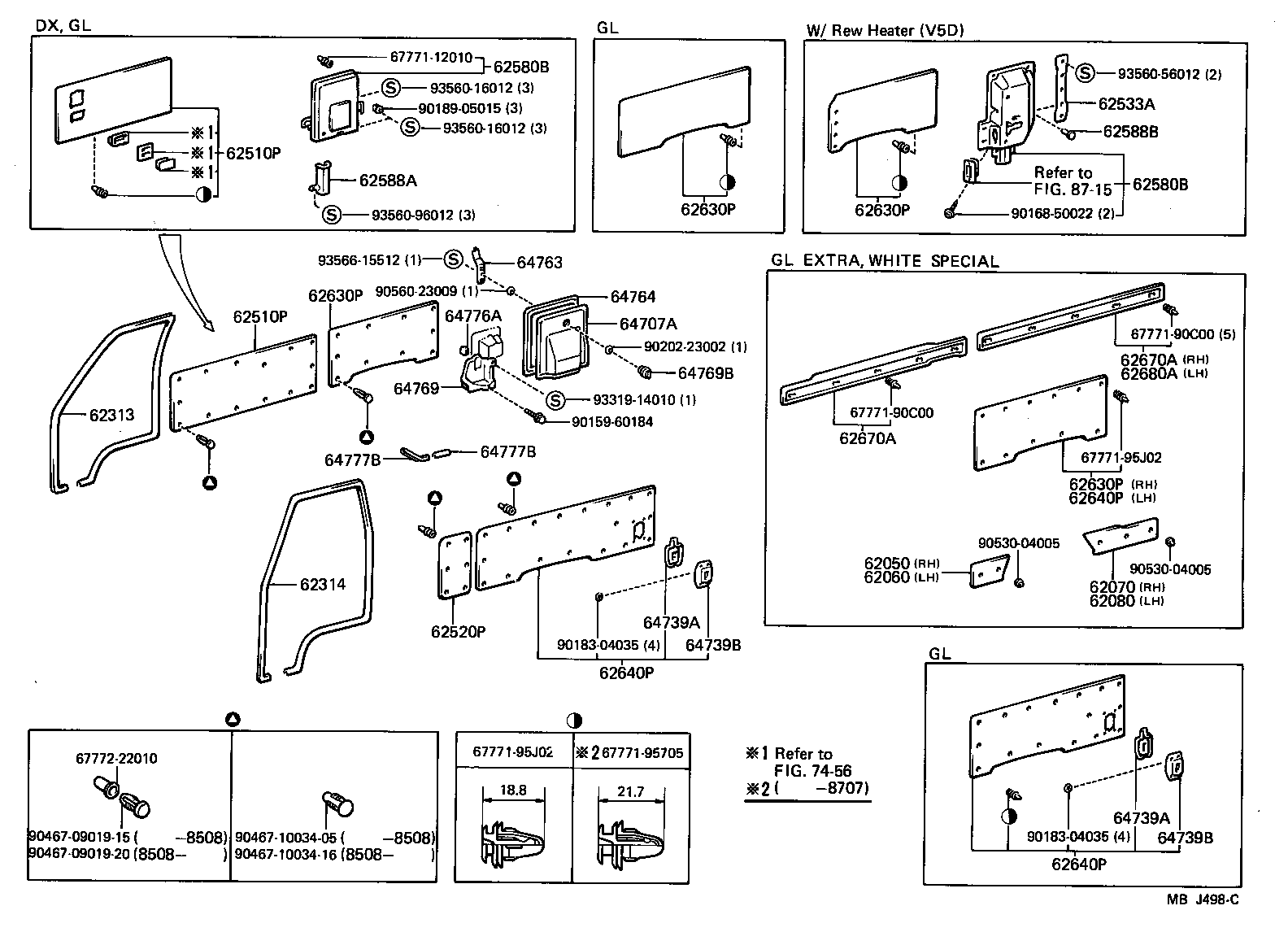

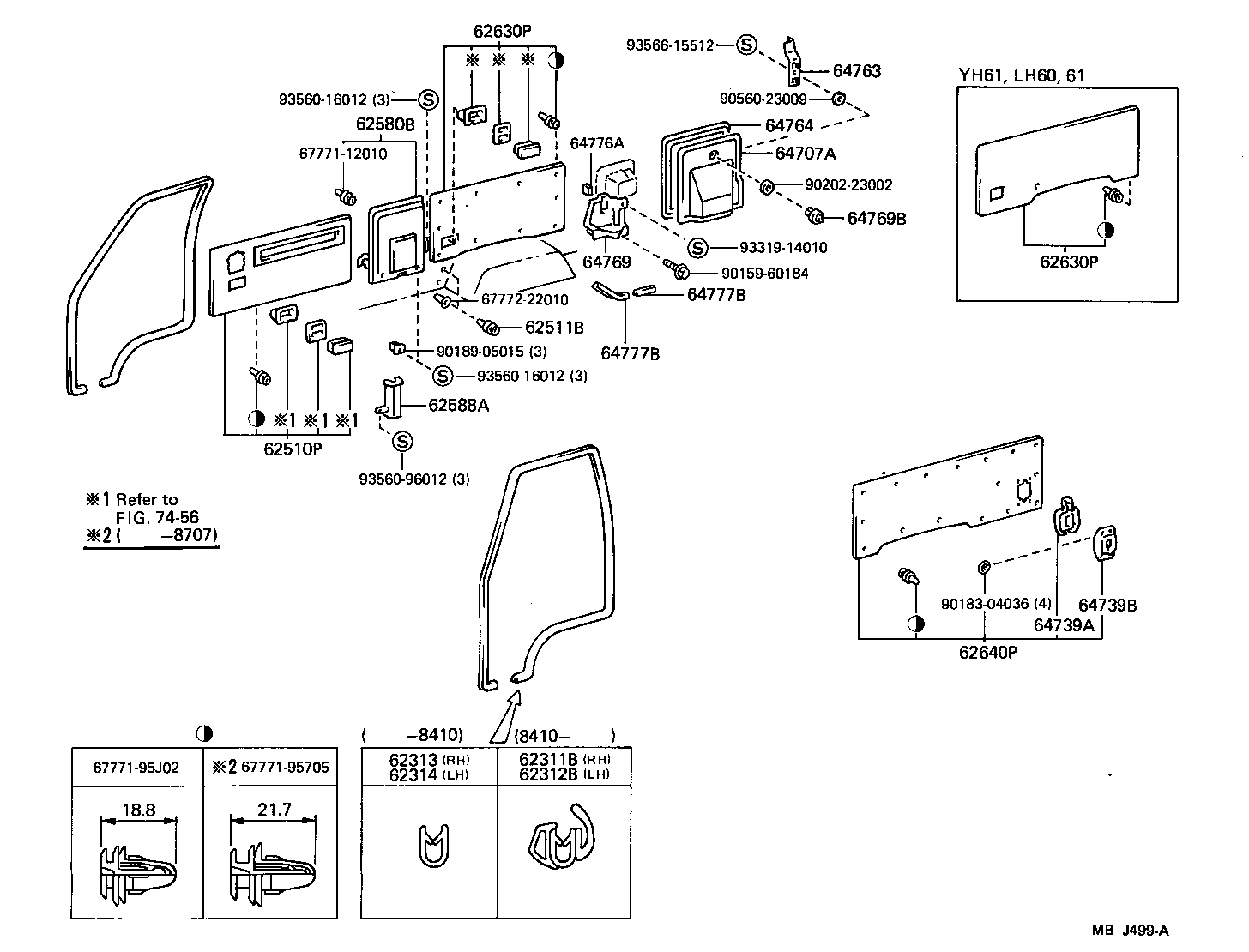

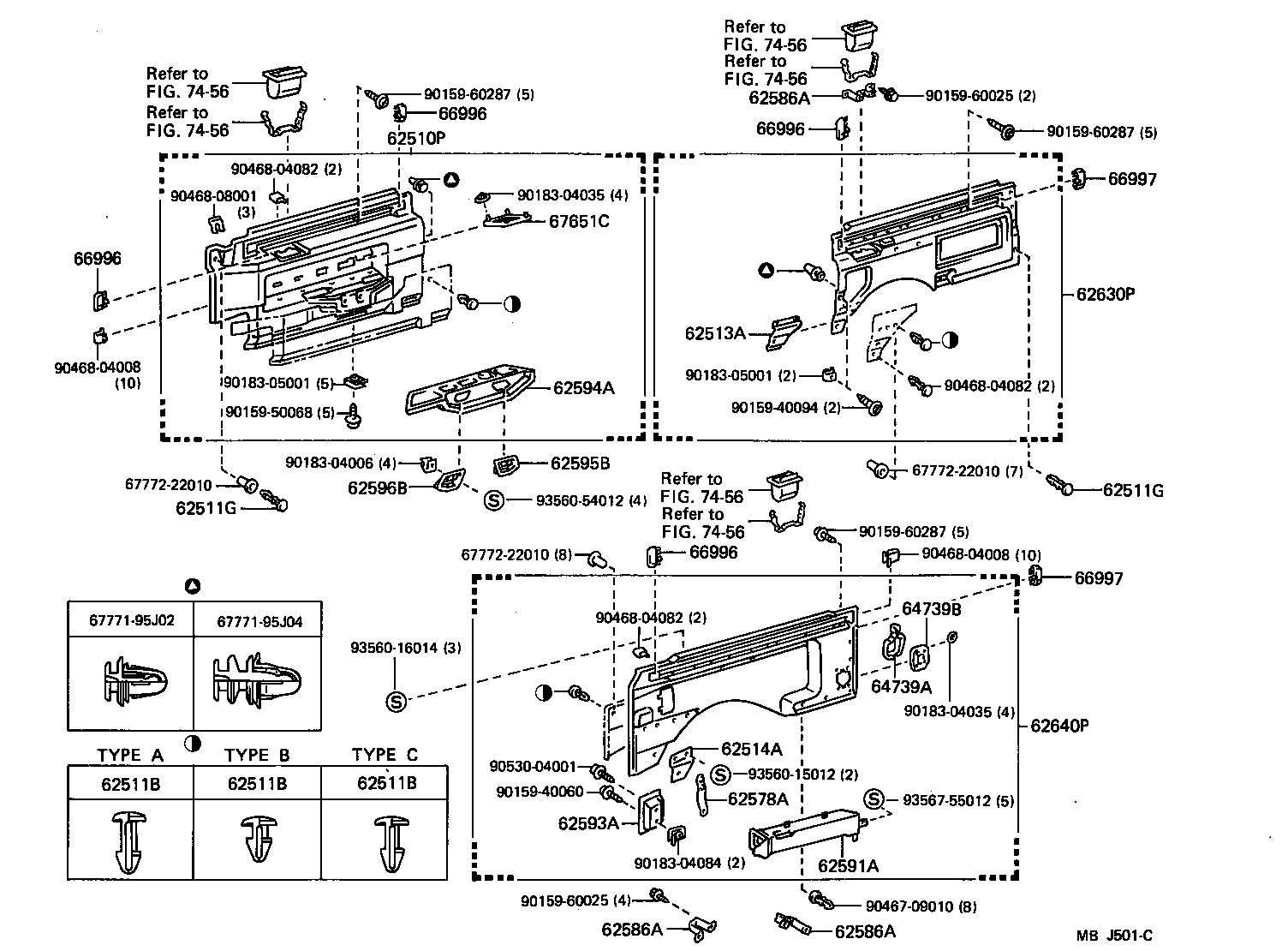

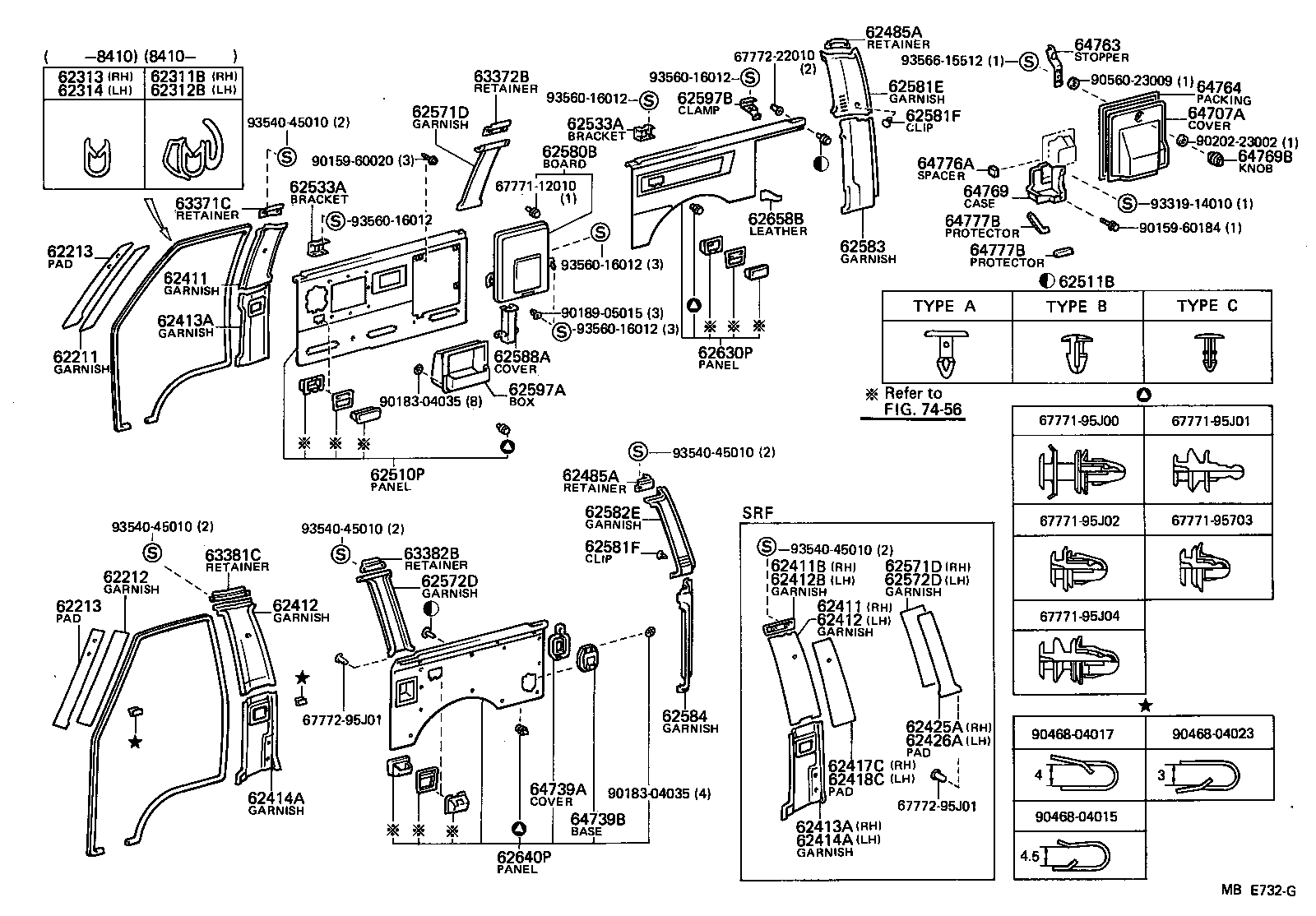

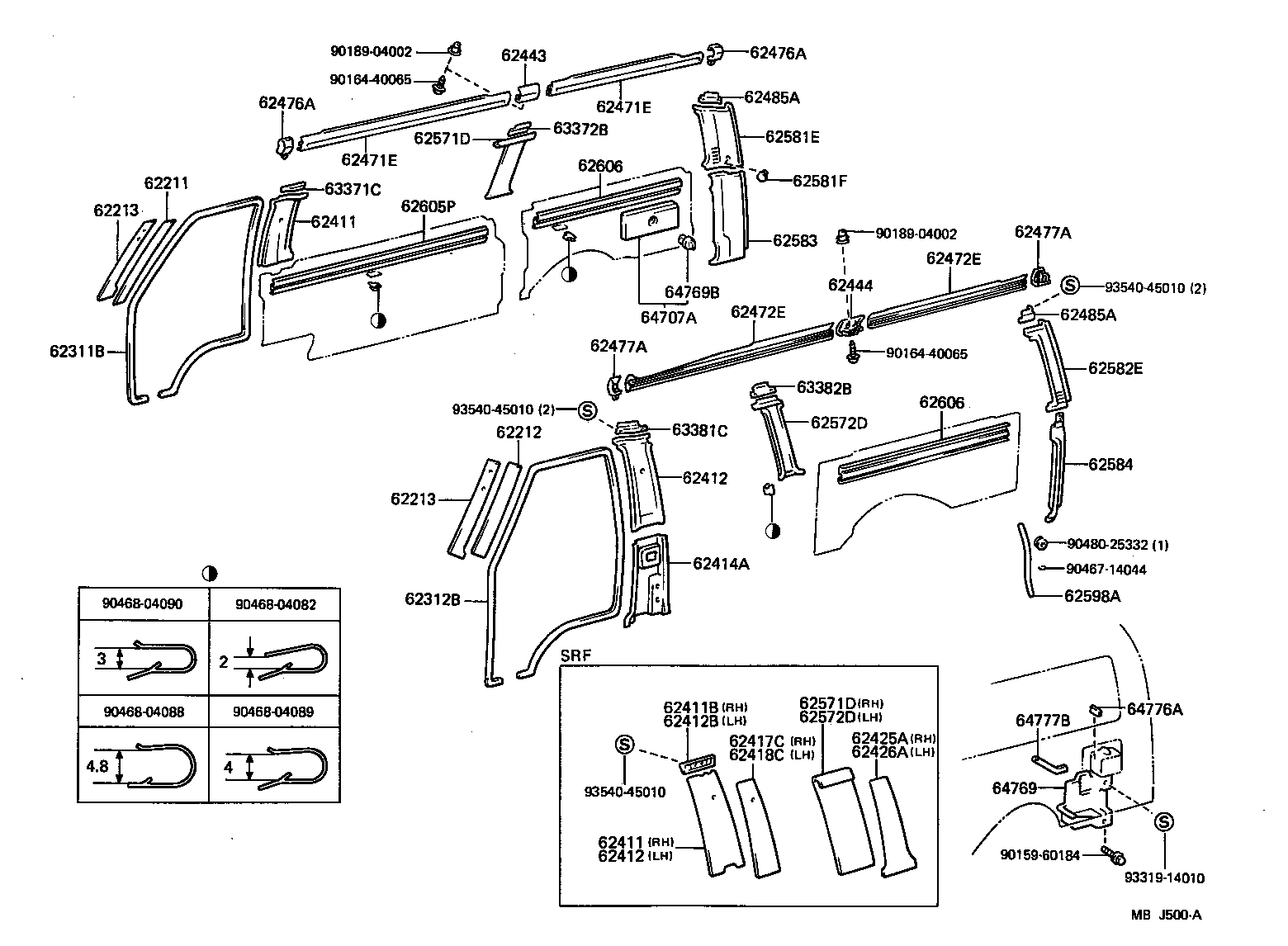

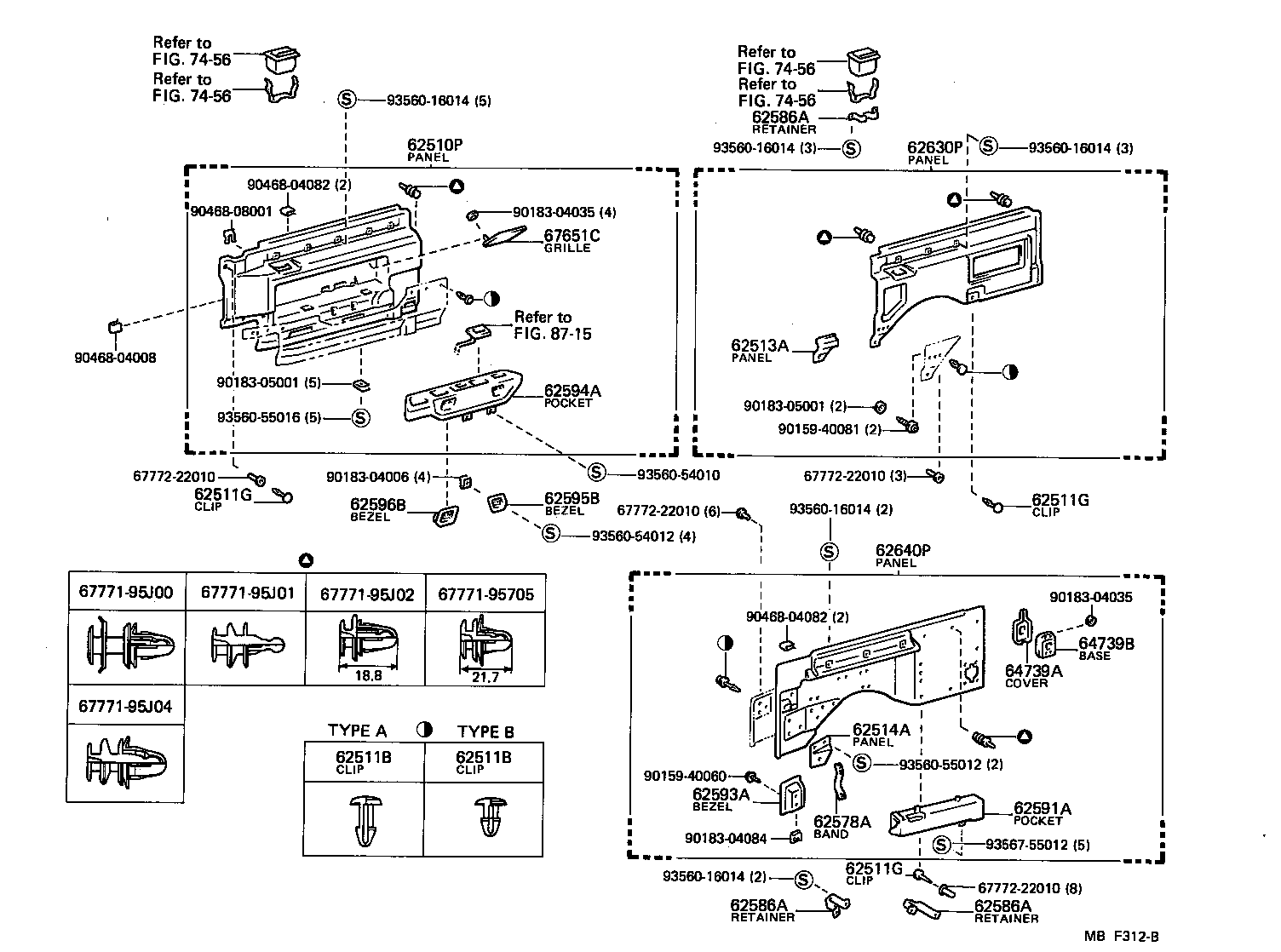

Inside Trim Board
78 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 62050 | Carpet Assy, Quarter Trim, Front RH |
| 62060 | Carpet Assy, Quarter Trim, Front LH |
| 62070 | Carpet Assy, Quarter Trim, Rear RH |
| 62080 | Carpet Assy, Quarter Trim, Rear LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417C | Pad, Center Pillar, RH |
| 62418C | Pad, Center Pillar, LH |
| 62425A | Pad, Quarter Lock Pillar, RH |
| 62426A | Pad, Quarter Lock Pillar, LH |
| 62443 | Joint, Roof Side Rail Garnish, RH |
| 62444 | Joint, Roof Side Rail Garnish, LH |
| 62471E | Garnish, Roof Side, Inner Upper RH |
| 62472E | Garnish, Roof Side, Inner Upper LH |
| 62476A | Cap, Roof Side Inner Garnish, RH |
| 62477A | Cap, Roof Side Inner Garnish, LH |
| 62485A | Retainer, Roof Side Inner Garnish |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62533A | Bracket, Quarter Trim Clamp |
| 62571D | Garnish, Quarter Lock Pillar, RH |
| 62572D | Garnish, Quarter Lock Pillar, LH |
| 62578A | Band, Umbrella Pocket |
| 62580B | Board Assy, Side Heater Cover, RH |
| 62581E | Garnish, Quarter Pillar, RH |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62582E | Garnish, Quarter Pillar, LH |
| 62583 | Garnish, Quarter Pillar, Lower RH |
| 62584 | Garnish, Quarter Pillar, Lower LH |
| 62586A | Retainer, Quarter Trim |
| 62588A | Cover, Side Heater, Lower |
| 62588B | Clip (FOR SIDE HEATER COVER) |
| 62591A | Pocket, Umbrella |
| 62593A | Bezel, Umbrella Pocket |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62595B | Bezel, Quarter Trim Pocket, RH |
| 62596B | Bezel, Quarter Trim Pocket, LH |
| 62597A | Box, Side Trim |
| 62597B | Clamp, Quarter Trim |
| 62598A | Hose, Umbrella Pocket Drain |
| 62605P | Ornament Sub-assy, Quarter Trim, Front |
| 62606 | Ornament Sub-assy, Quarter Trim, Rear |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62658B | Leather, Quarter Trim Rear, RH |
| 62670A | Base Assy, Quarter Trim, RH |
| 62680A | Base Assy, Quarter Trim, LH |
| 63371C | Retainer, Roof Headlining, NO.1 RH |
| 63372B | Retainer, Roof Headlining, NO.2 RH |
| 63381C | Retainer, Roof Headlining, NO.1 LH |
| 63382B | Retainer, Roof Headlining, NO.2 LH |
| 64707A | Cover Sub-assy, Quarter Trim Tool |
| 64739A | Cover, Deck Trim Rear Washer |
| 64739B | Base, Rear Washer Tank, Service Hole Cover |
| 64763 | Stopper, Tool Cover |
| 64764 | Packing, Tool Cover |
| 64769 | Case Sub-assy, Tool Bag |
| 64769B | Knob, Tool Cover |
| 64776A | Spacer, Tool Bag Case |
| 64777B | Protector, Quarter, Inner |
| 66996 | Bracket, Cup Holder, NO.1 |
| 66997 | Bracket, Cup Holder, NO.2 |
| 67651C | Grille, Quarter Trim Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
