Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

194 part groups · 23 illustrations

Illustrations

MBE744I 1982-12 → 1985-08

MBE744I 1982-12 → —

MBE744I 1985-08 → —

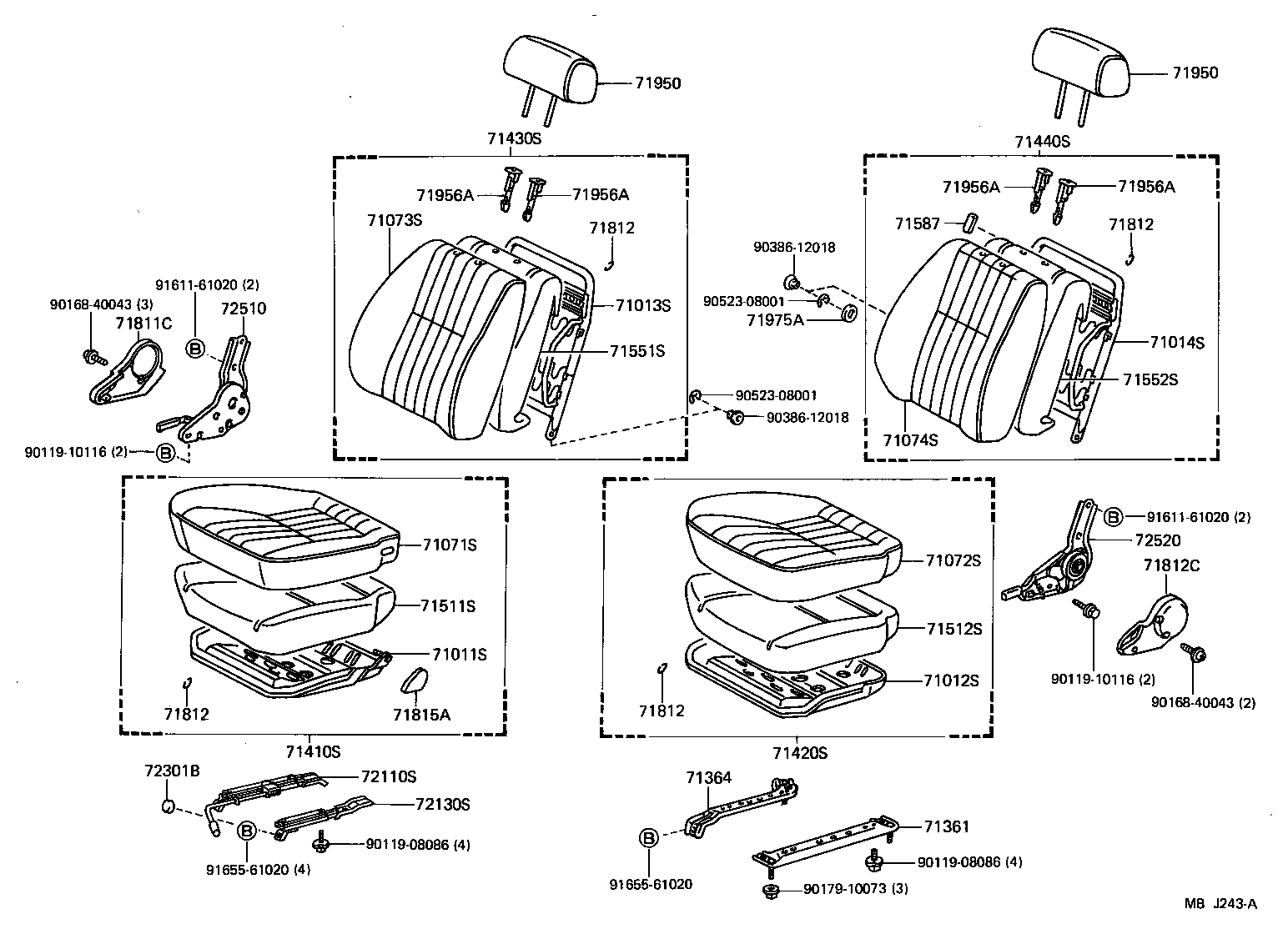

MBJ243A 1985-08 → —

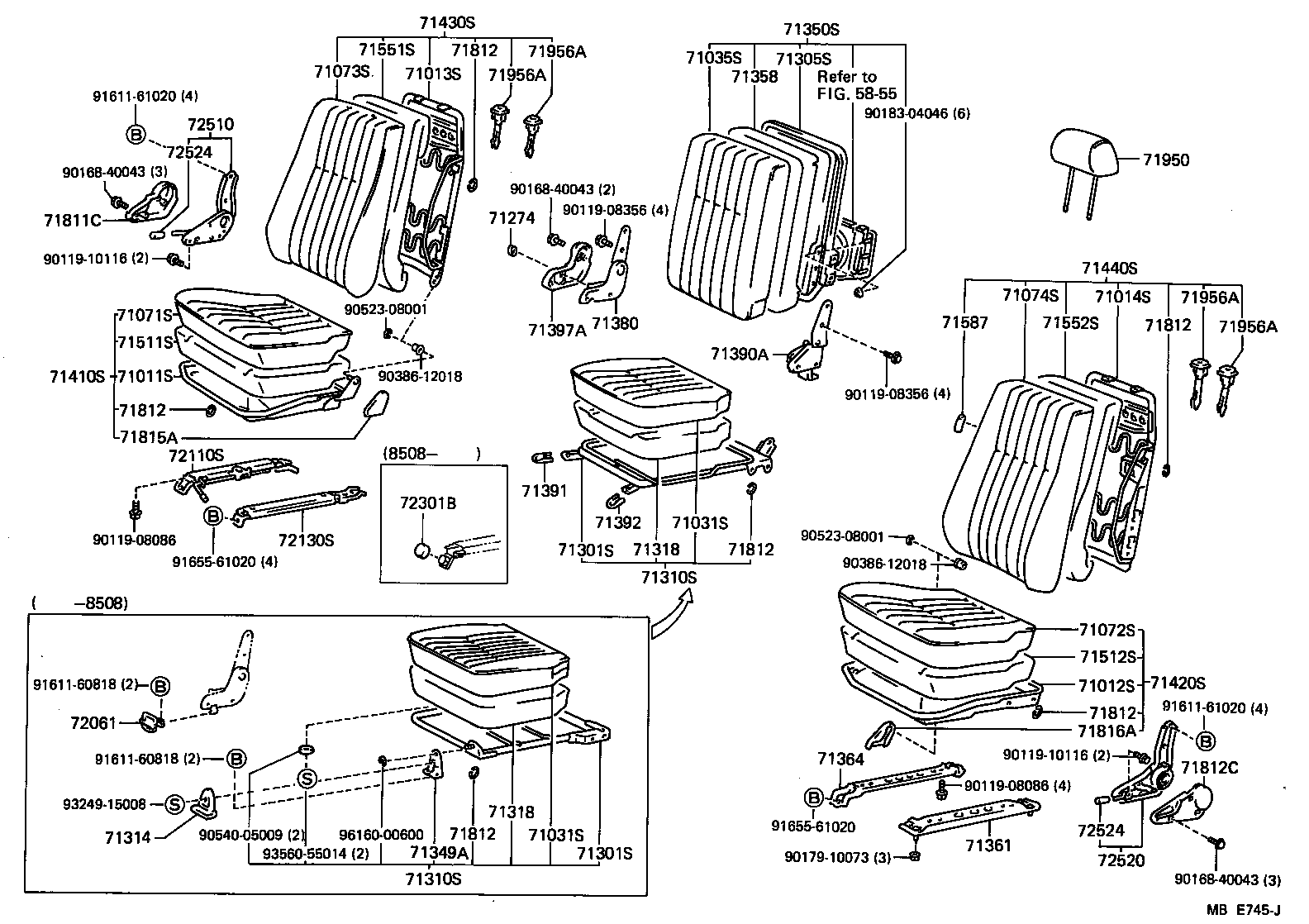

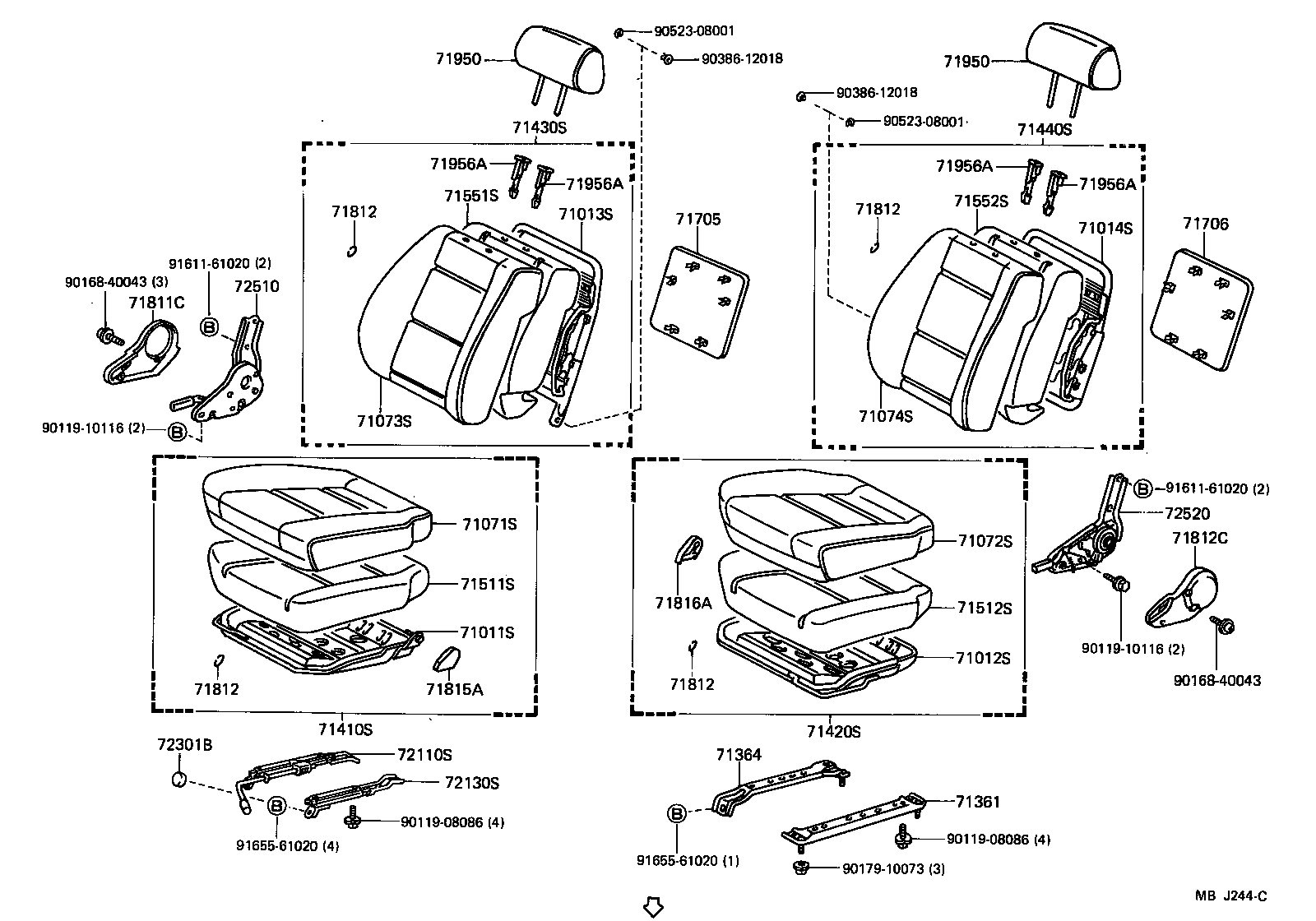

MBE745J 1982-12 → 1984-01

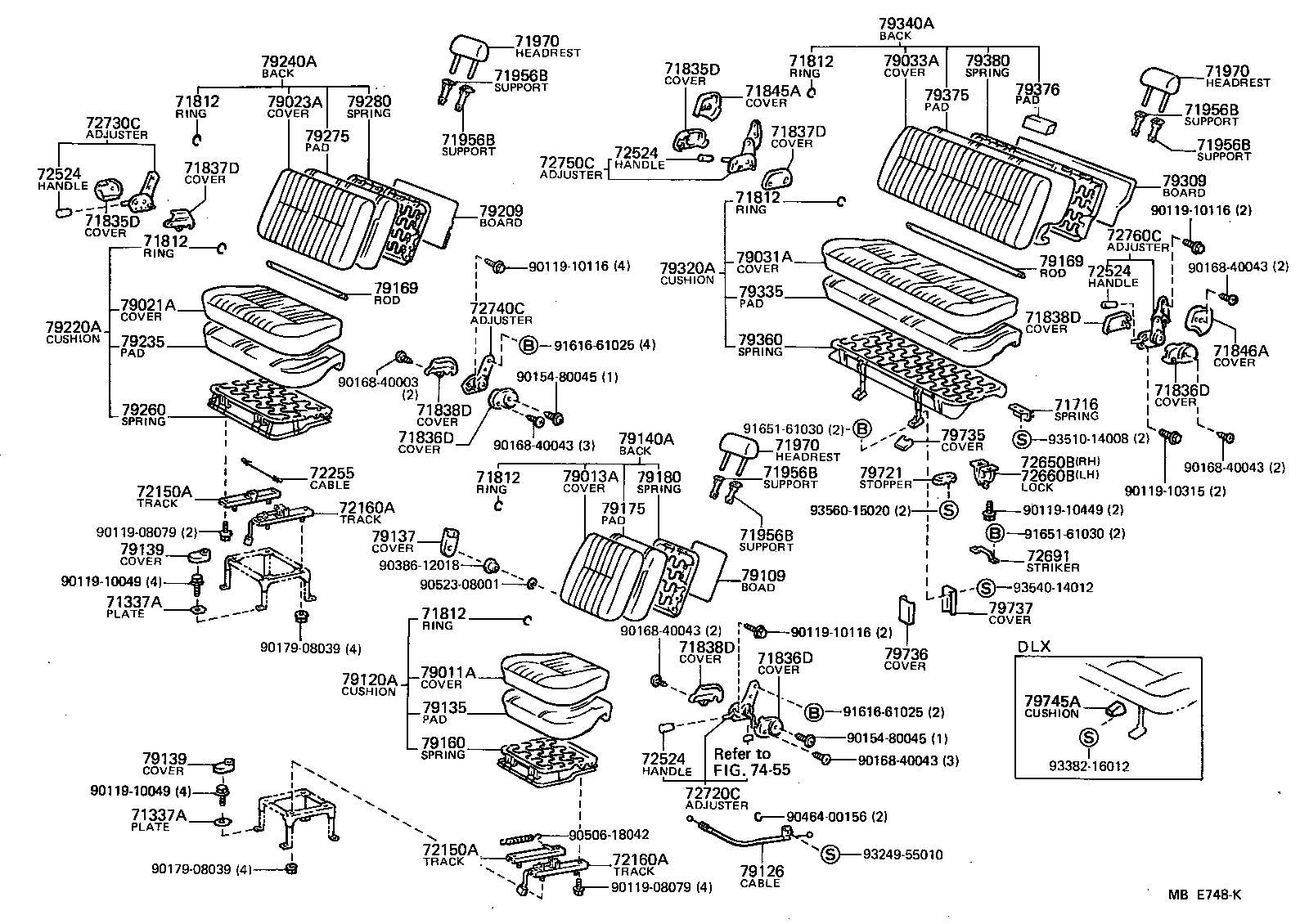

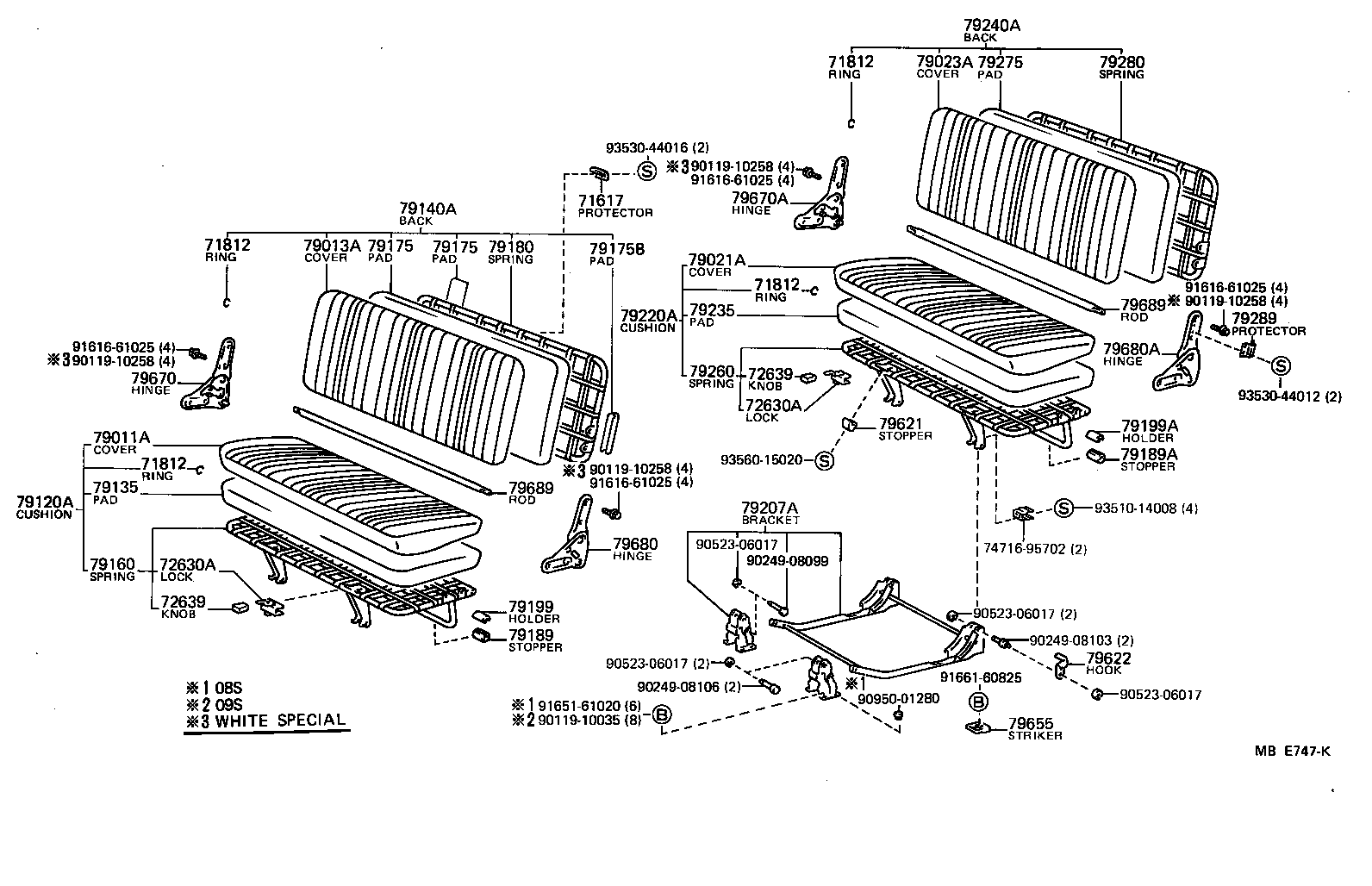

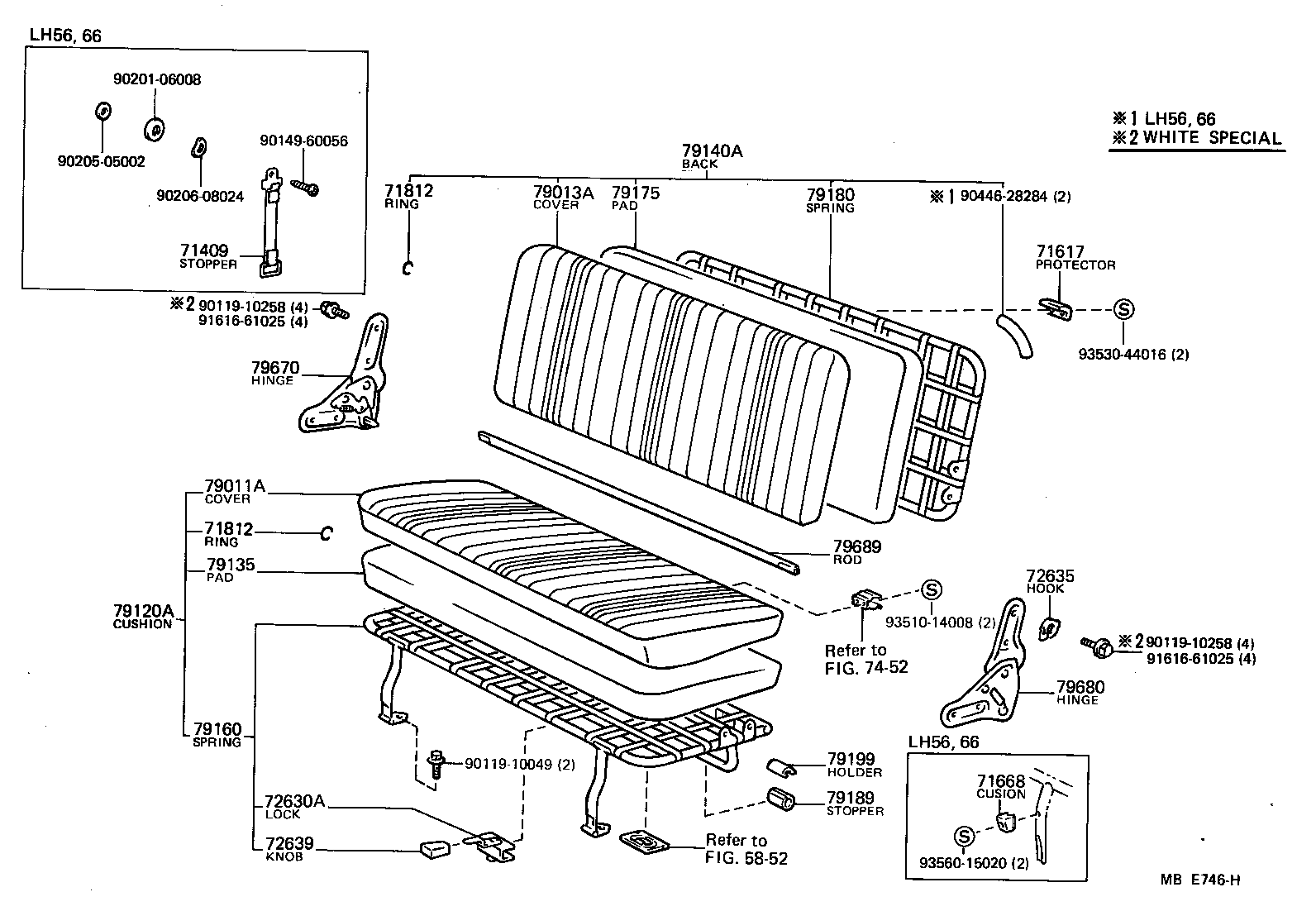

MBE748K 1982-12 → 1985-08

MBE748K 1985-08 → —

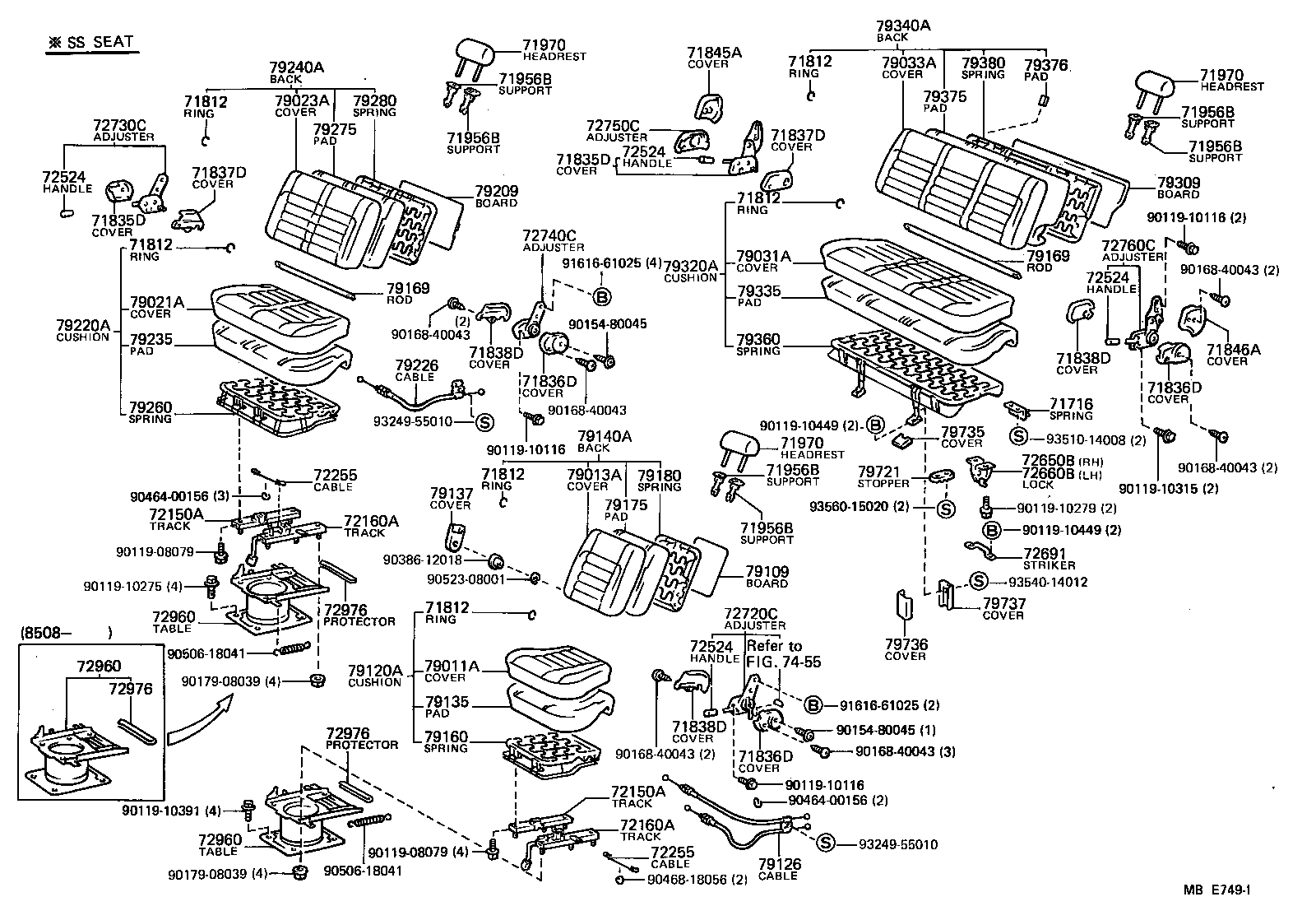

MBE749I 1982-12 → 1984-01

MBE749I 1984-01 → —

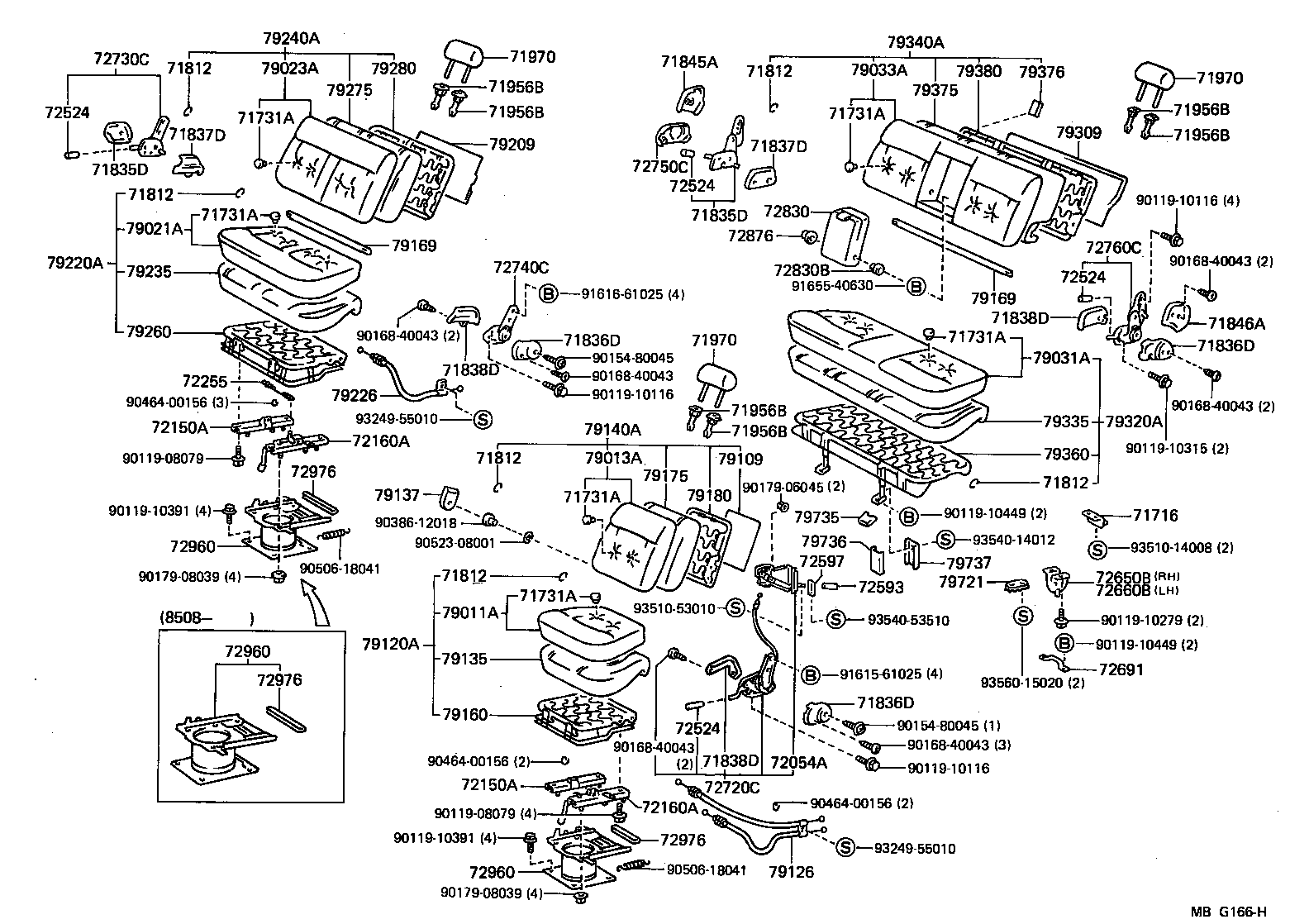

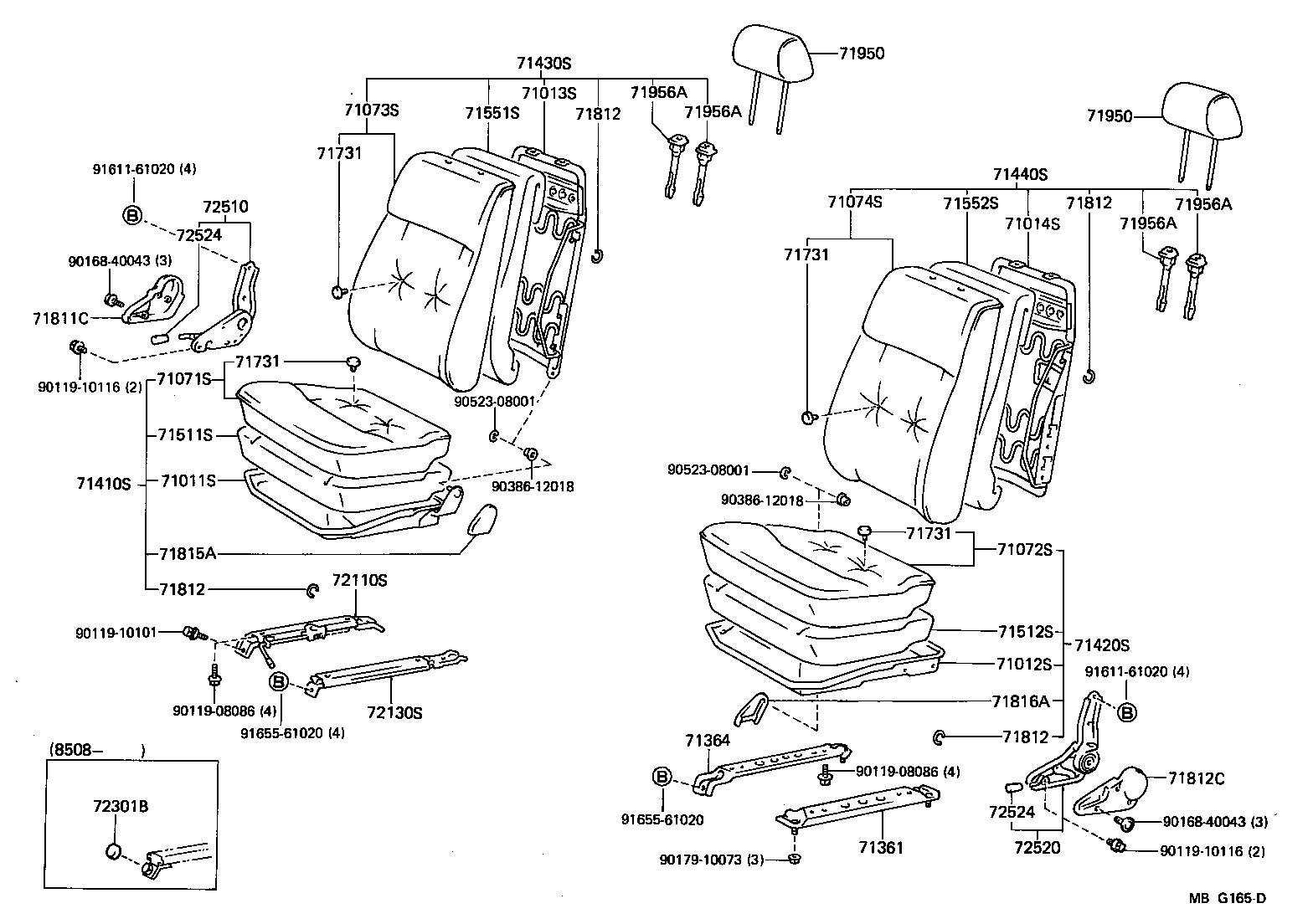

MBG166H 1984-01 → —

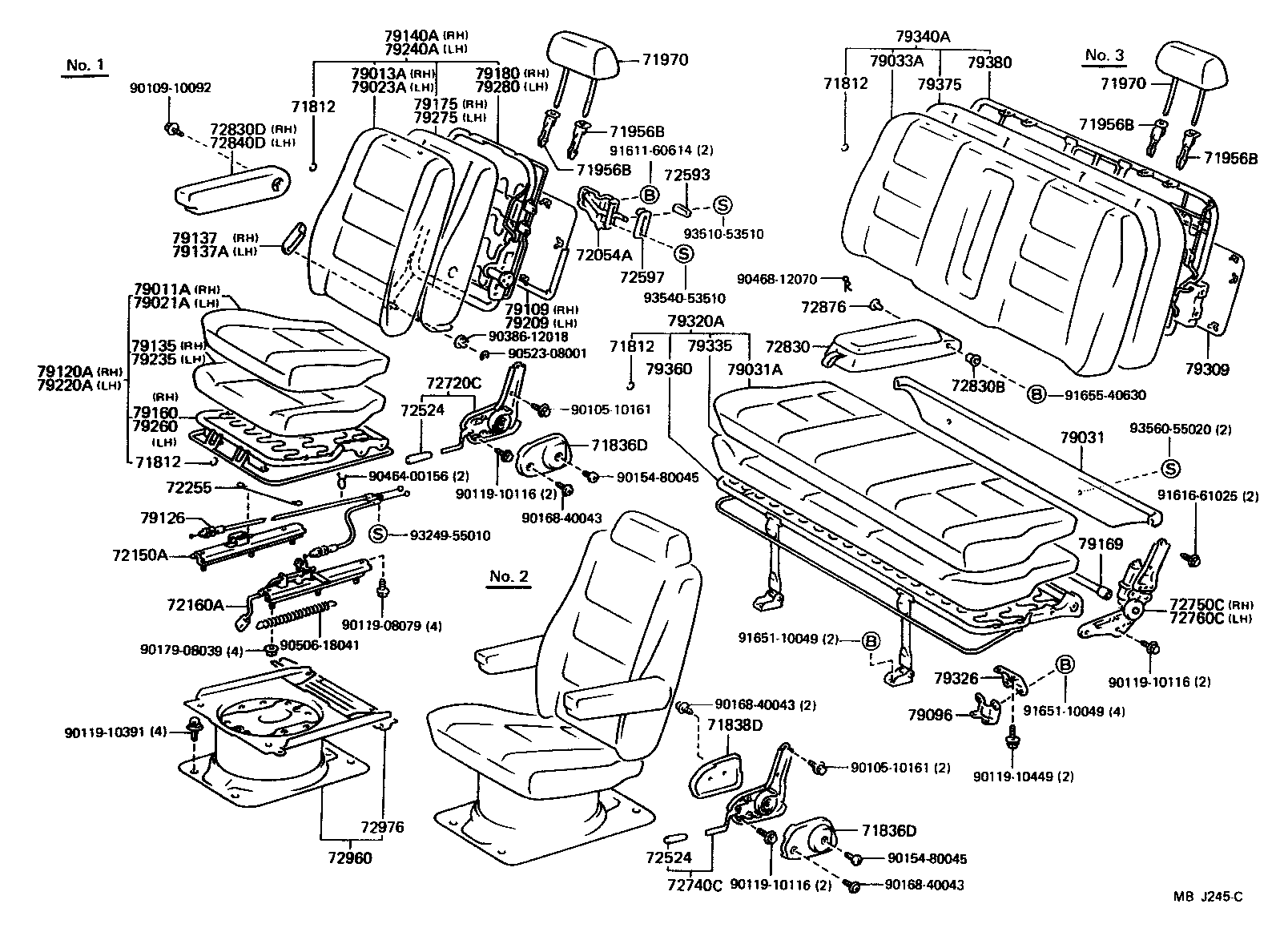

MBJ245C 1985-08 → —

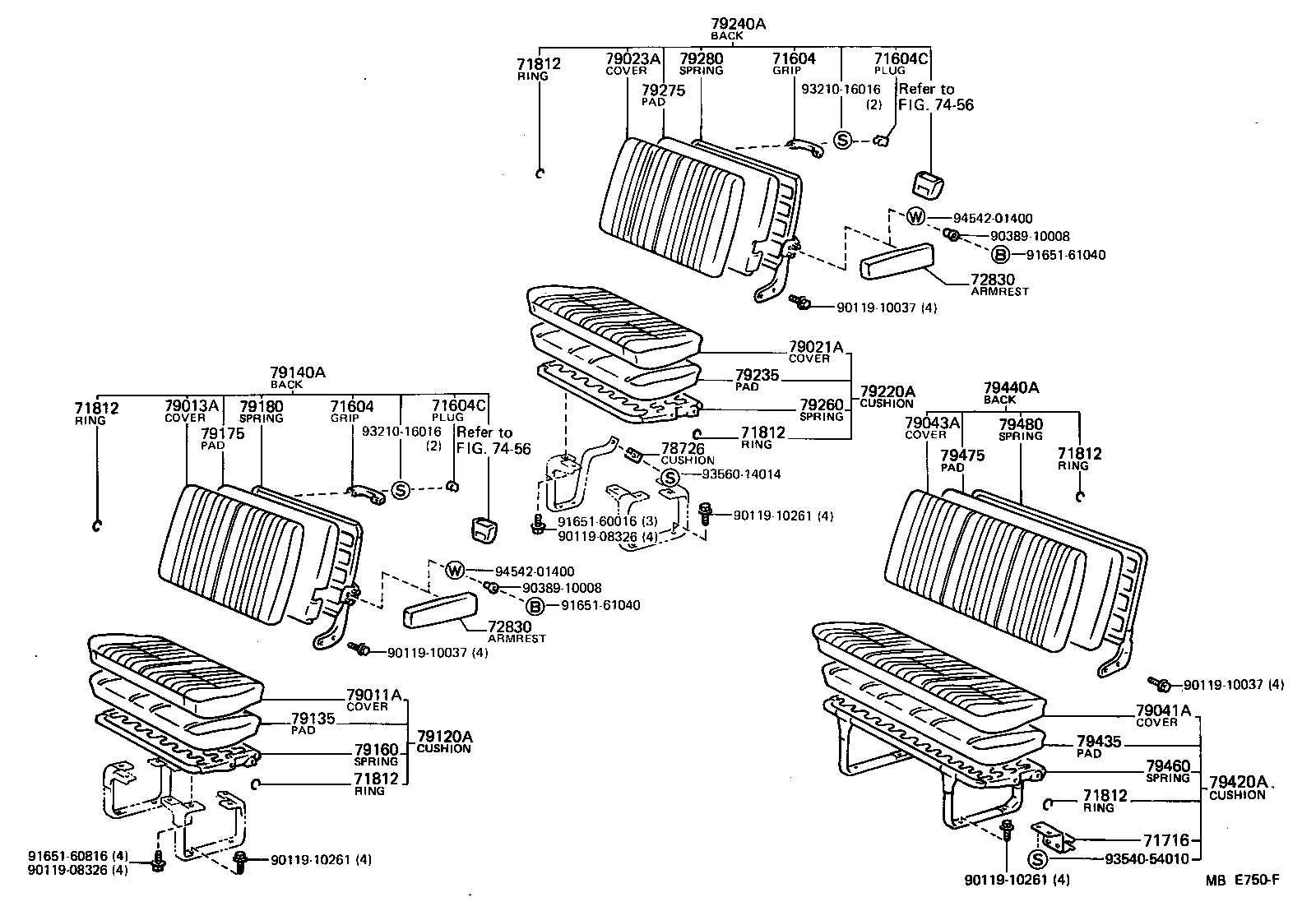

MBE750F 1982-12 → 1986-05

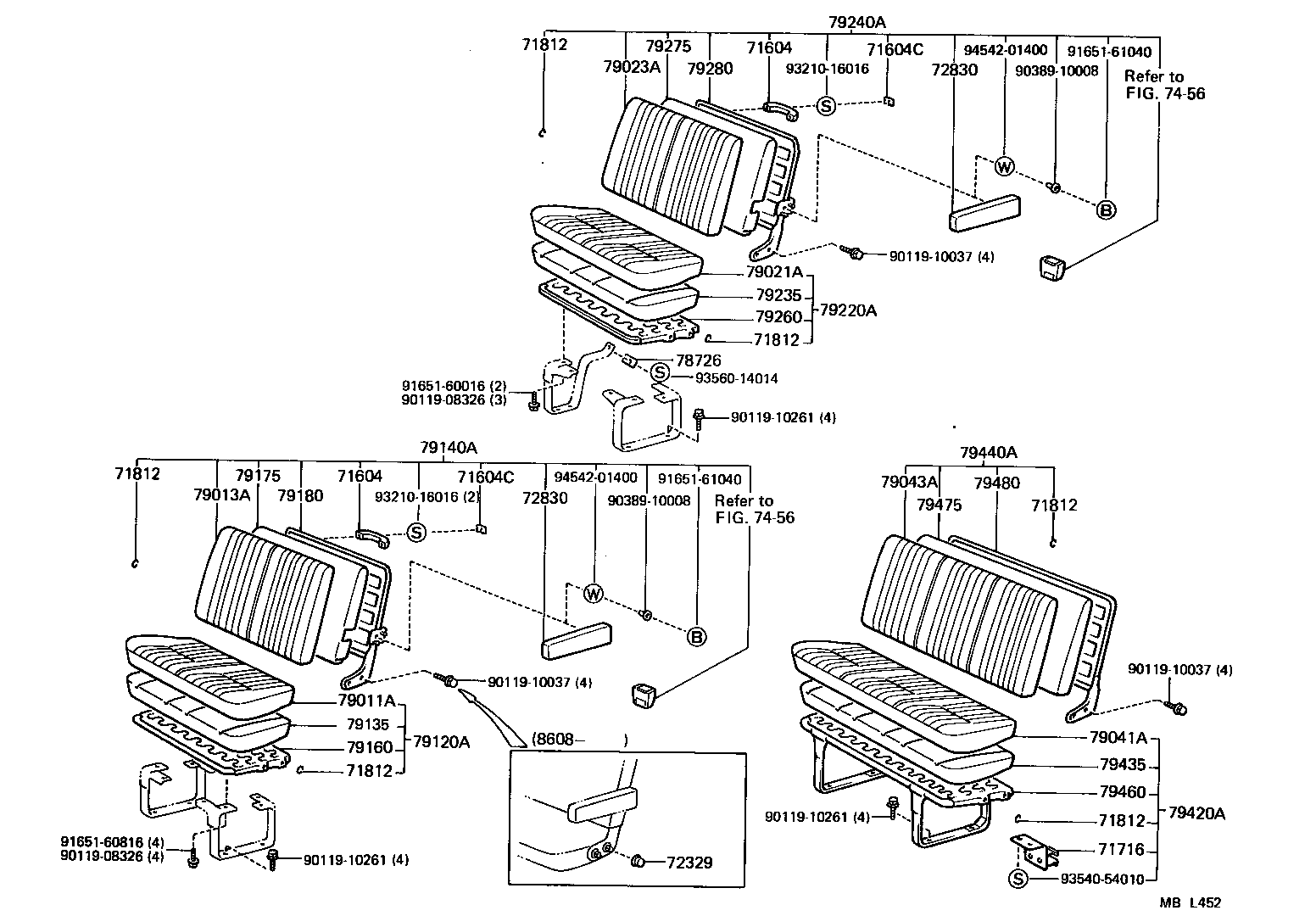

MBL452 1986-05 → —

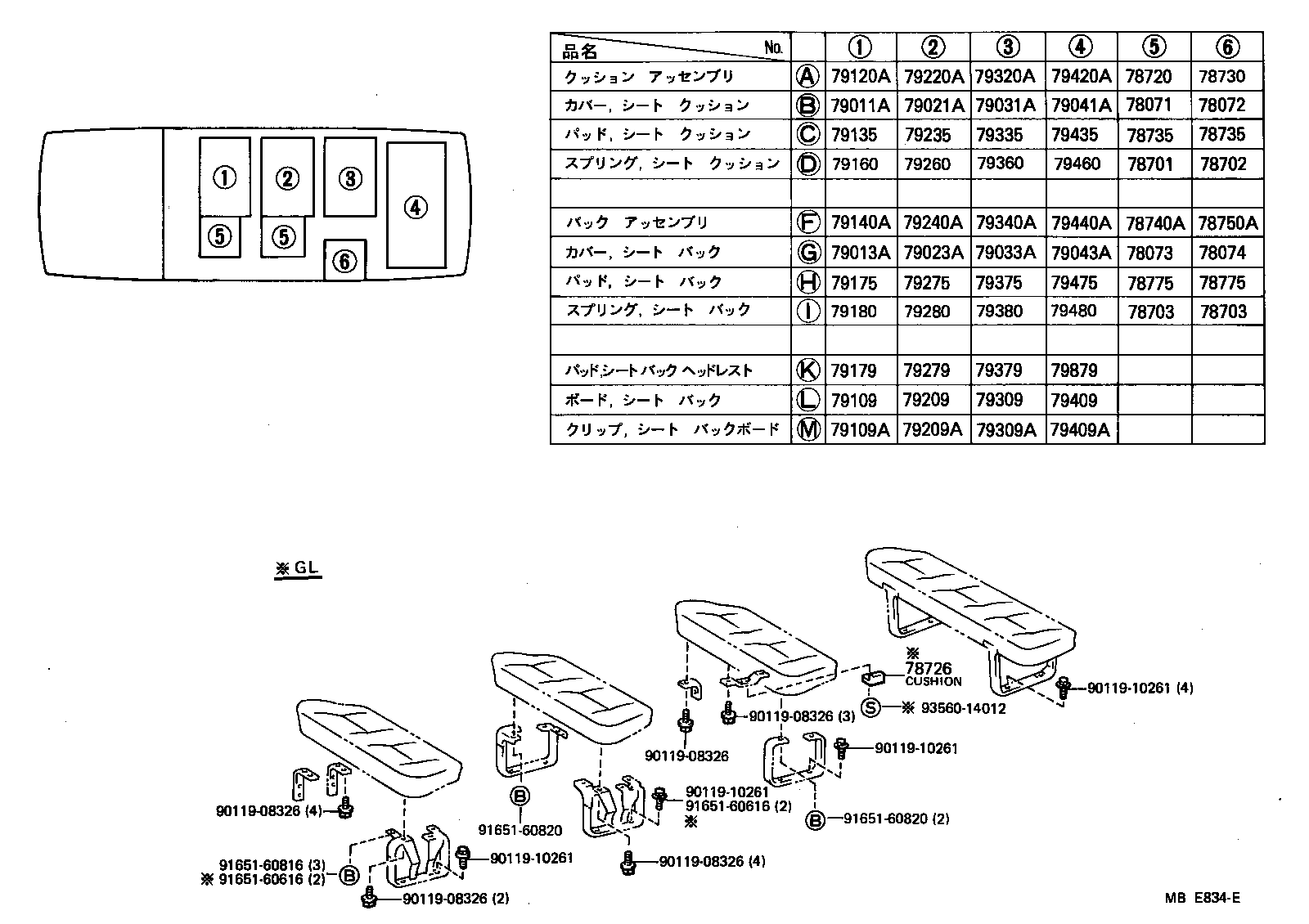

MBE834E 1982-12 → —

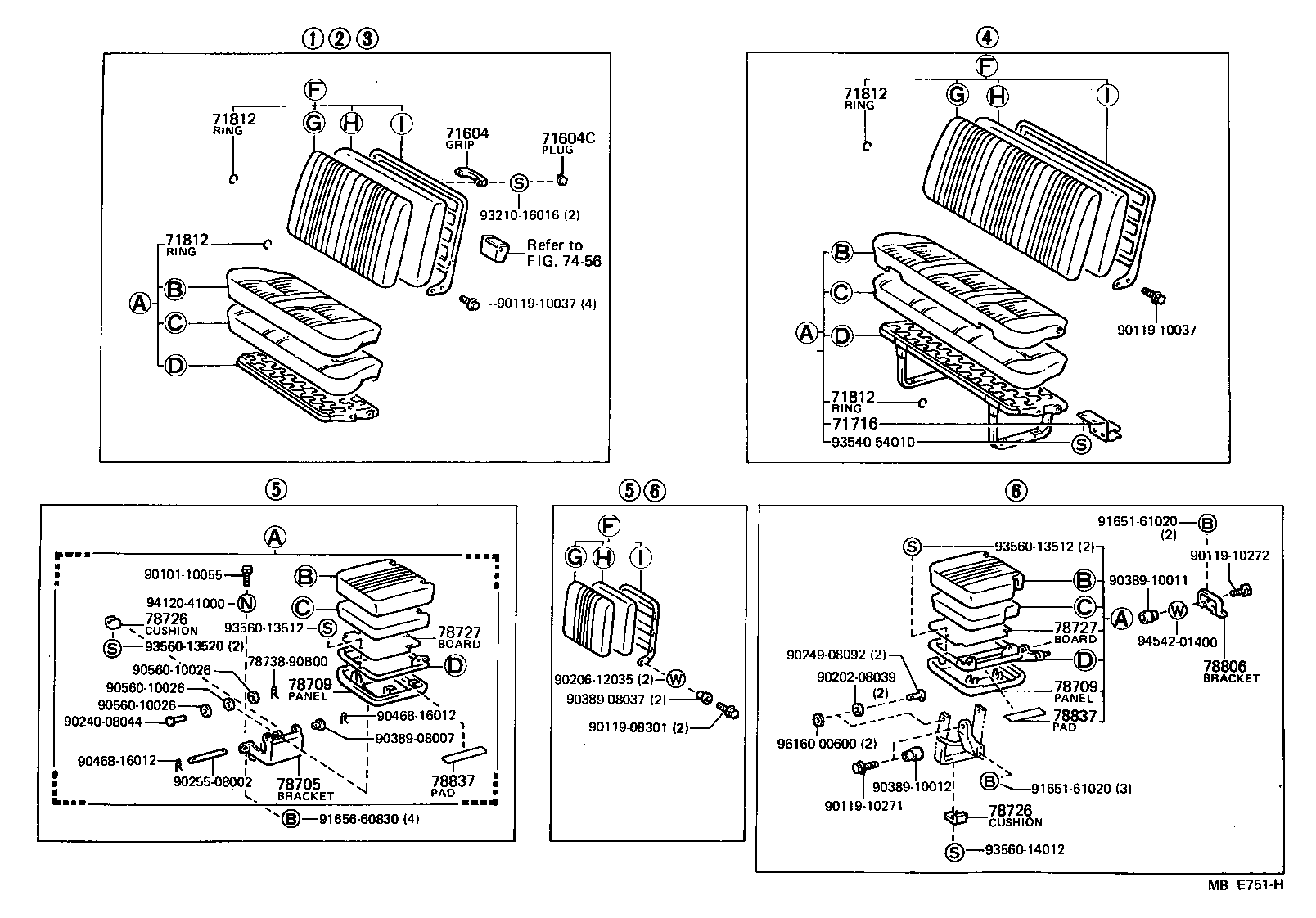

MBE751H 1982-12 → 1986-05

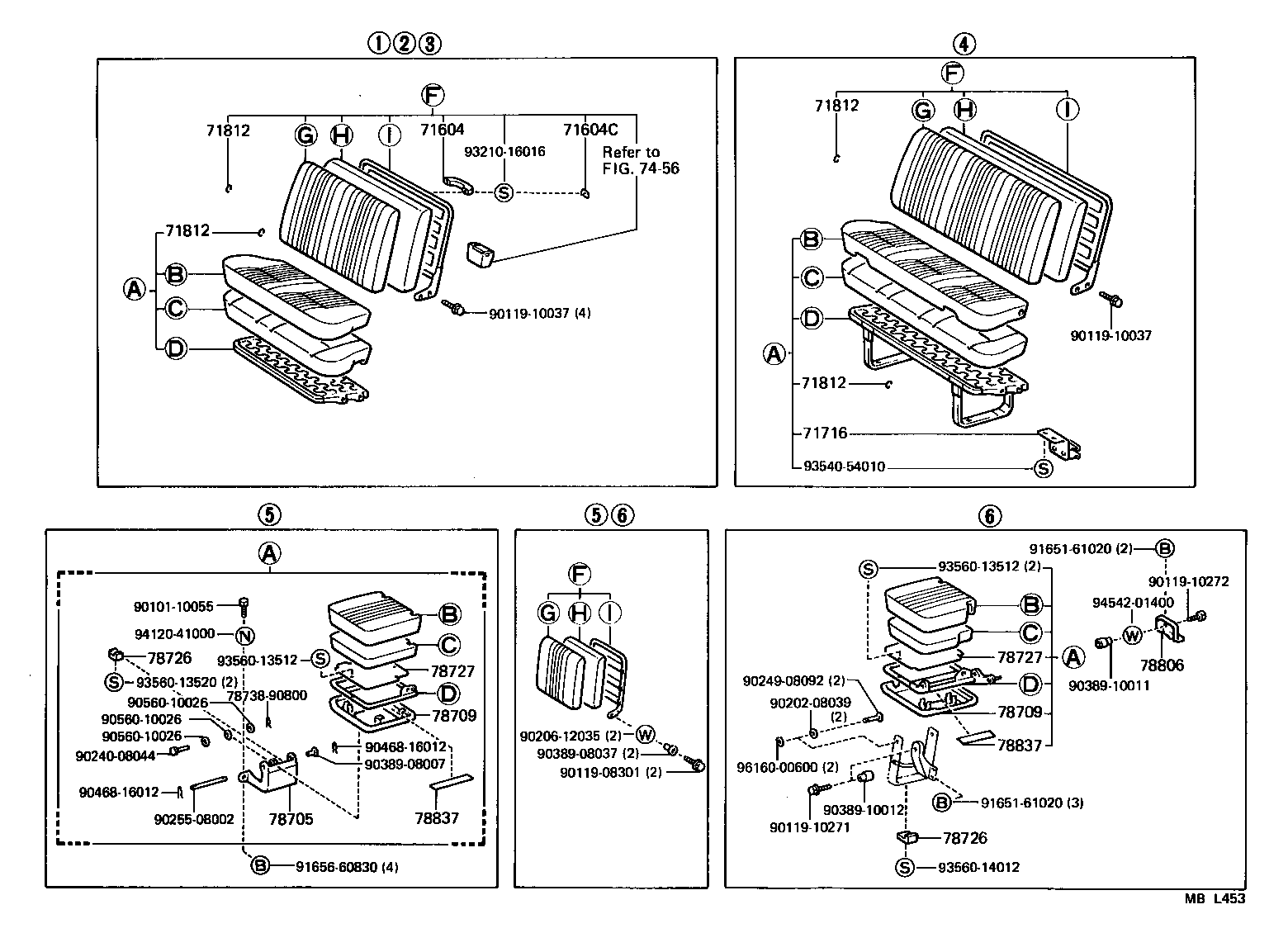

MBL453 1986-05 → —

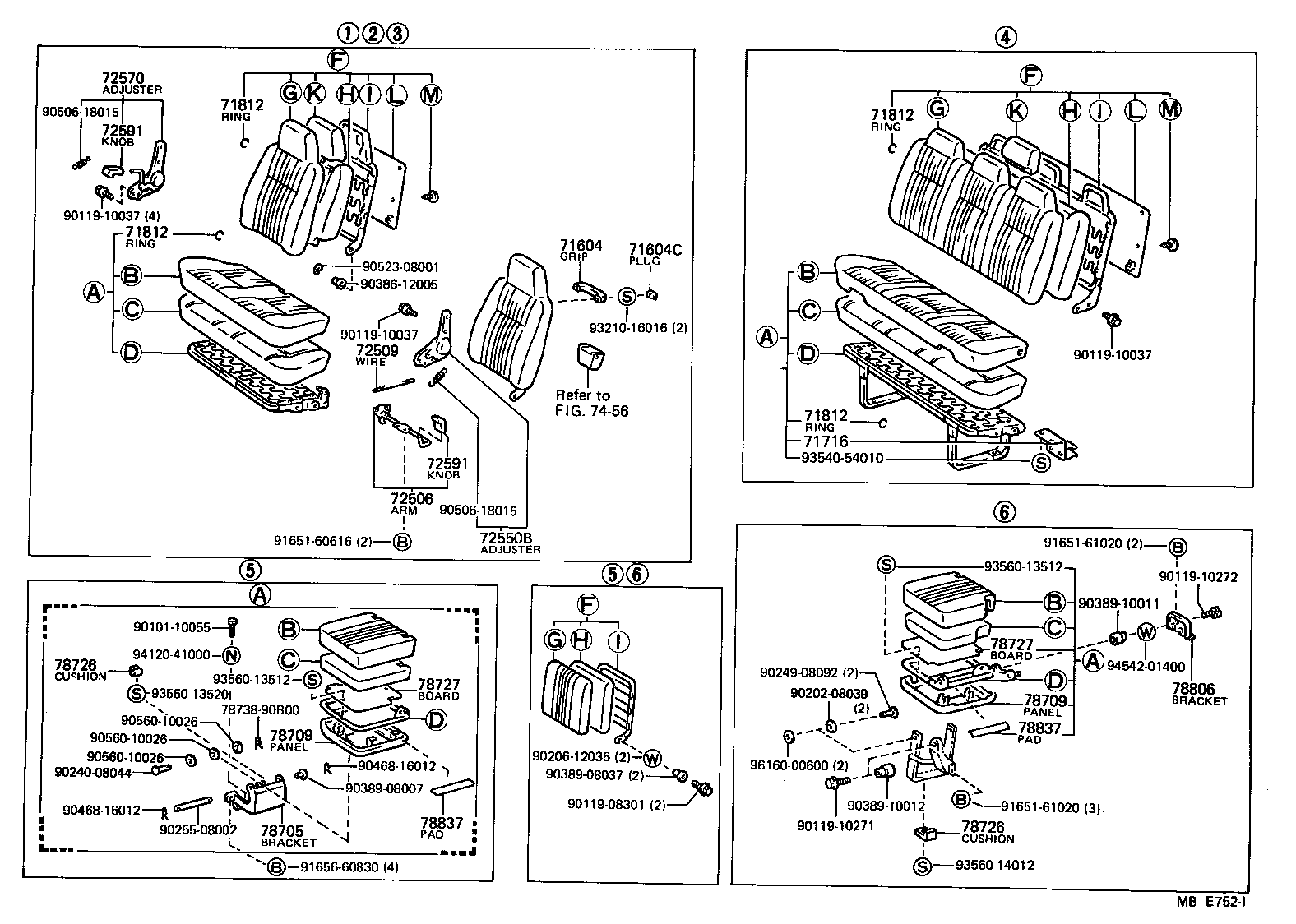

MBE752I 1982-12 → 1986-05

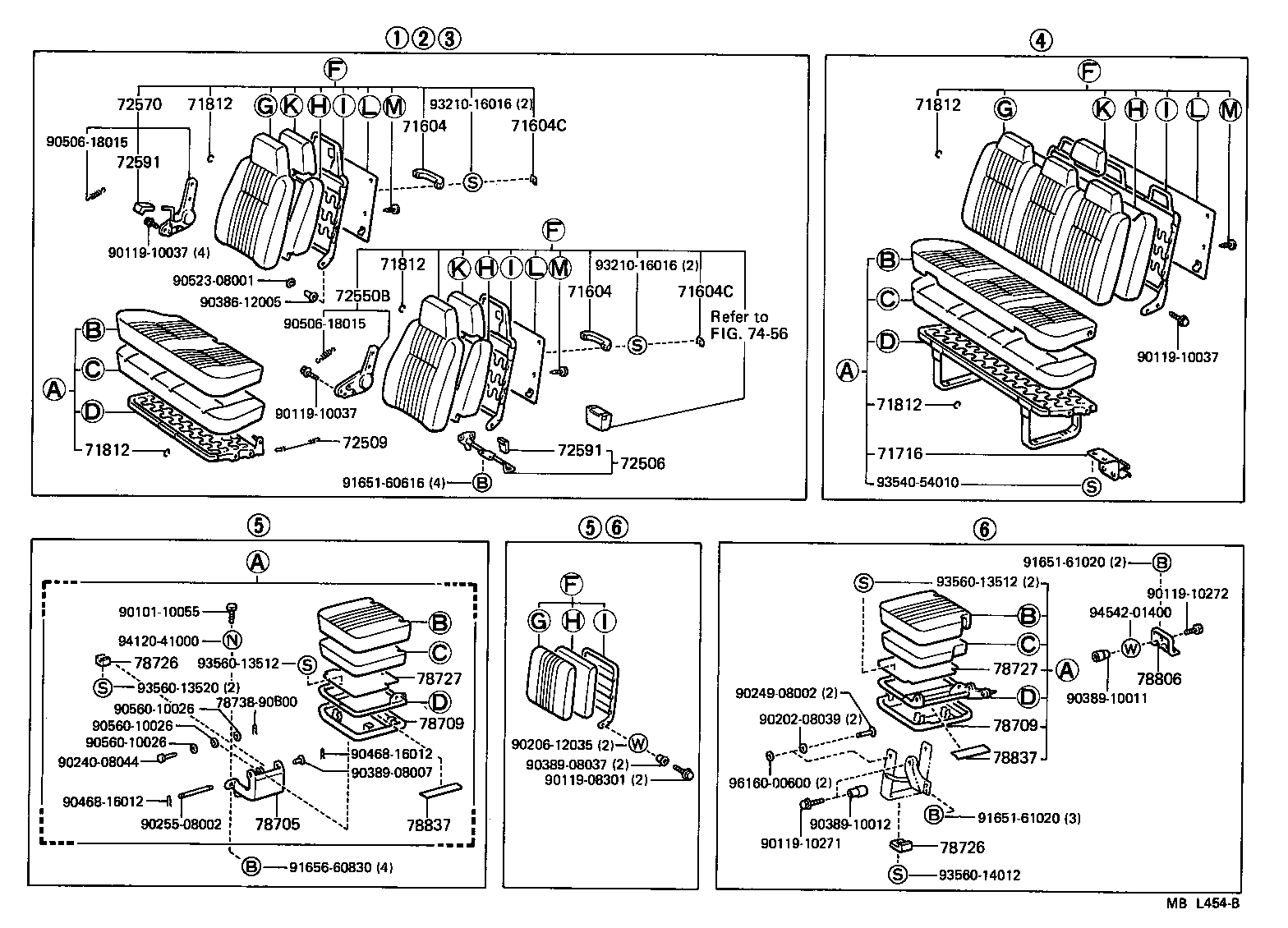

MBL454B 1986-05 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71031S	Cover Sub-assy, Center Seat Cushion
71035S	Cover, Front Seatback, Center
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71274	Knob, Front Seat Hinge
71280A	Hinge Assy, Front Seatback, LH
71301S	Frame Sub-assy, Center Seat Cushion
71305S	Frame Sub-assy, Center Seatback
71310S	Cushion Assy, Front Seat, Center
71314	Cover, Center Seat Bracket
71318	Pad, Center Seat Cushion
71337A	Plate, Rear Seat Leg
71349A	Bracket, Walk Through, NO.1
71350S	Back Assy, Front Seat, Center
71358	Pad, Center Seatback
71361	Bracket, Front Seat Set, NO.1
71364	Bracket, Front Seat Set, NO.4
71380	Hinge Assy, Center Seat, RH
71390A	Hinge Assy, Center Seat, LH
71391	Cover, Center Seat Cushion Bracket, RH
71392	Cover, Center Seat Cushion Bracket, LH
71397A	Cover, Center Seat Hinge
71409	Stopper Sub-assy, Rear Seatback
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71604	Grip Sub-assy, Assist(FOR SEATBACK)
71604C	Plug, Hole(FOR ASSIST GRIP)
71617	Protector, Rear Seatback
71668	Cushion, Rear NO.3 Seat
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71716	Spring, Jack Handle Support
71731	Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71731A	Fastener, Seat Cover, A (FOR REAR SEAT)
71811C	Cover, Reclining Adjuster, RH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71812C	Cover, Reclining Adjuster, LH
71815A	Cover, Front Seat Cushion Hinge, RH
71816A	Cover, Front Seat Cushion Hinge, LH
71832C	Cover, Front LH Seat Hinge
71835D	Cover, Rear Seat Reclining, Lower RH
71836D	Cover, Rear Seat Reclining, Lower LH
71837D	Cover, Rear Seat Reclining, Inner RH
71838D	Cover, Rear Seat Reclining, Inner LH
71845A	Cover, Rear Seat Reclining, Upper RH
71846A	Cover, Rear Seat Reclining, Upper LH
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
71975A	Washer, Plate
72054A	Lever Sub-assy, Reclining Remote Control, LH
72061	Striker Sub-assy, Center Seat Lock
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72130S	Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72150A	Track Assy, Rear Seat, RH
72160A	Track Assy, Rear Seat, LH
72255	Cable, Rear Seat Track Lever
72301B	Cover, Seat Track
72329	Cover, Seat Adjuster Bolt
72506	Arm Sub-assy, Reclining Adjuster, Center LH
72509	Wire Sub-assy, Adjuster Equlizing
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72550B	Adjuster Assy, Reclining Seat, Center RH
72570	Adjuster Assy, Rear Reclining Seat, RH
72591	Knob, Reclining Remote Control Lever
72593	Knob, Reclining Remote Control Lever
72597	Bezel, Reclining Remote Control
72630A	Lock Assy, Rear NO.1 Seat
72635	Hook, Rear Seatback Lock
72639	Knob, Rear Seat Lock
72650B	Lock Assy, Rear NO.3 Seat, RH
72660B	Lock Assy, Rear NO.3 Seat, LH
72691	Striker, Rear NO.3 Seat Lock
72720C	Adjuster Assy, NO.1 Seat Reclining, LH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72750C	Adjuster Assy, NO.3 Seat Reclining, RH
72760C	Adjuster Assy, NO.3 Seat Reclining, LH
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72830D	Armrest Assy, Rear Seat, RH
72840D	Armrest Assy, Rear Seat, LH
72876	Guide, NO.3 Seat Center Armrest
72960	Table Assy, Rear Seat Turn
72976	Protector, Rear Seat Turn Table
78071	Cover Sub-assy, Sub Seat Cushion, RH
78072	Cover Sub-assy, Sub Seat Cushion, LH
78073	Cover Sub-assy, Sub Seatback, RH
78074	Cover Sub-assy, Sub Seatback, LH
78701	Frame Sub-assy, Sub Seat Cushion, RH
78702	Frame Sub-assy, Sub Seat Cushion, LH
78703	Frame Sub-assy, Sub Seatback
78705	Bracket Sub-assy, Sub Seat Cushion
78709	Panel Sub-assy, Sub Seat Cushion
78720	Cushion Assy, Sub Seat, RH
78726	Cushion, Sub Seat Cushion Frame
78727	Board, Sub Seat Cushion
78730	Cushion Assy, Sub Seat, LH
78735	Pad, Sub Seat Cushion
78740A	Back Assy, Sub Seat, RH
78750A	Back Assy, Sub Seat, LH
78775	Pad, Sub Seatback
78806	Bracket Sub-assy, Sub Seat Cushion, Rear LH
78837	Pad, Sub Seat Cushion Safety
79011A	Cover Sub-assy, NO.1 Seat Cushion
79013A	Cover Sub-assy, NO.1 Seatback
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79031A	Cover Sub-assy, NO.3 Seat Cushion
79033A	Cover Sub-assy, NO.3 Seatback
79041A	Cover Sub-assy, NO.4 Seat Cushion
79043A	Cover Sub-assy, NO.4 Seatback
79096	Leg Sub-assy, NO.3 Seat, Inner LH
79109	Board Sub-assy, NO.1 Seatback
79109A	Clip (FOR NO.1 SEATBACK BOARD)
79120A	Cushion Assy, NO.1 Seat
79126	Cable, NO.1 Seat Lock
79135	Pad, NO.1 Seat Cushion
79137	Cover, NO.1 Seat Hinge
79137A	Cover, NO.2 Seat Hinge
79139	Cover, Rear Seat Leg
79140A	Back Assy, NO.1 Seat
79160	Spring Assy, NO.1 Seat Cushion
79169	Rod, Rear Seat Hinge Connector
79175	Pad, NO.1 Seatback
79175B	Pad, NO.1 Seatback, A
79179	Pad, NO.1 Seatback Headrest
79180	Spring Assy, NO.1 Seatback
79189	Stopper, NO.1 Seat Leg
79189A	Stopper, NO.2 Seat Leg
79199	Holder, NO.1 Seat Leg Stopper
79199A	Holder, NO.2 Seat Leg Stopper
79207A	Bracket Sub-assy, NO.2 Seat Leg
79209	Board Sub-assy, NO.2 Seatback
79209A	Clip (FOR NO.2 SEATBACK BOARD)
79220A	Cushion Assy, NO.2 Seat
79226	Cable, NO.2 Seat Lock
79235	Pad, NO.2 Seat Cushion
79240A	Back Assy, NO.2 Seat
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79279	Pad, NO.2 Seatback Headrest
79280	Spring Assy, NO.2 Seatback
79289	Protector, NO.2 Seatback
79309	Board Sub-assy, NO.3 Seatback
79309A	Clip (FOR NO.3 SEATBACK BOARD)
79320A	Cushion Assy, NO.3 Seat
79326	Support, NO.3 Seat Cushion Leg
79335	Pad, NO.3 Seat Cushion
79340A	Back Assy, NO.3 Seat
79360	Spring Assy, NO.3 Seat Cushion
79375	Pad, NO.3 Seatback
79376	Pad, NO.3 Seatback Side
79379	Pad, NO.3 Seatback Headrest
79380	Spring Assy, NO.3 Seatback
79409	Board Sub-assy, NO.4 Seatback
79409A	Clip (FOR NO.4 SEATBACK BOARD)
79420A	Cushion Assy, NO.4 Seat
79435	Pad, NO.4 Seat Cushion
79440A	Back Assy, NO.4 Seat
79460	Spring Assy, NO.4 Seat Cushion
79475	Pad, NO.4 Seatback
79480	Spring Assy, NO.4 Seatback
79621	Stopper, NO.2 Seat Cushion
79622	Hook, NO.2 Seat Stop
79655	Striker, NO.2 Seat Leg
79670	Hinge Assy, NO.1 Seat, RH
79670A	Hinge Assy, NO.2 Seat, RH
79680	Hinge Assy, NO.1 Seat, LH
79680A	Hinge Assy, NO.2 Seat, LH
79689	Rod, Rear Seat Hinge Connector
79721	Stopper, NO.3 Seat
79735	Cover, NO.3 Seat Leg, NO.1
79736	Cover, NO.3 Seat Leg, NO.2
79737	Cover, NO.3 Seat Leg, NO.3
79745A	Cushion, NO.3 Seat Leg
79879	Pad, Fold Seat Headrest

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
