Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

25 part groups · 8 illustrations

Illustrations

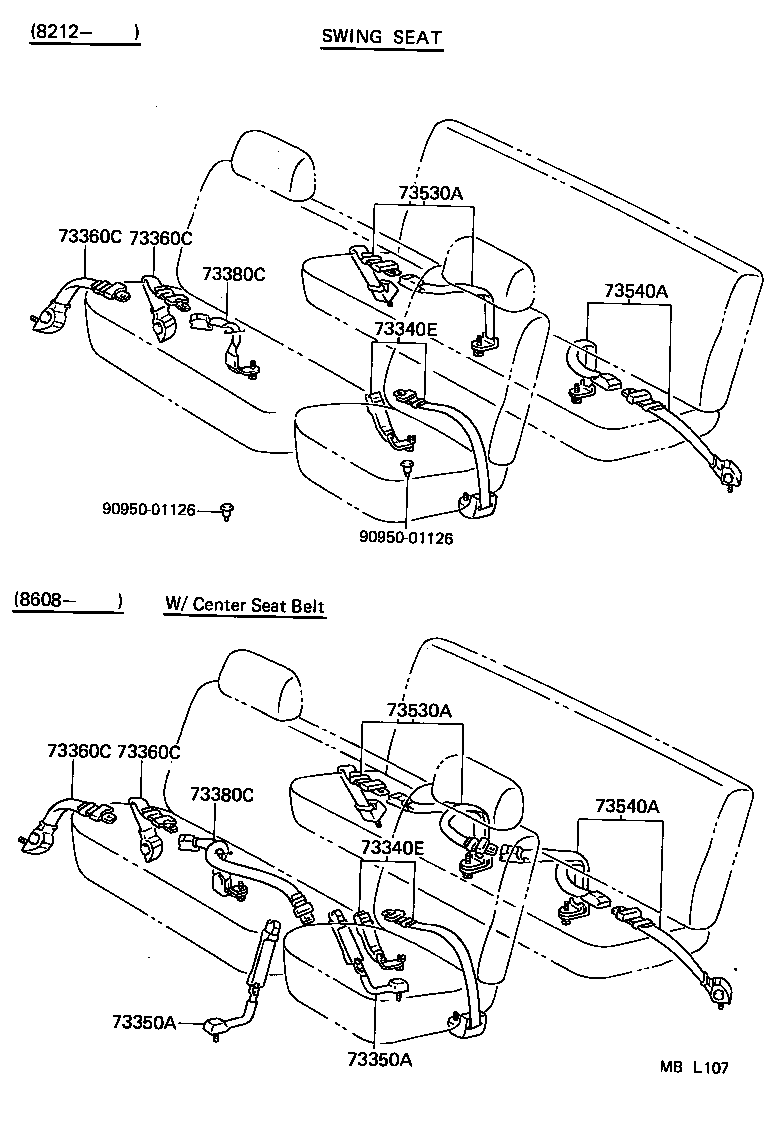

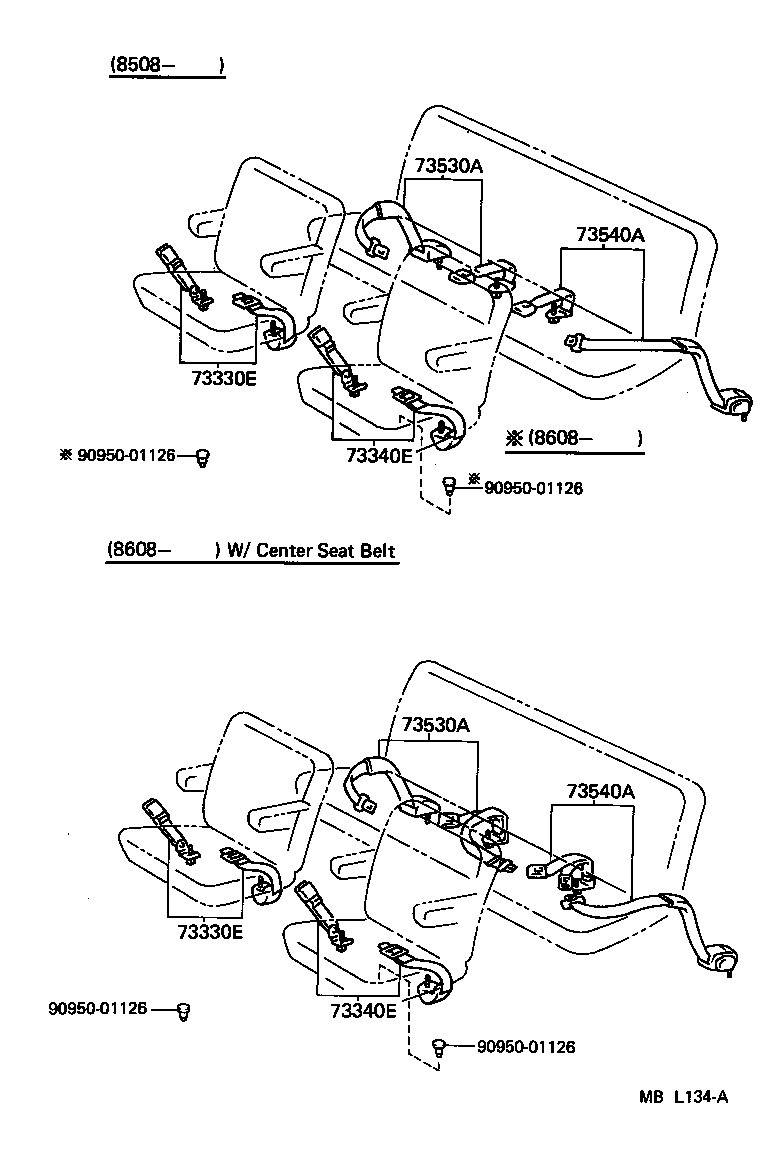

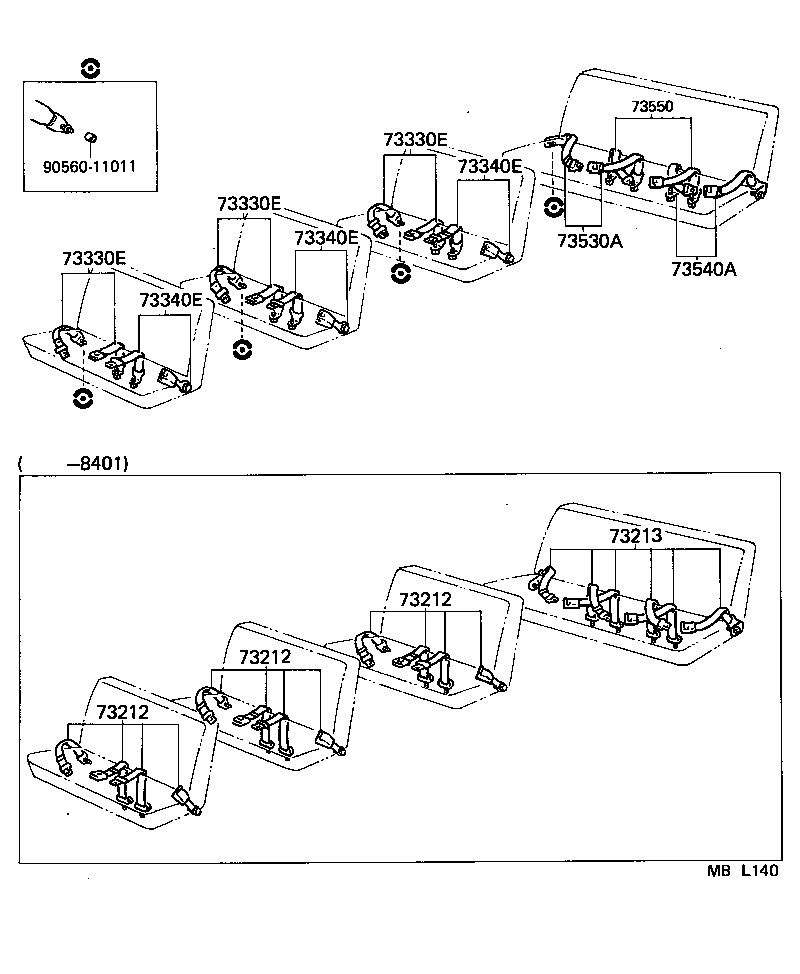

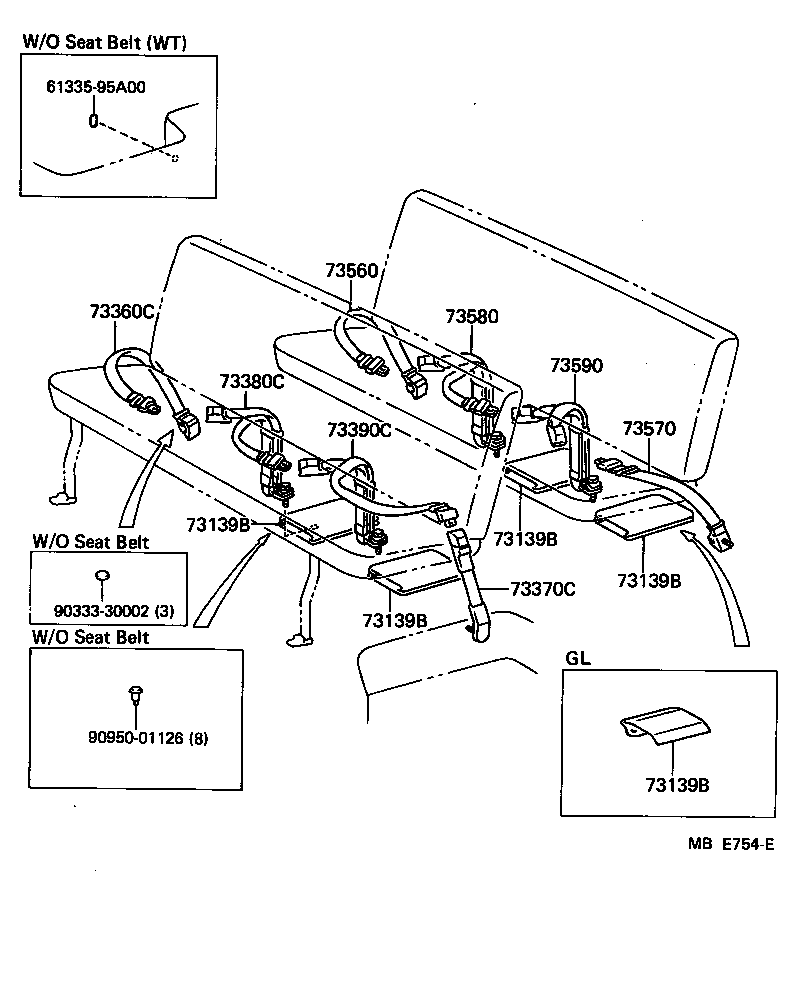

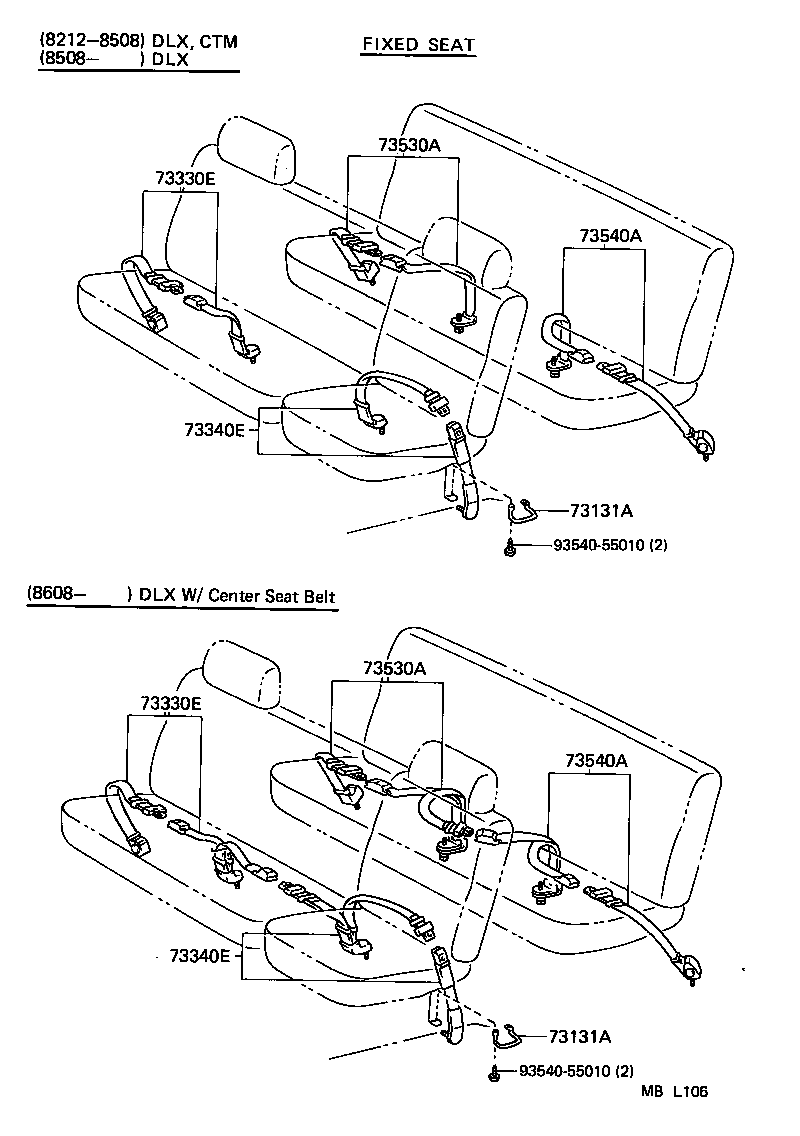

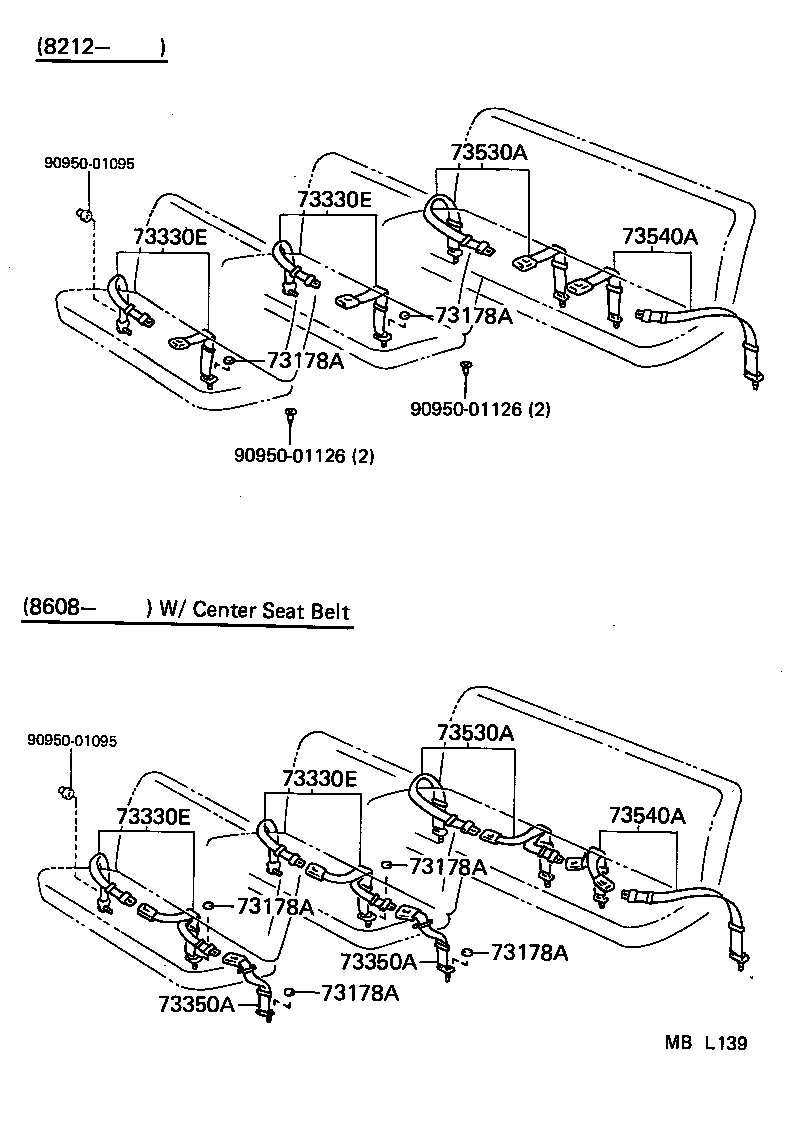

Figure MBE753F MBE753F 1982-12 → — Figure MBL106 MBL106 1982-12 → 1985-08 Figure MBL106 MBL106 1985-08 → — Figure MBE754E MBE754E 1986-08 → — Figure MBL107 MBL107 1982-12 → — Figure MBL134A MBL134A 1985-08 → — Figure MBL139 MBL139 1982-12 → — Figure MBL140 MBL140 1982-12 → —

Part groups

PNCDescription
73131A Bracket, Seat Belt
73139B Cover, Seat Belt Anchor
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73212 Belt Assy, Passenger Seat, NO.1
73213 Belt Assy, Passenger Seat, NO.2
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330E Belt Assy, Rear NO.1 Seat Lap Type, RH
73340E Belt Assy, Rear NO.1 Seat Lap Type, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
