Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

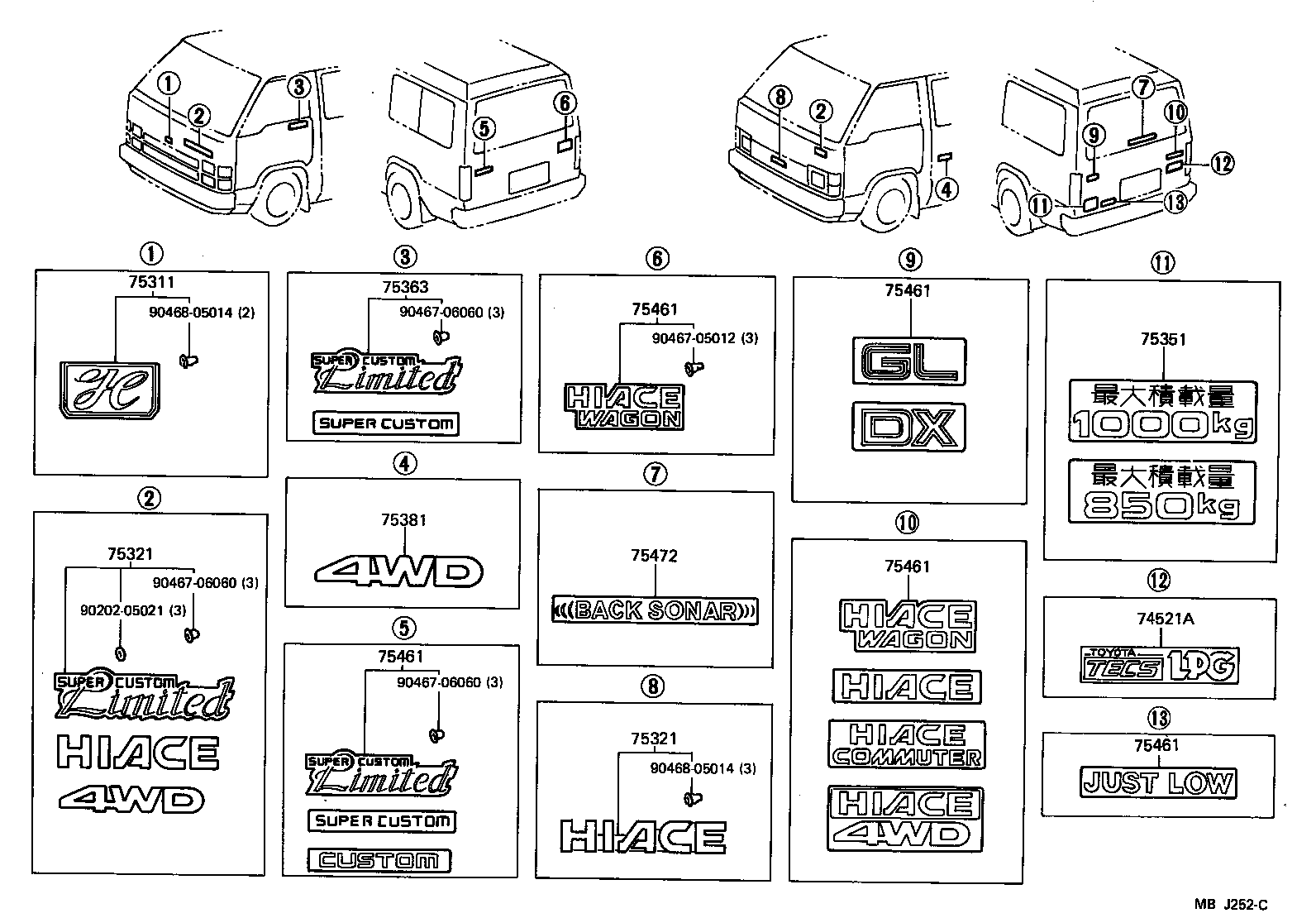

Emblem & Name Plate
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74521A | Plate, Name |
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75321 | Plate, Radiator Grille OR Front Panel Name |
| 75351 | Plate, Rear Name, NO.6 (MAXIMUM LOAD) |
| 75363 | Plate, Door Name |
| 75381 | Plate, Quarter Panel OR Side Panel Name (MODEL MARK) |
| 75461 | Plate, Rear Name, NO.2 (MODEL MARK) |
| 75472 | Plate, Rear Window Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
