Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

27 part groups · 13 illustrations

Illustrations

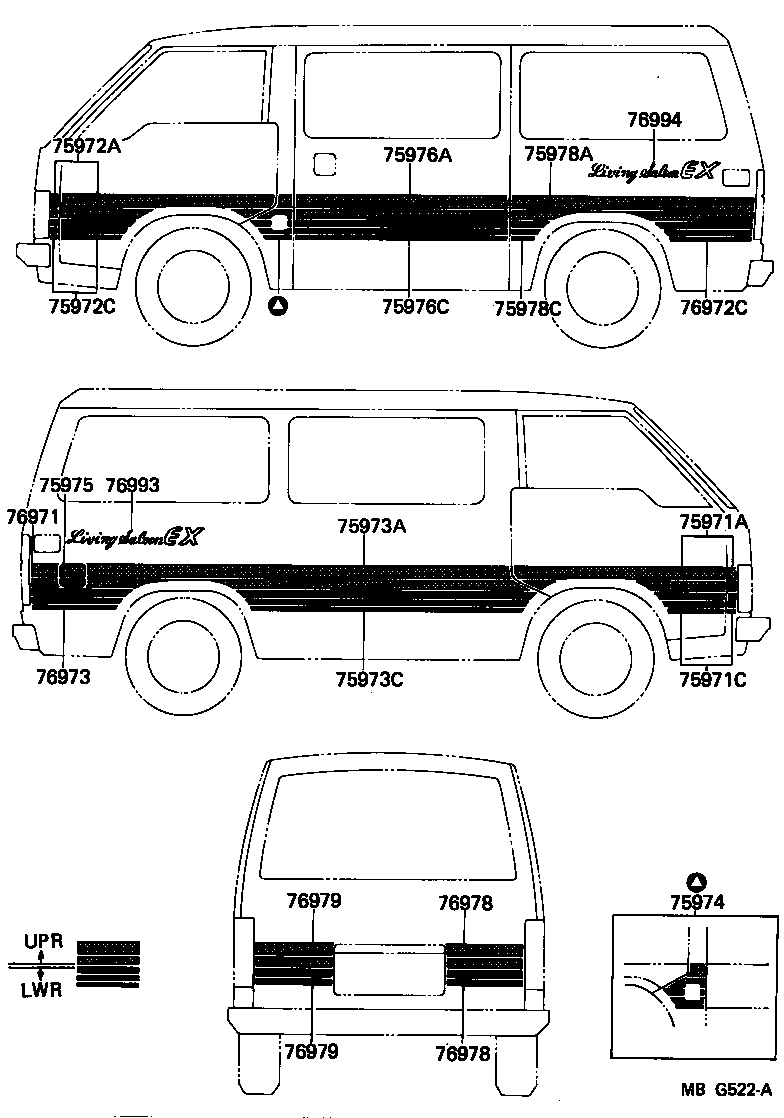

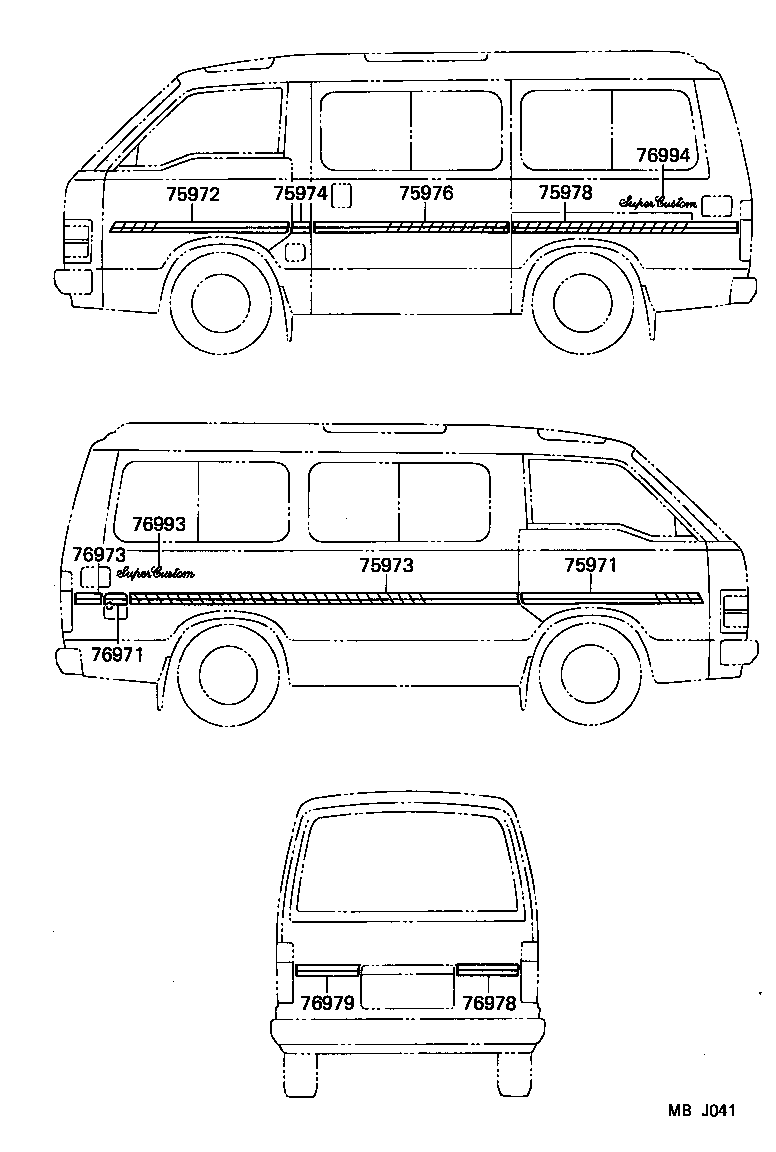

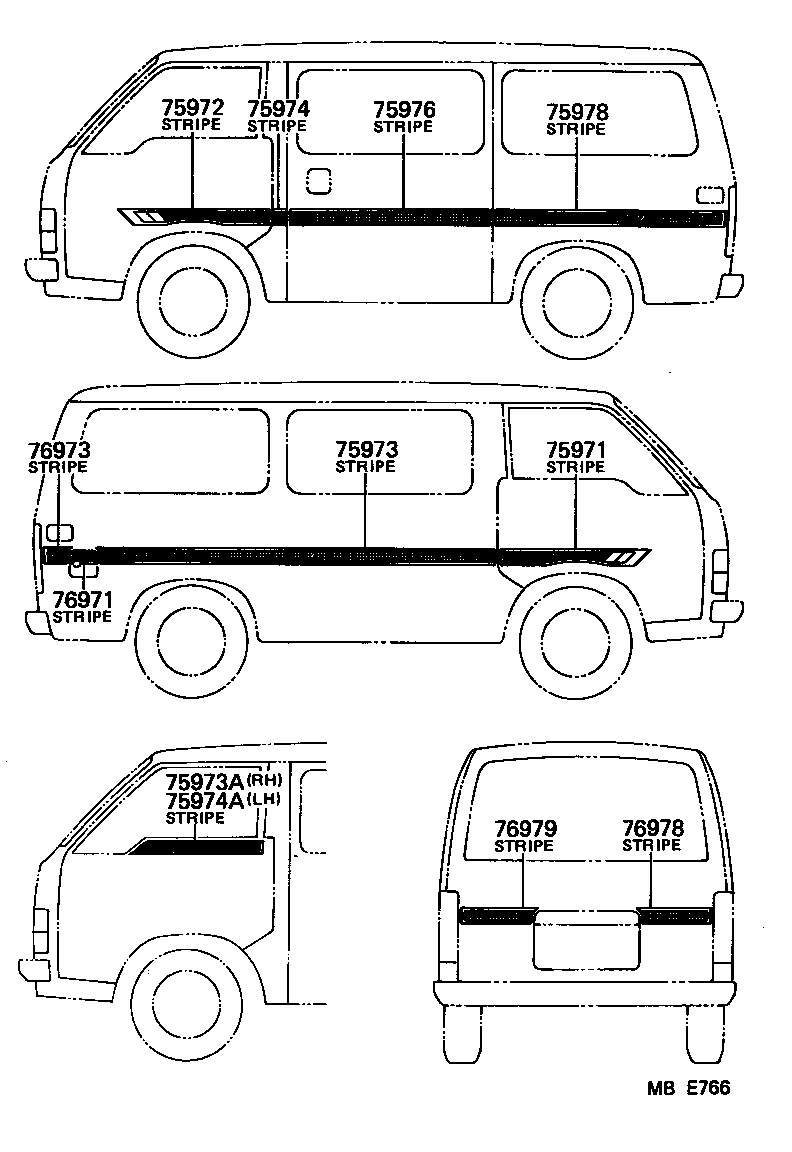

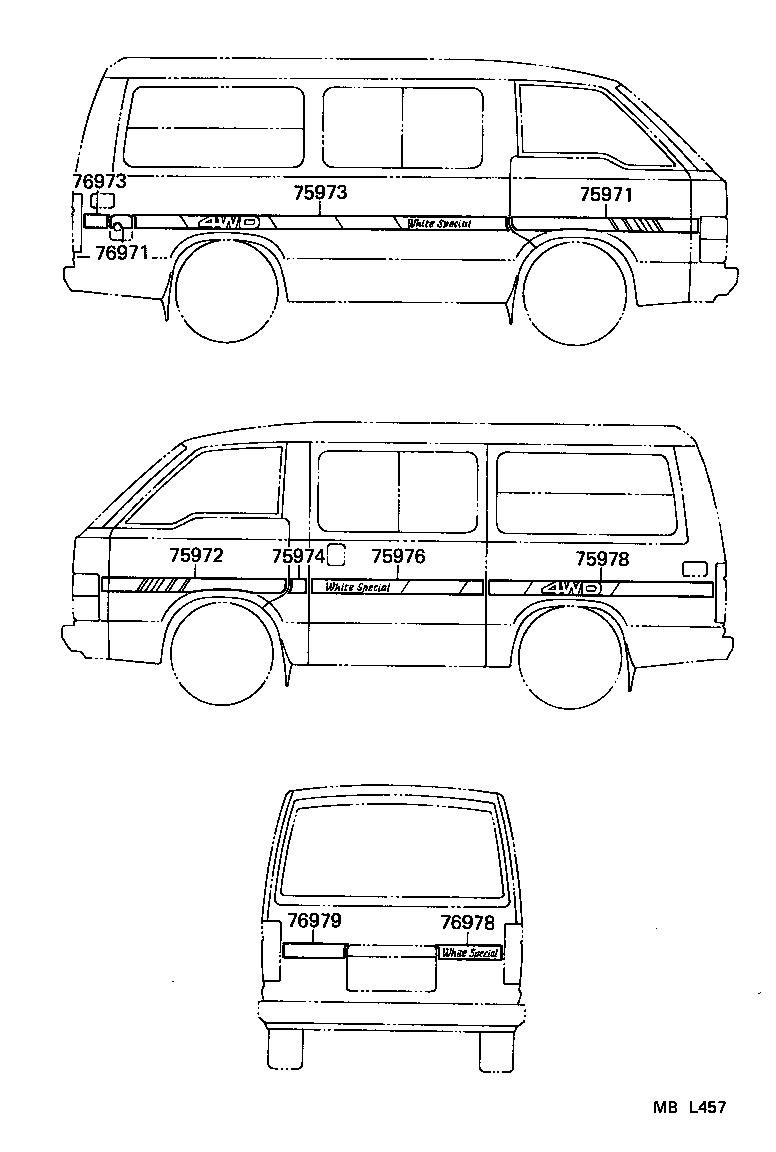

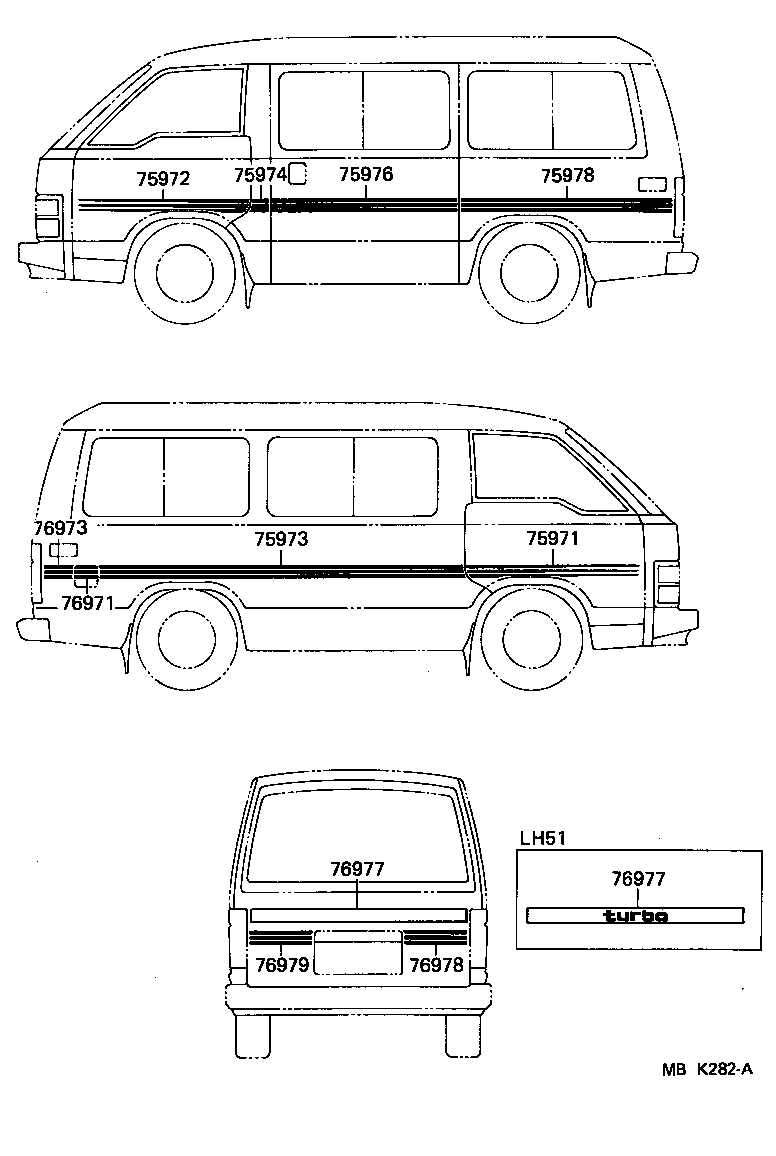

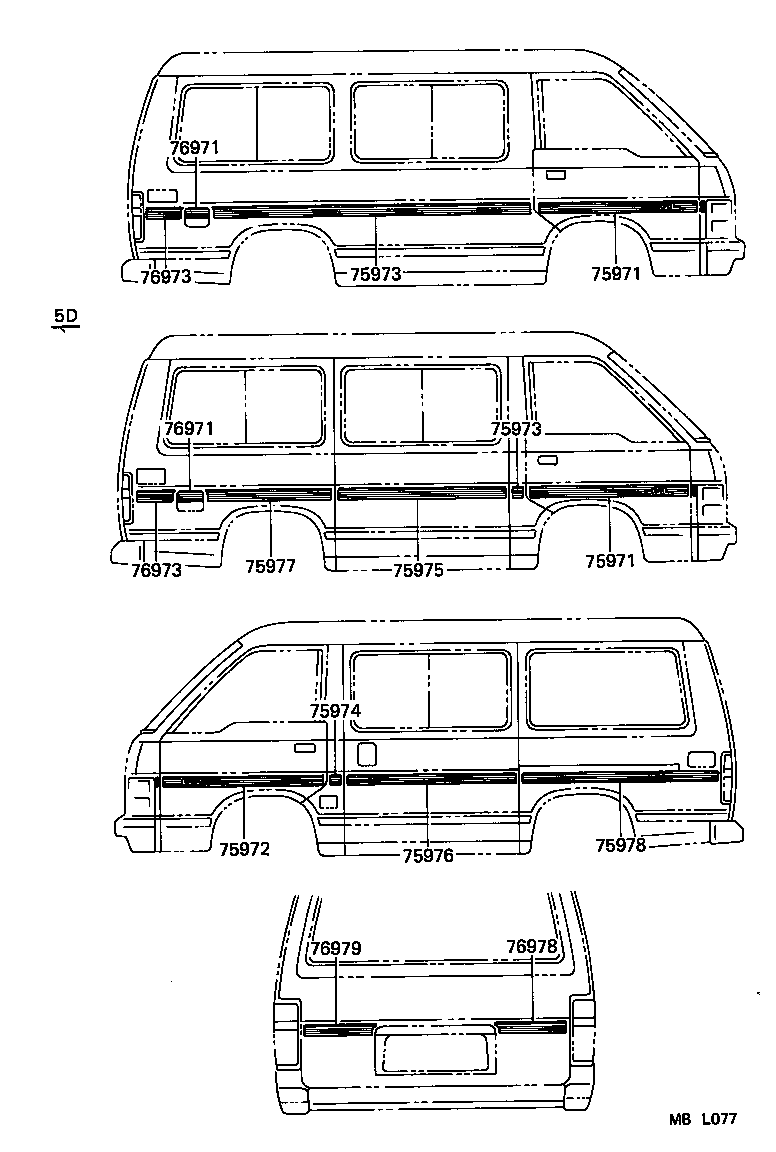

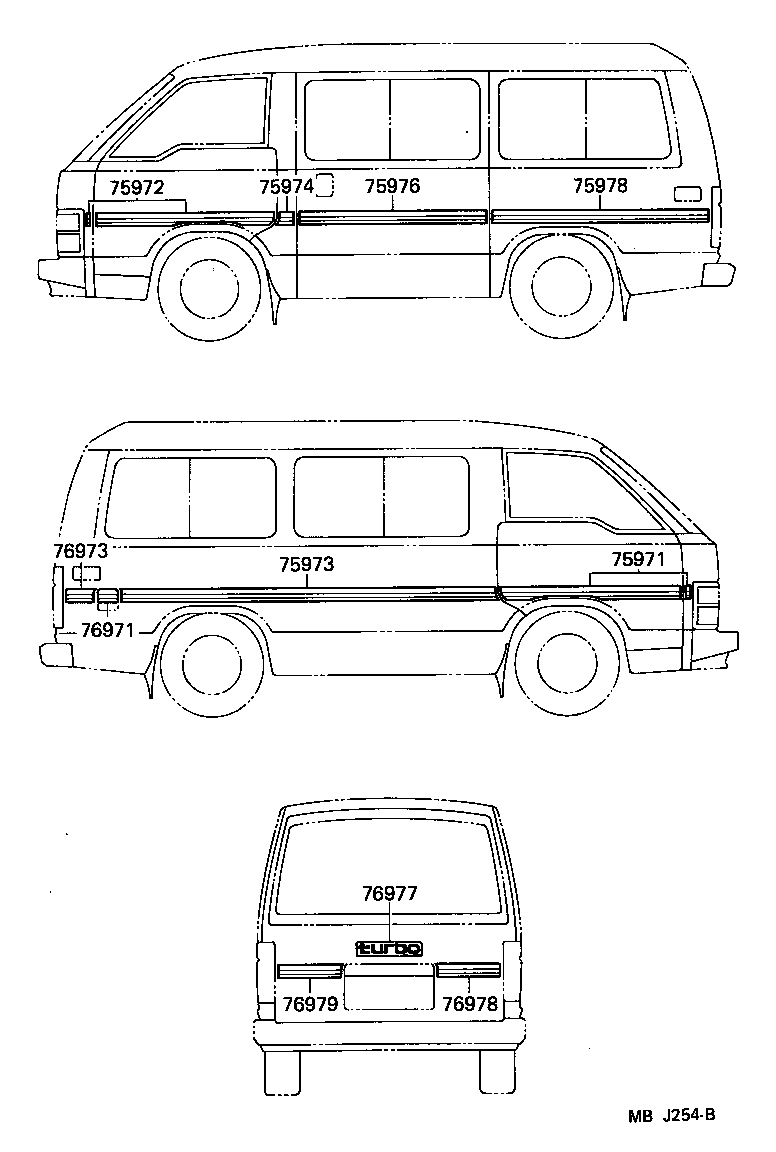

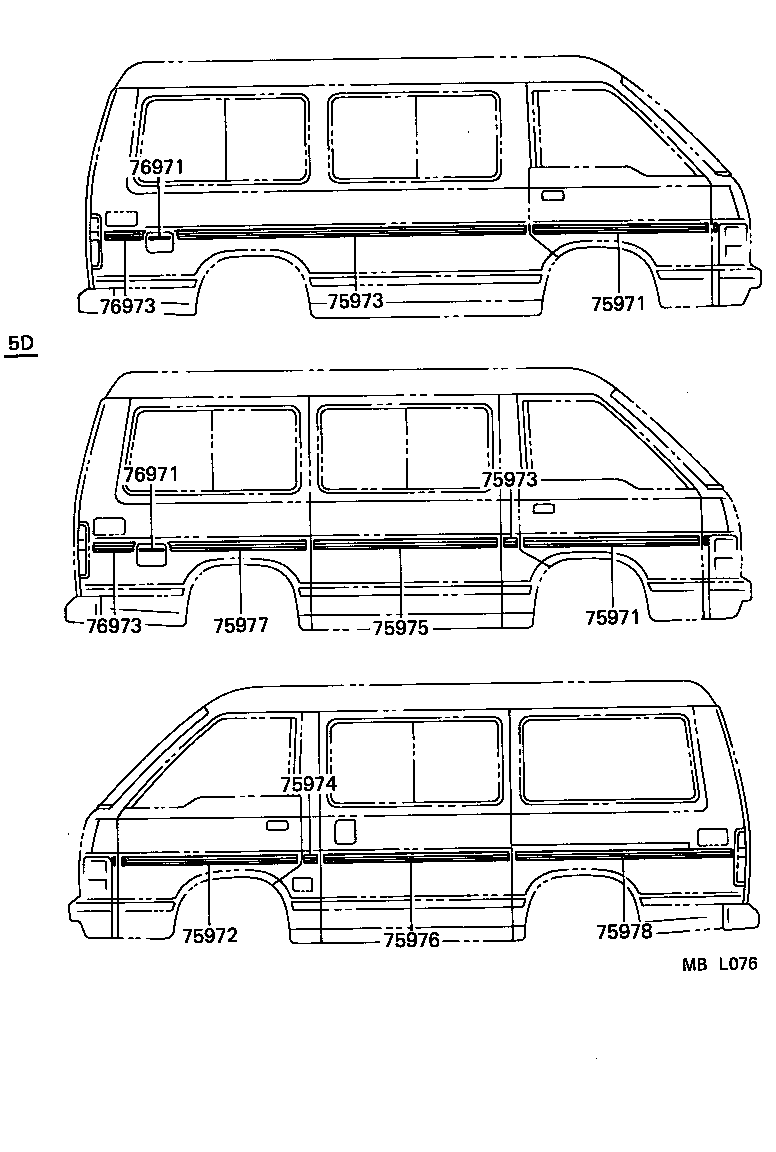

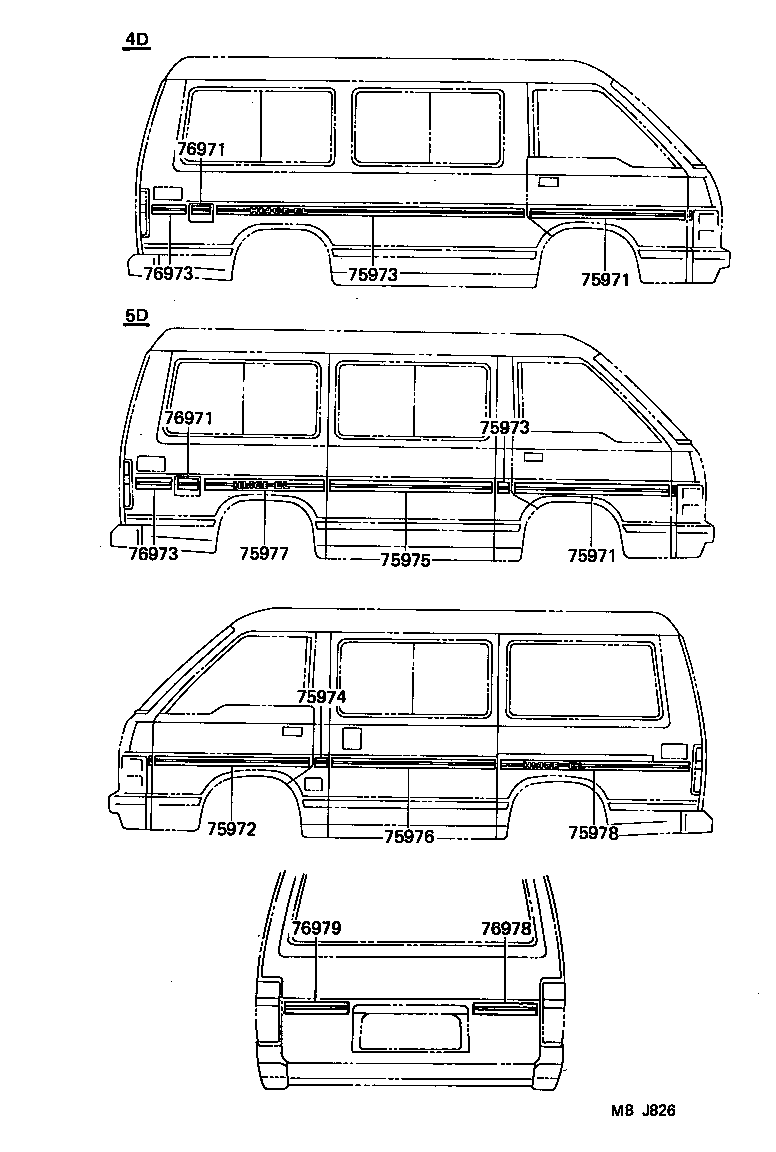

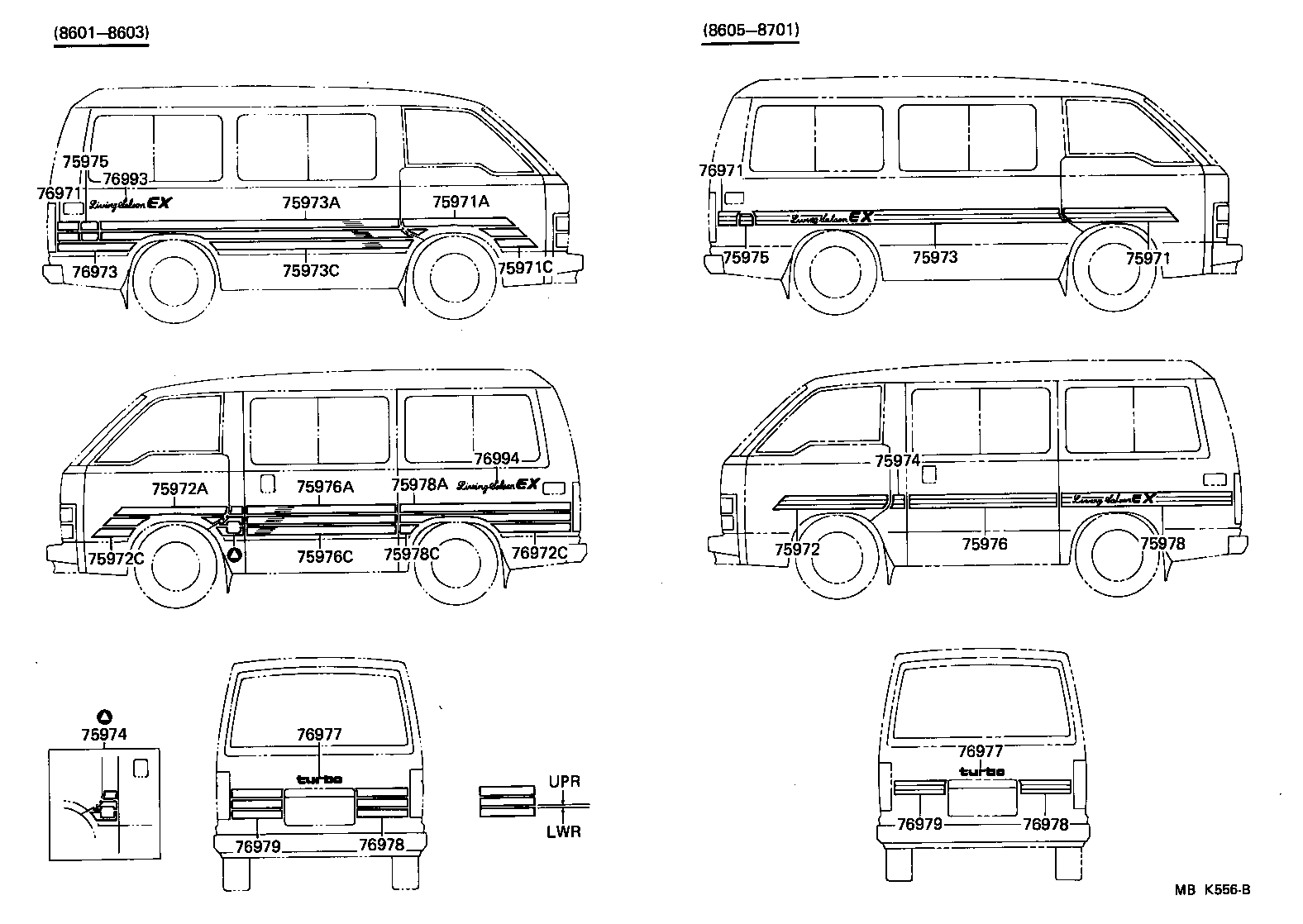

Figure MBE764B MBE764B 1982-12 → 1985-08 Figure MBJ826 MBJ826 1985-08 → — Figure MBL076 MBL076 1986-08 → — Figure MBL077 MBL077 1986-08 → — Figure MBE765A MBE765A 1982-12 → 1984-01 Figure MBE766 MBE766 1982-12 → 1985-08 Figure MBJ254B MBJ254B 1985-08 → — Figure MBK282A MBK282A 1985-08 → — Figure MBG522A MBG522A 1984-05 → 1984-10 Figure MBJ041 MBJ041 1985-02 → 1985-02 Figure MBK556B MBK556B 1986-01 → 1987-01 Figure MBL562 MBL562 1987-01 → — Figure MBL457 MBL457 1986-09 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971A Stripe, Side, RH NO.1 (FOR UPPER)
75971C Stripe, Side, RH NO.1 (FOR LOWER)
75972 Stripe, Side, LH NO.1
75972A Stripe, Side, LH NO.1 (FOR UPPER)
75972C Stripe, Side, LH NO.1 (FOR LOWER)
75973 Stripe, Side, RH NO.2
75973A Stripe, Side, RH NO.2 (FOR UPPER)
75973C Stripe, Side, RH NO.2 (FOR LOWER)
75974 Stripe, Center Pillar, LH NO.2
75974A Stripe, Side, LH NO.2(FOR UPPER)
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75976A Stripe, Side, LH NO.3 (FOR UPPER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
75978A Stripe, Side, LH NO.4(FOR UPPER)
75978C Stripe, Side, LH NO.4(FOR LOWER)
76971 Stripe, Side, RH NO.5
76972C Stripe, Side, LH NO.5 (FOR LOWER)
76973 Stripe, Side, RH NO.6
76977 Stripe, Rear Body Back
76978 Stripe, Rear Body Back, RH
76979 Stripe, Rear Body Back, LH
76993 Stripe, Side Mark, RH NO.2
76994 Stripe, Side Mark, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
