Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 2 illustrations

Illustrations

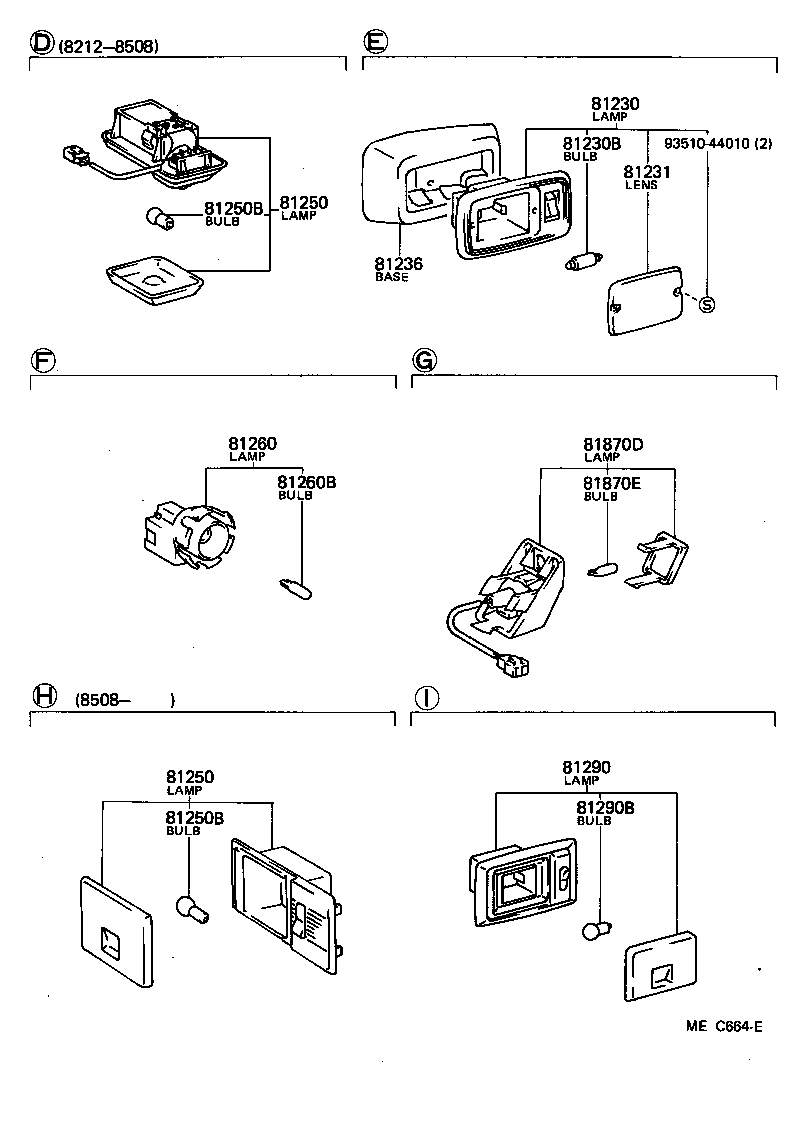

Figure MEC663E MEC663E 1982-12 → — Figure MEC664E MEC664E 1982-12 → —

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81231 Lens, Courtesy Lamp
81236 Rim, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260B Bulb(FOR GLOVE BOX)
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
81870D Lamp Assy, Key Cylinder
81870E Bulb, Key Cylinder Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
