Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

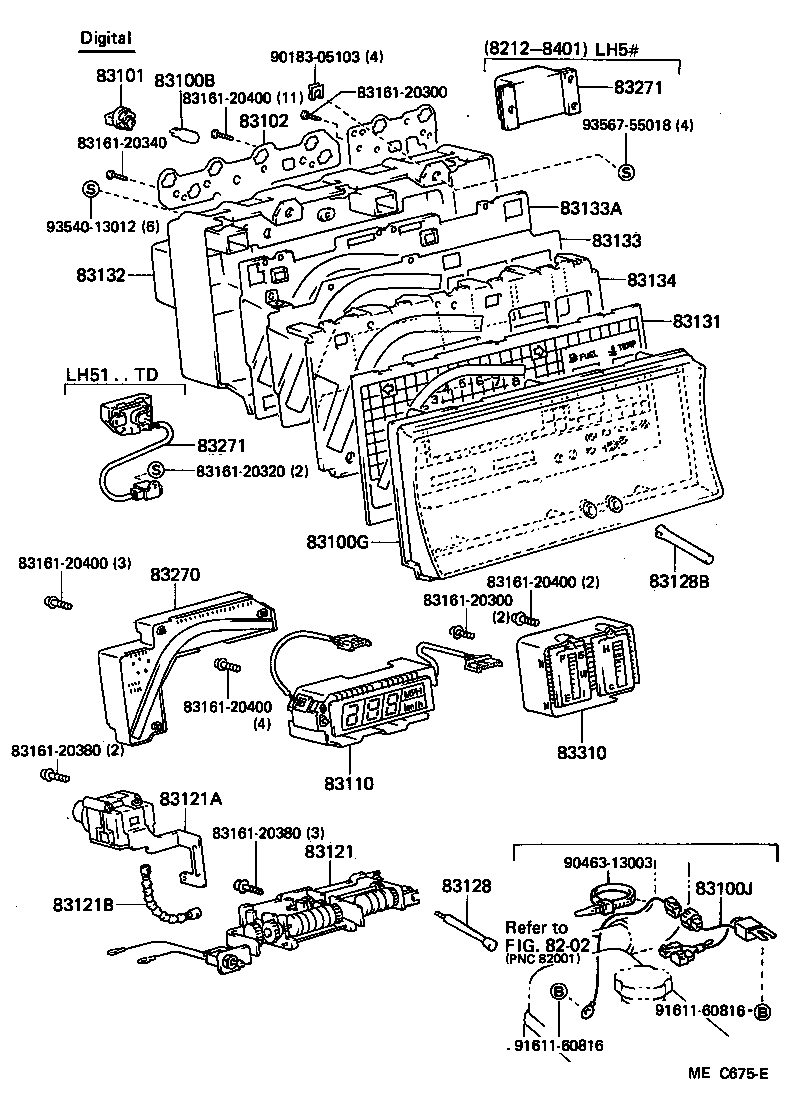

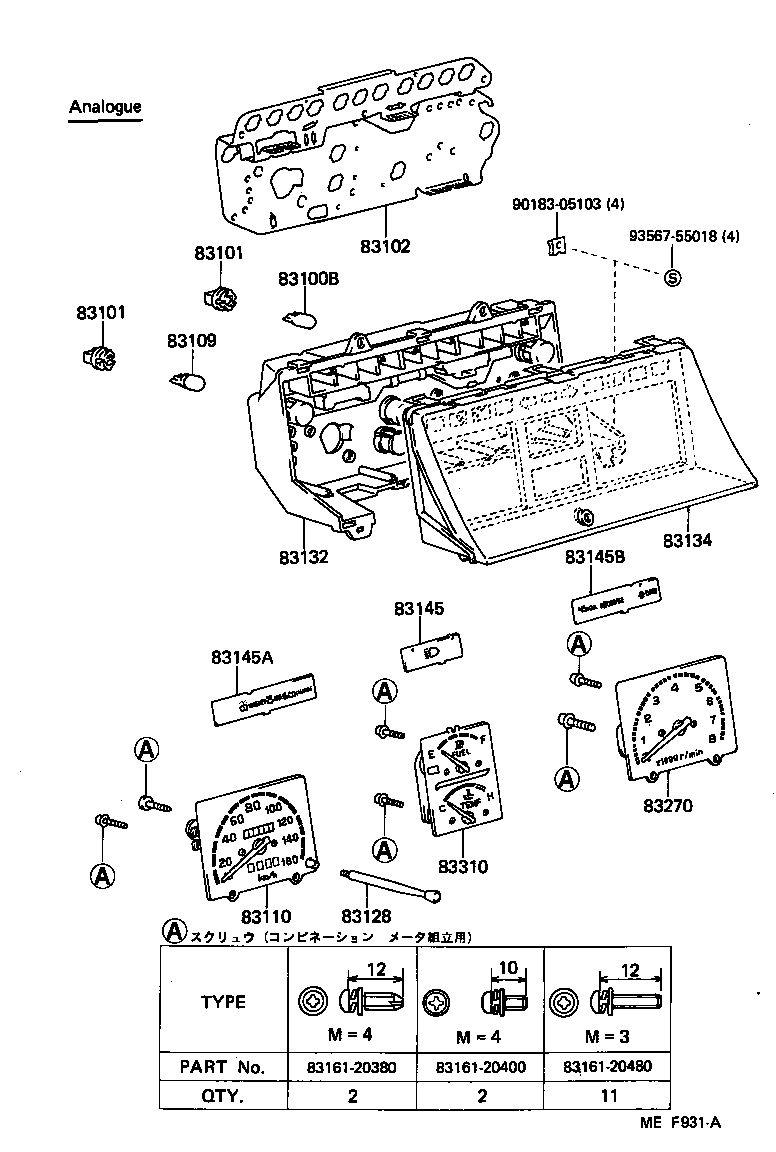

Meter
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83100J | Condenser |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83109 | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83121A | Sensor, Speed |
| 83121B | Cable, Counter And Sensor |
| 83128 | Knob, Trip Counter |
| 83128B | Knob, Meter Switch |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83180 | Detector Assy, Revolution |
| 83270 | Tachometer Assy, Engine |
| 83271 | Relay, Meter Control |
| 83310 | Gage Assy, Fuel Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |

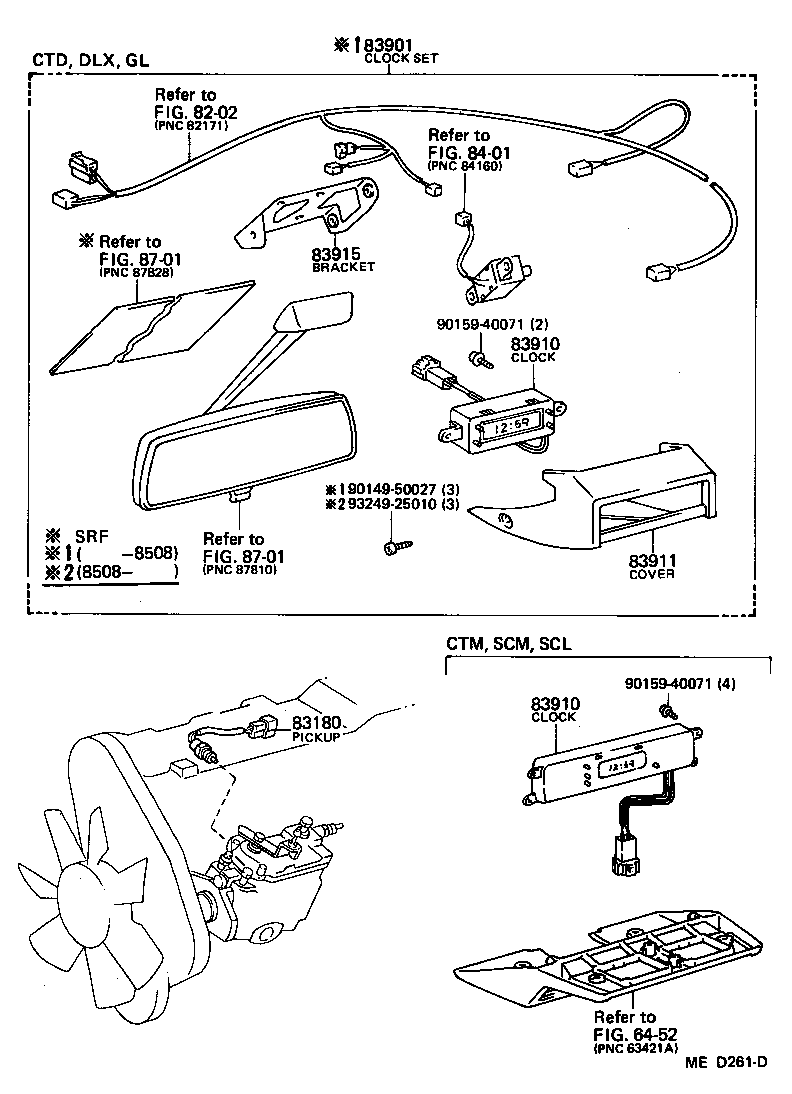

| 83901 | Clock And Setting Parts Set |
| 83910 | Clock Assy |
| 83911 | Cover, Clock |
| 83915 | Bracket, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
