Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Curtain

8 part groups · 2 illustrations

Illustrations

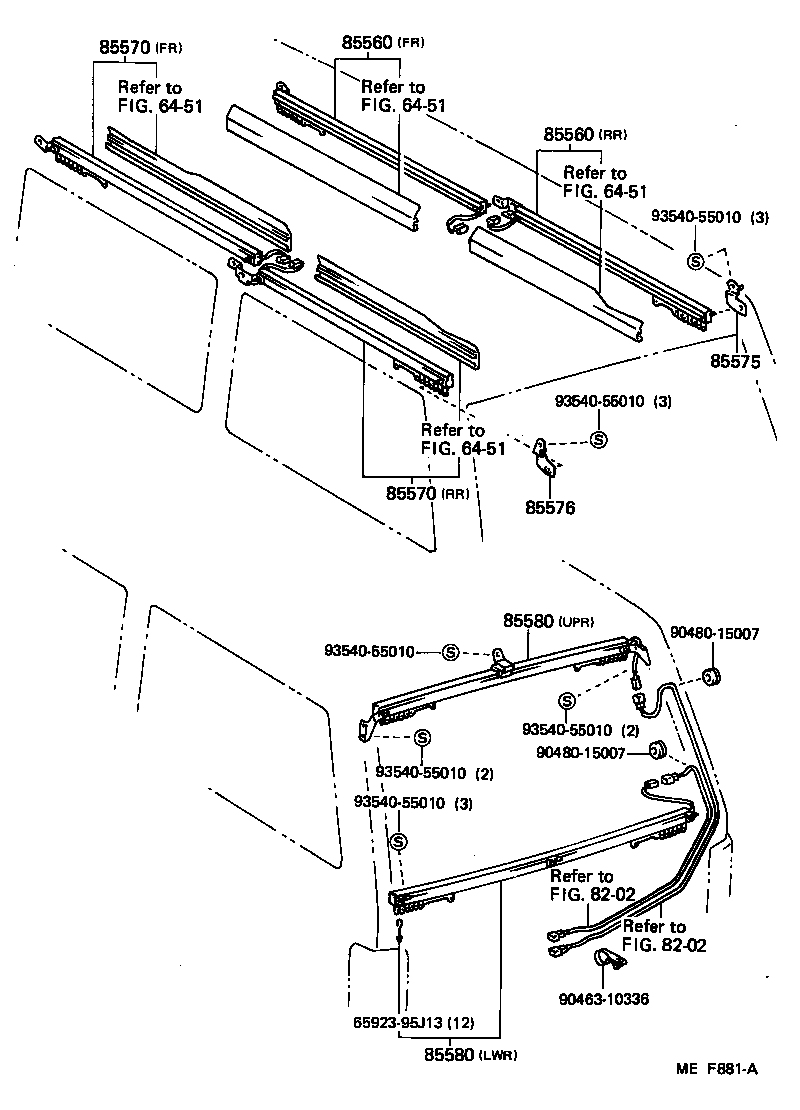

Figure MEE213A MEE213A 1984-01 → 1985-08 Figure MEF881A MEF881A 1985-08 → —

Part groups

PNCDescription
85501 Rail Sub-assy, Power Curtain
85560 Moter And Rail Assy, Power Curtain, RH
85561 Cover, Power Curtain Moter, Side
85562 Cover, Power Curtain Motor, Rear
85570 Moter And Rail Assy, Power Curtain, LH
85575 Bracket, Auto Curtain Rail, RH
85576 Bracket, Auto Curtain Rail, LH
85580 Moter And Rail Assy, Power Curtain, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
