Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

34 part groups · 7 illustrations

Illustrations

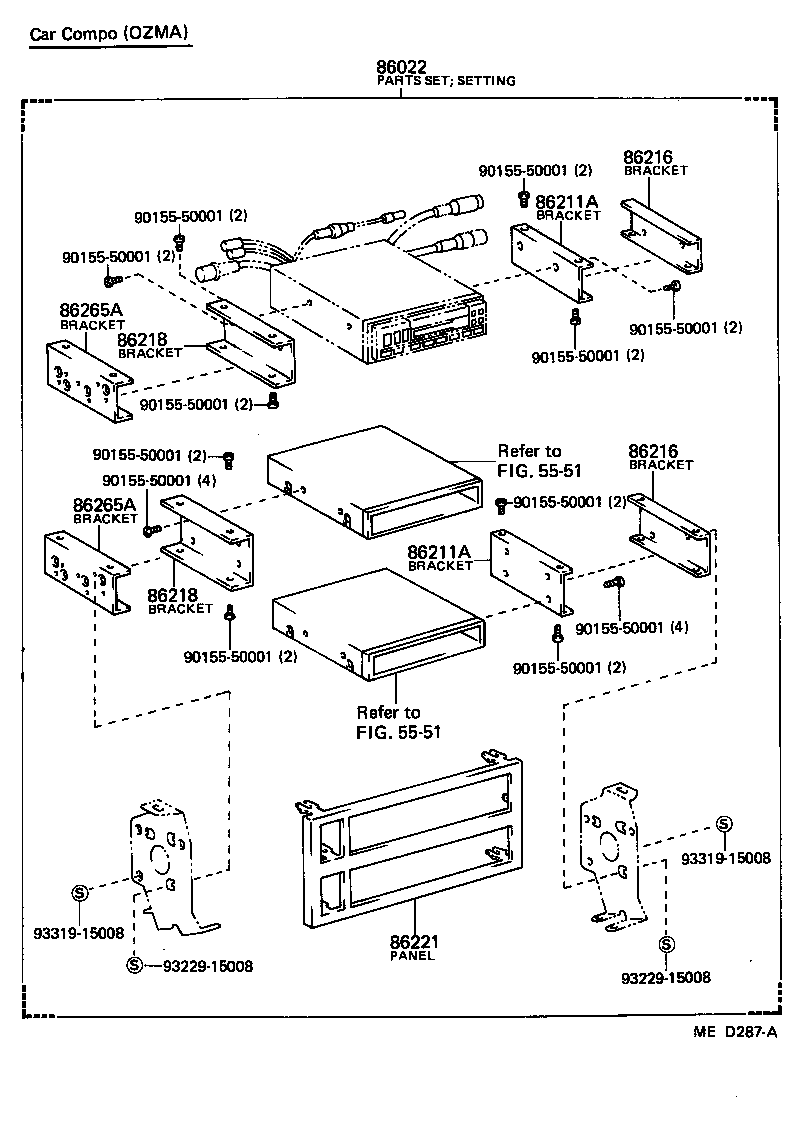

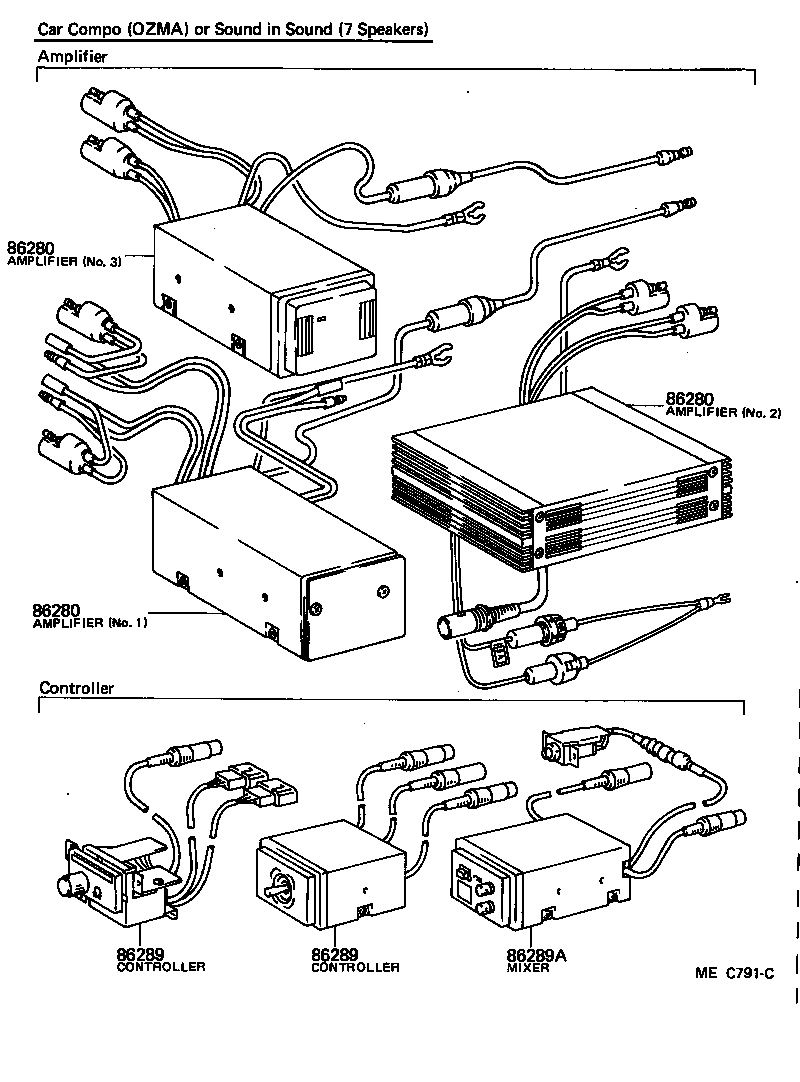

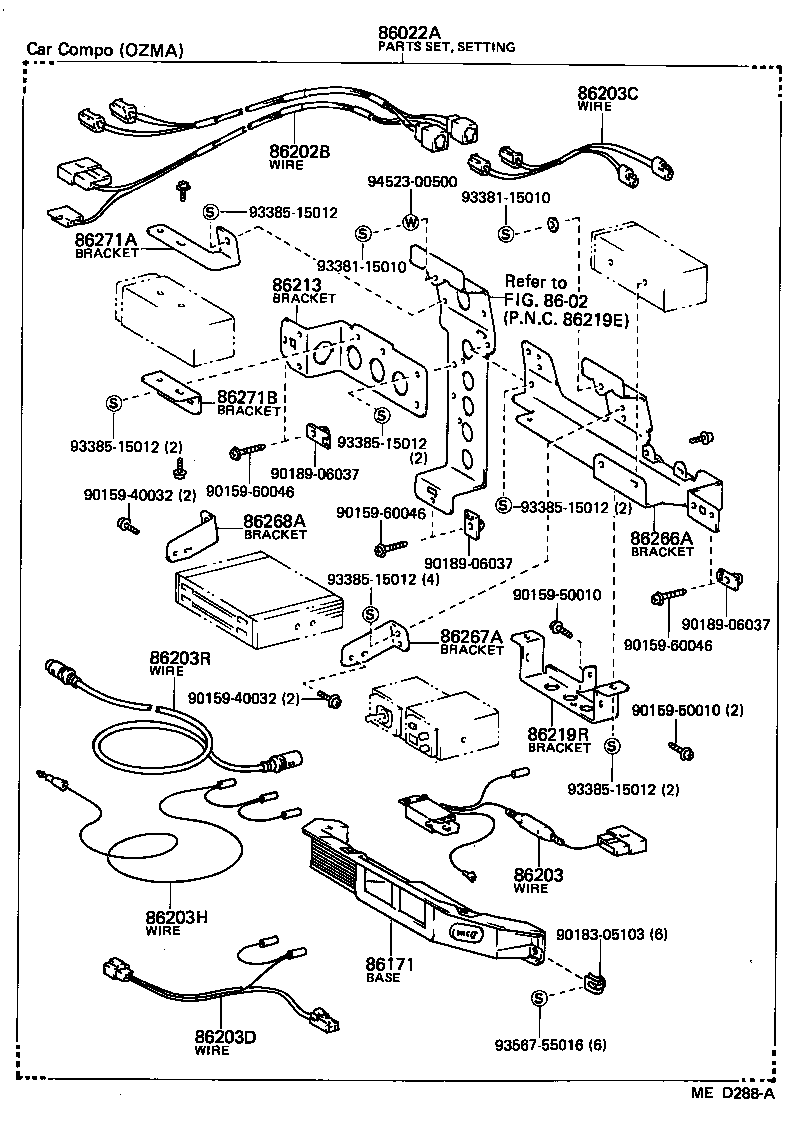

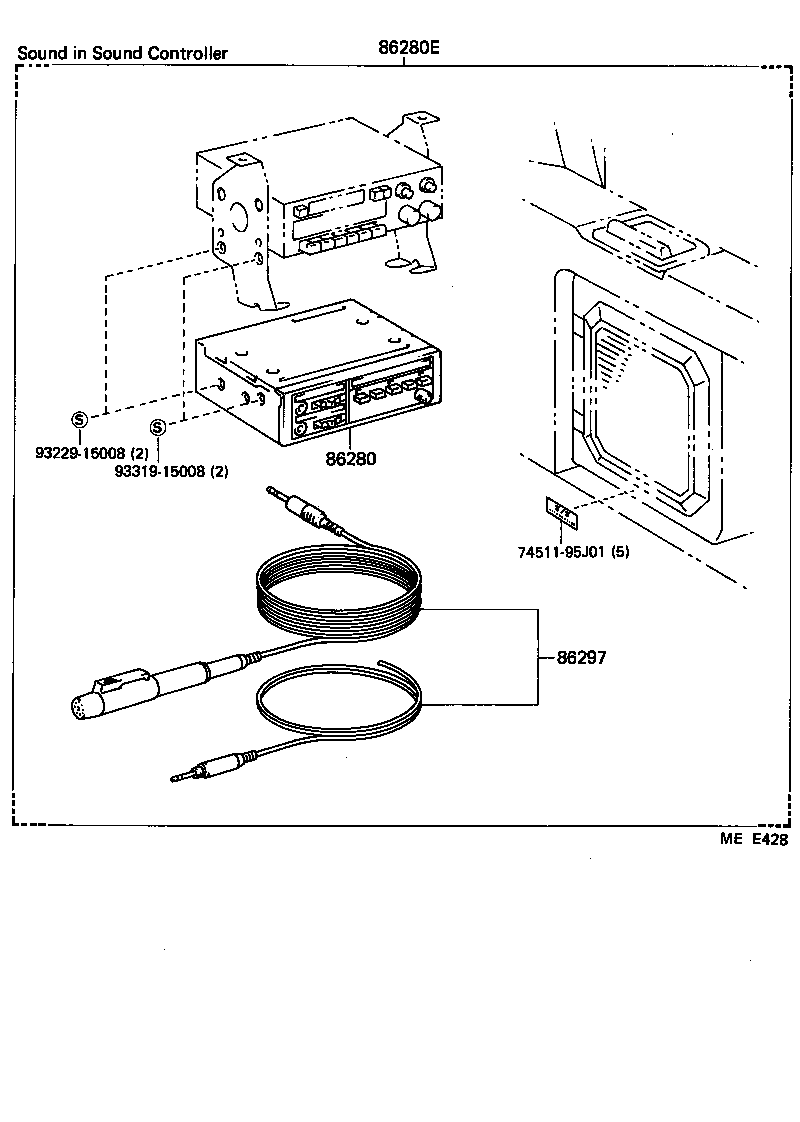

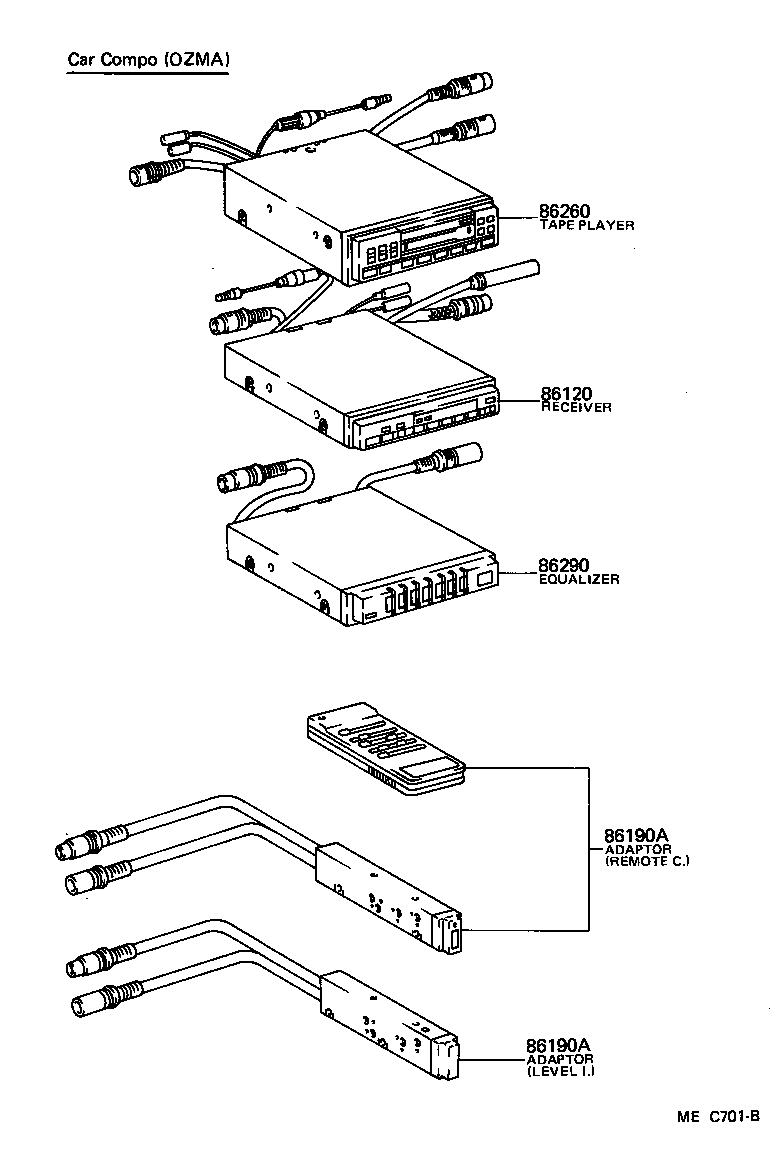

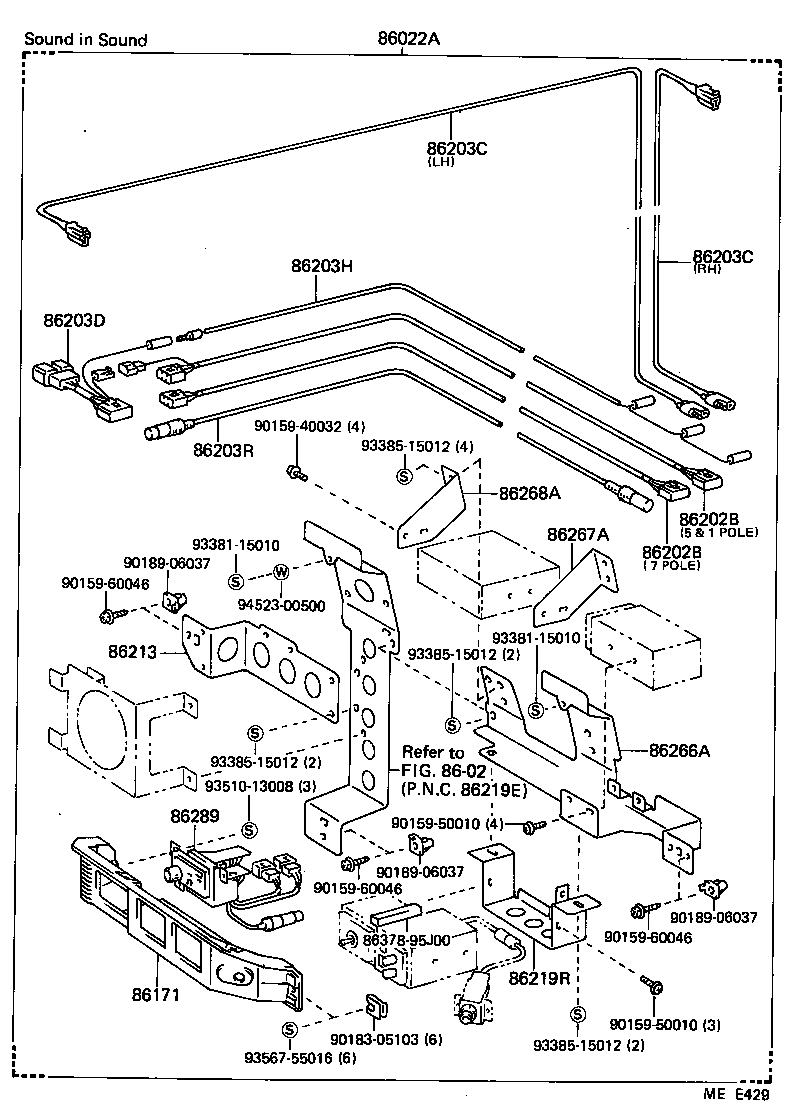

Figure MEC700E MEC700E 1982-12 → — Figure MEE428 MEE428 1984-01 → — Figure MEC701B MEC701B 1982-12 → — Figure MED287A MED287A 1982-12 → — Figure MEC791C MEC791C 1982-12 → — Figure MED288A MED288A 1982-12 → — Figure MEE429 MEE429 1984-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86022 Parts Set, Tape Player Setting
86022A Parts Set, Stereo Component Setting
86120 Receiver Assy, Radio
86171 Base, Radio Remote Control
86190A Adapter Assy, Remote Control
86202B Wire, Tape Player
86203 Wire, Radio
86203C Wire, Tape Player
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86203R Wire Sub-assy, RR
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86216 Bracket, Stereo Component, NO.2
86218 Bracket, Stereo Component, NO.3
86219R Bracket, Speaker Controller
86221 Panel, Stereo Component
86260 Tape Player Assy
86265A Bracket, Stereo Component, NO.4
86266A Bracket, Stereo Component, NO.5
86267A Bracket, Stereo Component, NO.6
86268A Bracket, Stereo Component, NO.7
86271A Bracket, Stereo Component, A
86271B Bracket, Stereo Component, B
86280 Amplifier Assy, Stereo Component
86280E Amplifier Set, Stereo Component
86289 Controller, Stereo Component Speaker
86289A Mixer, Microphone
86290 Equalizer Assy, Stereo Component
86297 Microphone, Wireless
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
