Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

10 part groups · 6 illustrations

Illustrations

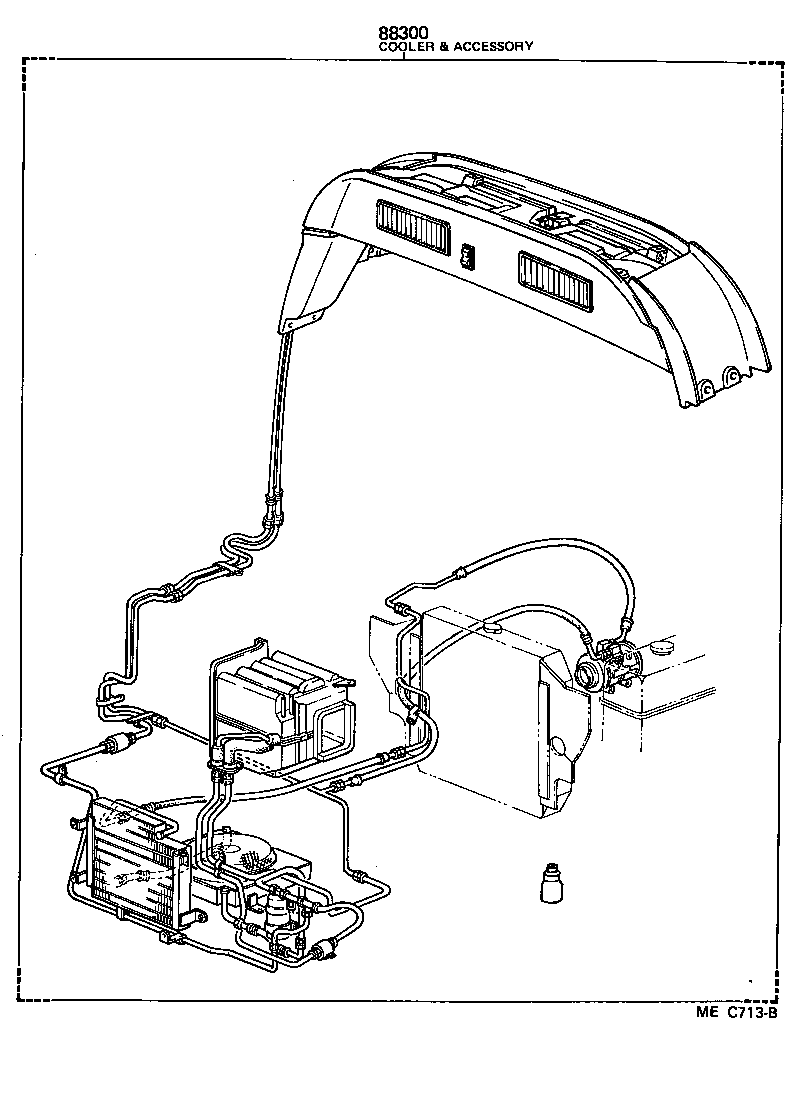

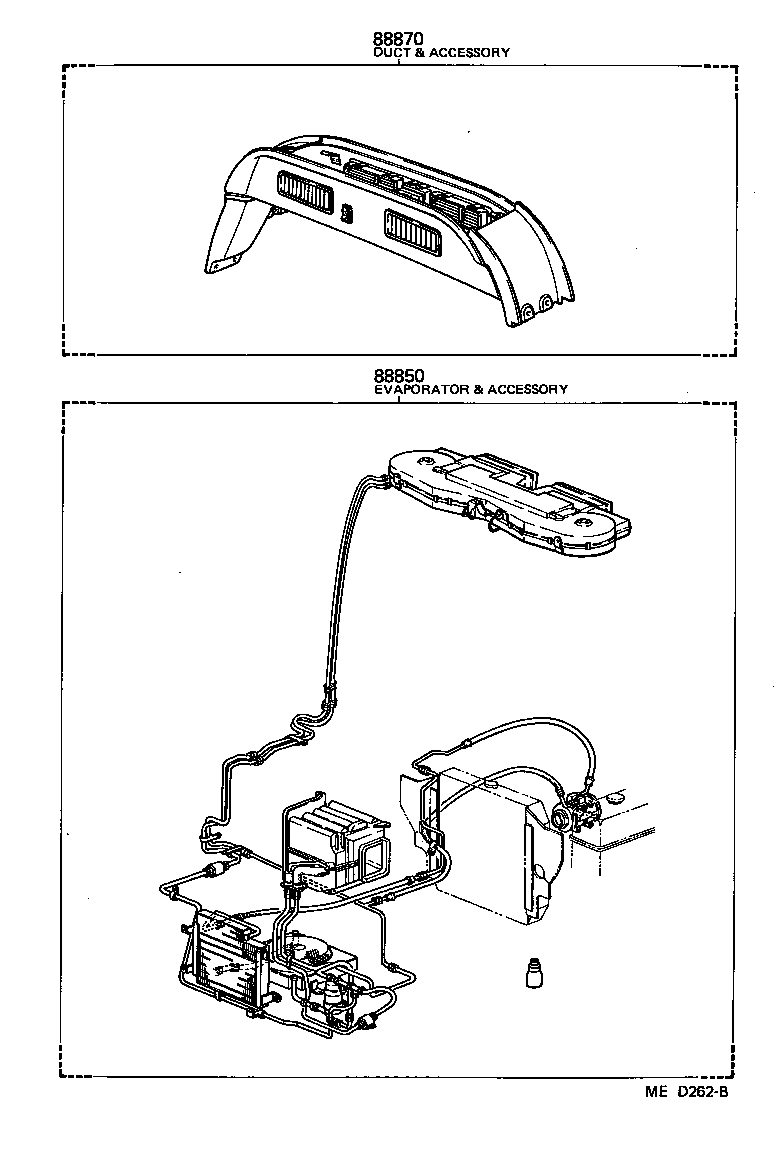

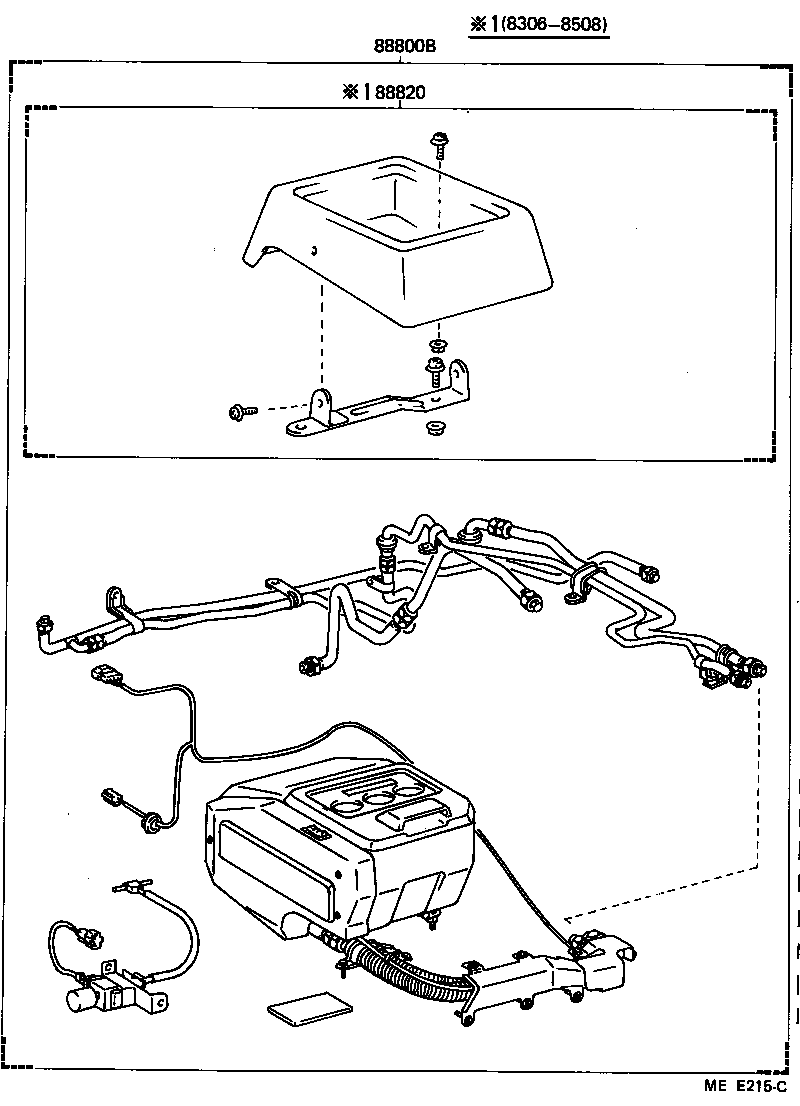

Figure MEE214A MEE214A 1983-10 → 1985-08 Figure MEC713B MEC713B 1982-12 → — Figure MED262B MED262B 1982-12 → 1985-08 Figure MEG296 MEG296 1985-08 → — Figure MEE215C MEE215C 1983-06 → — Figure MEJ095 MEJ095 1986-10 → —

Part groups

PNCDescription
87200 Heater & Accessory, Rear
87300A Heater And Accessory Assy (FOR COMBUSTION HEATER)
88300 Cooler & Accessory Assy
88800B Cool Box And Accessory Assy, NO.1
88820 Air Conditioner & Accessory Sub-assy, NO.1
88820A Air Conditioner & Accessory Sub-assy, NO.2
88820B Air Conditioner & Accessory Sub-assy, NO.3
88850 Evaporator And Compressor Assy
88860 Accessory Assy, Automatic Air Conditioner
88870 Duct And Accessory Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
