Toyota Hiace Van,Wagon

1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

51 part groups · 10 illustrations

Illustrations

Figure MEC721D MEC721D 1982-12 → — Figure MEC722C MEC722C 1982-12 → — Figure MEG804 MEG804 1985-08 → — Figure MEC854G MEC854G 1982-12 → — Figure MEC740 MEC740 1982-12 → — Figure MEE218A MEE218A 1984-01 → — Figure MEC741C MEC741C 1982-12 → — Figure MEC742F MEC742F 1982-12 → — Figure MED265A MED265A 1982-12 → — Figure MEC743A MEC743A 1982-12 → 1984-01

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control

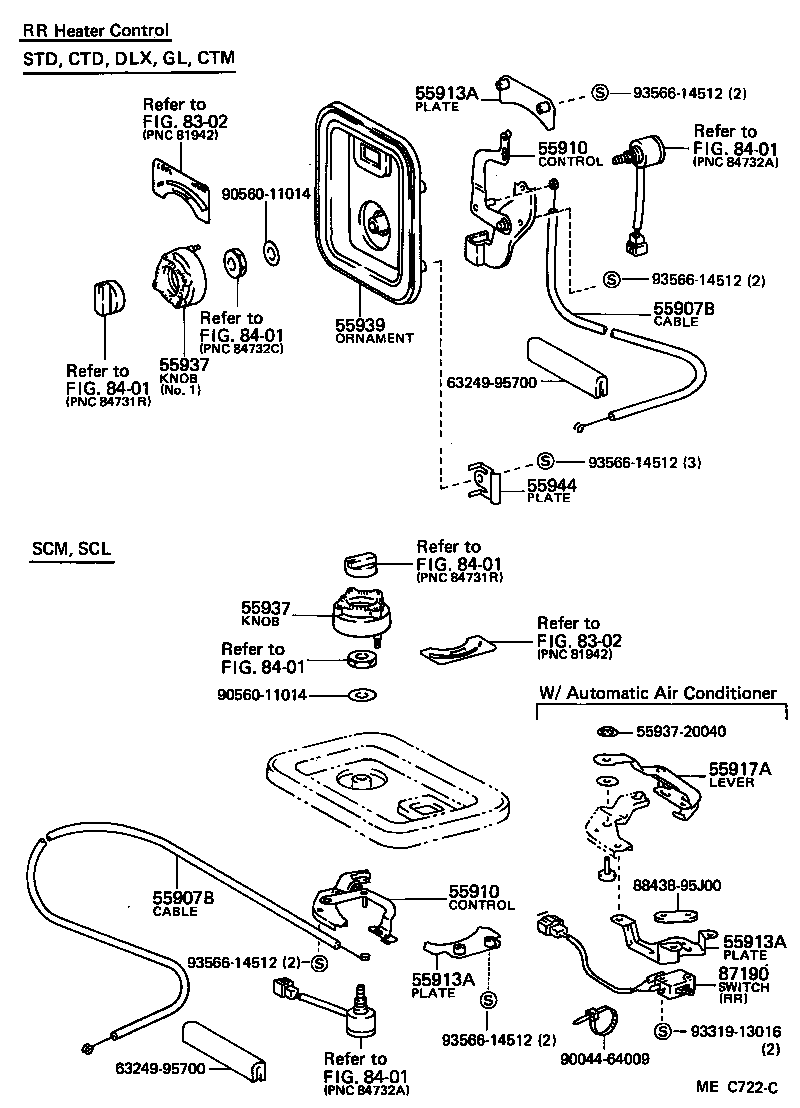

55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55917A Lever, Temperature Damper Control
55937 Knob, Heater Control Lever
55937A Knob, Cooler Control Lever
55939 Ornament, Heater Control
55944 Plate, Heater Control Support
82650D Breaker Assy, Wiring Circuit
87190 Switch Assy, Temperature Control
87195 Cover, Hole

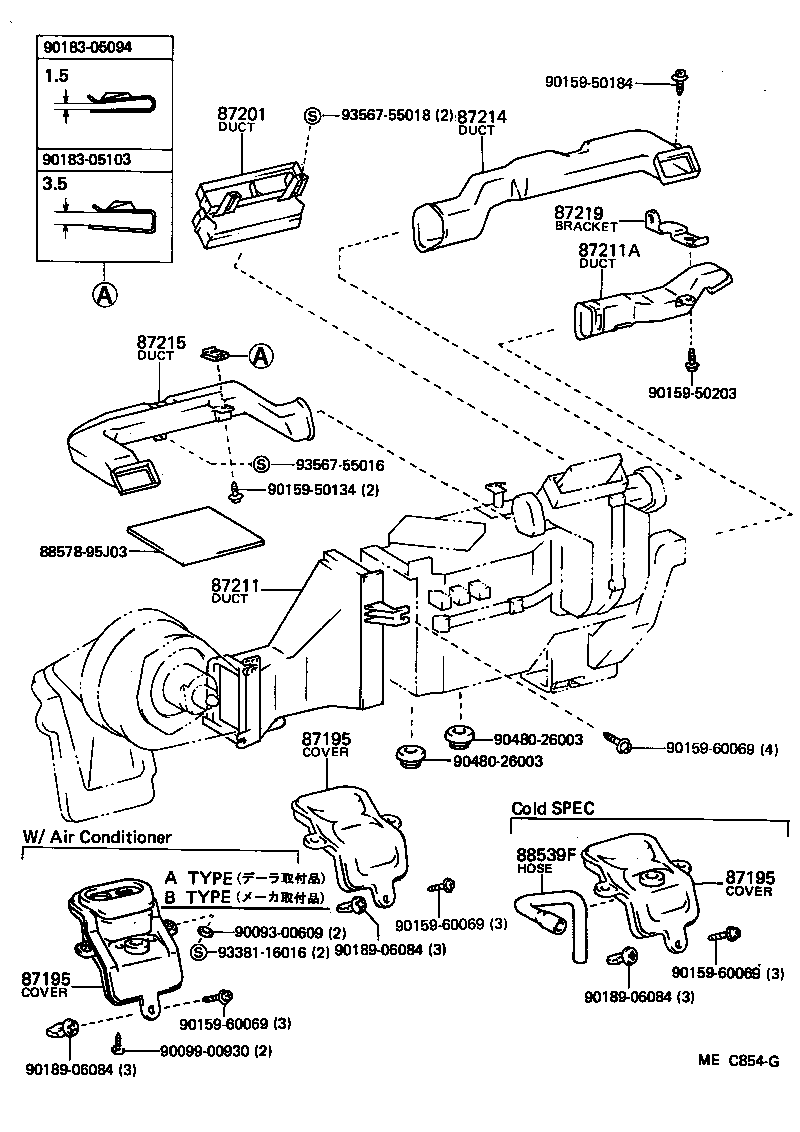

87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2

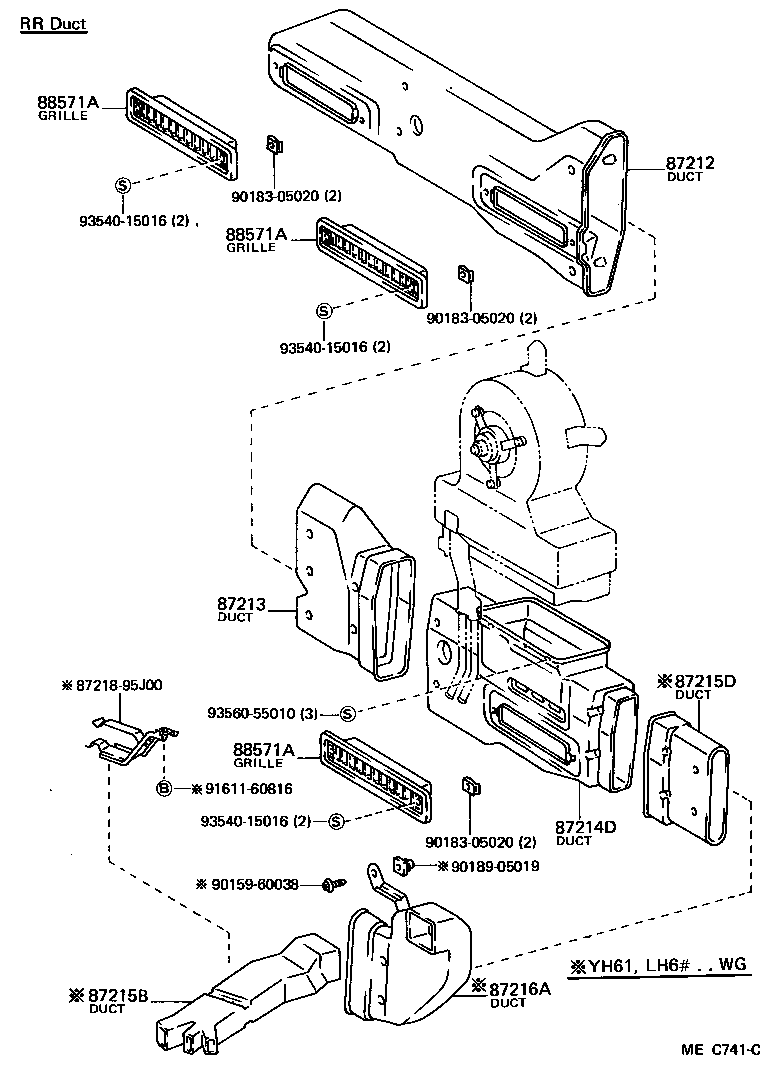

87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214D Duct, Air, Rear NO.3
87215 Duct, Air, Side NO.1 LH
87215B Duct, Air, Side NO.3 LH
87215D Duct, Air, Rear NO.4
87216A Duct, Air, Rear NO.5
87219 Bracket, Front Air Duct
87284 Resistor Sub-assy, Variable
87346A Relay, Combustion Heater, NO.1
87346B Relay, Combustion Heater, NO.2
87346E Amplifier Assy, Conbustion Heater
87348C Block, Fuse
87446A Stay, Heater Control Panel

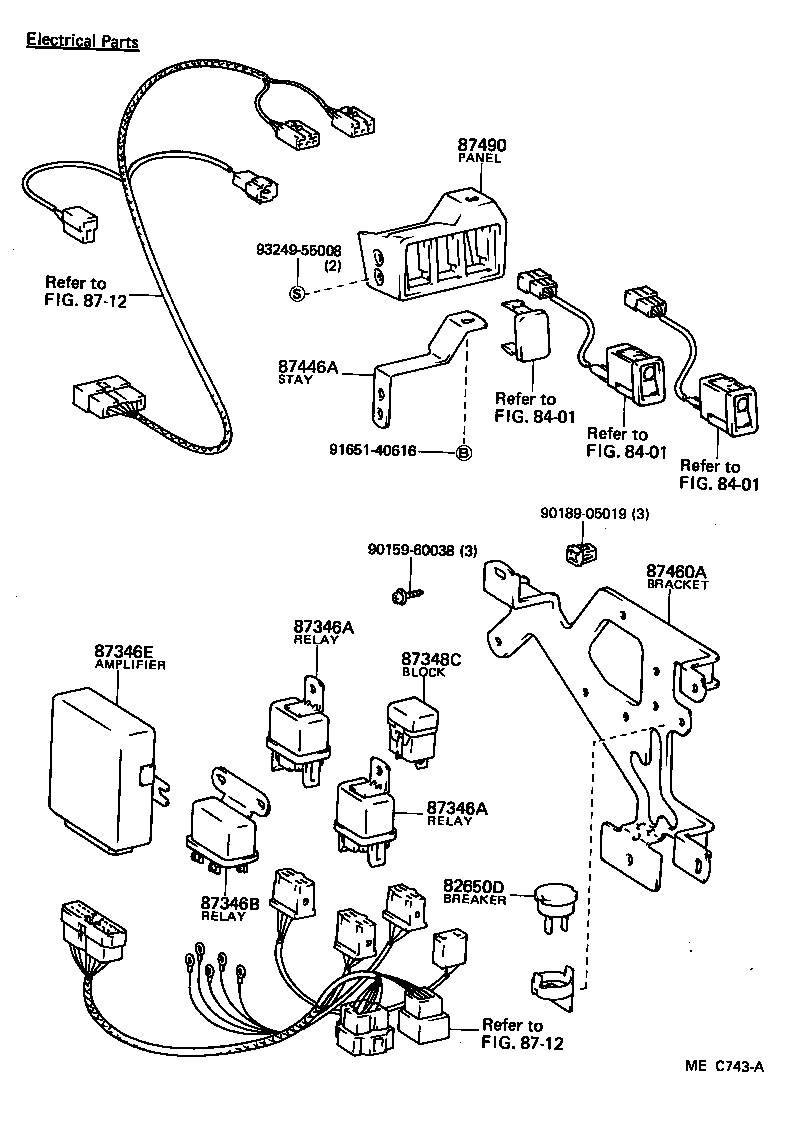

87460A Bracket, Electrical Parts
87490 Panel Assy, Heater Control
88510C Cover Assy, Cooler Unit
88539F Hose, Drain
88561B Grille, Cooler Air Inlet
88561C Grille, Cooler Air Inlet

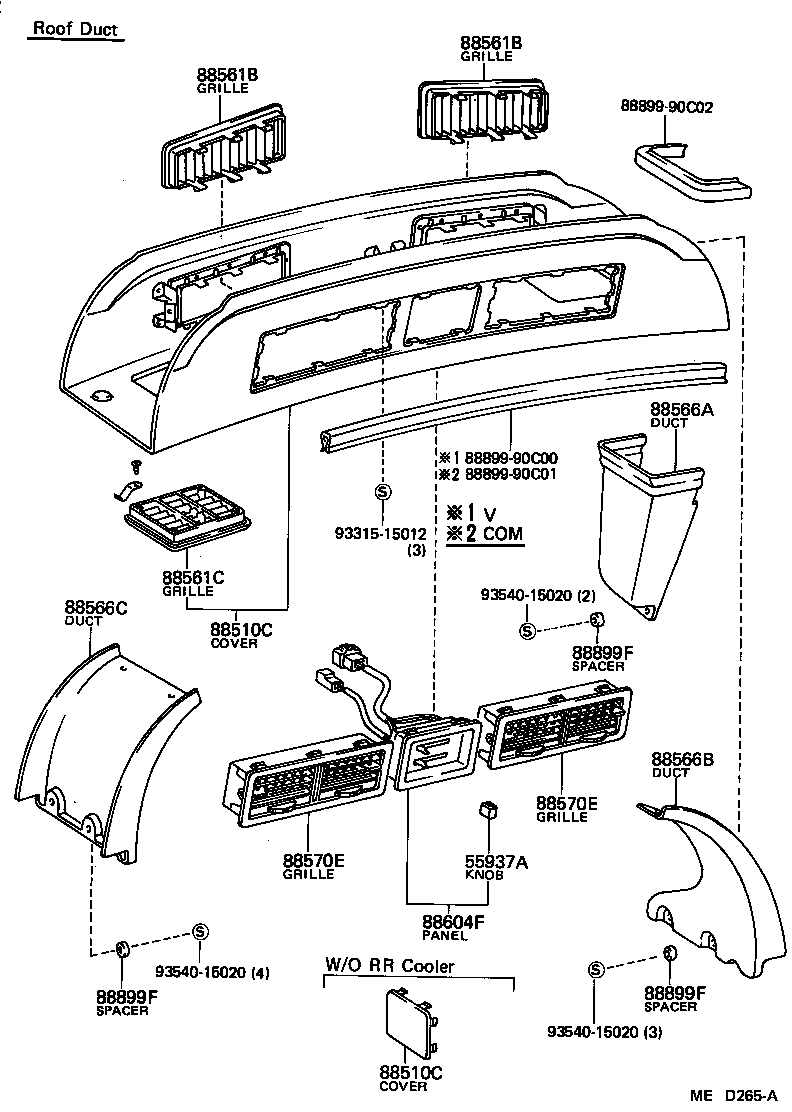

88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4

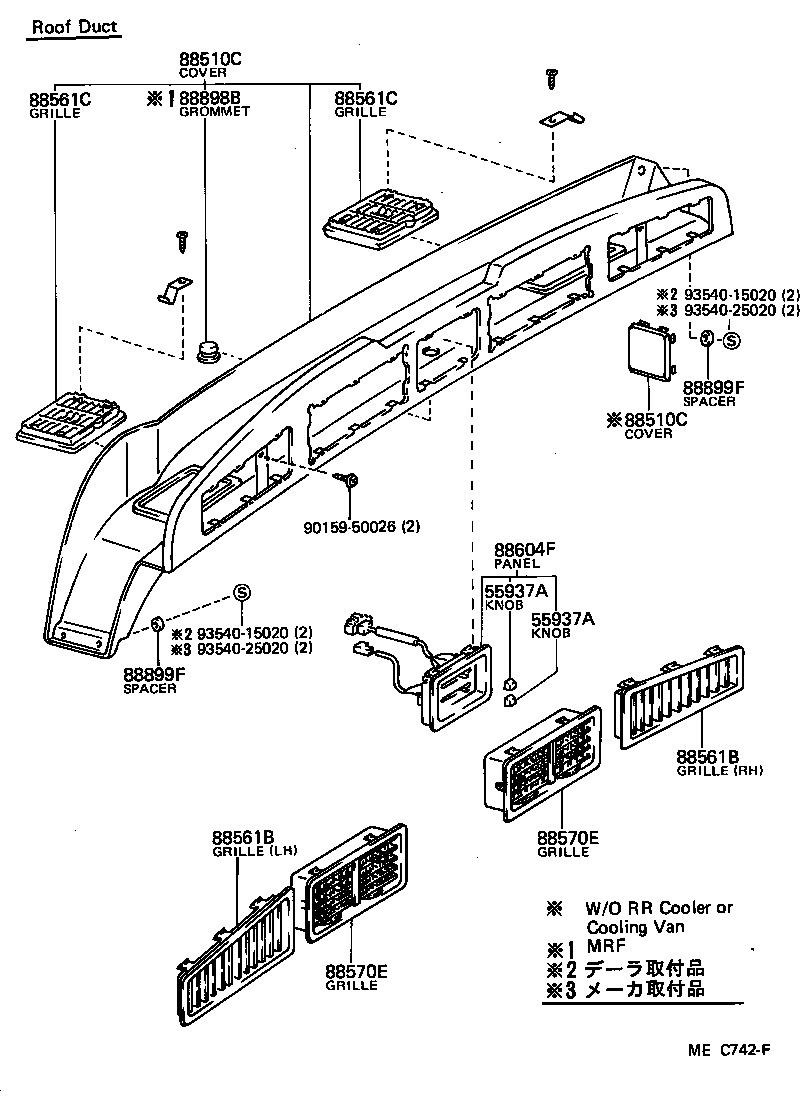

88570E Grille Assy, Air Outlet
88571A Grille, Air Outlet
88571B Grille, Air Outlet
88604F Panel Sub-assy, Cooler Control

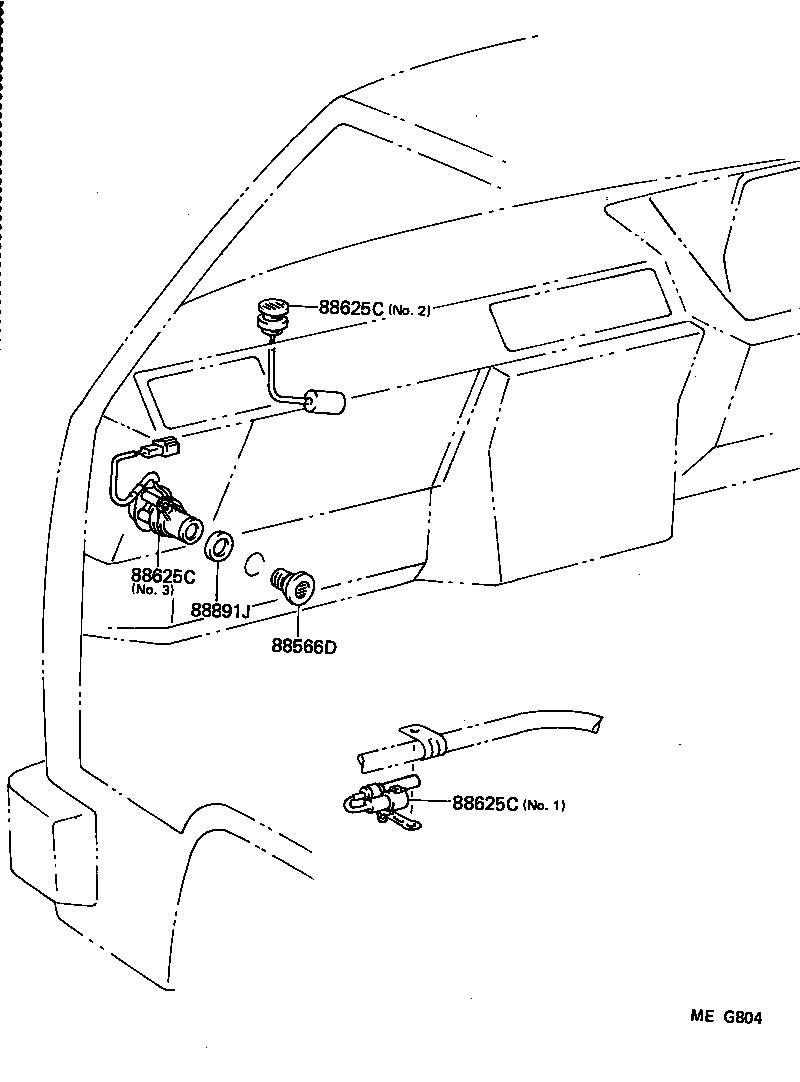

88625C Thermistor, Cooler
88891J Packing
88898B Grommet, Cooler Unit Cover
88899F Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
