Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

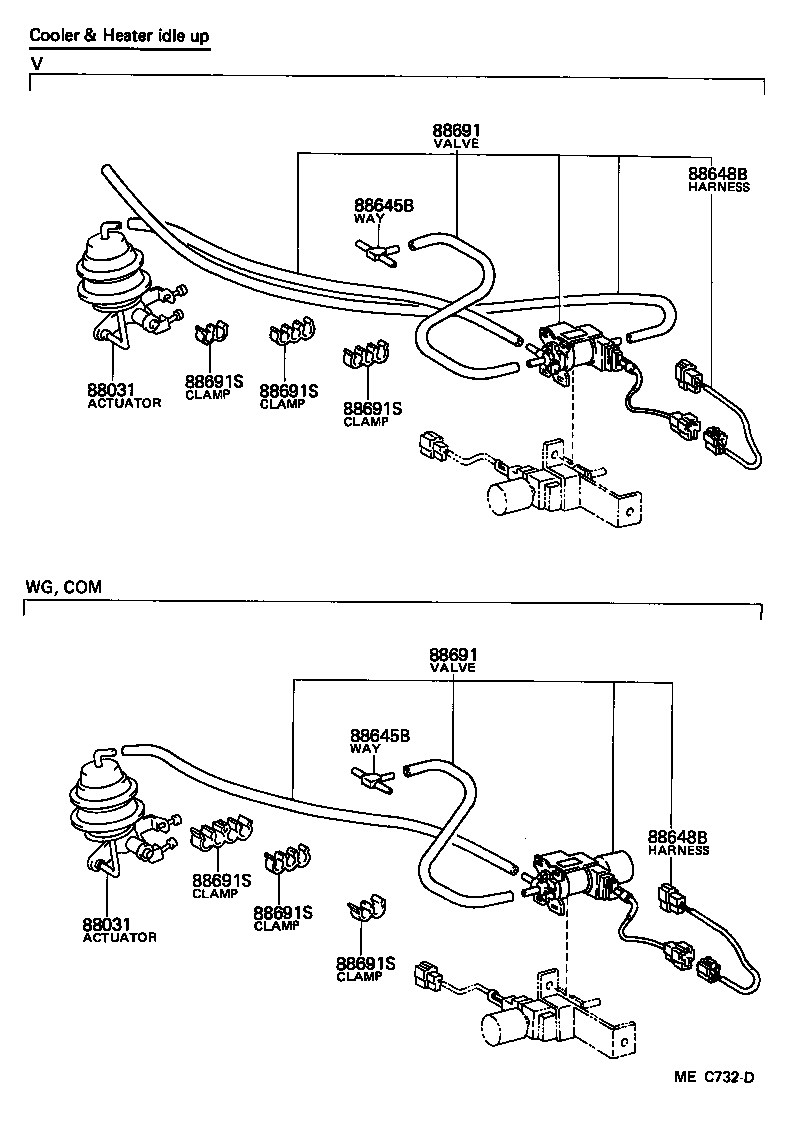

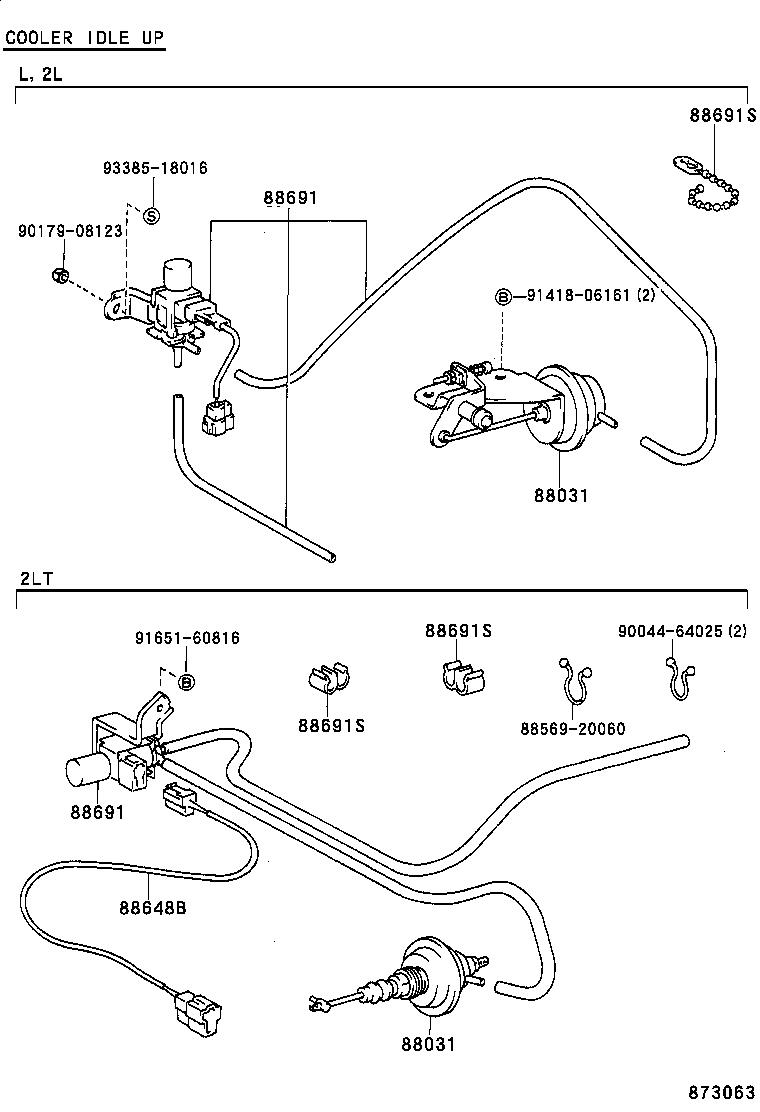

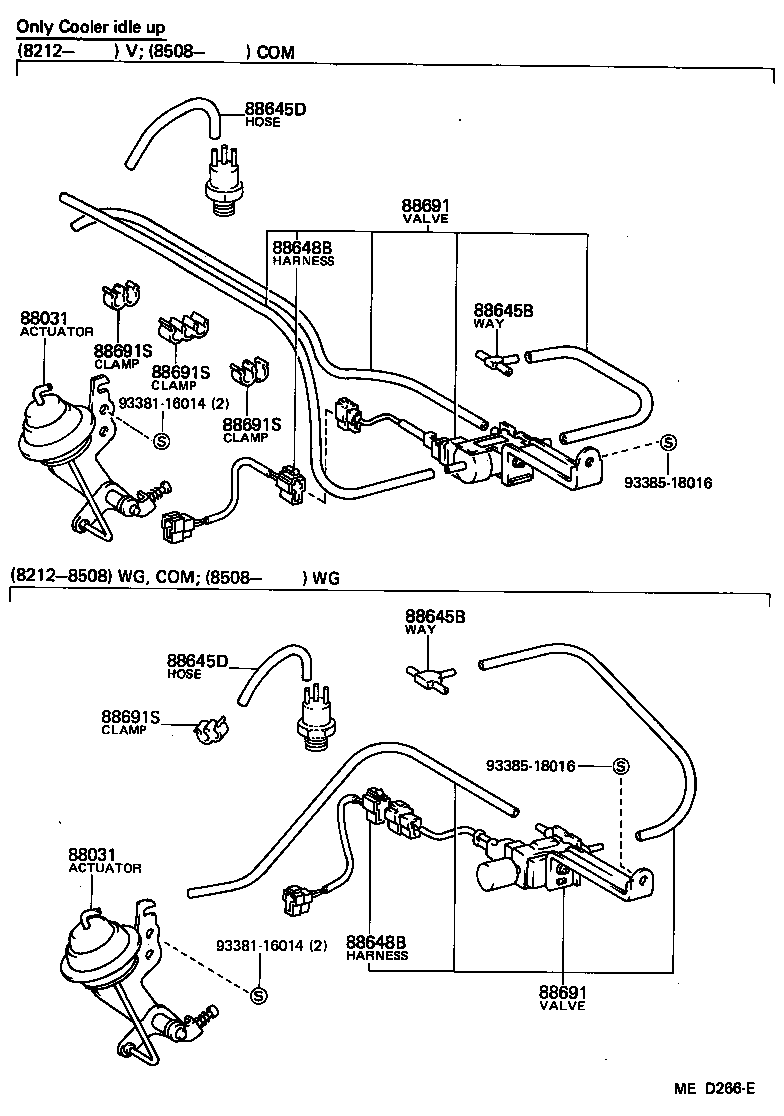

Heating & Air Conditioning - Vacuum Piping
8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88648B | Wiring, Cooler, NO.1 |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
| 88691D | Hose, Vacuum (FOR IDLE UP DIVICE), NO.2 |
| 88691S | Clamp (FOR IDLE UP DIVICE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
