Toyota Hiace Van,Wagon
1982-12 → 1987-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711120 · Japan
Discontinued model
Data version 1987-12

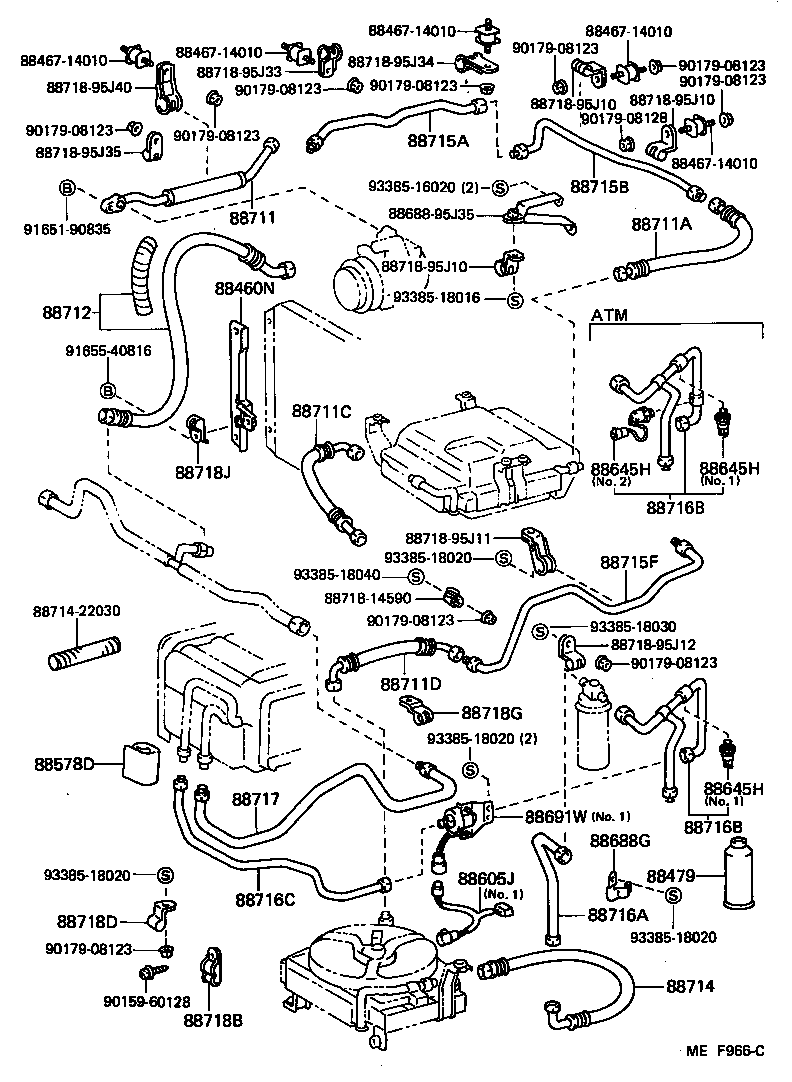

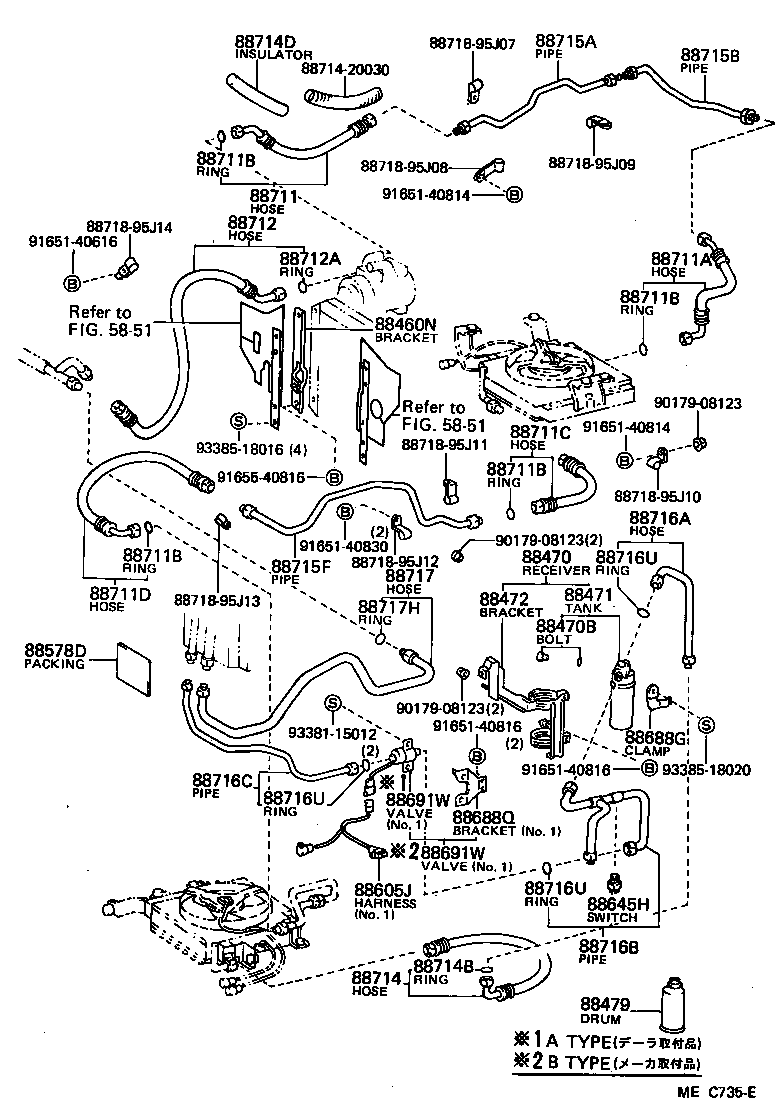

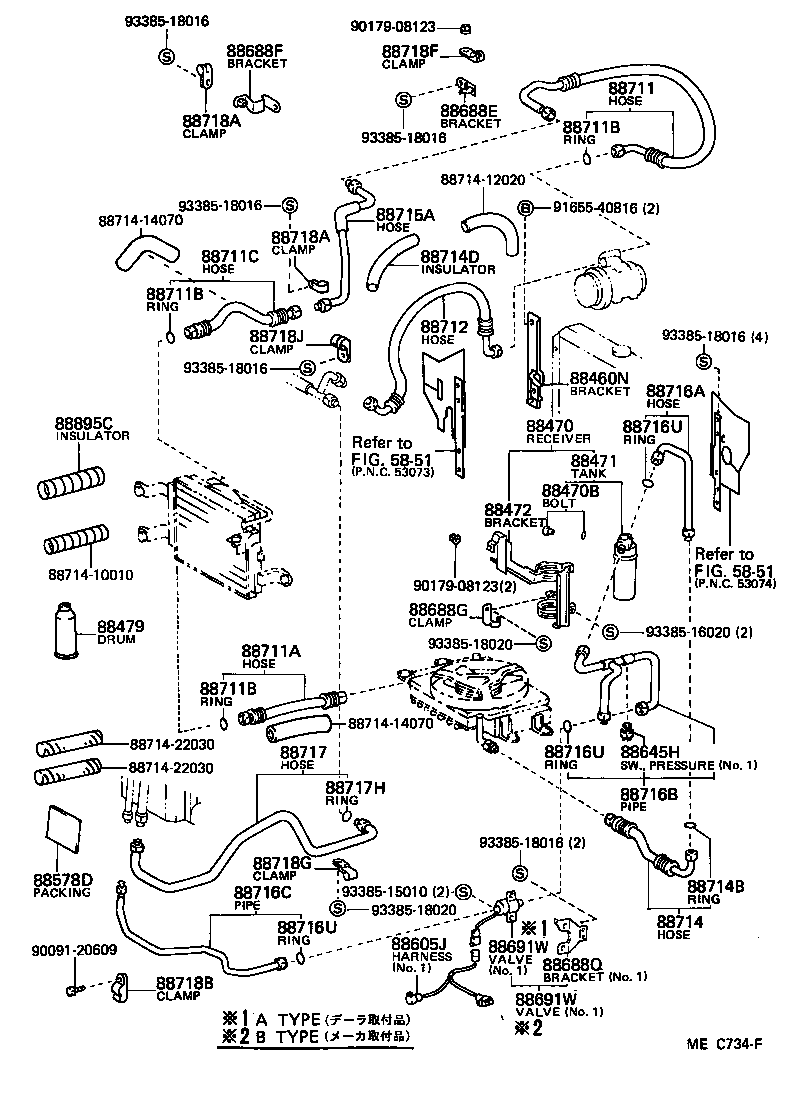

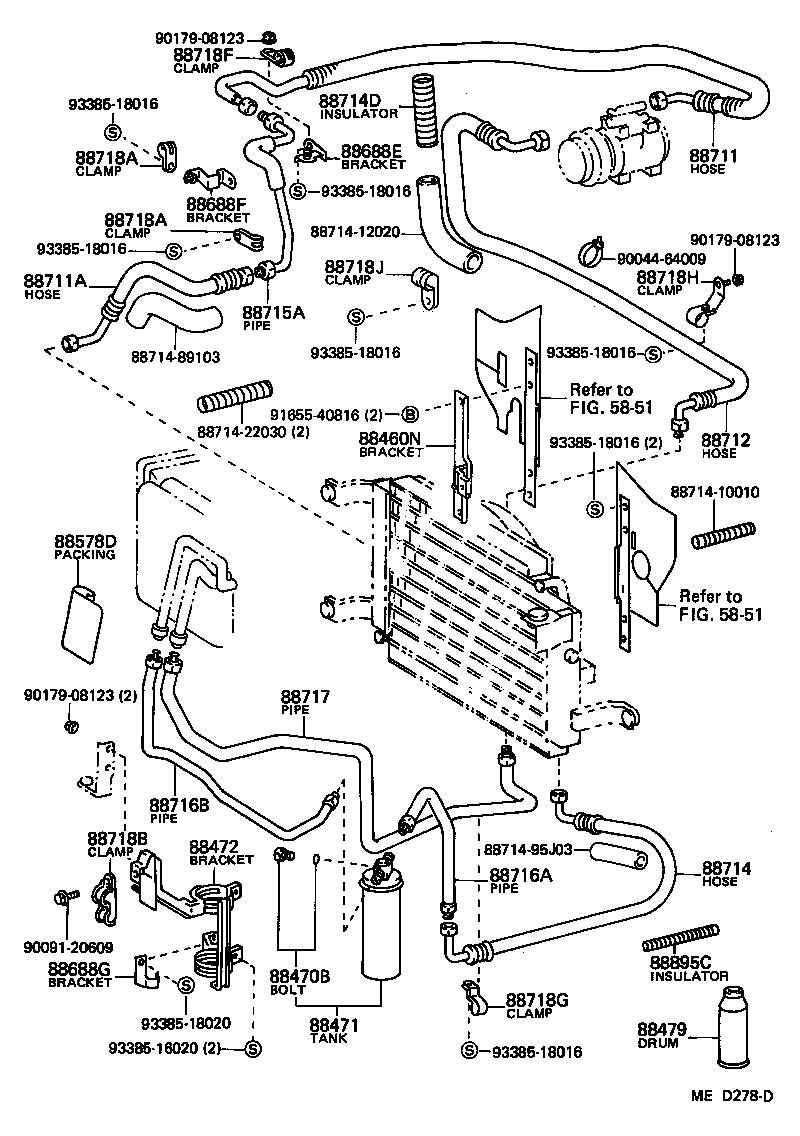

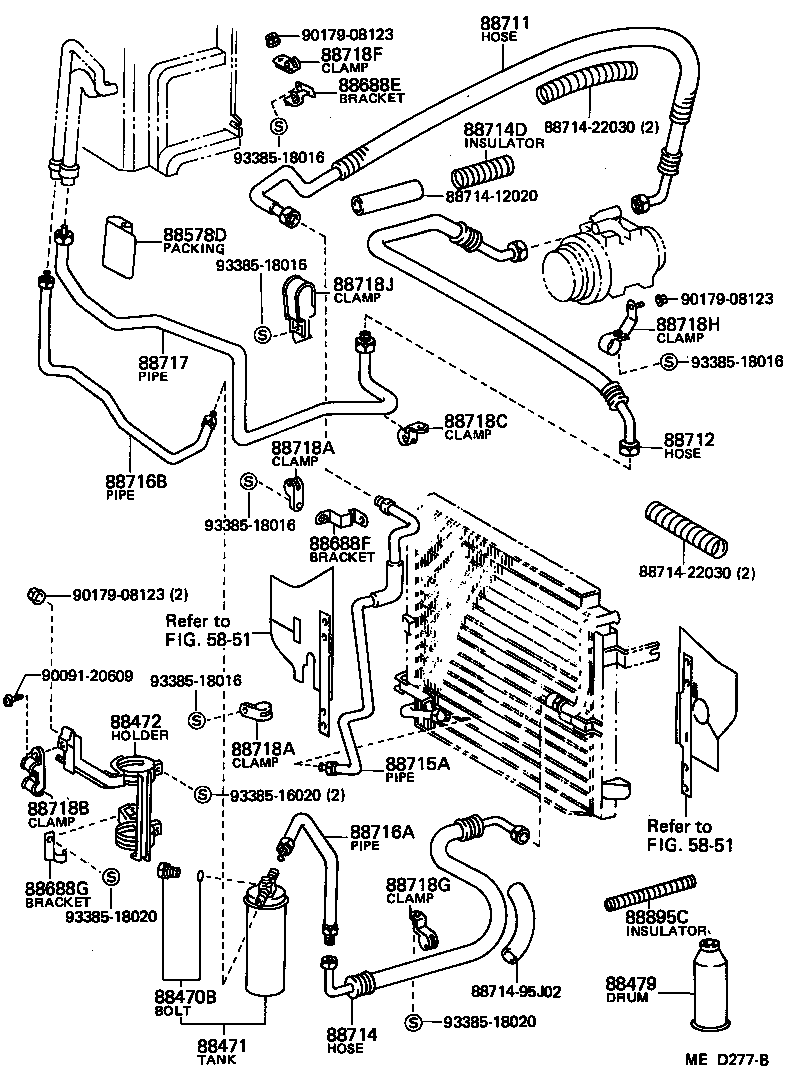

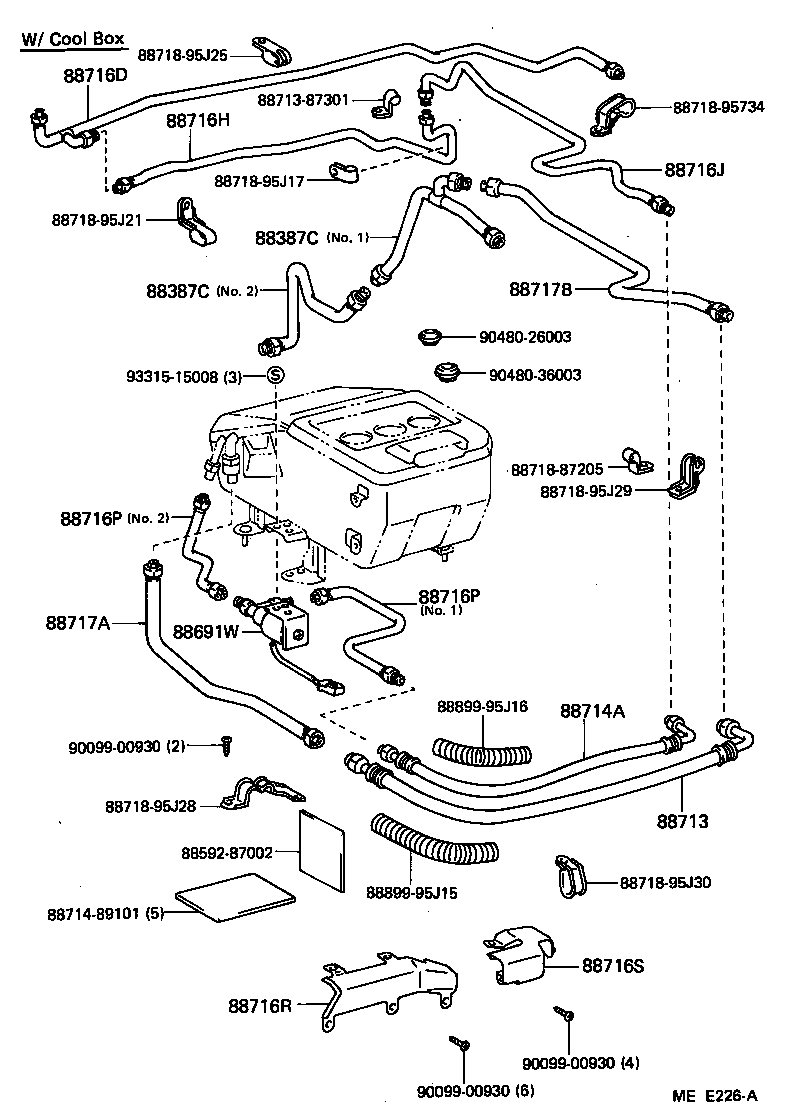

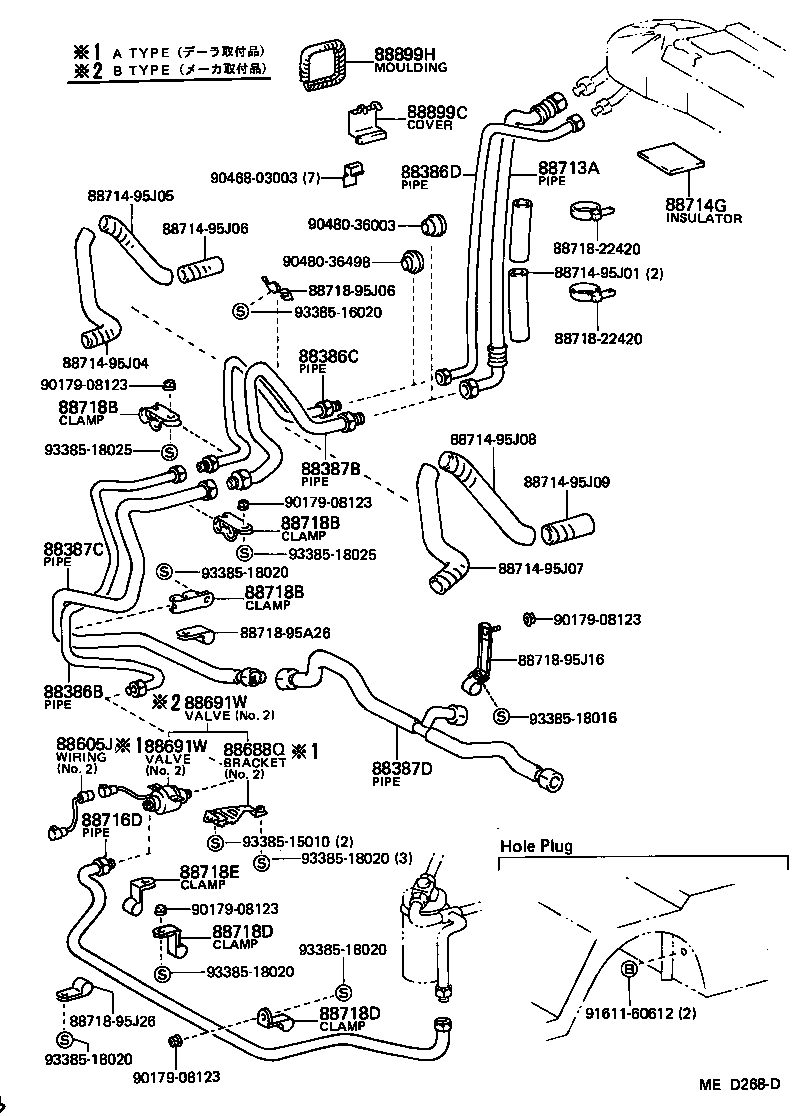

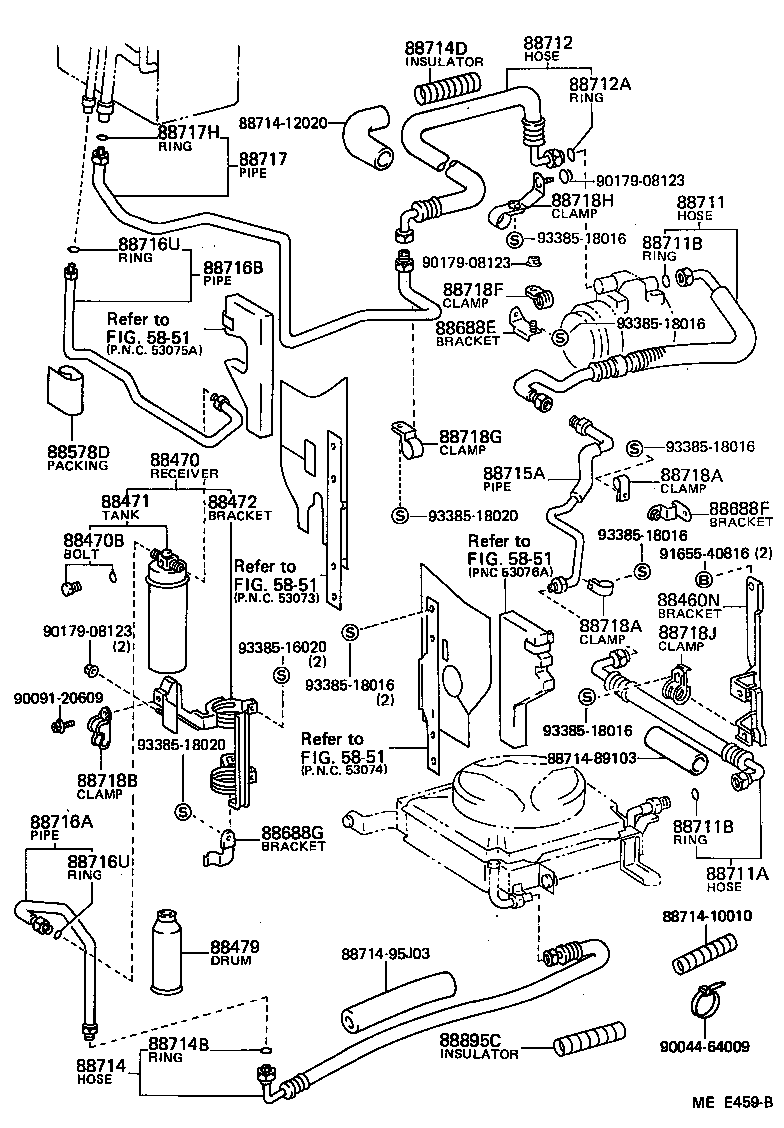

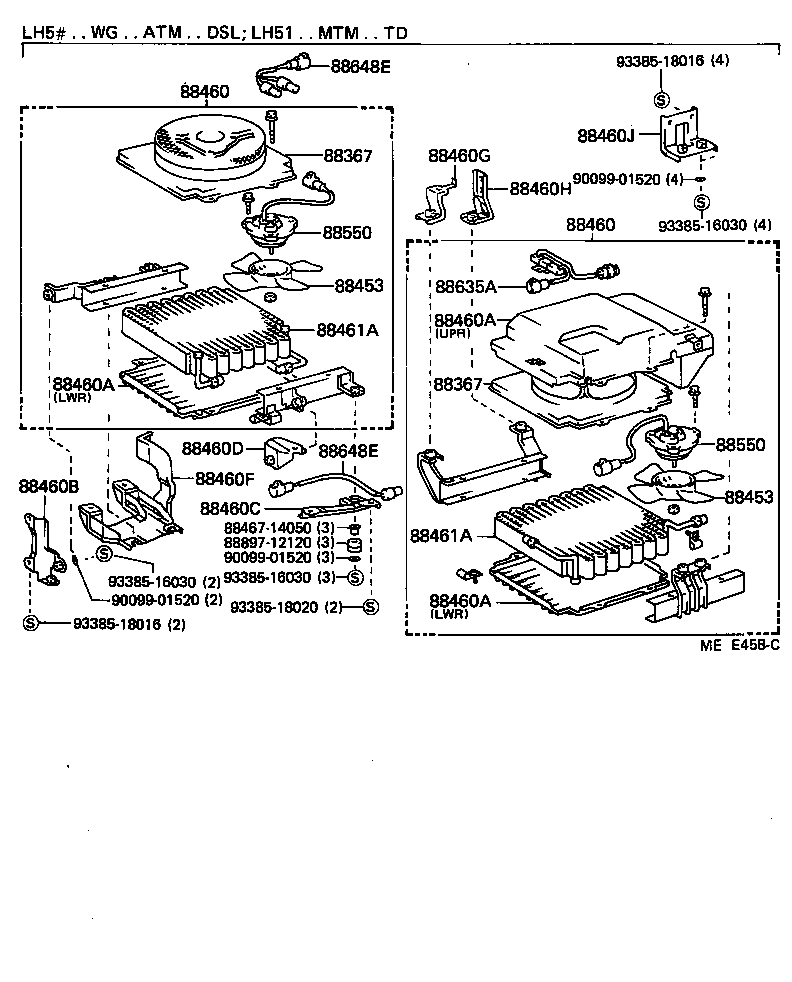

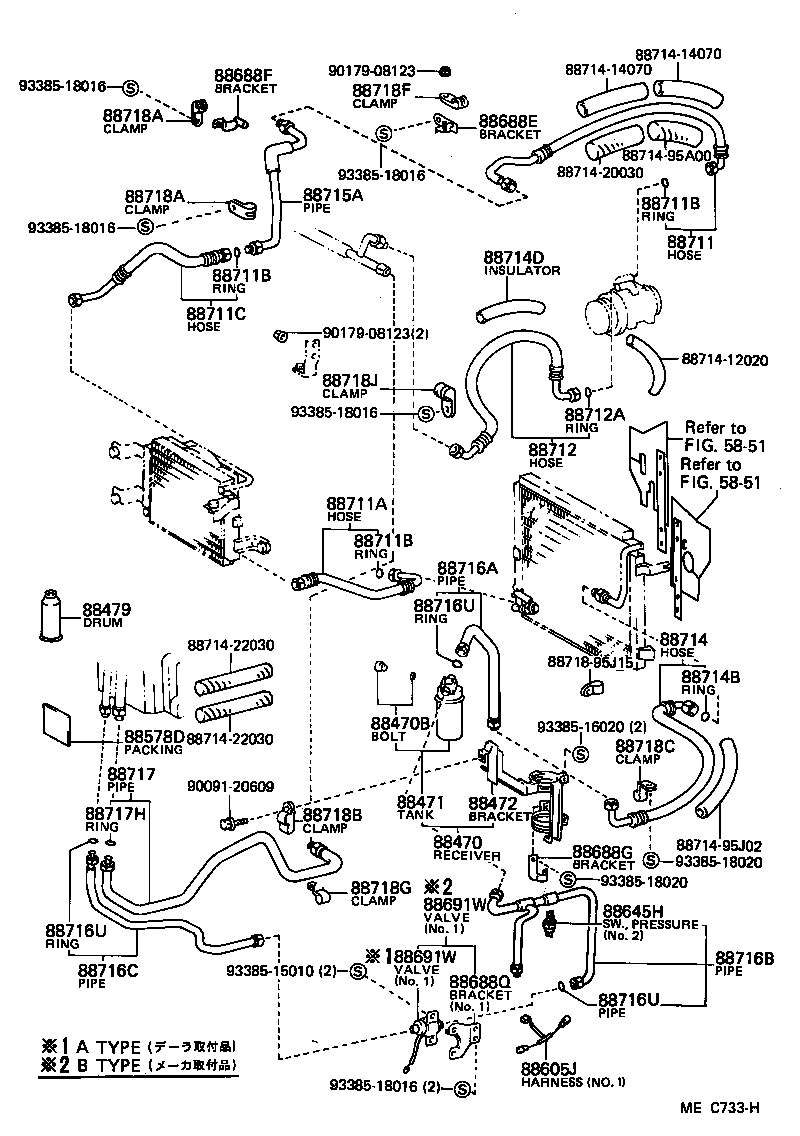

Heating & Air Conditioning - Cooler Piping
80 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 88367 | Shroud, Cooler Blower Fan |
| 88386B | Pipe, Rear Cooler Refrigerant Liquid, B |
| 88386C | Pipe, Rear Cooler Refrigerant Liquid, C |
| 88386D | Pipe, Rear Cooler Refrigerant Liquid, D |
| 88387B | Pipe, Rear Cooler Refrigerant Suction, B |
| 88387C | Pipe, Rear Cooler Refrigerant Suction, C |
| 88387D | Pipe, Rear Cooler Refrigerant Suction, D |

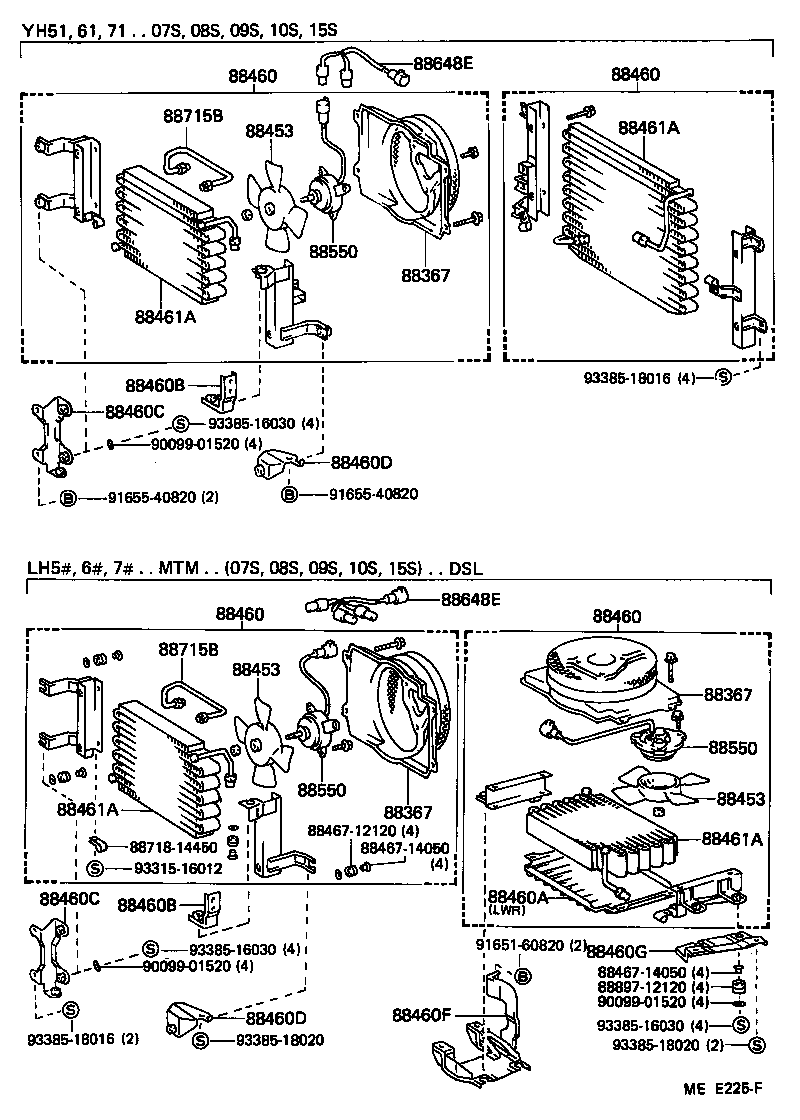

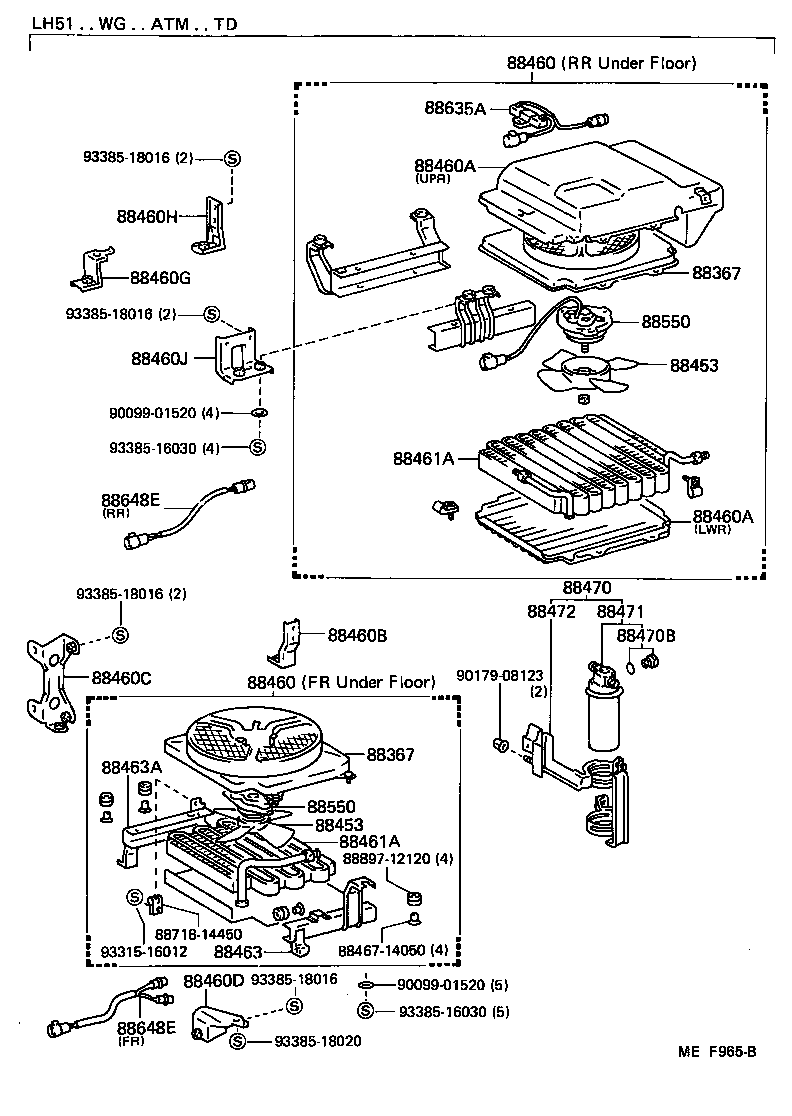

| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88460A | Cover, Cooler Condenser |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88460D | Bracket, Cooler Condenser, NO.3 |
| 88460F | Bracket, Cooler Condenser, NO.4 |
| 88460G | Bracket, Cooler Condenser, NO.5 |
| 88460H | Bracket, Cooler Condenser, NO.6 |
| 88460J | Bracket, Cooler Condenser, NO.7 |
| 88460N | Bracket, Cooler Condenser, NO.8 |
| 88461A | Core, Cooler Condenser |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88605J | Harness Sub-assy, Air Conditioner Wiring |
| 88635A | Resistor, Blower (FOR COOLER CONDENSER MOTOR) |
| 88645H | Switch, Pressure NO.1 |
| 88648E | Wiring, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88688G | Bracket, Cooler Refrigerant Pipe |
| 88688Q | Bracket (FOR MAGNET VALVE) |
| 88691W | Valve, Magnet |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88711B | Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) |
| 88711C | Hose, Cooler Refrigerant Discharge, NO.3 |
| 88711D | Hose, Cooler Refrigerant Discharge, NO.4 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88713 | Hose, Cooler Refrigerant Suction, NO.2 |
| 88713A | Hose, Cooler Refrigerant Suction, NO.3 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88714A | Hose, Cooler Refrigerant Liquid, NO.2 |
| 88714B | Ring, O(FOR COOLER REFRIGERANT LIQUID HOSE) |
| 88714D | Insulator, Cooler Refrigerant Hose, NO.2 |
| 88714G | Insulator, Cooler Refrigerant Pipe, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88715B | Pipe, Cooler Refrigerant Discharge, B |
| 88715F | Pipe, Cooler Refrigerant Discharge, F |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88716J | Pipe, Cooler Refrigerant Liquid, J |
| 88716P | Pipe, Cooler Refrigerant Liquid, P |
| 88716R | Cover, Pipe OR Hose, NO.1 |
| 88716S | Cover, Pipe OR Hose, NO.2 |
| 88716U | Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE) |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717H | Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88718C | Clamp, NO.3(FOR COOLER REFRIGERANT PIPE) |
| 88718D | Clamp, NO.4(FOR COOLER REFRIGERANT PIPE) |
| 88718E | Clamp, NO.5(FOR COOLER REFRIGERANT PIPE) |
| 88718F | Clamp, NO.1(FOR COOLER REFRIGERANT HOSE) |
| 88718G | Clamp, NO.2(FOR COOLER REFRIGERANT HOSE) |
| 88718H | Clamp, NO.3(FOR COOLER REFRIGERANT HOSE) |
| 88718J | Clamp, NO.4(FOR COOLER REFRIGERANT HOSE) |
| 88895C | Insulator, Hose |
| 88899C | Cover, Cooler Refrigerant Pipe, NO.2 |
| 88899H | Moulding, Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
