Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07

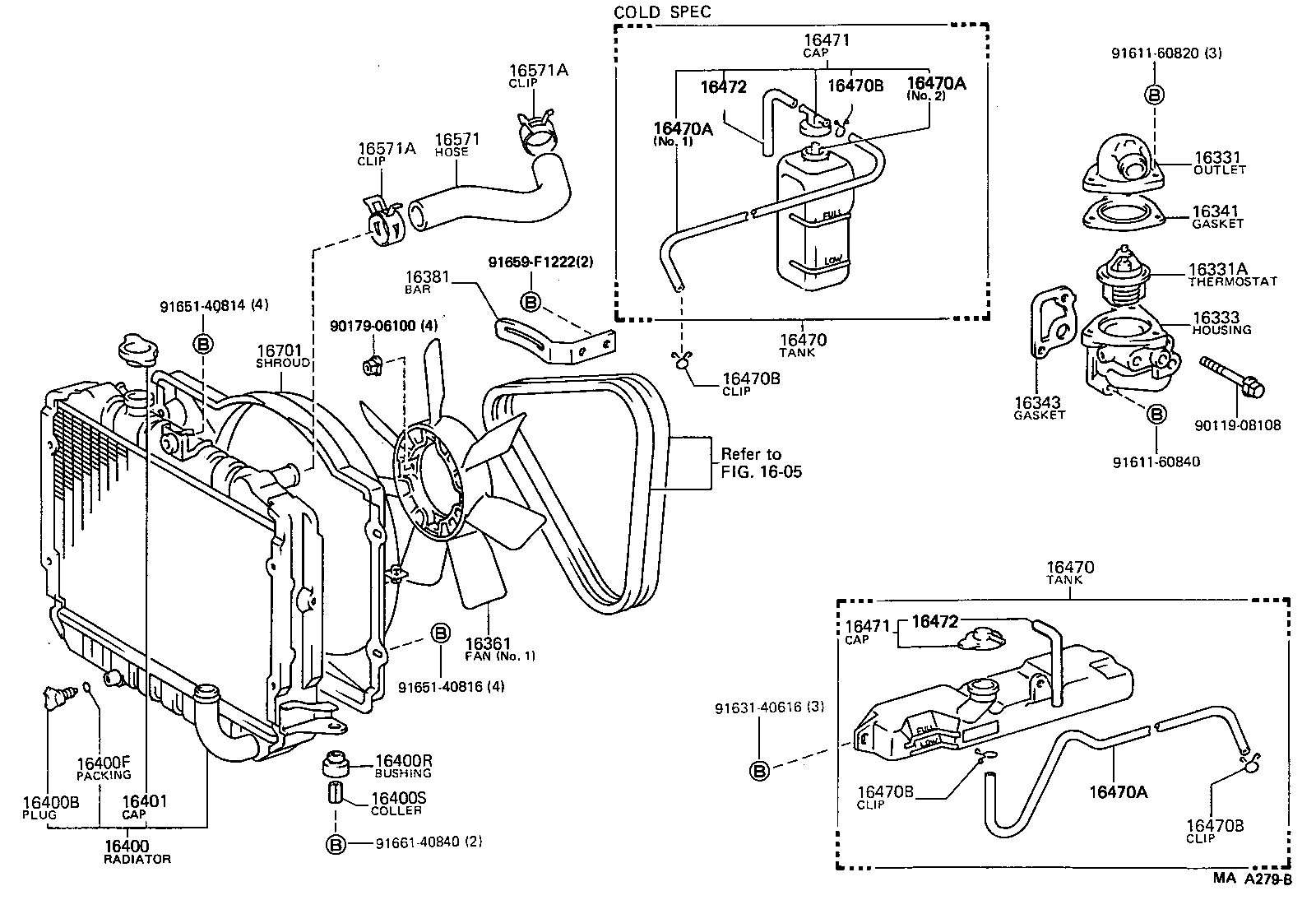

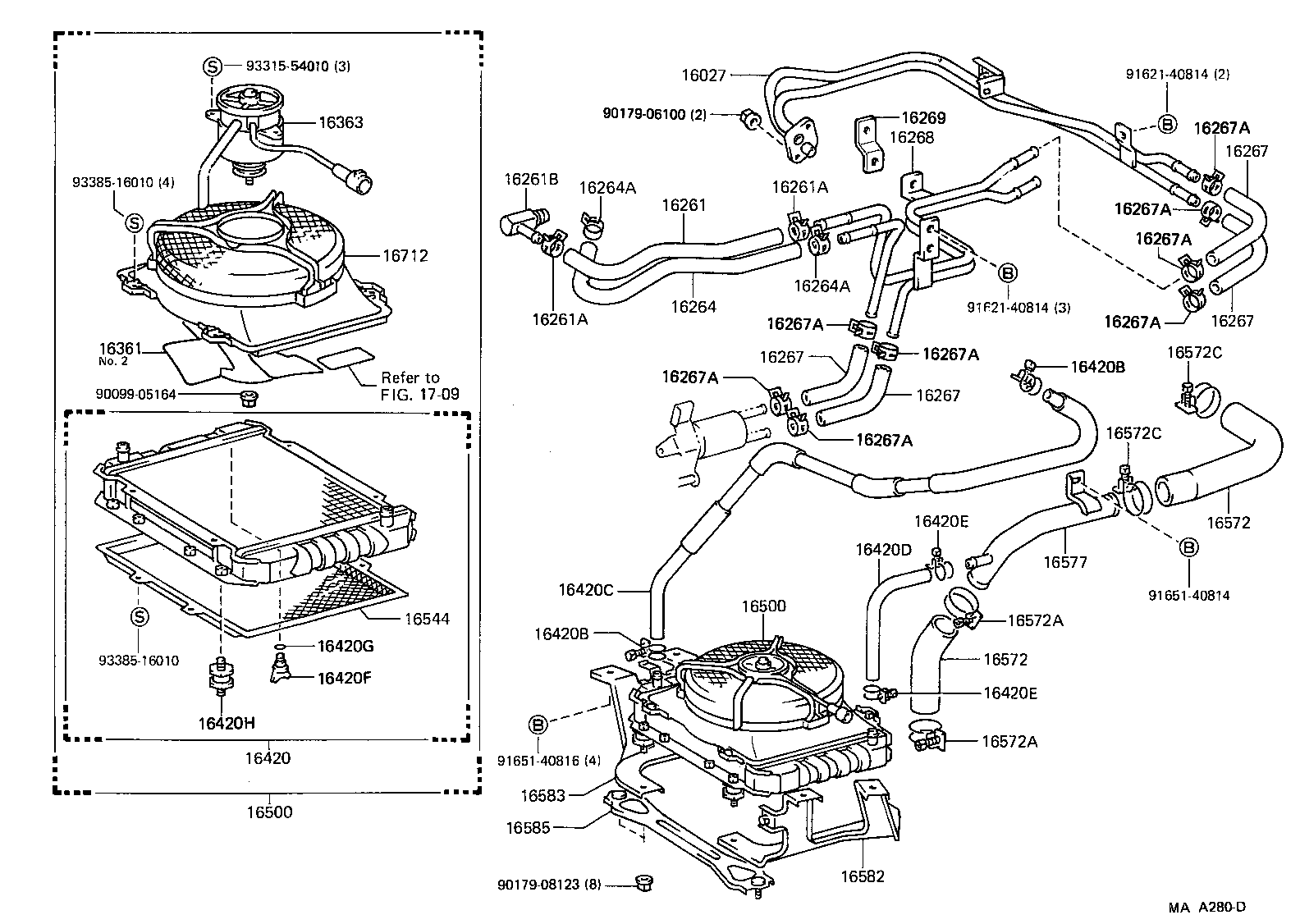

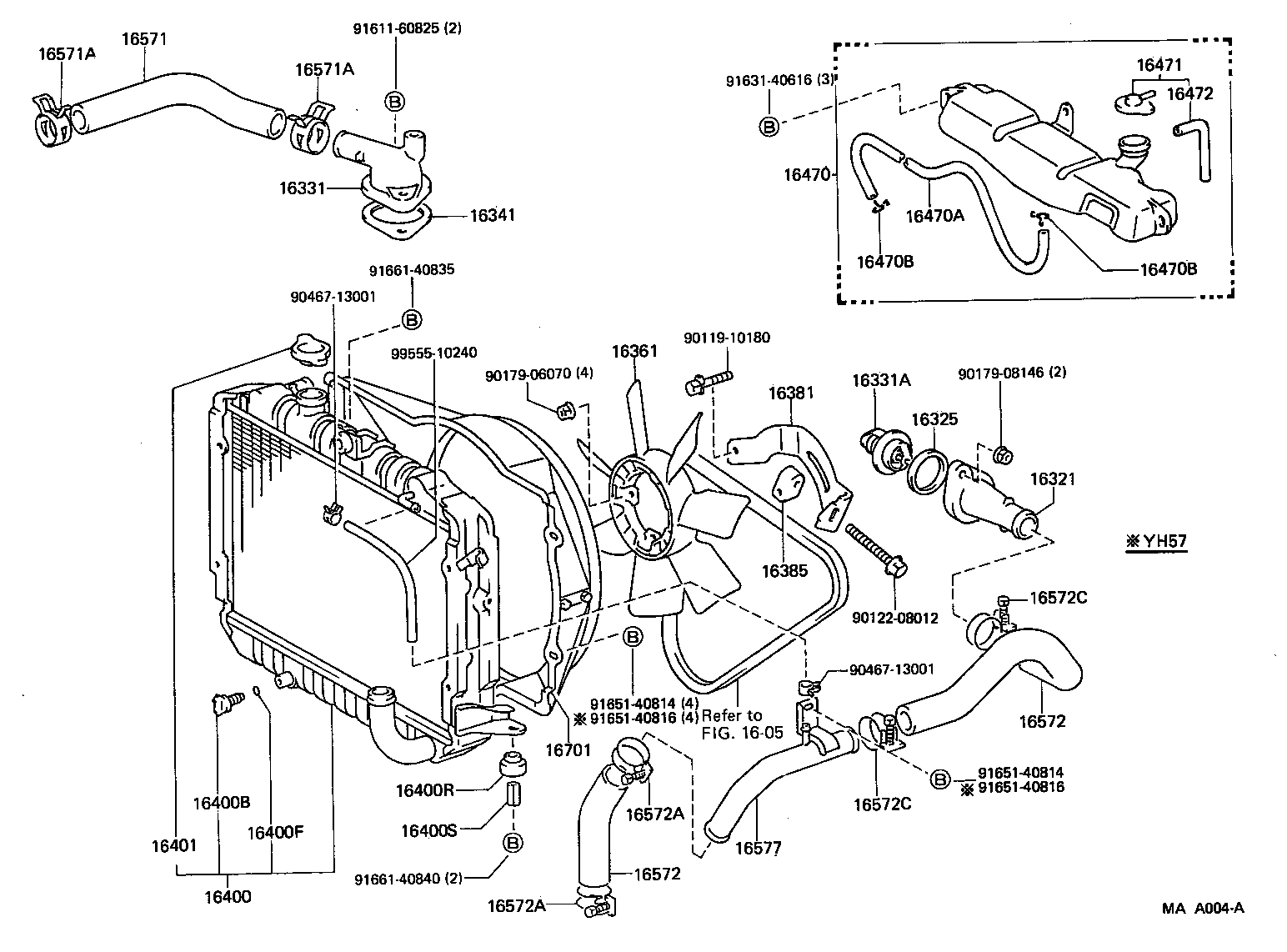

Radiator & Water Outlet
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16269 | Support, Water By-pass Pipe |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16401 | Cap Sub-assy, Radiator |
| 16420 | Radiator Assy, Sub |
| 16420B | Clamp, Sub Radiator Inlet Hose |
| 16420C | Hose, Sub Radiator, NO.1 |
| 16420D | Hose, Sub Radiator, NO.2 |
| 16420E | Clamp OR Clip, Sub Radiator Hose |
| 16420F | Plug, Drain Cock(FOR SUB RADIATOR) |
| 16420G | Packing(FOR SUB RADIATOR) |
| 16420H | Bush(FOR SUB RADIATOR) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16500 | Radiator Assy, Sub W/Fan |
| 16544 | Protector, Sub-radiator |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16577 | Pipe, Radiator, NO.7 |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16585 | Bracket, Radiator, NO.3 |
| 16701 | Shroud Sub-assy, Fan |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
