Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07

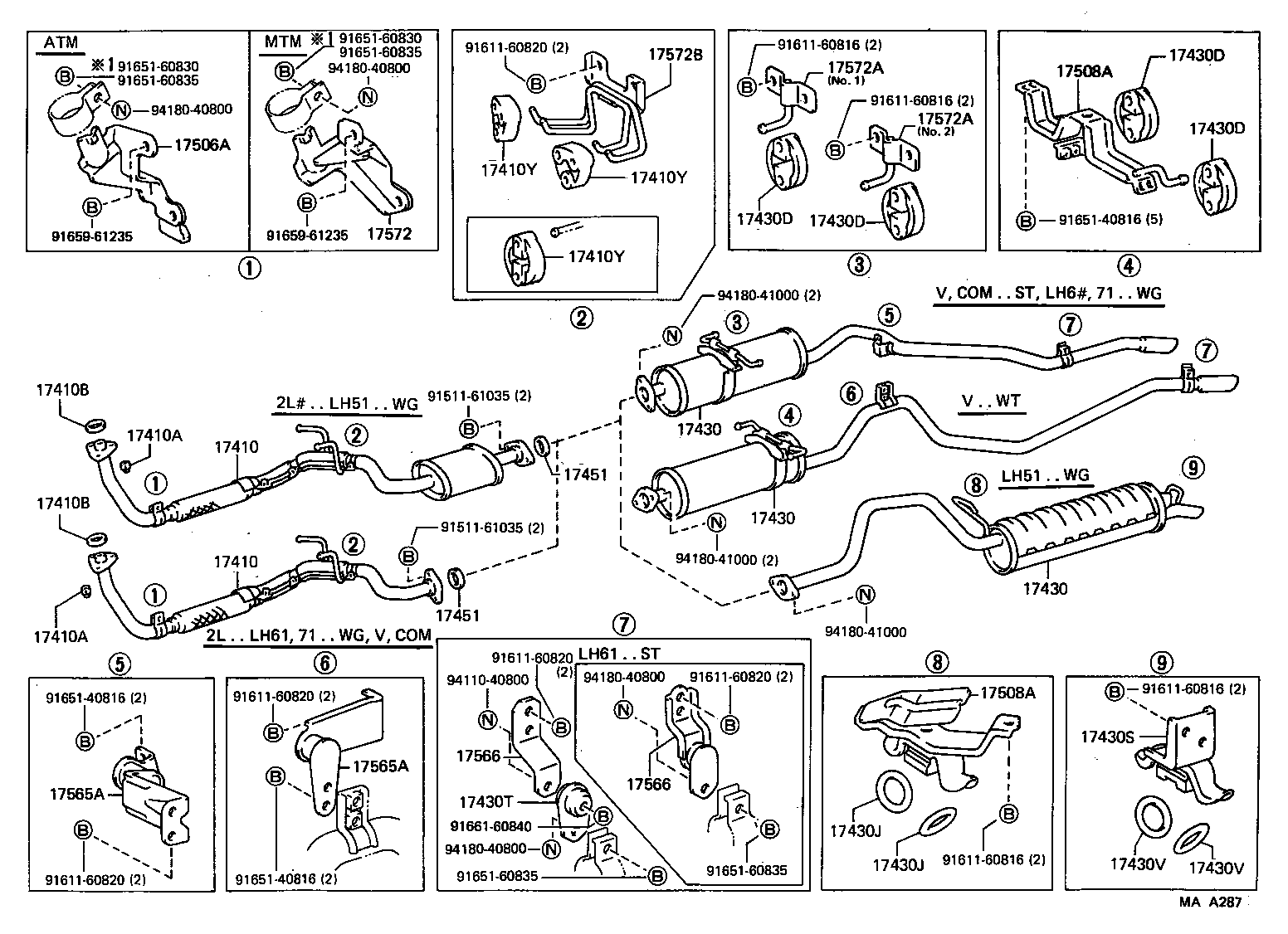

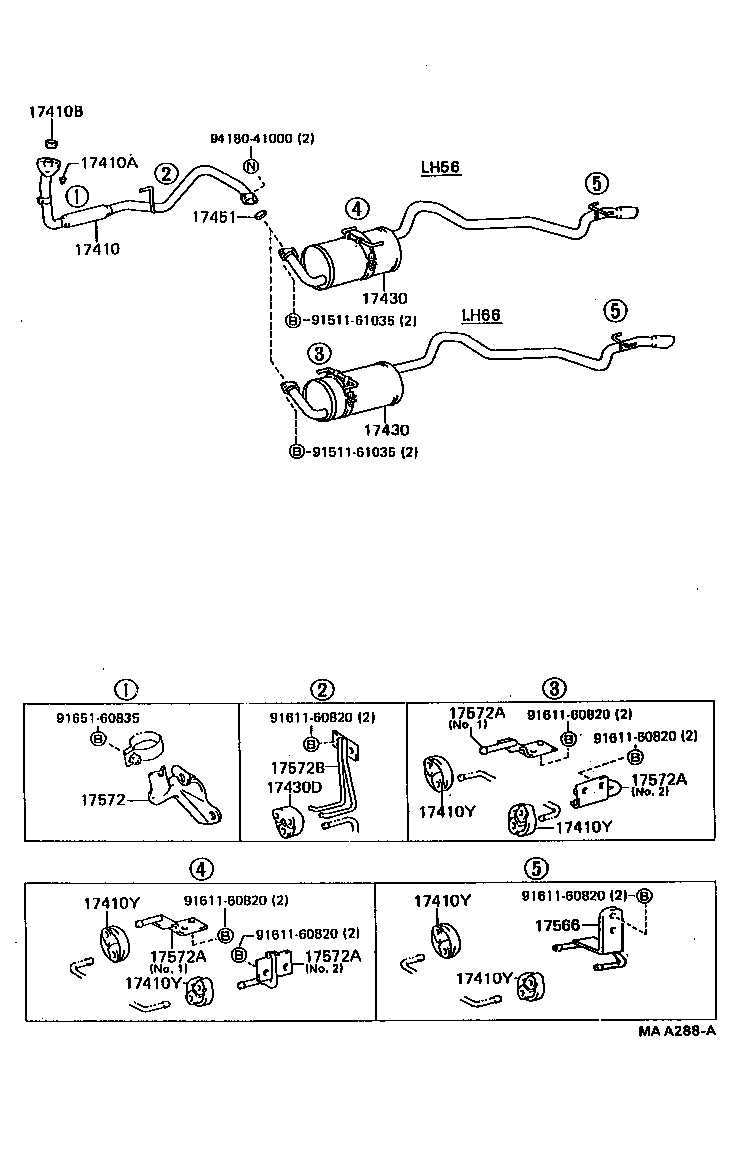

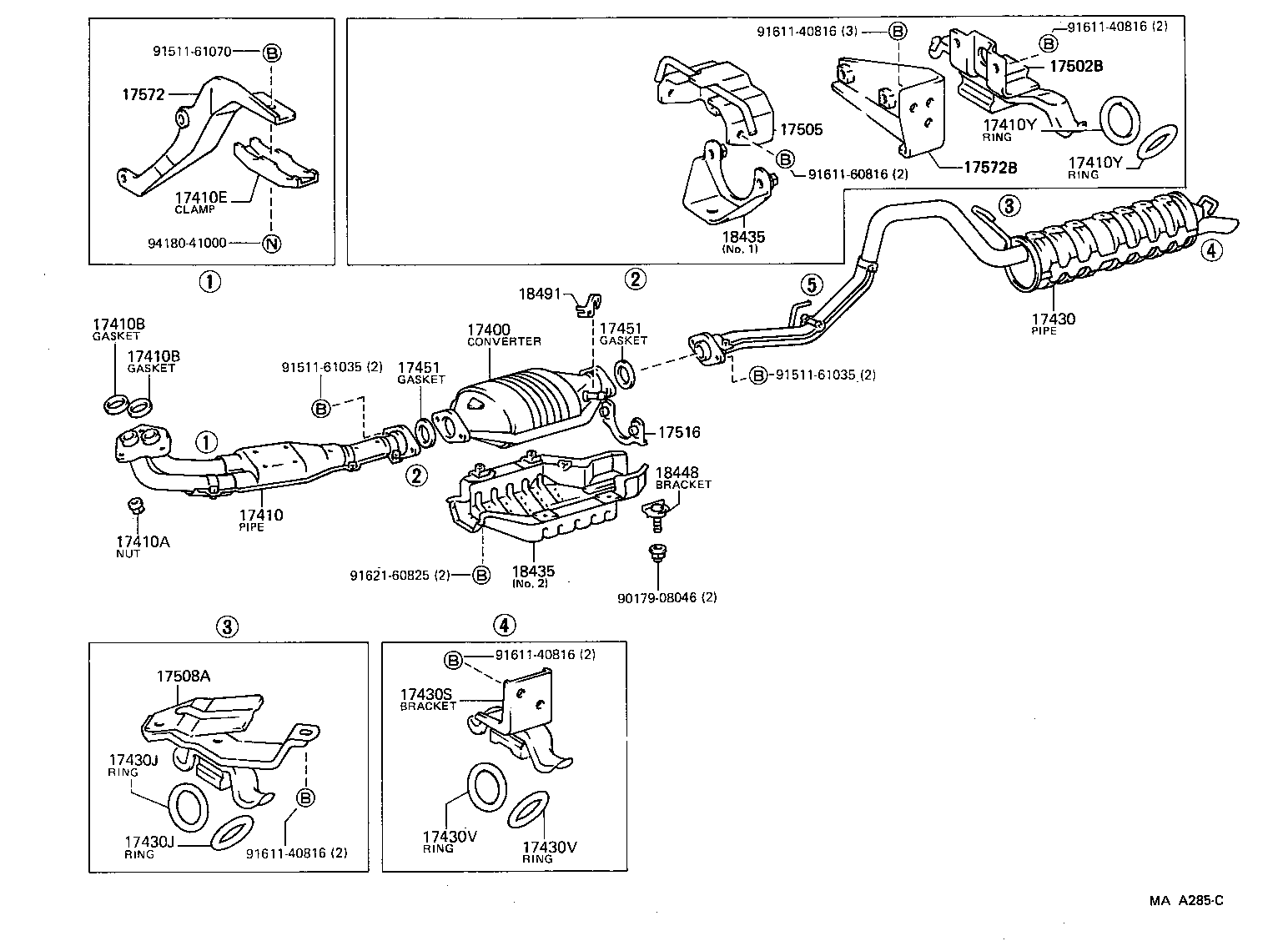

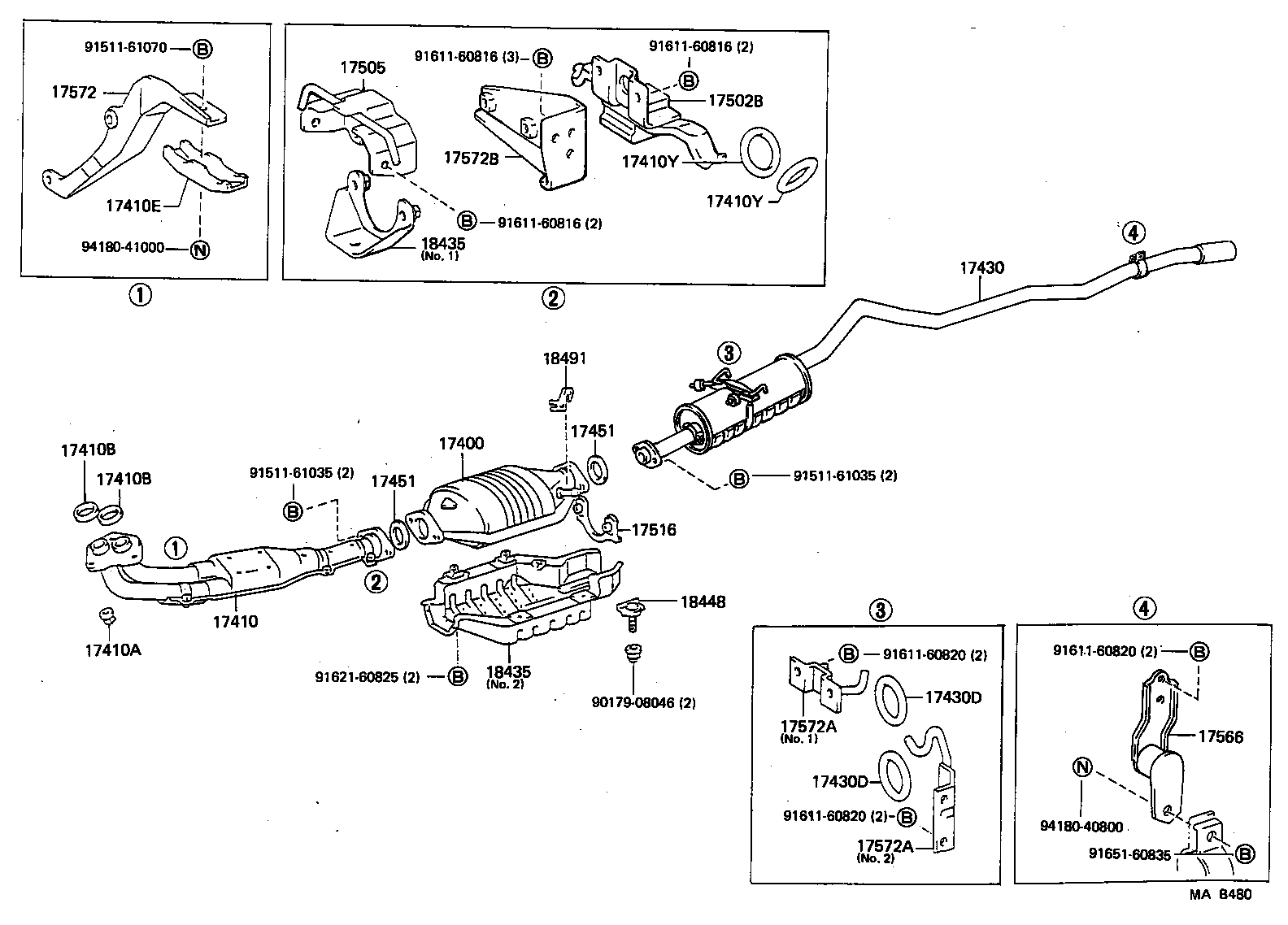

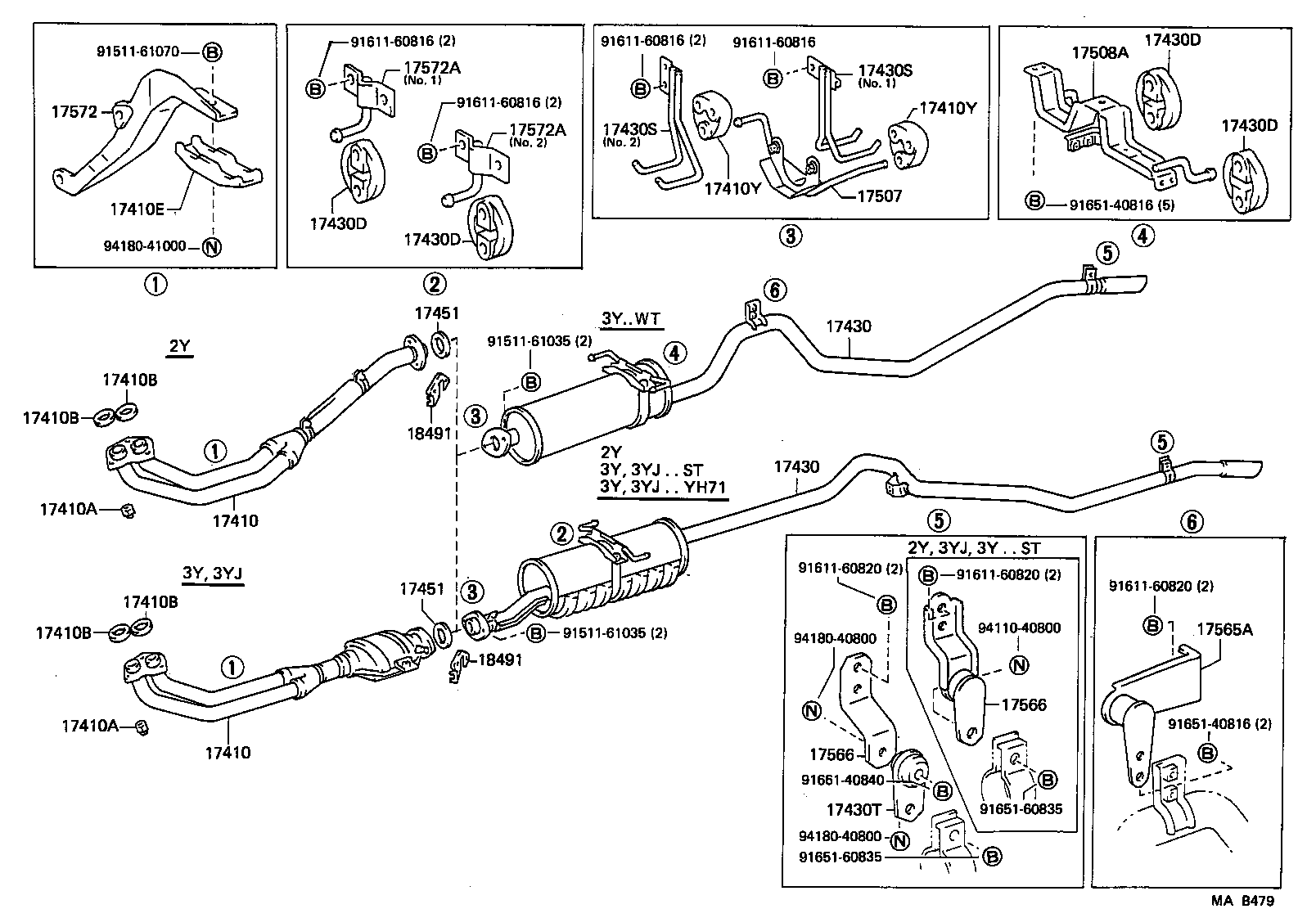

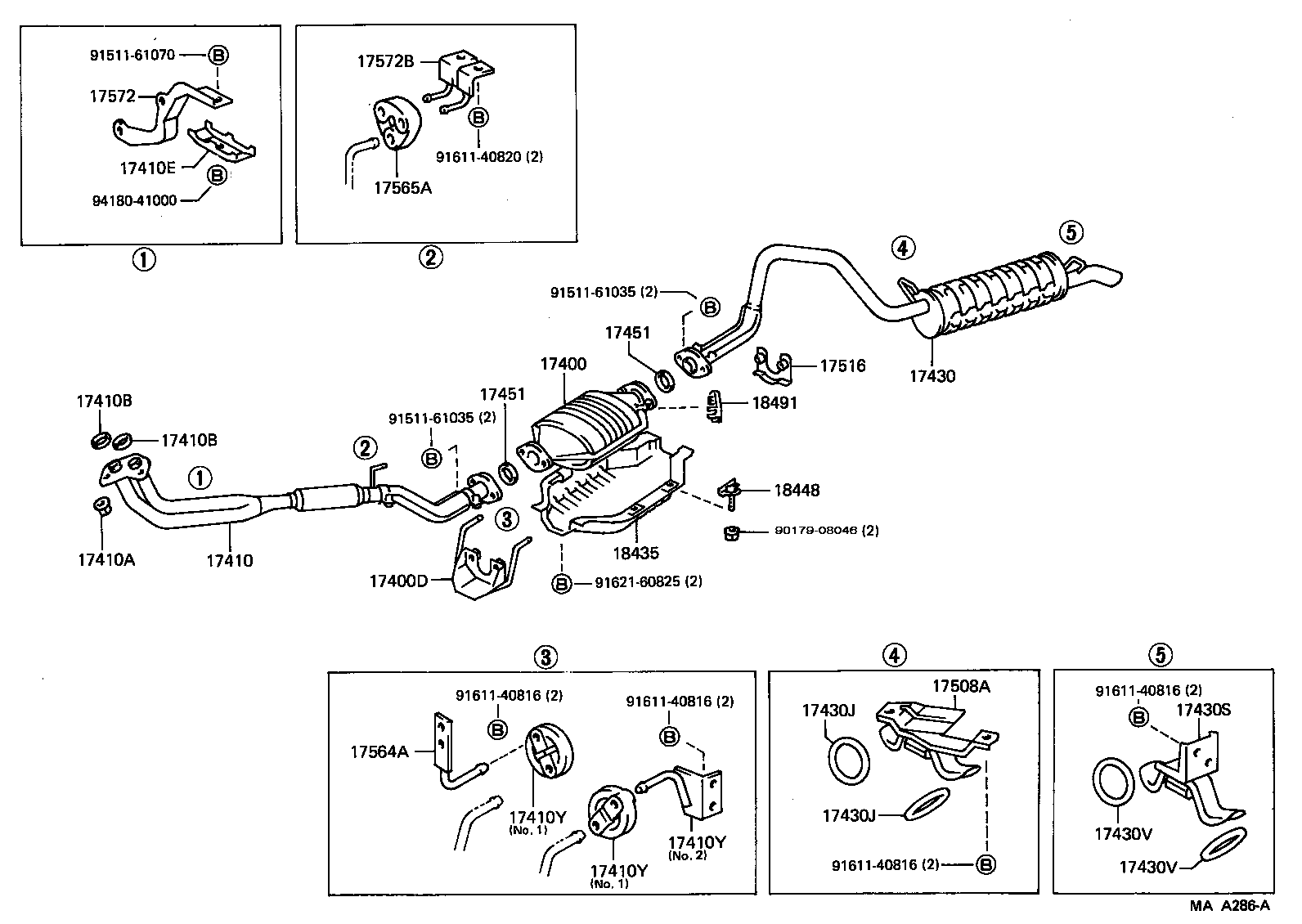

Exhaust Pipe
29 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400D | Bracket, Catalytic Converter Support |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17502B | Bracket Sub-assy, Catalytic Converter, Front |
| 17505 | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17508A | Bracket Sub-assy, Exhaust Pipe NO.3 Support |
| 17516 | Retainer, Exhaust Pipe, NO.2 |
| 17564A | Support, Catalytic Converter, RH |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17566 | Bracket, Tailpipe, Rear |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572A | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
