Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 10 illustrations

Illustrations

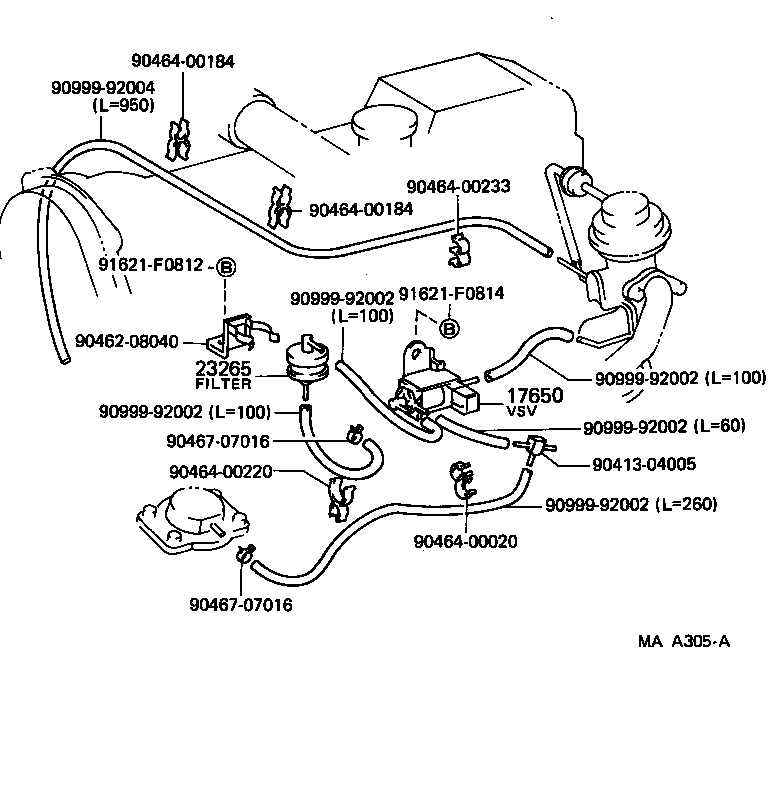

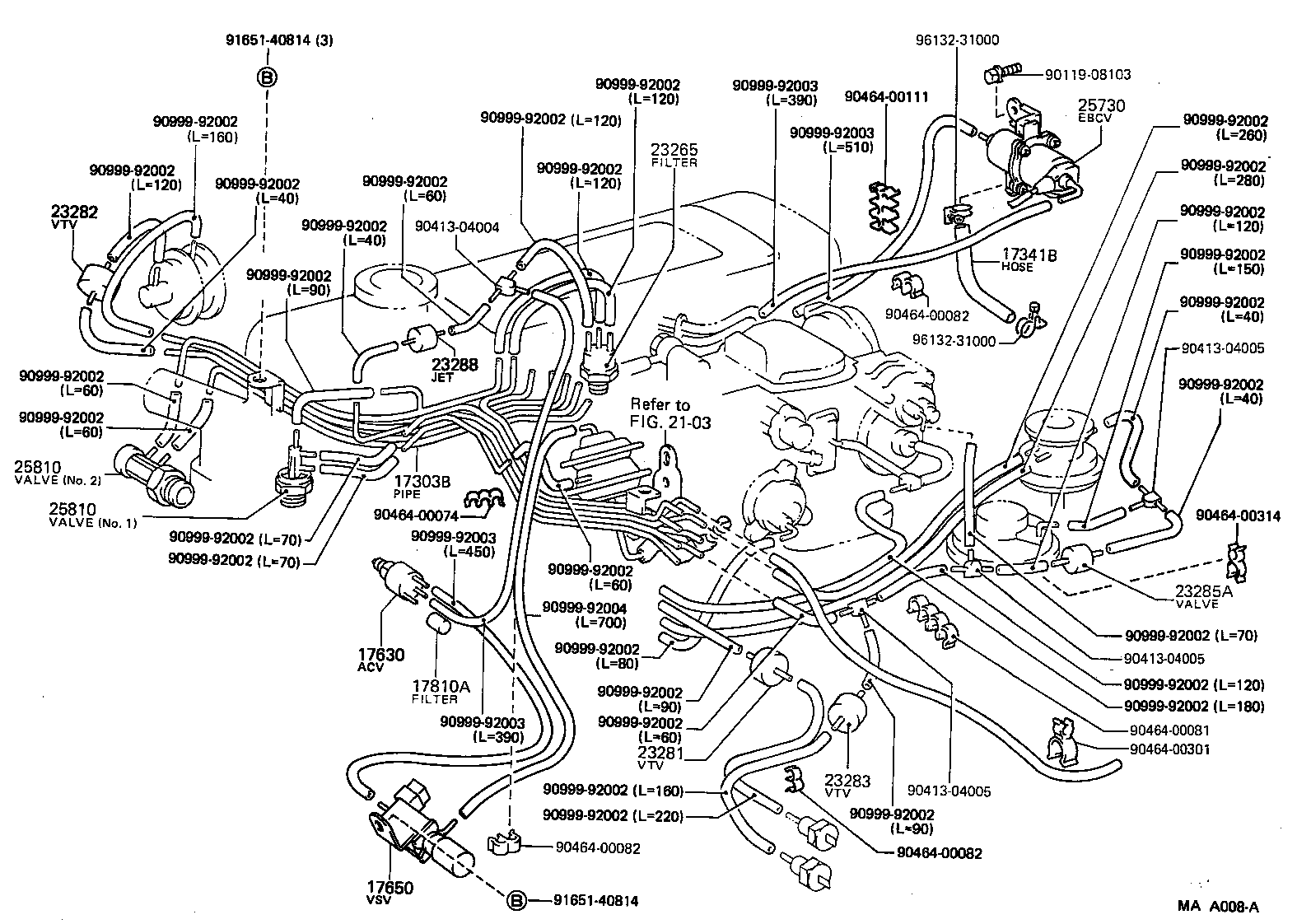

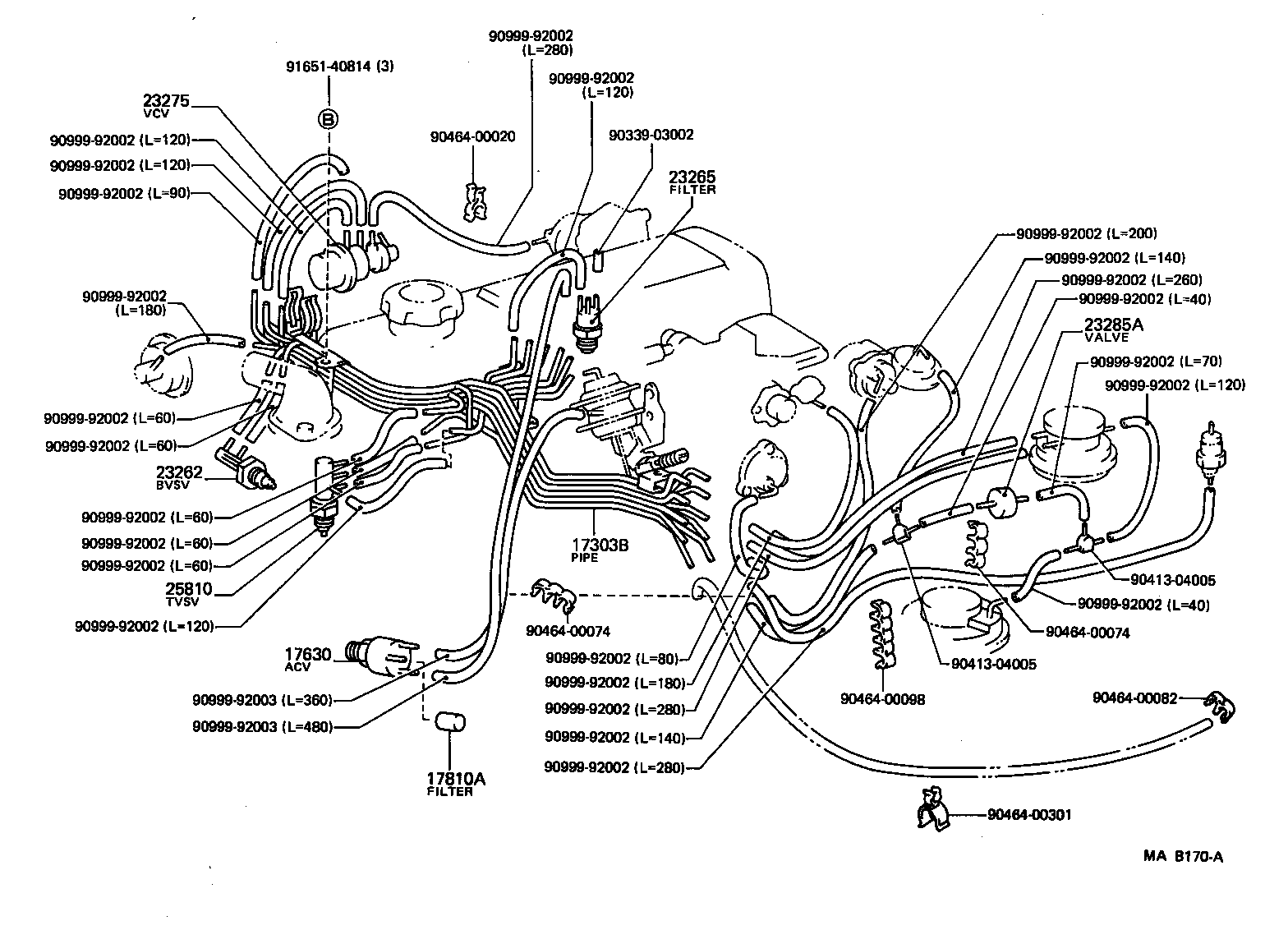

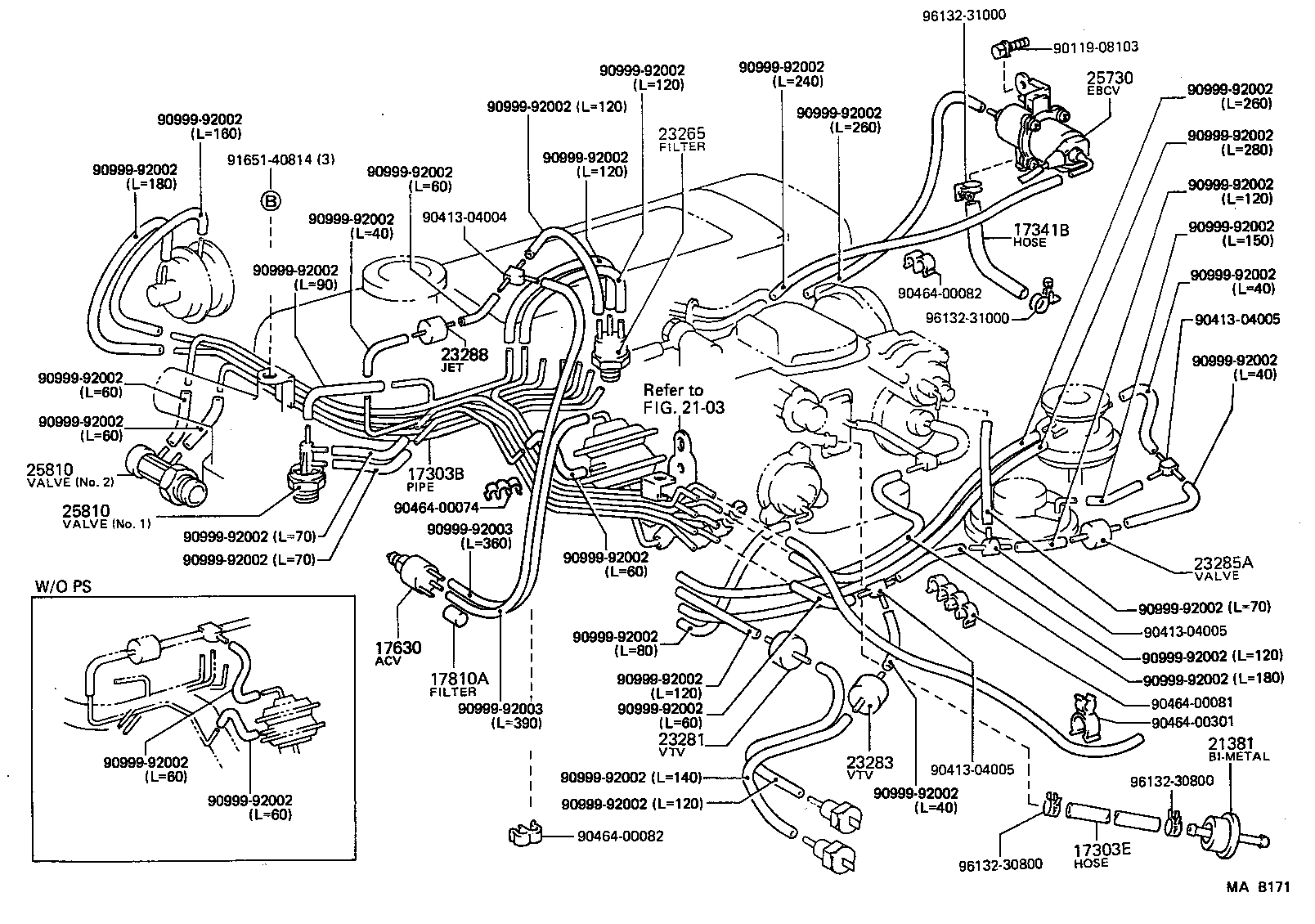

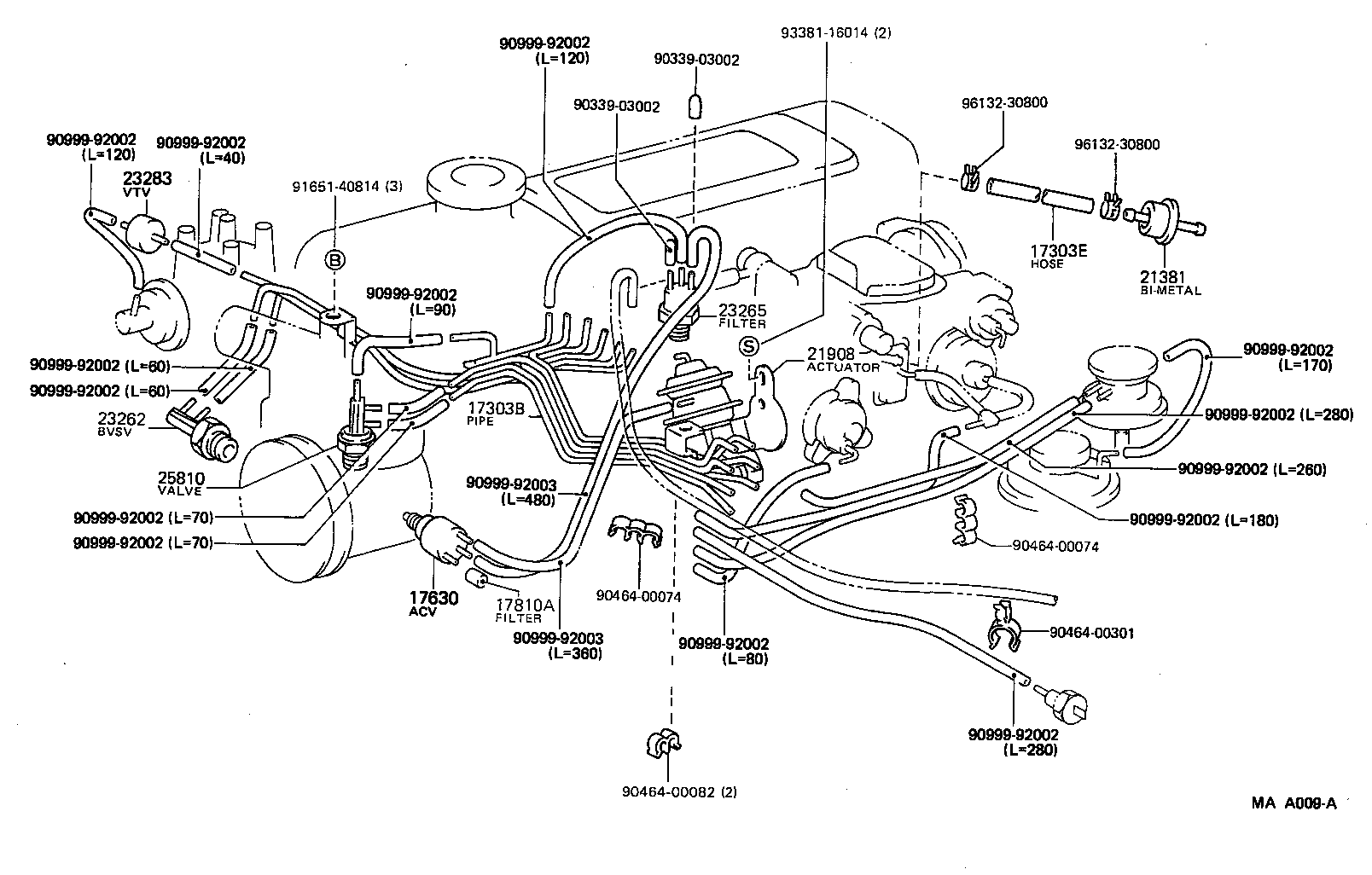

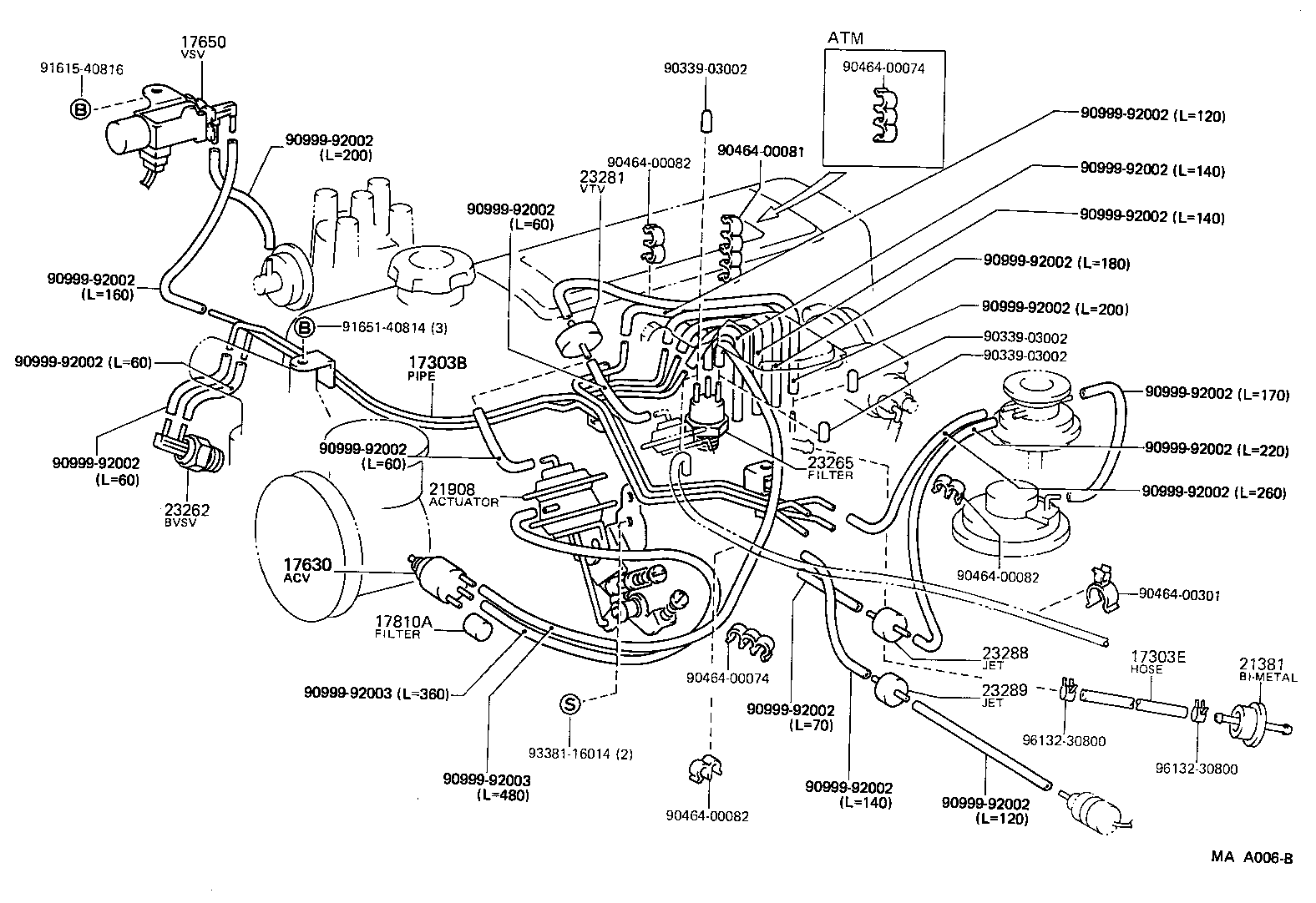

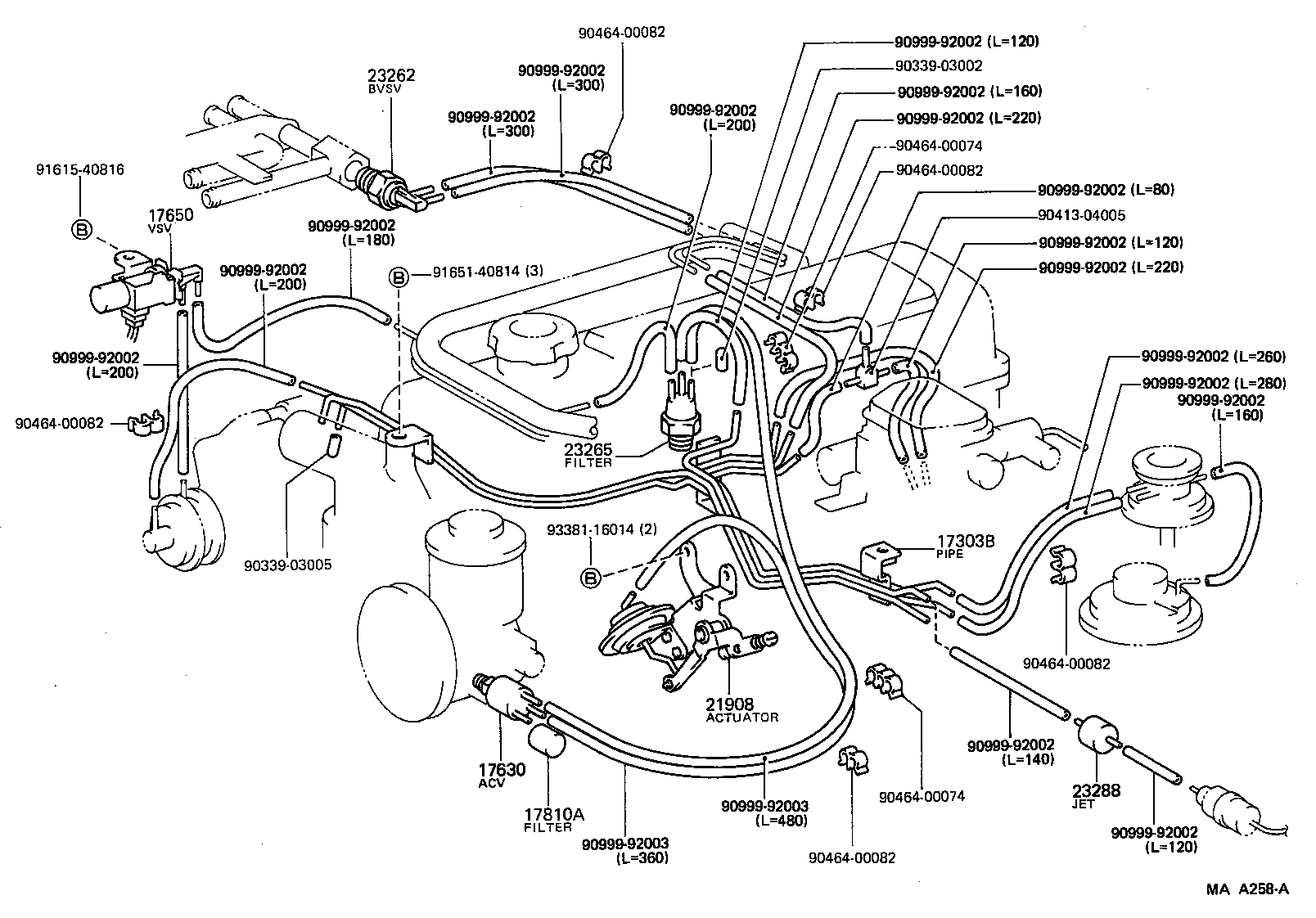

Figure MA9503A MA9503A 1987-08 → — Figure MAA304B MAA304B 1987-08 → — Figure MAA305A MAA305A 1987-08 → — Figure MA9503A MA9503A 1987-08 → — Figure MAA006B MAA006B 1987-08 → 1988-08 Figure MAB170A MAB170A 1988-08 → — Figure MAB171 MAB171 1987-08 → — Figure MAA008A MAA008A 1987-08 → — Figure MAA009A MAA009A 1987-08 → — Figure MAA258A MAA258A 1987-08 → 1988-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
