Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

18 part groups · 2 illustrations

Illustrations

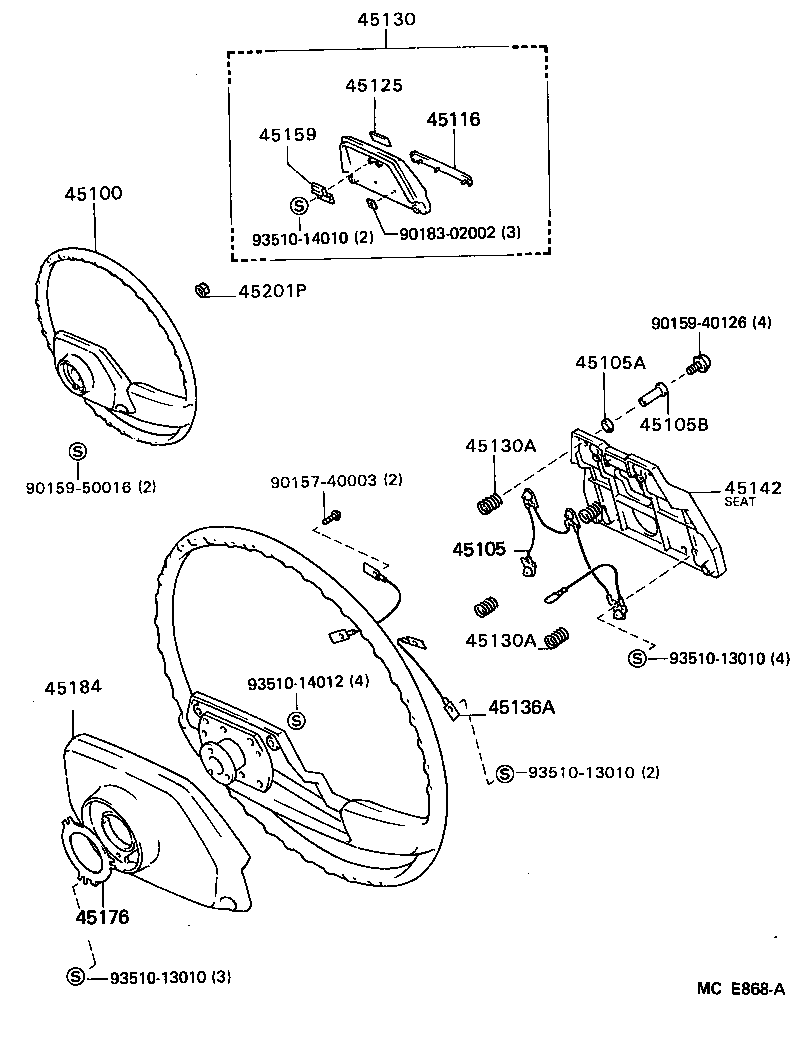

Figure MCE867A MCE867A 1987-08 → — Figure MCE868A MCE868A 1987-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45116 Ornament, Steering Wheel, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45159 Retainer, Steering Wheel Pad Set
45176 Ring, Horn Contact
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
