Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

25 part groups · 2 illustrations

Illustrations

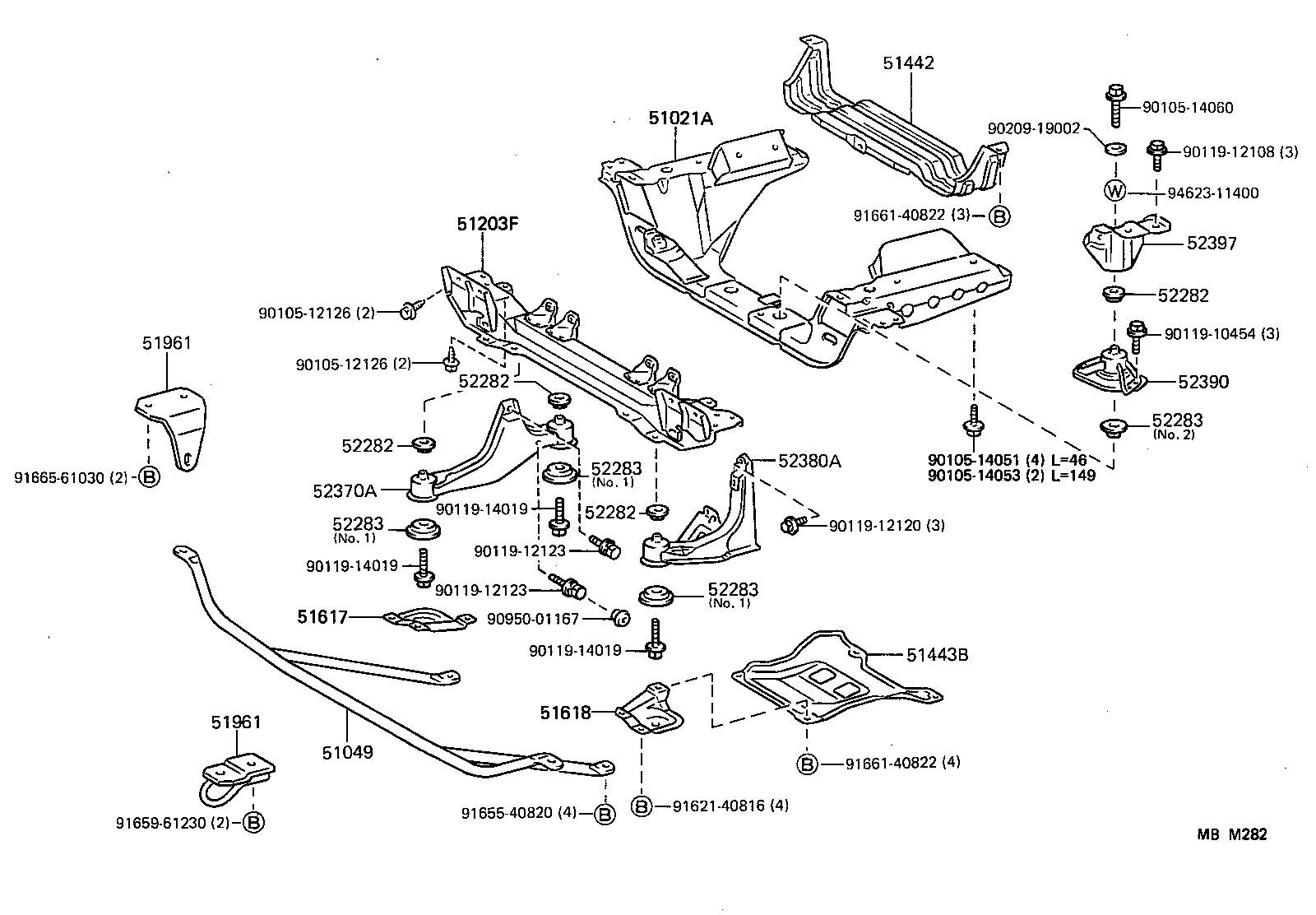

Figure MBM281A MBM281A 1987-08 → — Figure MBM282 MBM282 1987-08 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51046A Cover Sub-assy, Engine Under, NO.5
51049 Bar Sub-assy, Under Guard, Front
51203F Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51216A Reinforcement, Front Suspension Member, LH
51409A Cover Sub-assy, Engine Under, NO.4
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51448B Shutter, Engine Rear Side
51453B Silencer, Engine Under Cover, RH
51454B Silencer, Engine Under Cover, LH
51475 Silencer, Engine Under Cover, NO.5
51617 Guard, Front Differential Support, RH
51618 Guard, Front Differential Support, LH
51961 Hook, NO.1
51962 Hook, NO.2
51967 Hook, Transport, Rear
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
52397 Bracket, Front Differential Rear Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
