Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07

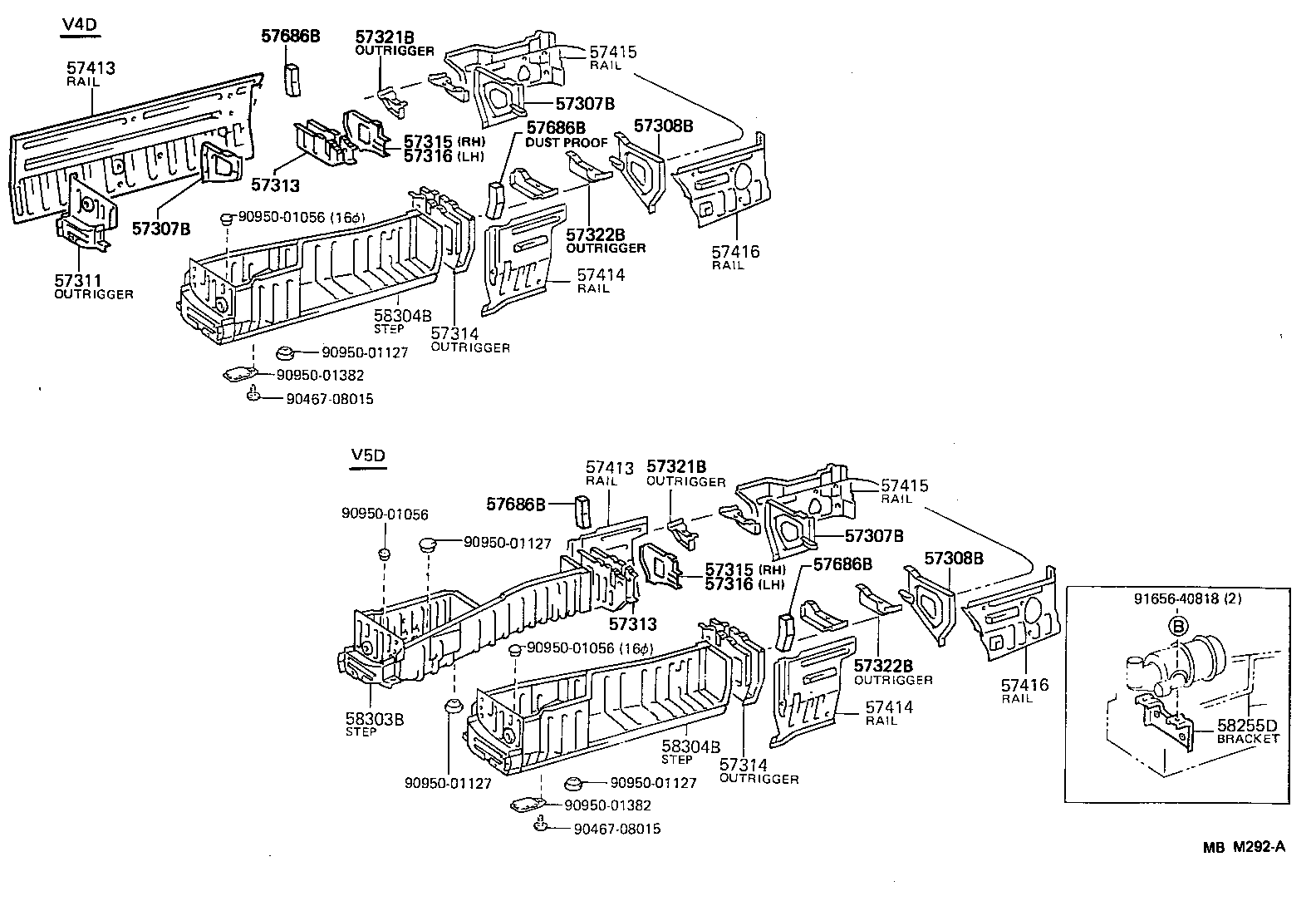

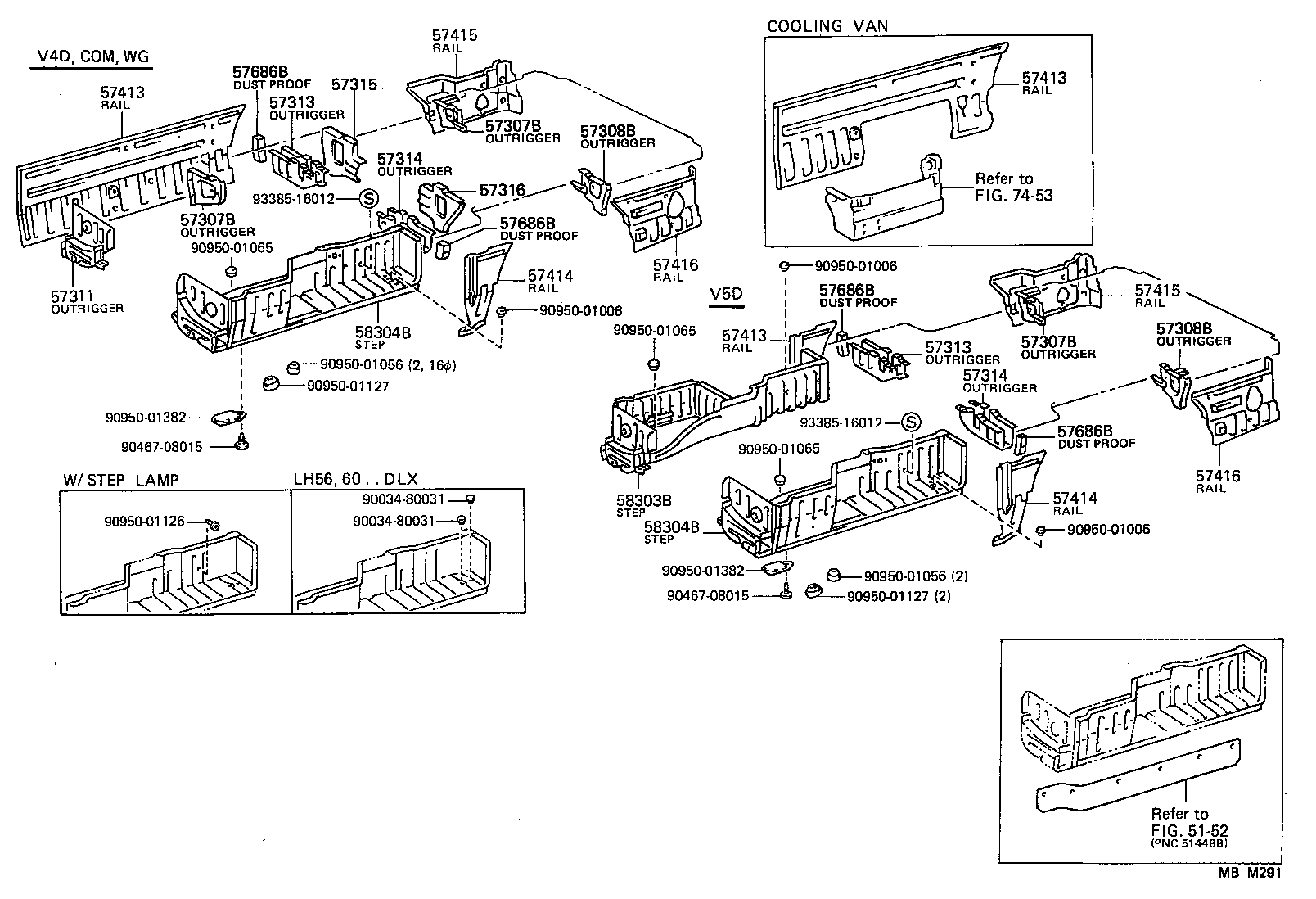

Rear Floor Panel & Rear Floor Member
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57075 | Bracket Sub-assy, Upper Control Link, RH |
| 57076 | Bracket Sub-assy, Upper Control Link, LH |
| 57078 | Member Sub-assy, Rear Floor Rear Cross, Outer |
| 57079 | Member Sub-assy, Rear Floor Rear Cross, Inner |
| 57307B | Outrigger Sub-assy, NO.4 RH |
| 57308B | Outrigger Sub-assy, NO.4 LH |
| 57311 | Outrigger, NO.1 RH |
| 57313 | Outrigger, NO.2 RH |
| 57314 | Outrigger, NO.2 LH |
| 57315 | Outrigger, NO.3 RH |
| 57316 | Outrigger, NO.3 LH |
| 57321B | Outrigger, NO.5, RH |
| 57322B | Outrigger, NO.5, LH |
| 57361A | Cover, NO.2 Outerigger Hole |
| 57362A | Packing, NO.2 Outrigger Hole Cover |
| 57413 | Rail, Floor Side, Center RH |
| 57414 | Rail, Floor Side, Center LH |
| 57415 | Rail, Floor Side, Rear RH |
| 57416 | Rail, Floor Side, Rear LH |
| 57419A | Plate, Rear Seat Lock |
| 57686B | Dust Proof, Outrigger, NO.2 |
| 58032 | Panel Sub-assy, Header |
| 58207C | Cover Sub-assy, Transmission Service Hole |
| 58209B | Cover Sub-assy, Battery Service Hole |
| 58215D | Cover, Camber Service Hole |
| 58216 | Packing, Camber Service Hole Cover |
| 58255D | Bracket, Air Cleaner, Front |
| 58303B | Step Sub-assy, Rear Floor, RH |
| 58304B | Step Sub-assy, Rear Floor, LH |
| 58311 | Pan, Rear Floor |
| 58444A | Packing, Battery Service Hole Cover |
| 58445B | Pad, Battery Service Hole Cover |
| 58451B | Cover, Air Cleaner Service Hole |
| 58457D | Packing, Air Cleaner Service Hole Cover |
| 58465B | Packing, Transmission Service Hole Cover |
| 58466E | Silencer, Transmission Service Hole Cover, NO.1 |
| 58475B | Packing, Inspection Hole Cover |
| 58546B | Silencer, Header, NO.1 |
| 58556B | Reinforcement, Rear Seat Belt, NO.6 |
| 58689A | Weight, Rear Floor |
| 59209A | Cover Sub-assy, Inspection Hole |
| 59367 | Retainer, Rear Seat, NO.2 C |
| 59371 | Retainer, Rear Seat, NO.3 |
| 66311 | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
