Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

5 part groups · 2 illustrations

Illustrations

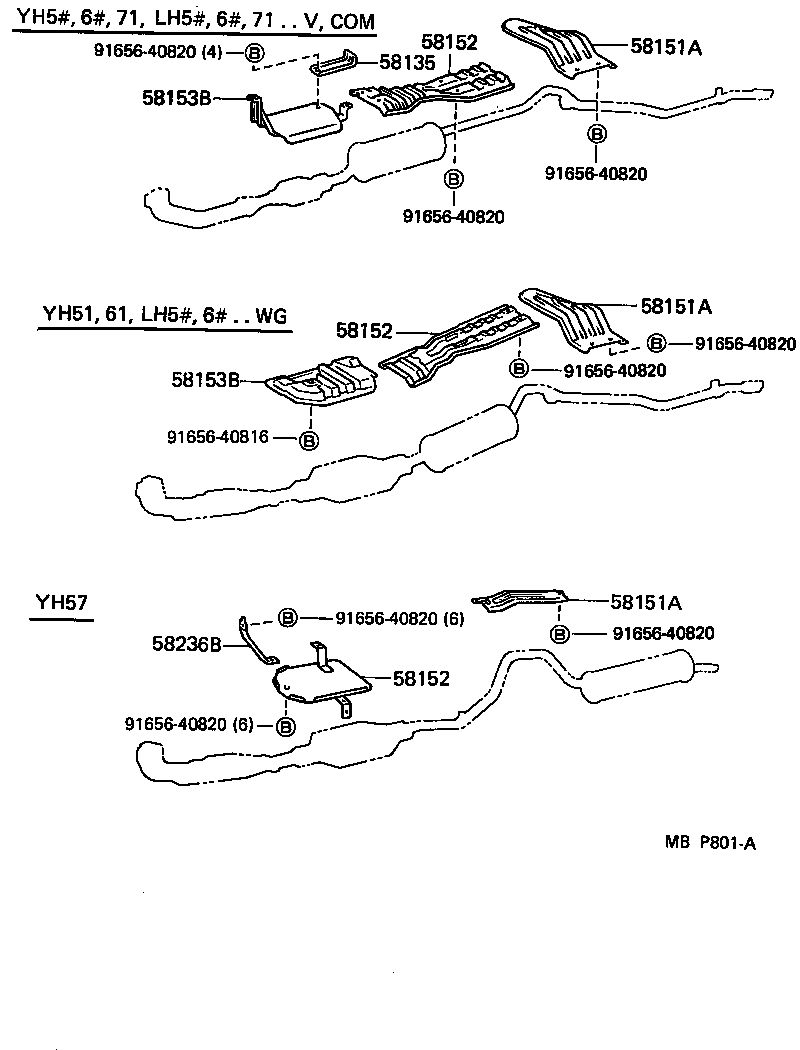

Figure MBM263B MBM263B 1987-08 → 1988-08 Figure MBP801A MBP801A 1988-08 → —

Part groups

PNCDescription
58135 Bracket, Floor Insulator Support
58151A Insulator, Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58153B Insulator, Floor Heat, NO.3
58236B Bracket, Center Floor Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
