Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07

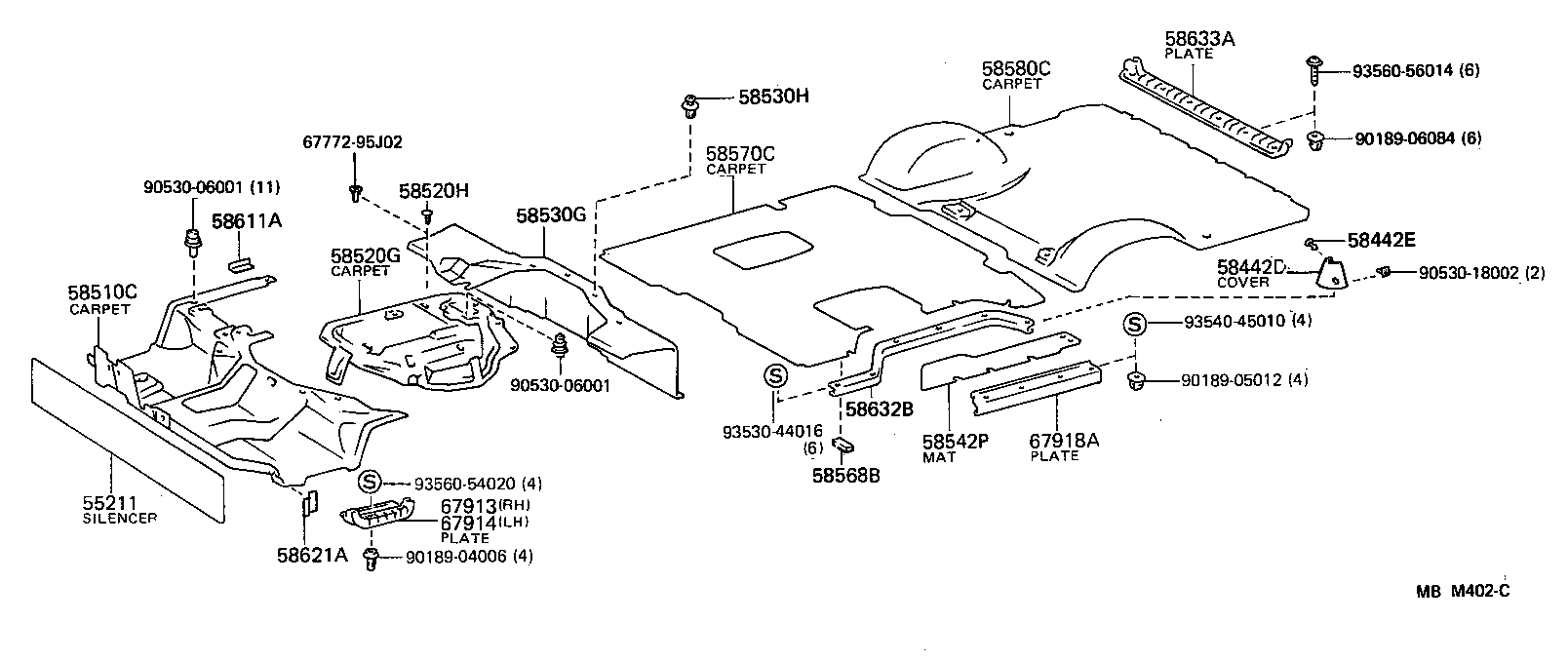

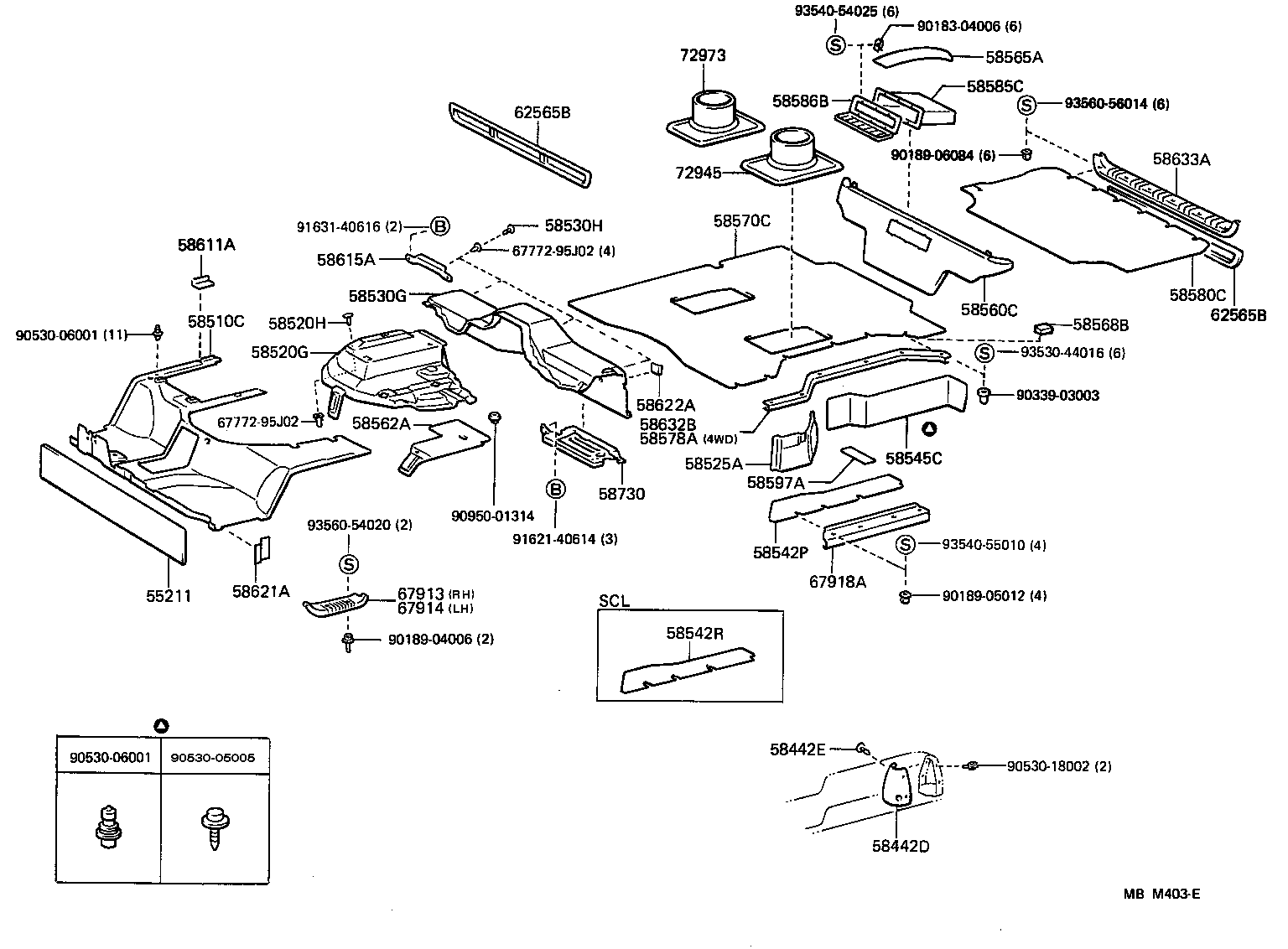

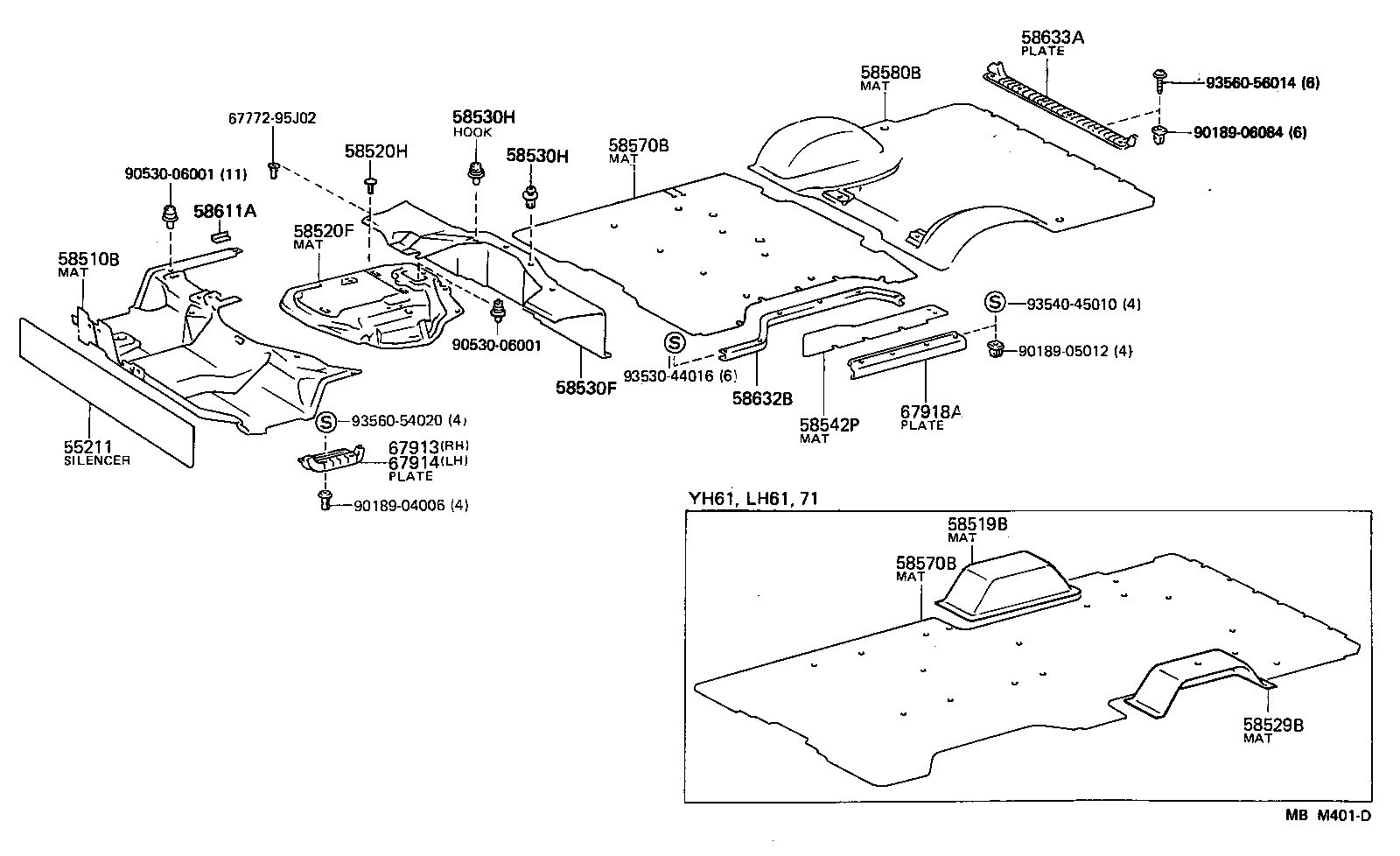

Floor Mat & Silencer Pad

47 part groups · 4 illustrations

PNC	Description
55211	Silencer, Front Panel
58442D	Cover, Jack
58442E	Clip(FOR JACK COVER)
58510B	Mat, Front Floor, Front
58510C	Carpet Assy, Front Floor, Front
58519B	Mat, Rear Wheel House, RH
58519C	Carpet, Rear Wheel House, RH
58520F	Mat Assy, Engine Cover
58520G	Carpet Assy, Engine Cover
58520H	Clip(FOR ENGINE COVER MAT)
58525A	Carpet, Air Cleaner Service Hole Cover
58529B	Mat, Rear Wheel House, LH
58529C	Carpet, Rear Wheel House, LH
58530F	Mat Assy, Header
58530G	Carpet Assy, Header
58530H	Clip(FOR HEADER MAT & HEADER CARPET)
58541P	Mat, Step, RH
58542P	Mat, Step, LH
58542R	Carpet, Step, LH
58545C	Carpet, Step Side, LH
58560C	Carpet Assy, NO.3 Seat Leg Space
58562A	Carpet, Front Seat Side, LH
58565A	Leather, Rear Floor Carpet, NO.1
58568B	Spacer, Rear Floor Carpet
58570B	Mat Assy, Rear Floor
58570C	Carpet Assy, Rear Floor
58578A	Plate, Rear Floor Mat Support Side, LH
58580B	Mat Assy, Rear Floor, Rear
58580C	Carpet Assy, Rear Floor, Rear
58585C	Pocket, NO.3 Seat Leg Space Board
58586B	Cover, NO.3 Seat Leg Space Pocket
58597A	Board, Slide Door Step Mat
58611A	Plate, Mat Set, NO.1 RH
58615A	Plate, Mat Set, NO.5
58621A	Plate, Mat Set, NO.1 LH
58622A	Plate, Mat Set, NO.2 LH
58632B	Plate, Rear Floor Mat Set, NO.1 LH
58633A	Plate, Back Door Scuff
58634C	Plate, Rear Floor Mat Set, NO.1 RH
58730	Cover Assy, Engine Service, Rear
62565B	Garnish, Floor Crossmember
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH
72945	Carpet, Turn Seat Leg, NO.1
72973	Cover, Turn Table

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
