Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 3 illustrations

Illustrations

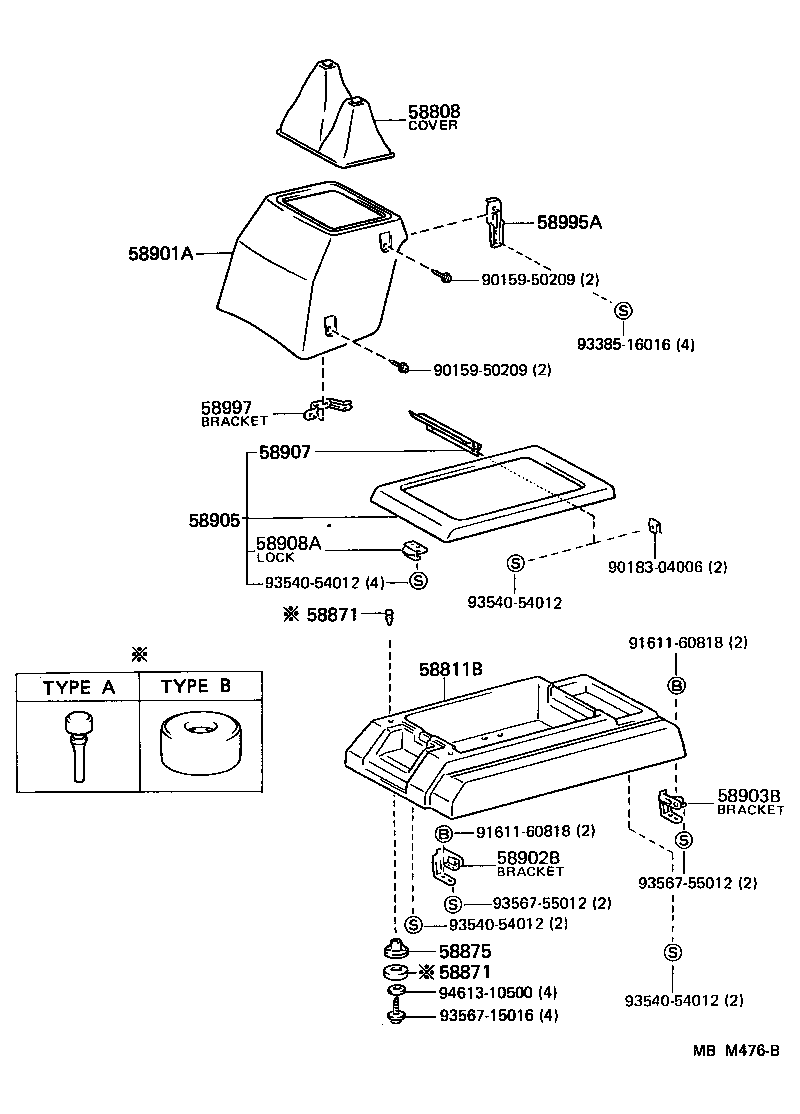

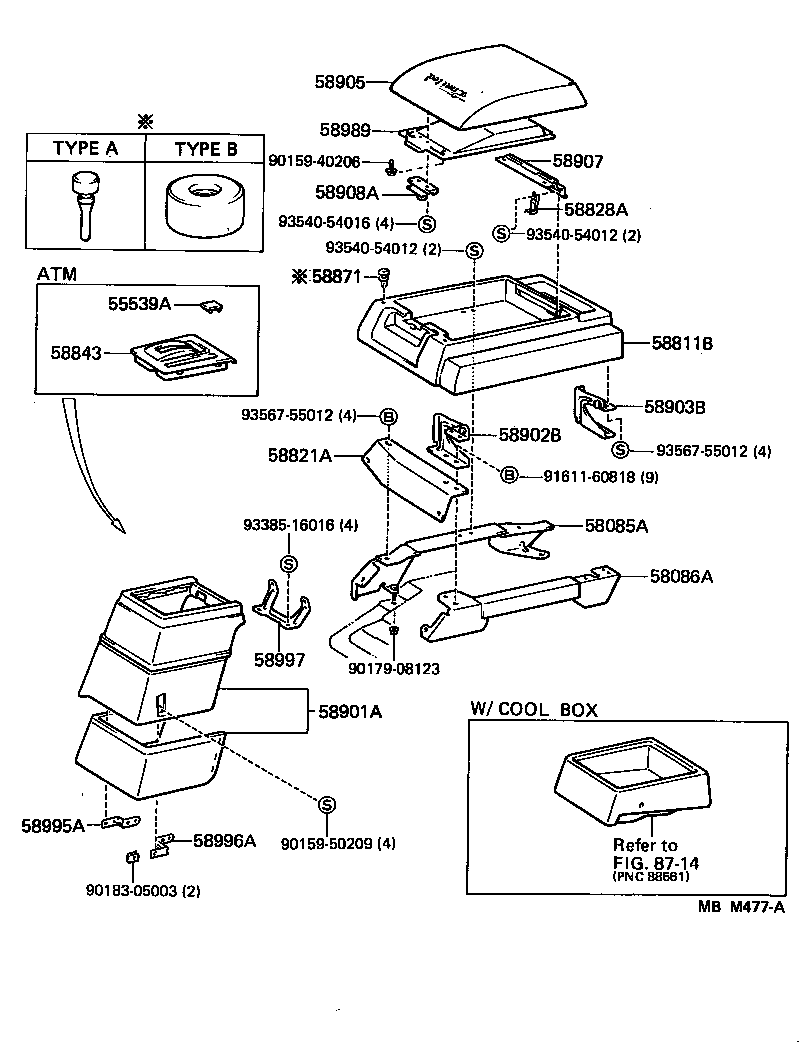

Figure MBM475B MBM475B 1987-08 → — Figure MBM476B MBM476B 1987-08 → — Figure MBM477A MBM477A 1987-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58085A Support Sub-assy, Console Box, RH
58086A Support Sub-assy, Console Box, LH
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58821A Panel, Console
58828A Bracket, Console Box, Lower
58832B Plate, Center Seatback Console
58843 Bezel, Shifting Hole
58871 Cushion, Console Box
58875 Spacer, Console Box
58901A Box Sub-assy, Console, Rear
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58903B Bracket Sub-assy, Console Box Hinge, NO.2
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58989 Panel, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
