Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07

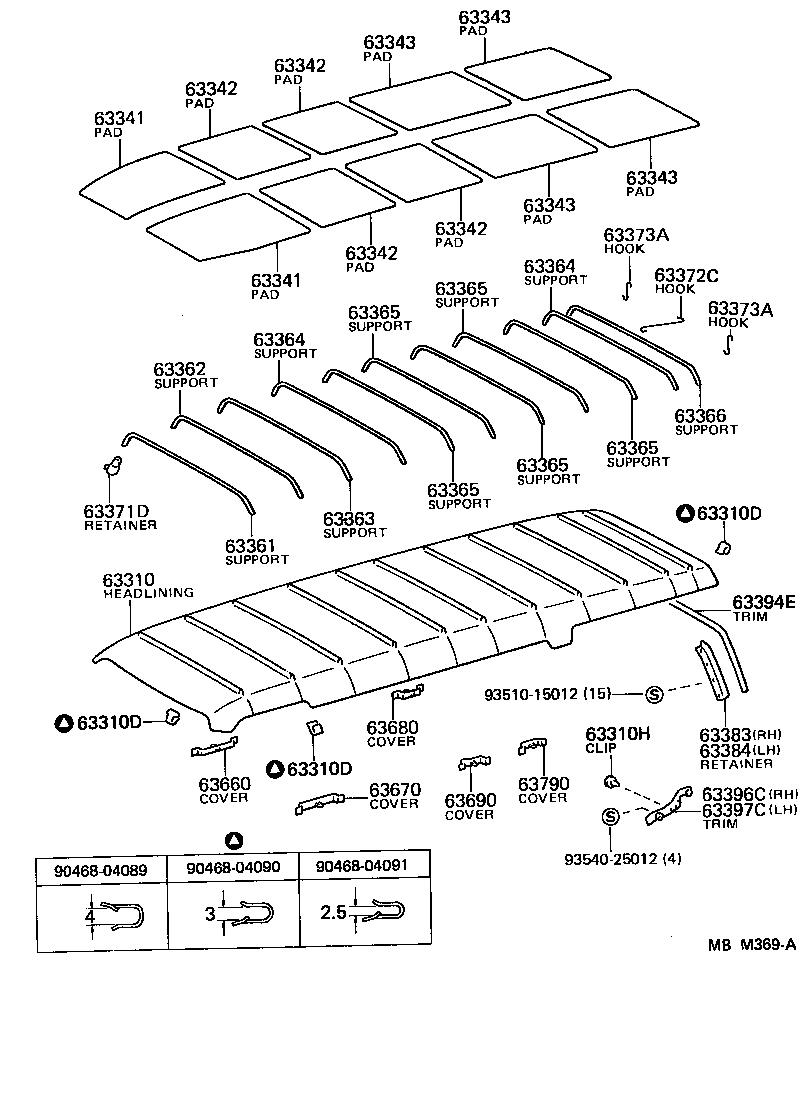

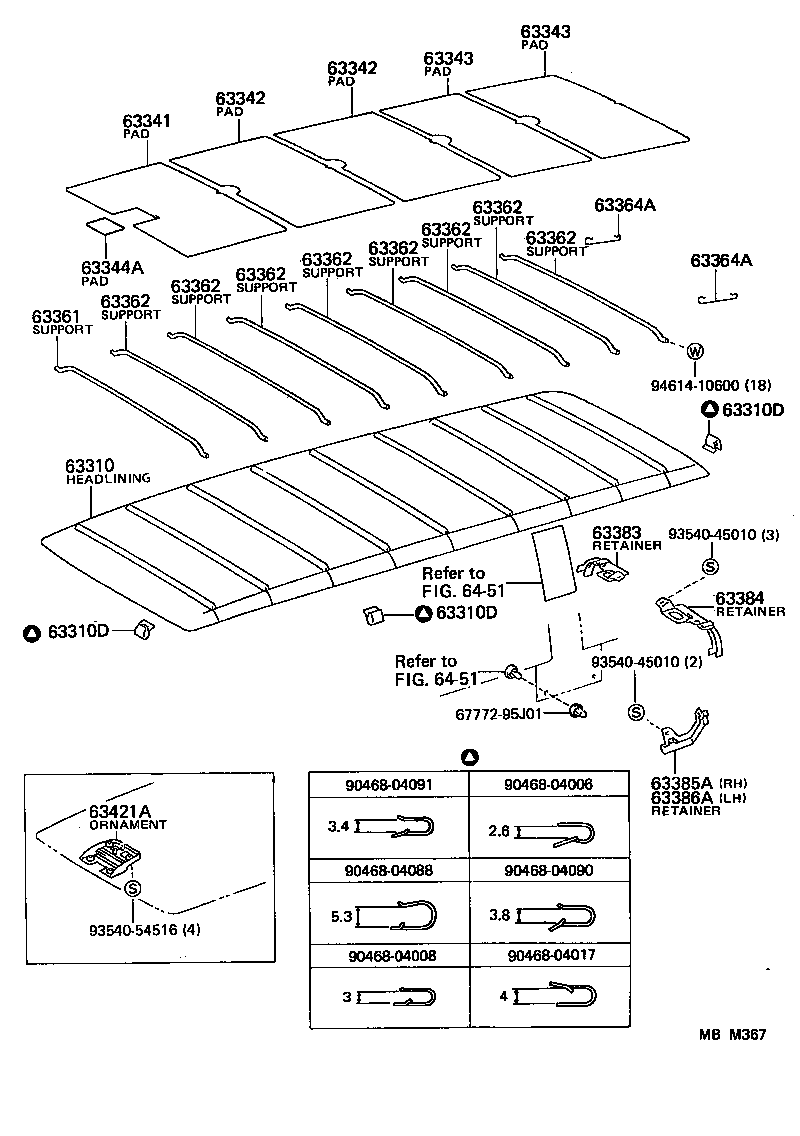

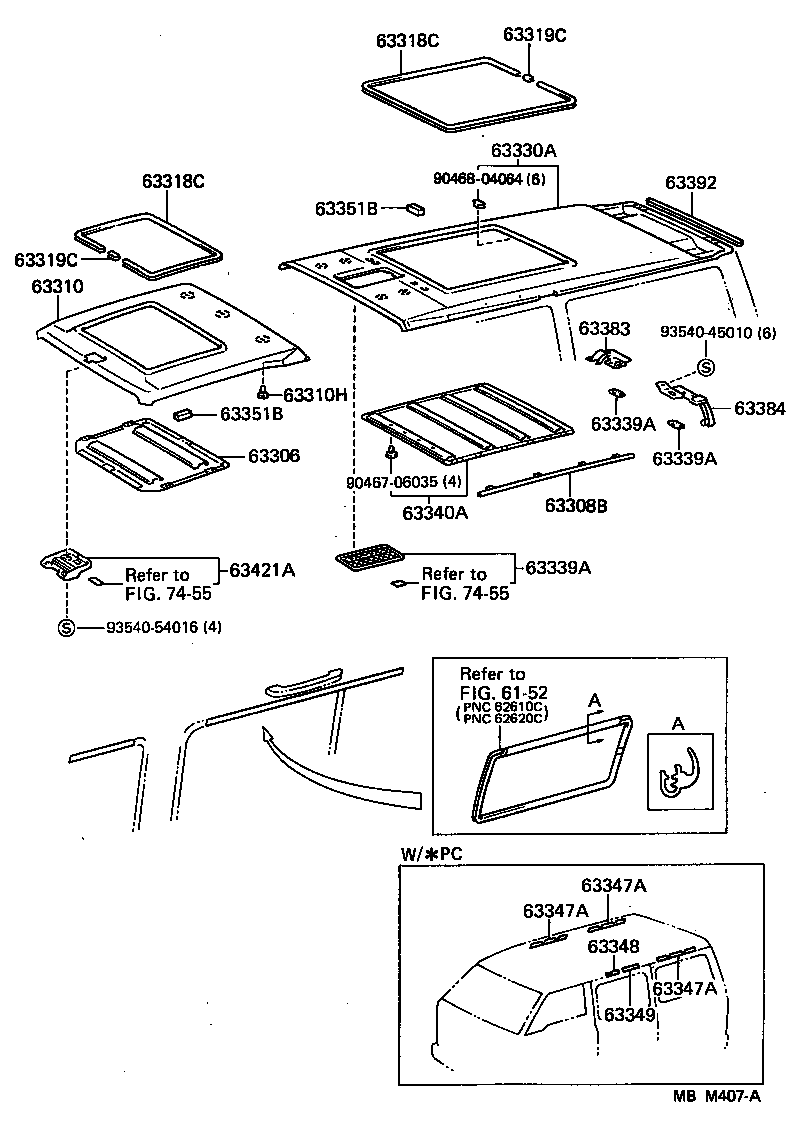

Roof Headlining & Silencer Pad
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63308B | Trim Sub-assy, Roof Headlining, LH |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311A | Headlining, Roof NO.1 |
| 63312A | Headlining, Roof, NO.2 |
| 63313A | Headlining, Roof, NO.3 |
| 63314A | Headlining, Roof, NO.4 |
| 63315A | Headlining, Roof, NO.5 |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63319C | Joint, Sun Roof Opening Trim |
| 63330A | Headlining Assy, Roof, Rear |
| 63339A | Cover, Roof Headlining Service Hole |
| 63340A | Headlining Assy, Sun Roof, Rear |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344A | Silencer, Roof, NO.4 |
| 63347A | Pad, Roof Silencer, NO.7 |
| 63348 | Pad, Roof Silencer, NO.8 |
| 63349 | Pad, Roof Silencer, NO.9 |
| 63351B | Pad, Roof Headlining |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63364A | Hook, Roof Headlining |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63371D | Retainer, Roof Headlining Support |
| 63372C | Hook, Roof Headlining Support |
| 63373A | Hook, Roof Headlining Support, NO.2 |
| 63383 | Retainer, Roof Headlining, Rear RH |
| 63384 | Retainer, Roof Headlining, Rear LH |
| 63385A | Retainer, Roof Headlining Trim Side, RH |
| 63386A | Retainer, Roof Headlining Trim Side, LH |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
| 63394E | Trim, Roof Headlining, NO.4 |
| 63396C | Trim, Roof Headlining Rear Pillar, RH |
| 63397C | Trim, Roof Headlining Rear Pillar, LH |
| 63421A | Ornament, Roof Console |
| 63660 | Cover Assy, Roof Headlining Trim, NO.1 |
| 63670 | Cover Assy, Roof Headlining Trim, NO.2 |
| 63680 | Cover Assy, Roof Headlining Trim, NO.3 |
| 63690 | Cover Assy, Roof Headlining Trim, NO.4 |
| 63790 | Cover Assy, Roof Headlining Trim, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
