Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

205 part groups · 18 illustrations

Illustrations

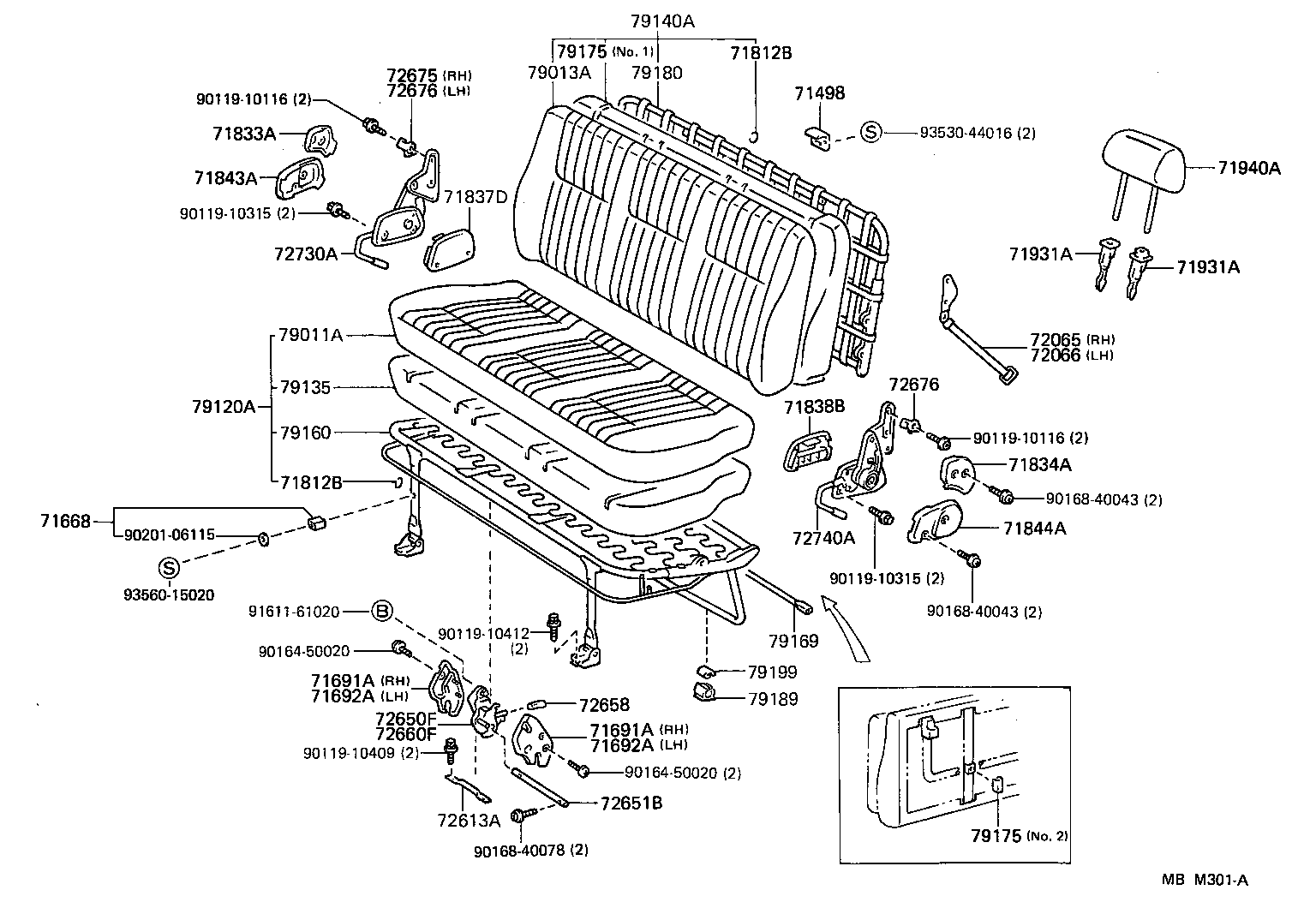

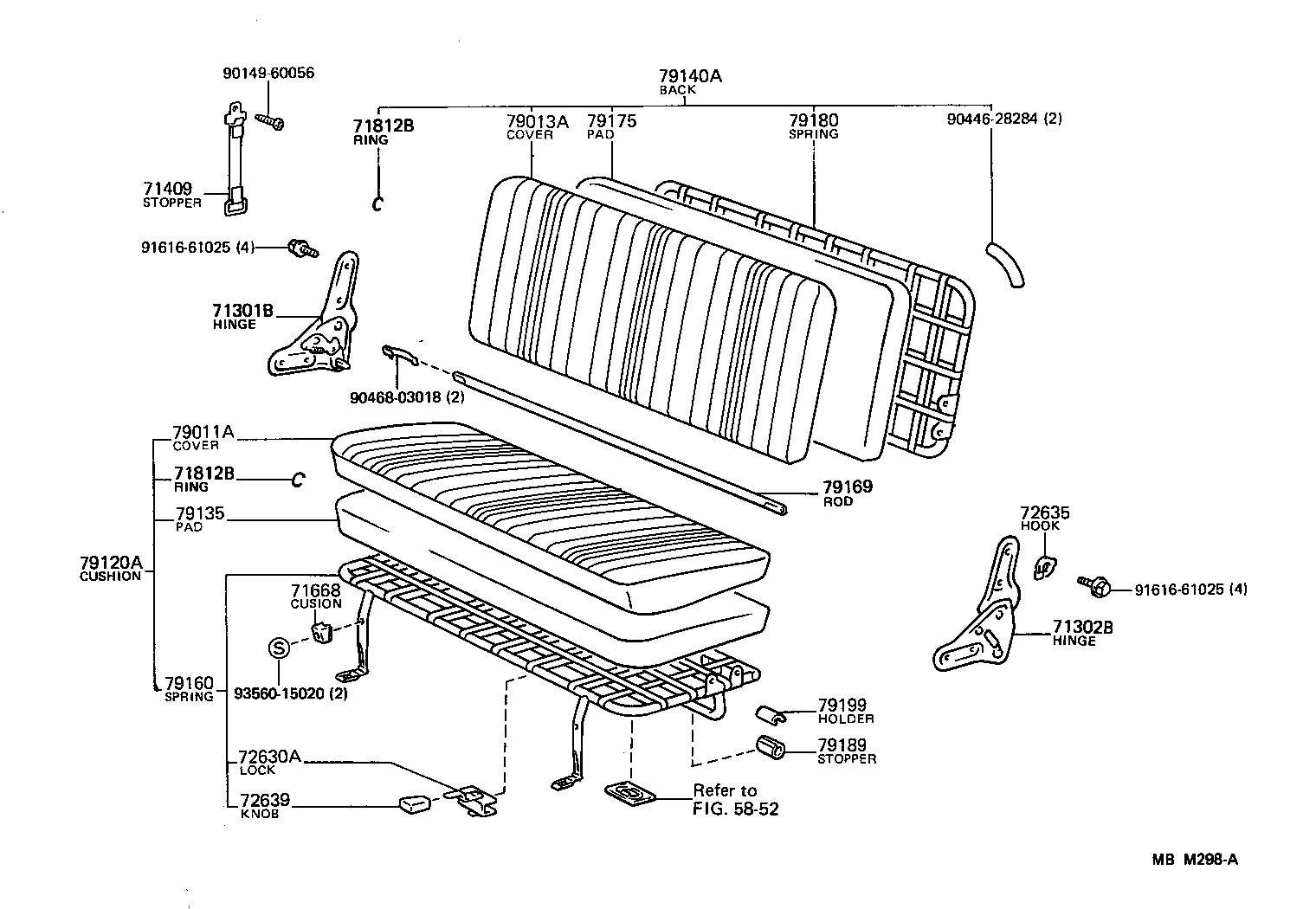

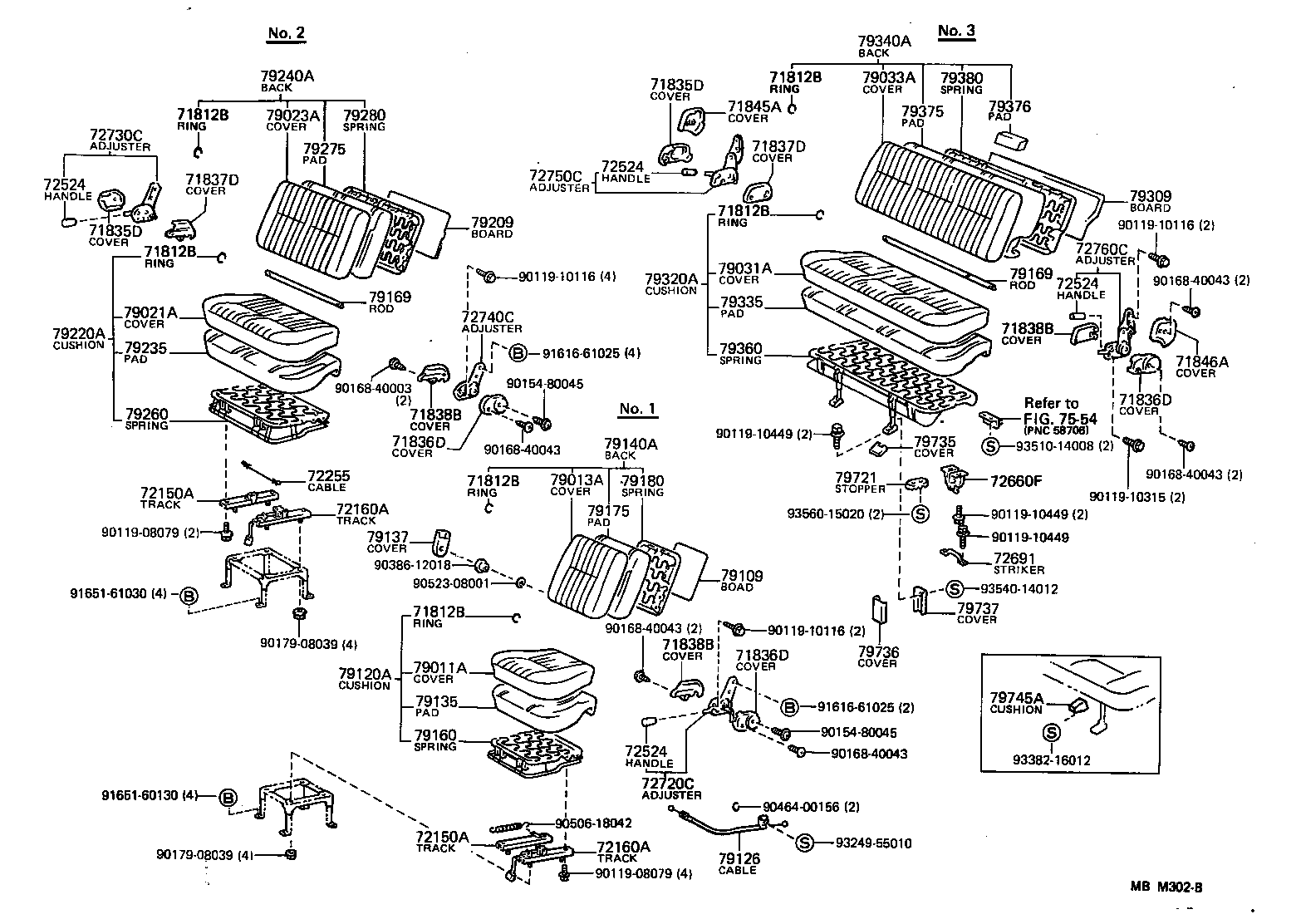

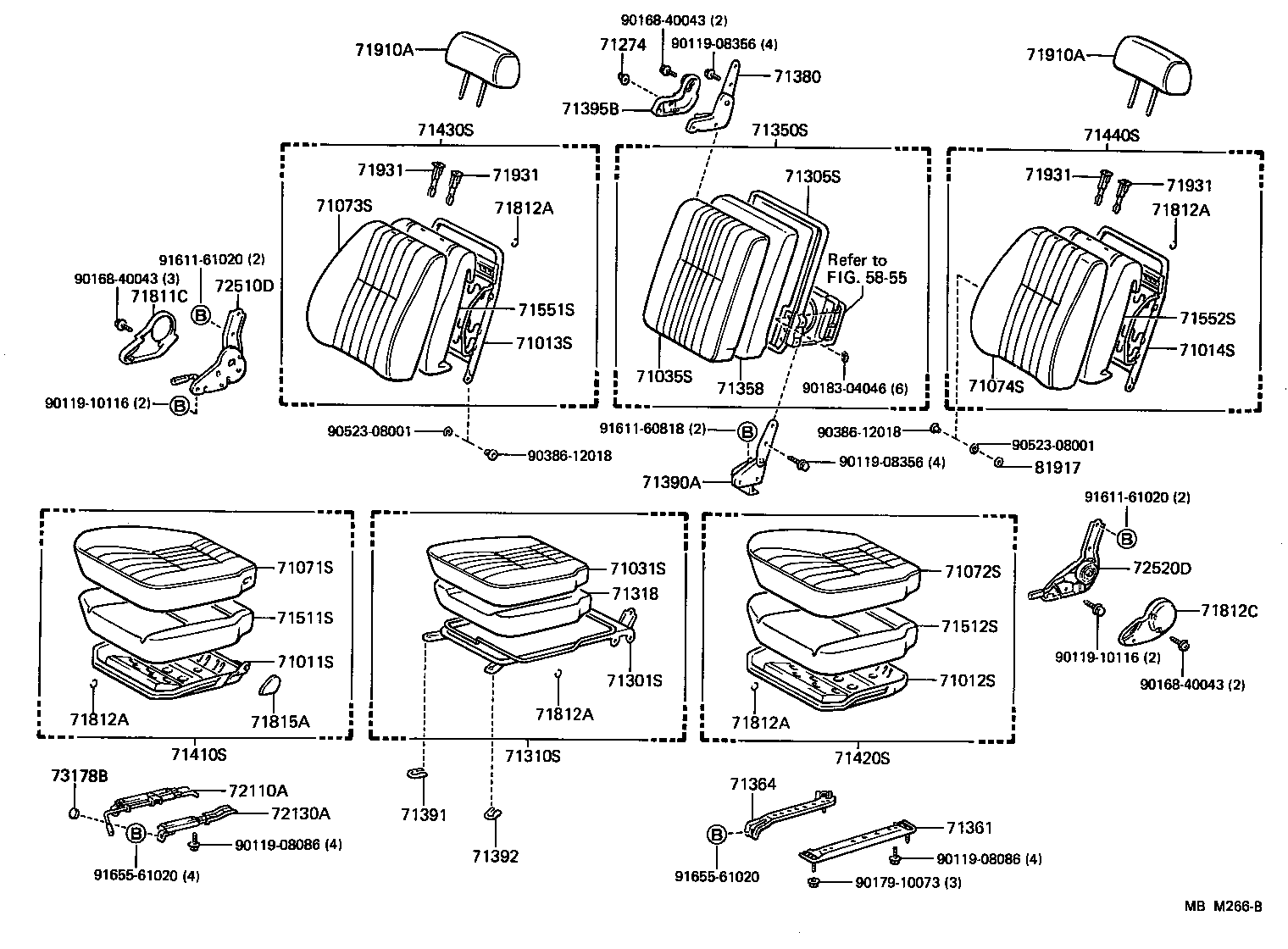

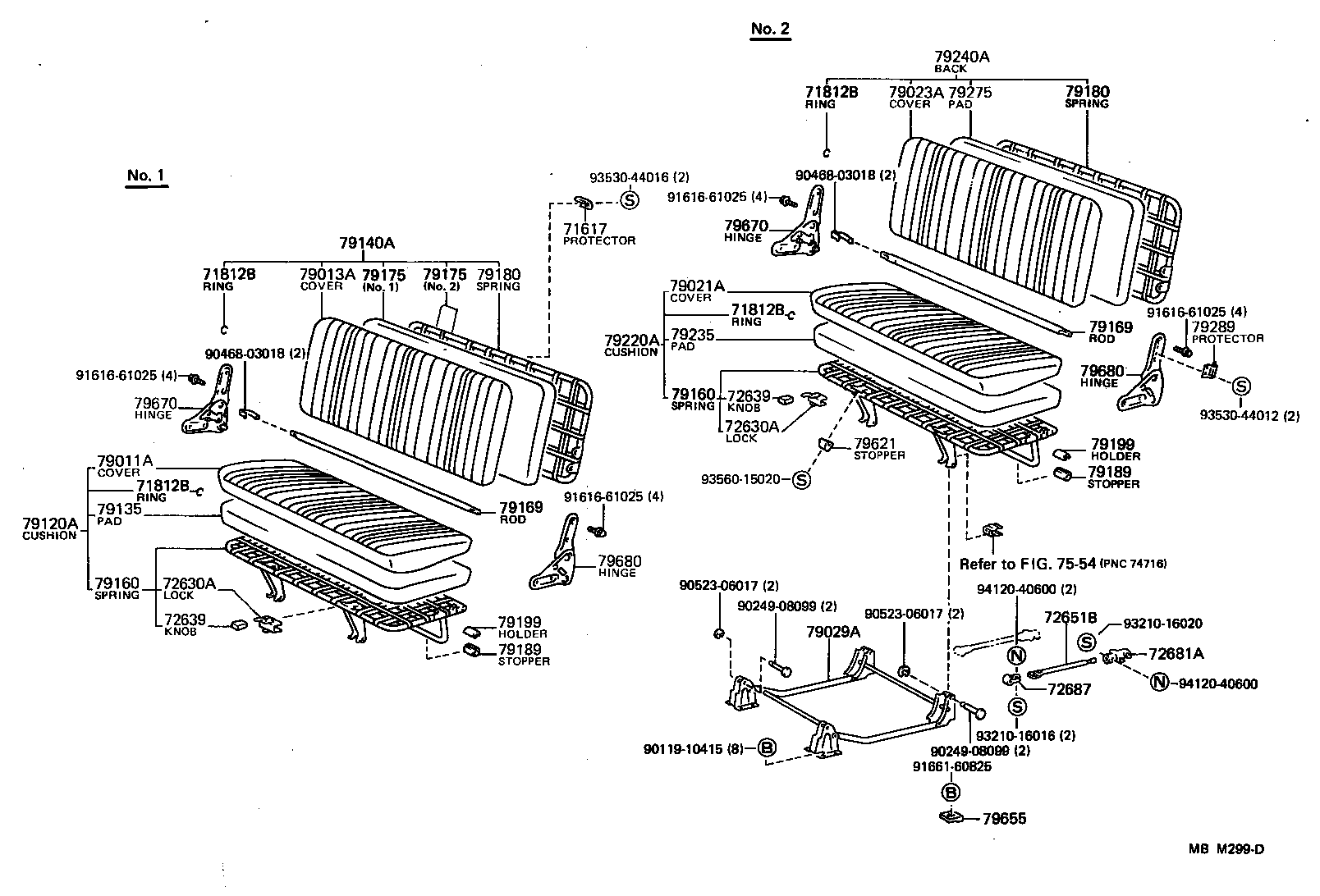

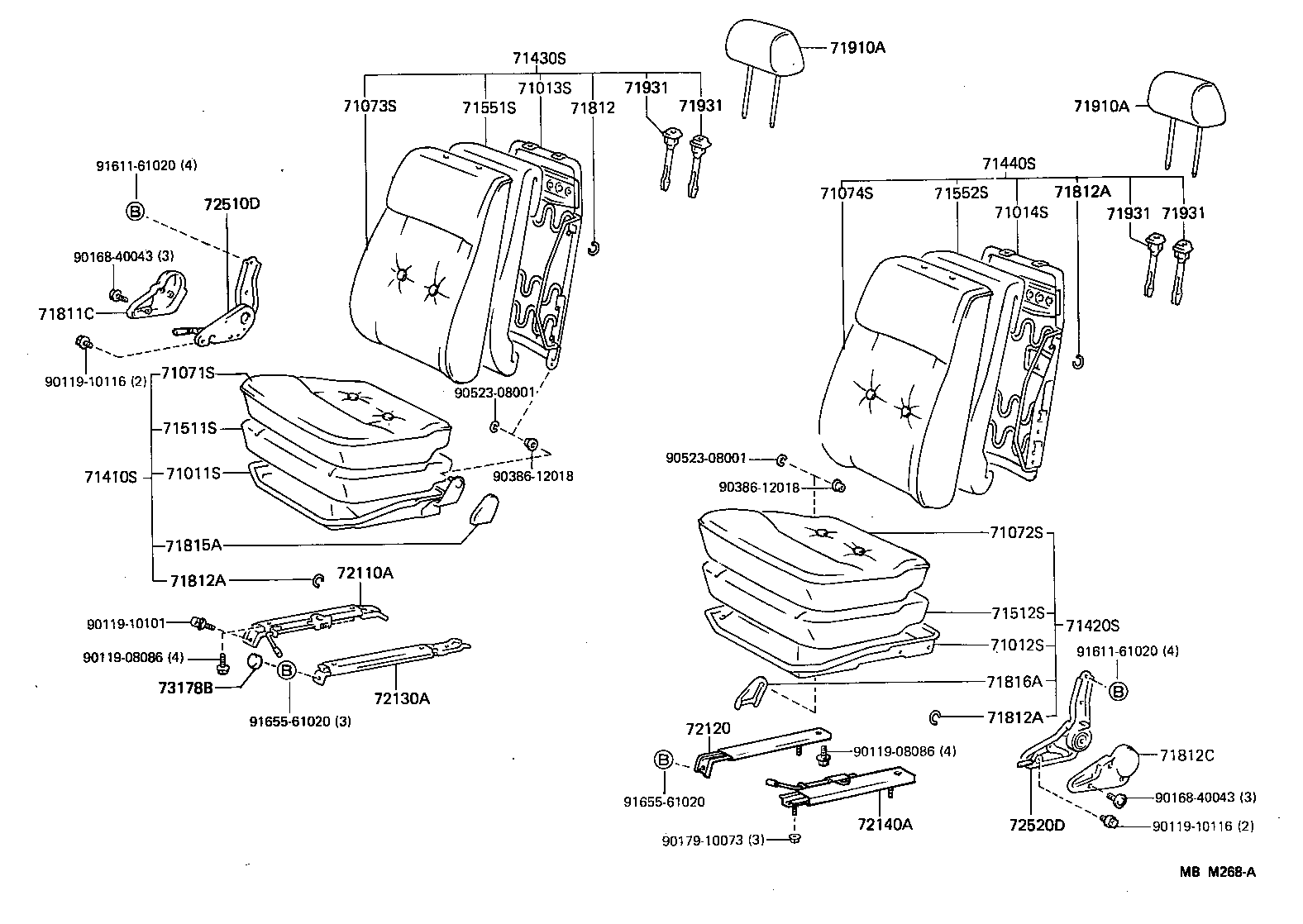

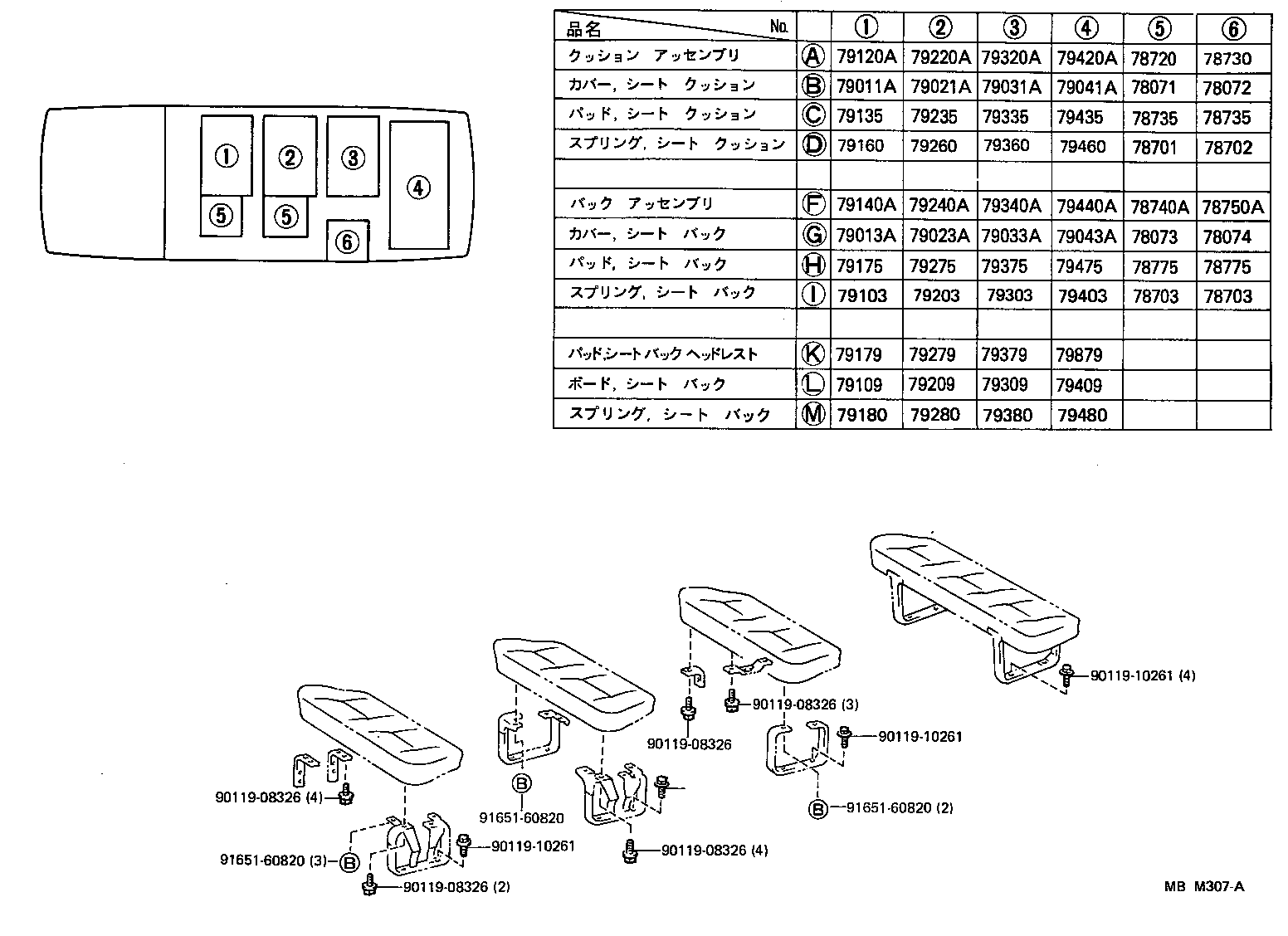

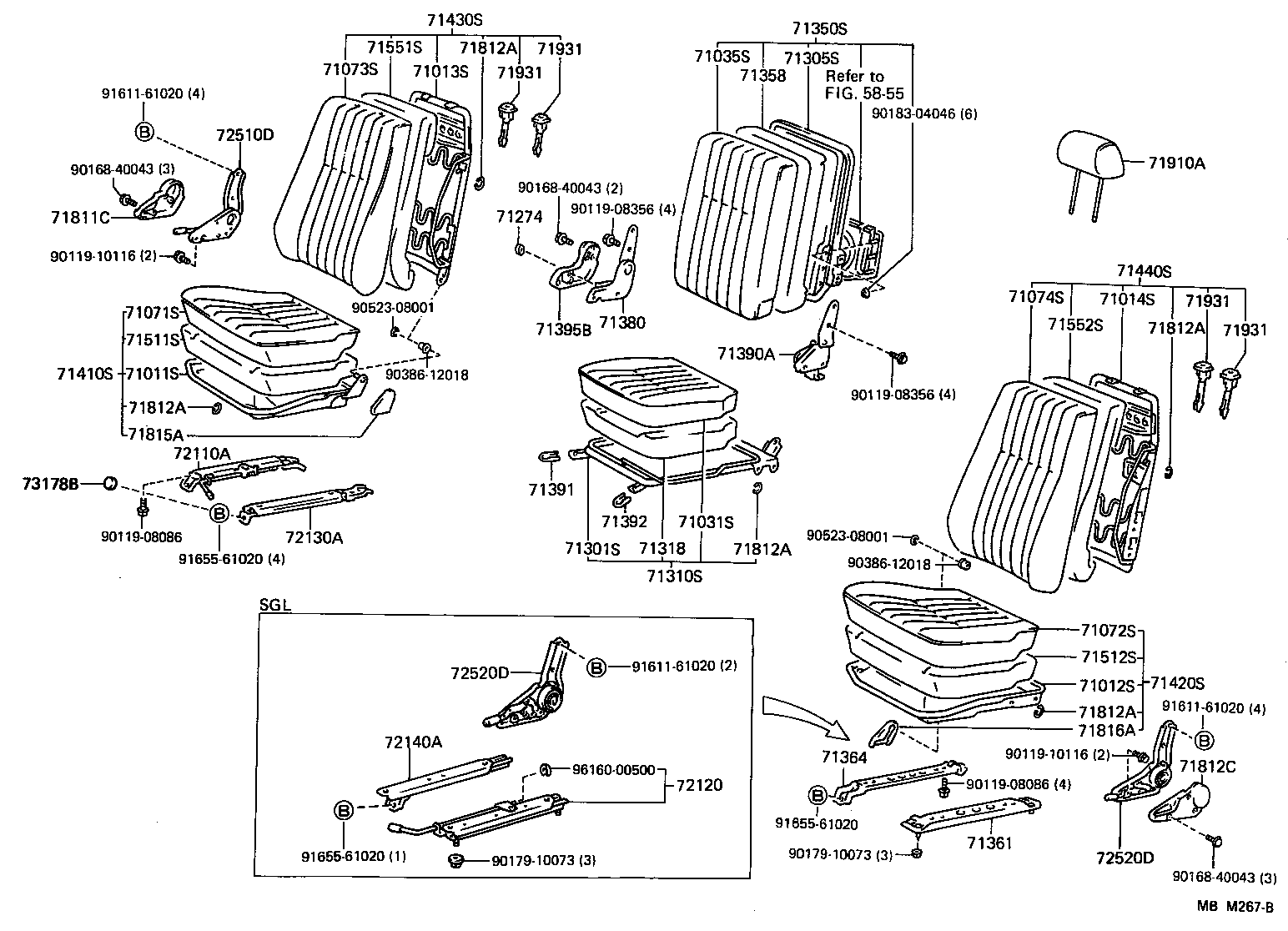

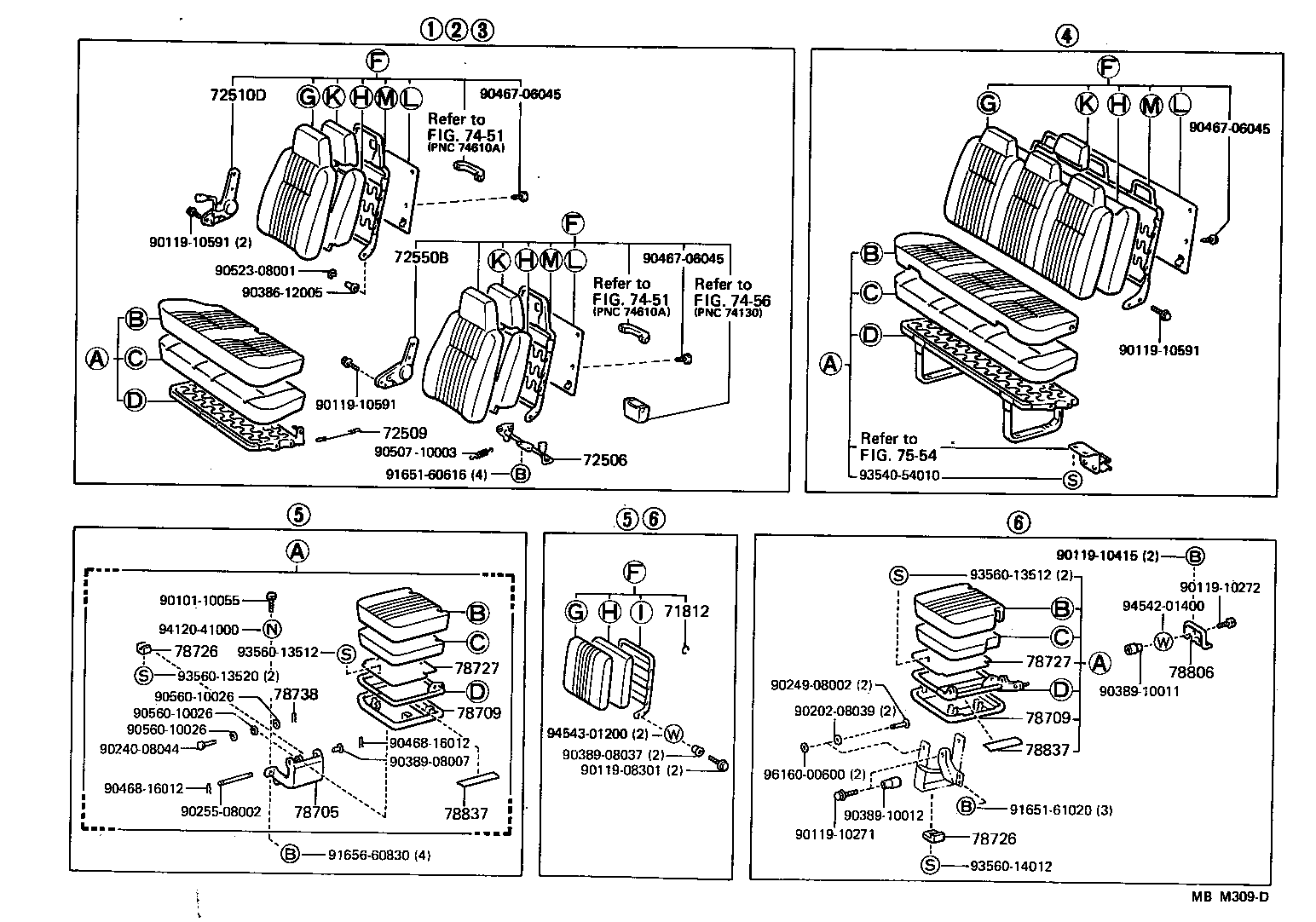

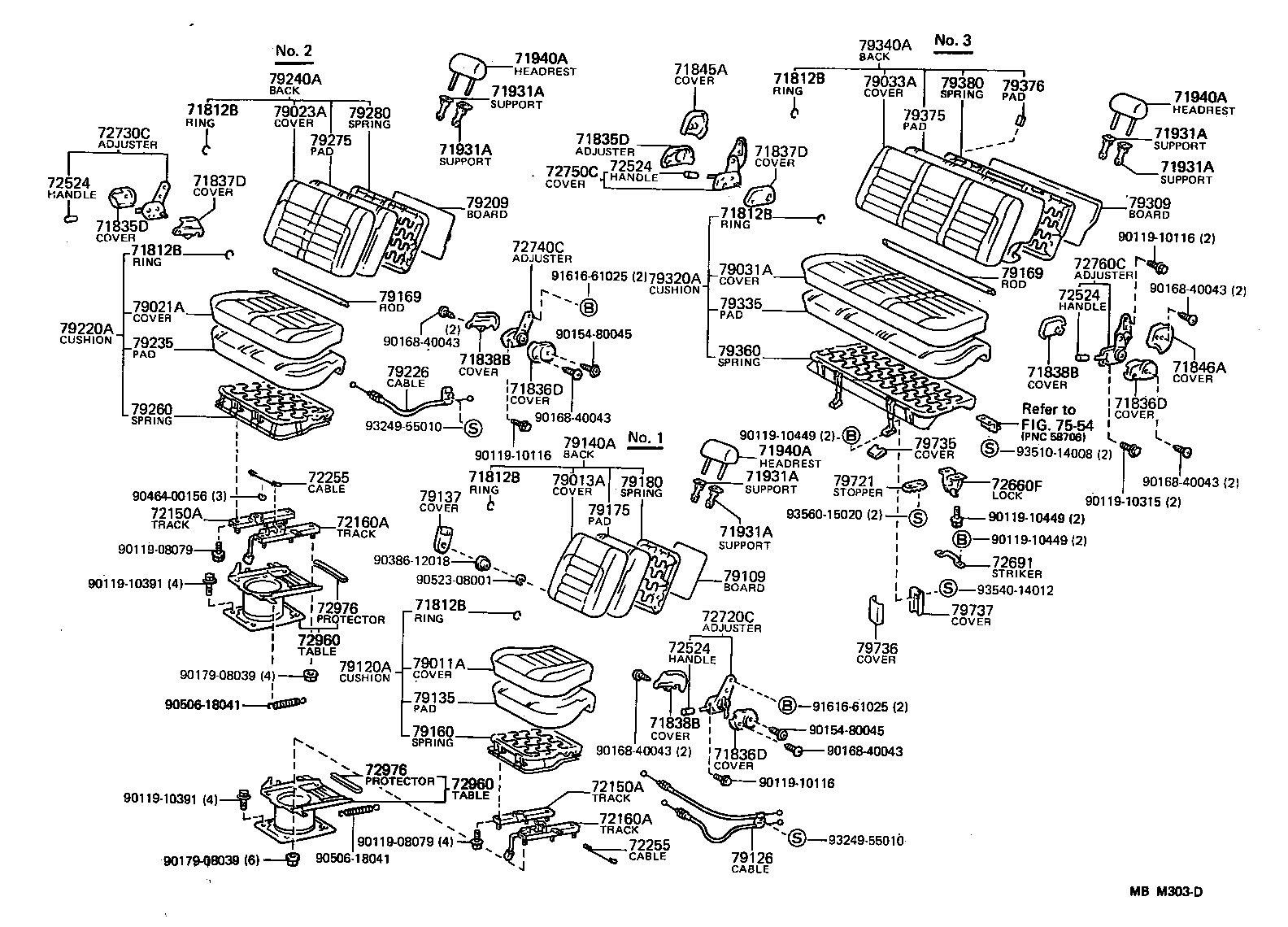

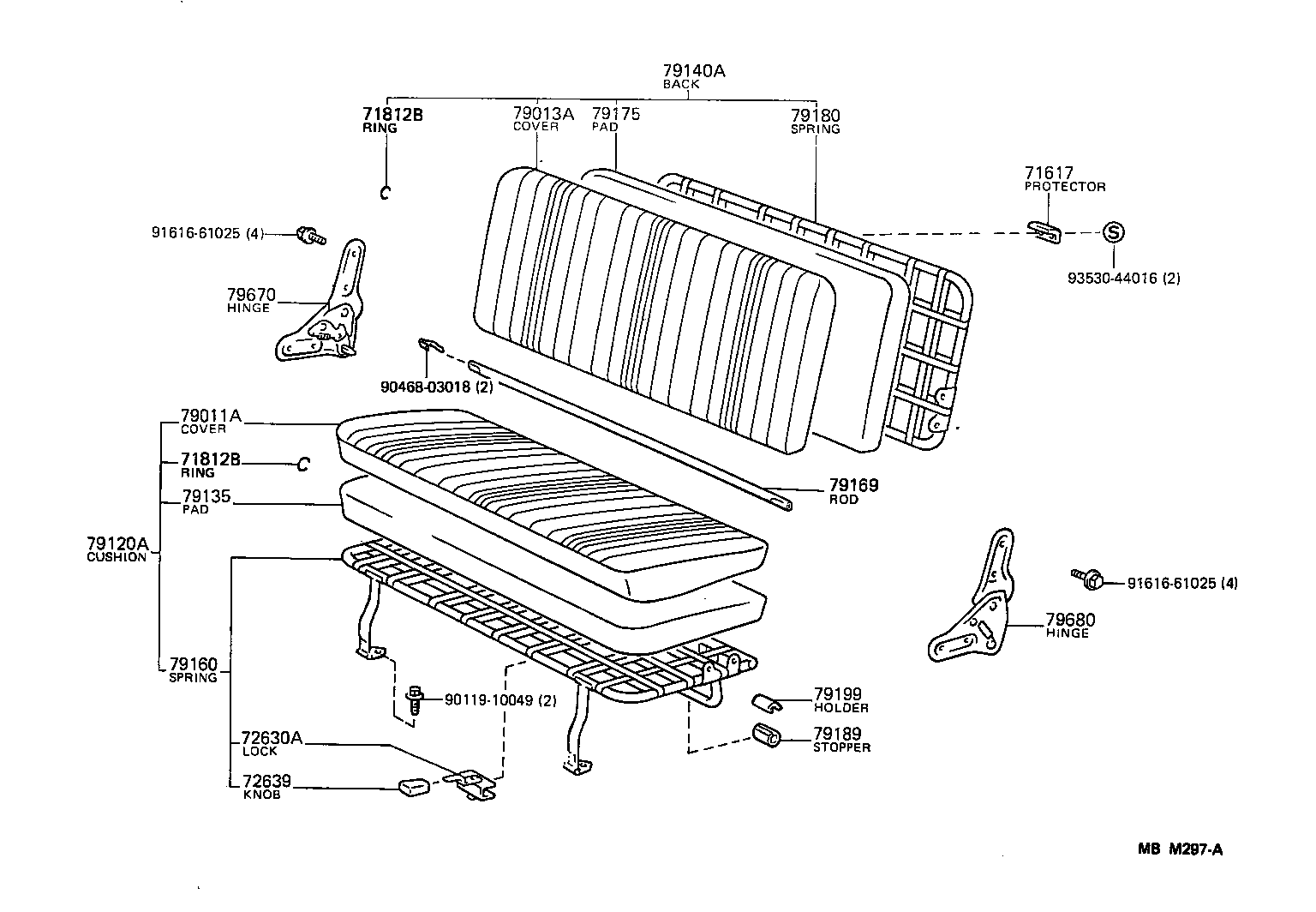

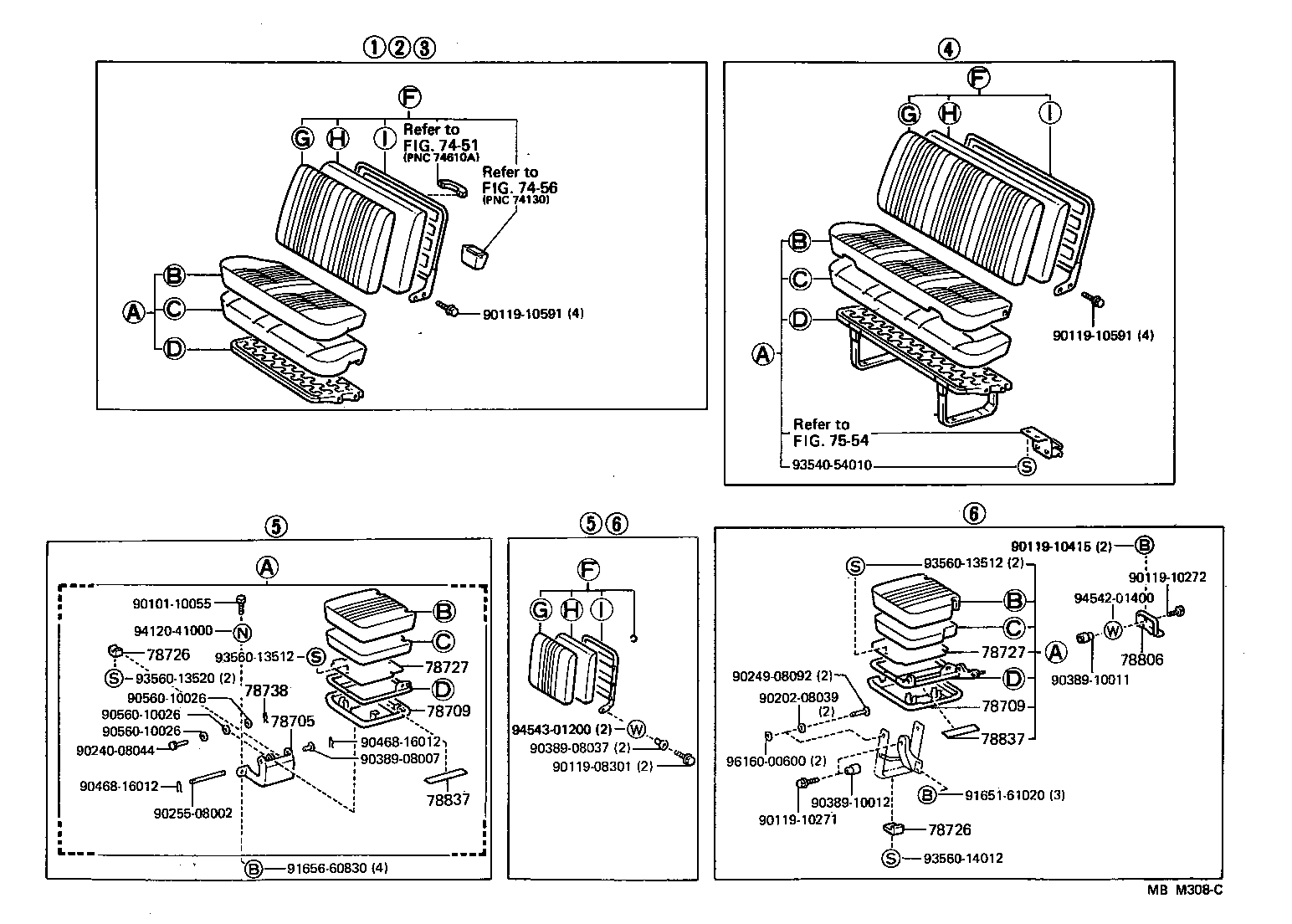

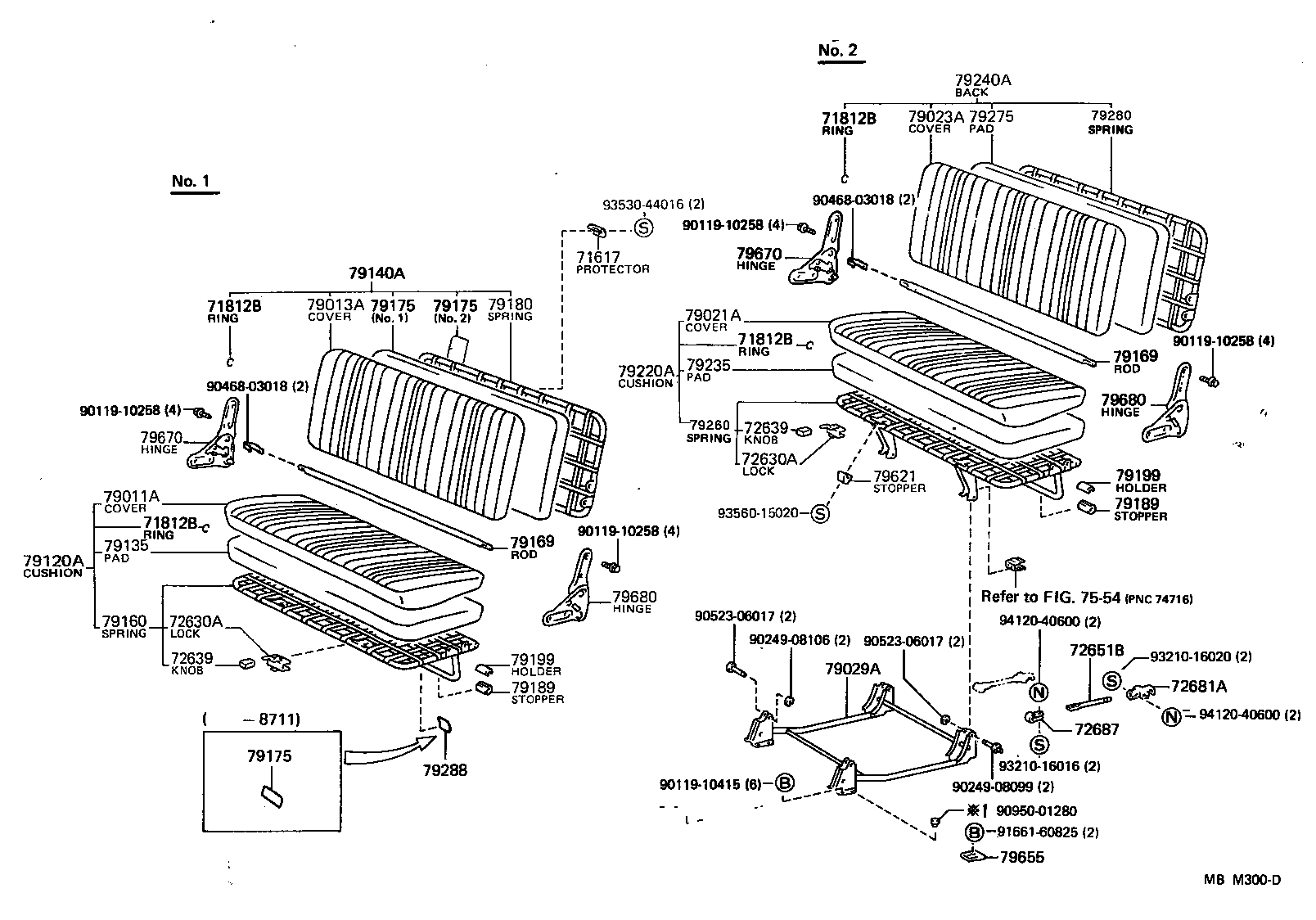

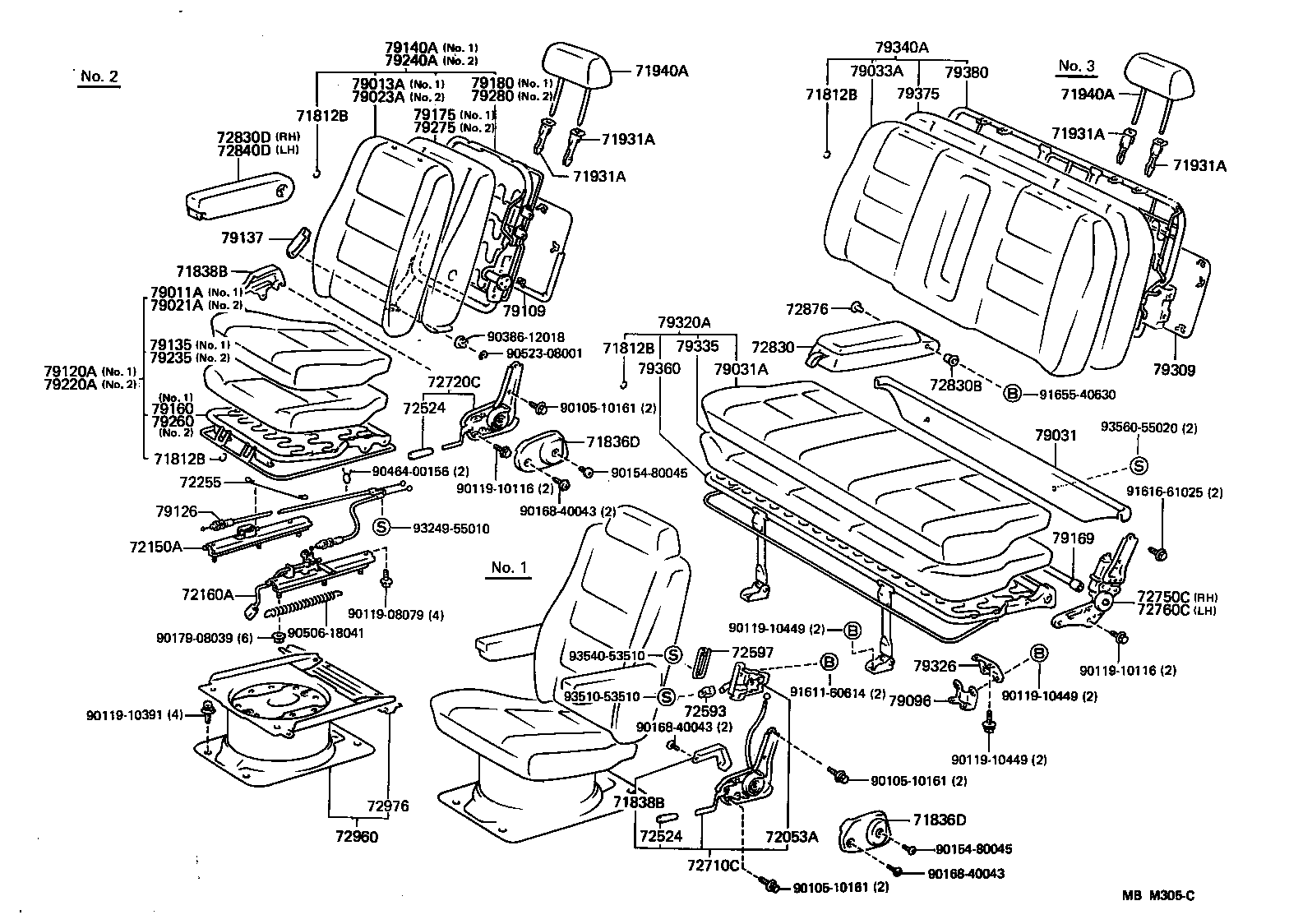

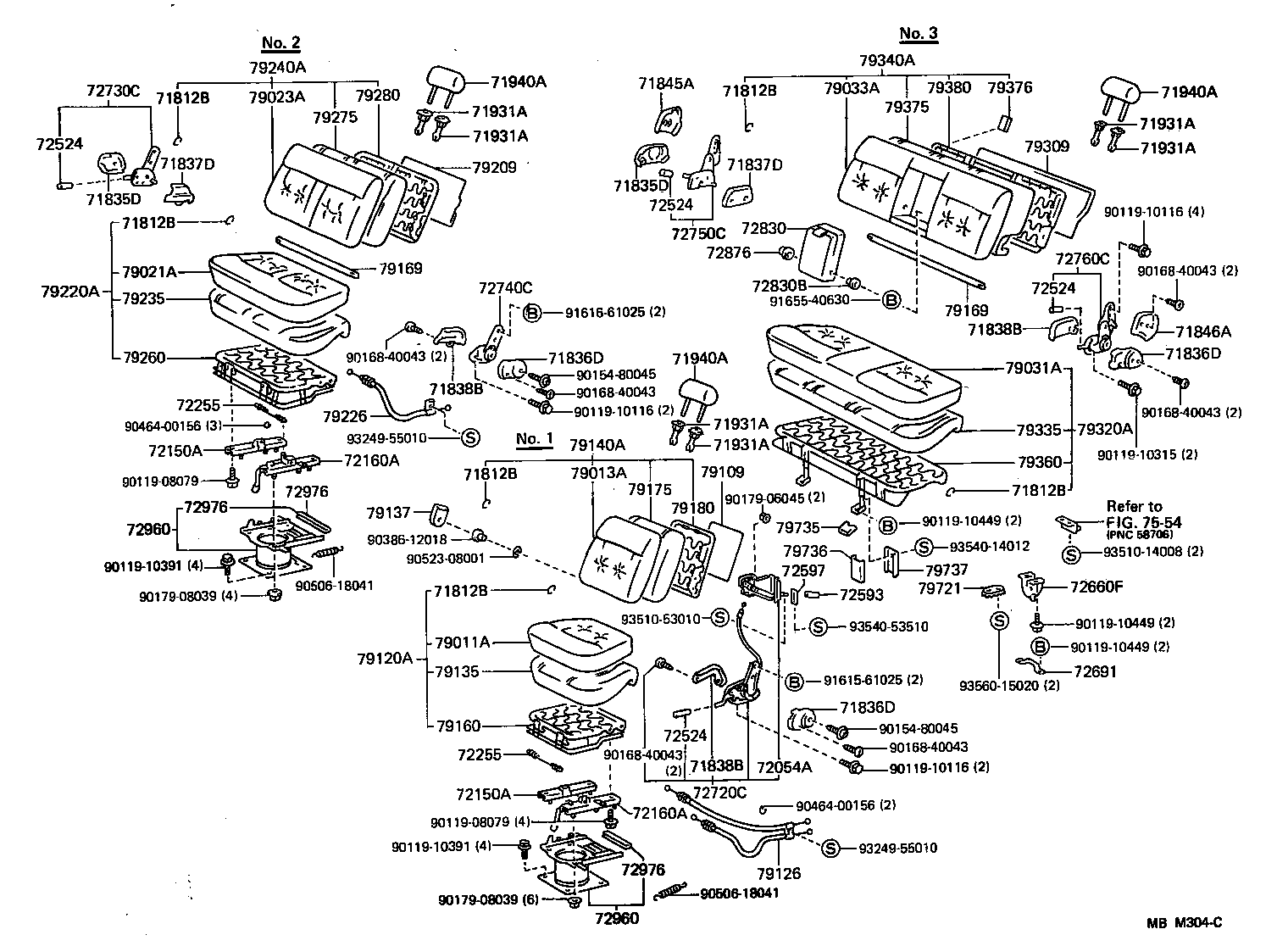

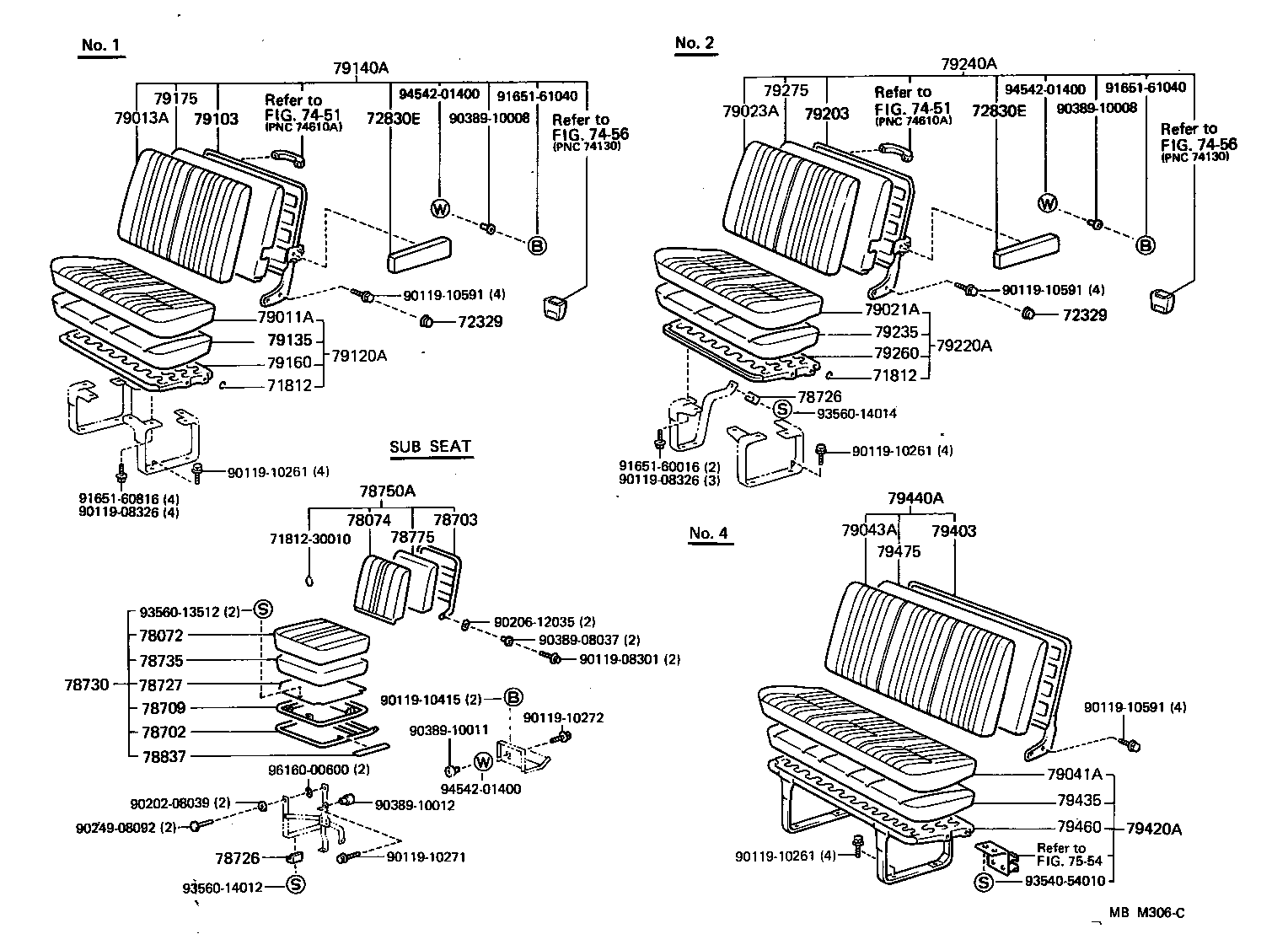

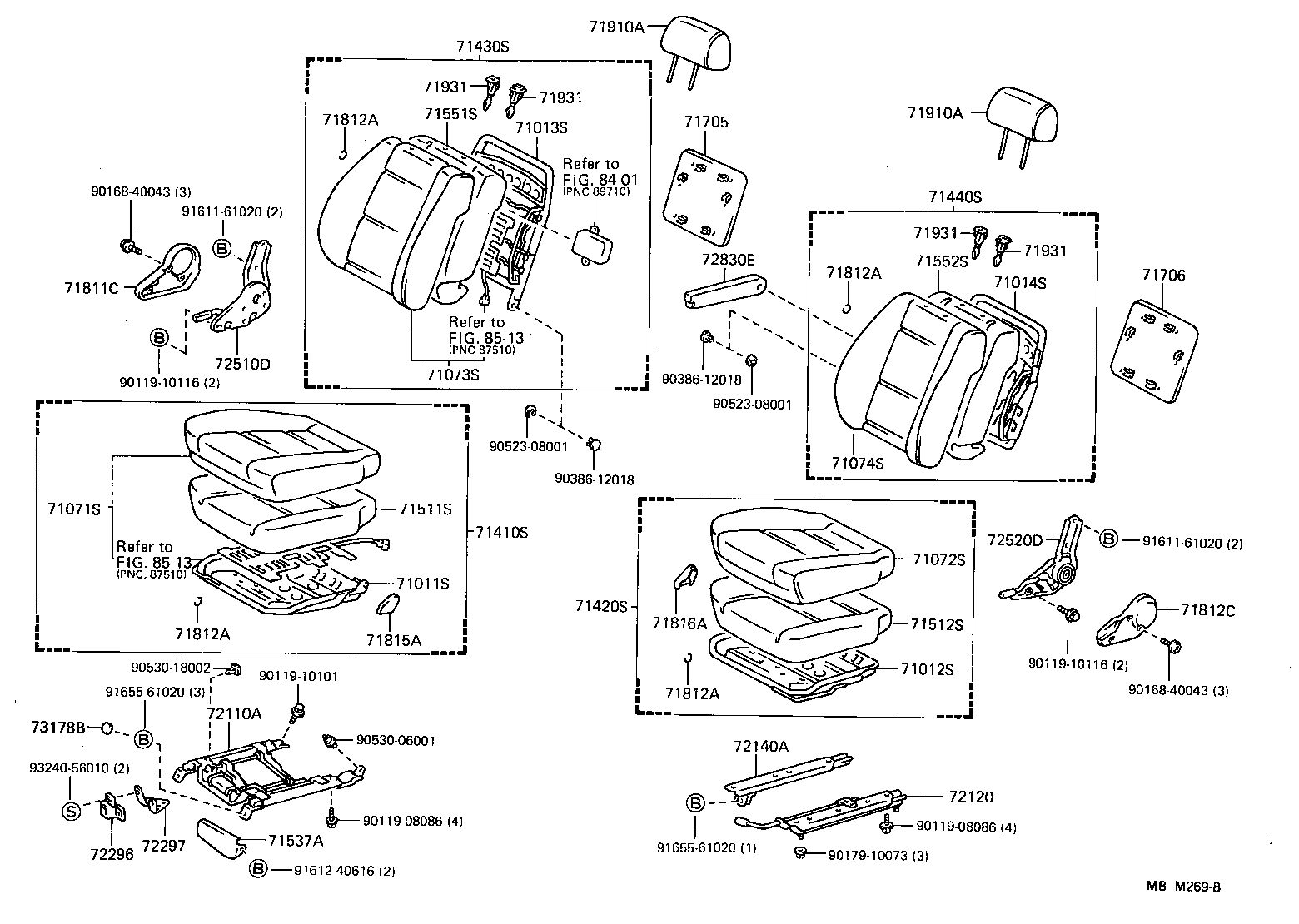

Figure MBM265 MBM265 1987-08 → — Figure MBM266B MBM266B 1987-08 → — Figure MBM267B MBM267B 1987-08 → — Figure MBM268A MBM268A 1987-08 → — Figure MBM269B MBM269B 1987-08 → — Figure MBM297A MBM297A 1987-08 → — Figure MBM298A MBM298A 1987-08 → — Figure MBM299D MBM299D 1987-08 → — Figure MBM300D MBM300D 1987-08 → — Figure MBM301A MBM301A 1987-08 → — Figure MBM302B MBM302B 1987-08 → — Figure MBM303D MBM303D 1987-08 → — Figure MBM304C MBM304C 1987-08 → — Figure MBM305C MBM305C 1987-08 → — Figure MBM306C MBM306C 1987-08 → — Figure MBM307A MBM307A 1987-08 → — Figure MBM308C MBM308C 1987-08 → — Figure MBM309D MBM309D 1987-08 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71031S Cover Sub-assy, Center Seat Cushion
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71274 Knob, Front Seat Hinge
71280A Hinge Assy, Front Seatback, LH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301S Frame Sub-assy, Center Seat Cushion
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71305S Frame Sub-assy, Center Seatback
71310S Cushion Assy, Front Seat, Center
71318 Pad, Center Seat Cushion
71350S Back Assy, Front Seat, Center
71358 Pad, Center Seatback
71361 Bracket, Front Seat Set, NO.1
71364 Bracket, Front Seat Set, NO.4
71380 Hinge Assy, Center Seat, RH
71390A Hinge Assy, Center Seat, LH
71391 Cover, Center Seat Cushion Bracket, RH
71392 Cover, Center Seat Cushion Bracket, LH
71395B Cover, Center Seat Hinge, RH
71409 Stopper Sub-assy, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71498 Protector, Rear Seatback
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71617 Protector, Rear Seatback
71668 Cushion, Rear NO.3 Seat
71691A Cover, Rear NO.3 Seat Lock, RH
71692A Cover, Rear NO.3 Seat Lock, LH
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71811C Cover, Reclining Adjuster, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71812C Cover, Reclining Adjuster, LH
71815A Cover, Front Seat Cushion Hinge, RH
71816A Cover, Front Seat Cushion Hinge, LH
71832C Cover, Front LH Seat Hinge
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838B Cover, Rear Seat Reclining, Inner LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71845A Cover, Rear Seat Reclining, Upper RH
71846A Cover, Rear Seat Reclining, Upper LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72053A Lever Sub-assy, Reclining Remote Control
72054A Lever Sub-assy, Reclining Remote Control, LH
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72150A Track Assy, Rear Seat, RH
72160A Track Assy, Rear Seat, LH
72255 Cable, Rear Seat Track Lever
72296 Bezel, Front Seat Slide Switch
72297 Bracket, Front Seat Slide Switch
72329 Cover, Seat Adjuster Bolt
72506 Arm Sub-assy, Reclining Adjuster, Center LH
72509 Wire Sub-assy, Adjuster Equlizing
72510D Adjuster Assy, Reclining Seat, Outer RH
72520D Adjuster Assy, Reclining Seat, Outer LH
72524 Handle, Reclining Adjuster Release
72550B Adjuster Assy, Reclining Seat, Center RH
72593 Knob, Reclining Remote Control Lever
72597 Bezel, Reclining Remote Control
72613A Striker, Front Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72635 Hook, Rear Seatback Lock
72639 Knob, Rear Seat Lock
72650F Lock Assy, Rear Seat, RH
72651B Rod, Rear Seat Lock
72658 Knob, Rear Seat Handle
72660F Lock Assy, Rear Seat, LH
72675 Hook, Rear Seat Lock, RH
72676 Hook, Rear Seat Lock, LH
72681A Hook, Rear Seat
72687 Bracket, Rear Seat Hook
72691 Striker, Rear NO.3 Seat Lock
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72830D Armrest Assy, Rear Seat, RH
72830E Armrest Assy, Front Seat
72840D Armrest Assy, Rear Seat, LH
72876 Guide, NO.3 Seat Center Armrest
72960 Table Assy, Rear Seat Turn
72976 Protector, Rear Seat Turn Table
73178B Cap, Seat Belt Anchor Cover
78071 Cover Sub-assy, Sub Seat Cushion, RH
78072 Cover Sub-assy, Sub Seat Cushion, LH
78073 Cover Sub-assy, Sub Seatback, RH
78074 Cover Sub-assy, Sub Seatback, LH
78701 Frame Sub-assy, Sub Seat Cushion, RH
78702 Frame Sub-assy, Sub Seat Cushion, LH
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78709 Panel Sub-assy, Sub Seat Cushion
78720 Cushion Assy, Sub Seat, RH
78726 Cushion, Sub Seat Cushion Frame
78727 Board, Sub Seat Cushion
78730 Cushion Assy, Sub Seat, LH
78735 Pad, Sub Seat Cushion
78738 Pin, Sub Seat Cushion Pin
78740A Back Assy, Sub Seat, RH
78750A Back Assy, Sub Seat, LH
78775 Pad, Sub Seatback
78806 Bracket Sub-assy, Sub Seat Cushion, Rear LH
78837 Pad, Sub Seat Cushion Safety
79011A Cover Sub-assy, NO.1 Seat Cushion
79013A Cover Sub-assy, NO.1 Seatback
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79029A Stay Sub-assy, NO.2 Seat
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79031A Cover Sub-assy, NO.3 Seat Cushion
79033A Cover Sub-assy, NO.3 Seatback
79041A Cover Sub-assy, NO.4 Seat Cushion
79043A Cover Sub-assy, NO.4 Seatback
79096 Leg Sub-assy, NO.3 Seat, Inner LH
79103 Frame Sub-assy, NO.1 Seatback
79109 Board Sub-assy, NO.1 Seatback
79120A Cushion Assy, NO.1 Seat
79126 Cable, NO.1 Seat Lock
79135 Pad, NO.1 Seat Cushion
79137 Cover, NO.1 Seat Hinge
79140A Back Assy, NO.1 Seat
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79175 Pad, NO.1 Seatback
79179 Pad, NO.1 Seatback Headrest
79180 Spring Assy, NO.1 Seatback
79189 Stopper, NO.1 Seat Leg
79199 Holder, NO.1 Seat Leg Stopper
79203 Frame Sub-assy, NO.2 Seatback
79209 Board Sub-assy, NO.2 Seatback
79220A Cushion Assy, NO.2 Seat
79226 Cable, NO.2 Seat Lock
79235 Pad, NO.2 Seat Cushion
79240A Back Assy, NO.2 Seat
79260 Spring Assy, NO.2 Seat Cushion
79275 Pad, NO.2 Seatback
79279 Pad, NO.2 Seatback Headrest
79280 Spring Assy, NO.2 Seatback
79288 Stopper, NO.2 Seat Cushion
79289 Protector, NO.2 Seatback
79303 Frame Sub-assy, NO.3 Seatback
79309 Board Sub-assy, NO.3 Seatback
79320A Cushion Assy, NO.3 Seat
79326 Support, NO.3 Seat Cushion Leg
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79360 Spring Assy, NO.3 Seat Cushion
79375 Pad, NO.3 Seatback
79376 Pad, NO.3 Seatback Side
79379 Pad, NO.3 Seatback Headrest
79380 Spring Assy, NO.3 Seatback
79403 Frame Sub-assy, NO.4 Seatback
79409 Board Sub-assy, NO.4 Seatback
79420A Cushion Assy, NO.4 Seat
79435 Pad, NO.4 Seat Cushion
79440A Back Assy, NO.4 Seat
79460 Spring Assy, NO.4 Seat Cushion
79475 Pad, NO.4 Seatback
79480 Spring Assy, NO.4 Seatback
79621 Stopper, NO.2 Seat Cushion
79655 Striker, NO.2 Seat Leg
79670 Hinge Assy, NO.1 Seat, RH
79680 Hinge Assy, NO.1 Seat, LH
79721 Stopper, NO.3 Seat
79735 Cover, NO.3 Seat Leg, NO.1
79736 Cover, NO.3 Seat Leg, NO.2
79737 Cover, NO.3 Seat Leg, NO.3
79745A Cushion, NO.3 Seat Leg
79879 Pad, Fold Seat Headrest
81917 Washer, Leather
